WILDRABBIT Gaming PC i5-13400F STRIX B760 NVIDIA GeForce RTX 3070 Ti 32GB RAM 750W be quiet! Win 11 Pro onBoard WIFI + Bluetooth
Article number:
4260561742412
In stock
Bulletpoints
- [ Item number EAN: 4260561742412 ] --- Intel Core i5-13400F 10x 2.50GHz (BX8071513400F) - ASUS ROG STRIX B760-A GAMING WIFI DDR4 (90MB1DD0-M0EAY0) - 32GB Corsair Vengeance LPX 3.200MHz (CMK32GX4M2E3200C16)
- ASUS TUF GAMING GeForce RTX 3070 TI OC 8GB (90YV0GY0-M0NA00) - 750W be quiet! Pure Power 12 M (BN343) - be quiet! Pure Base 500DX black window silent (BGW37) - onBoard WIFI + Bluetooth
- 1TB Western Digital WD Blue SN570 NVMe M.2 (Read 3500MB/s - Write 3000MB/s)
- Windows 11 64Bit Professional installiert aktiviert DPK (Ready to Work - ohne Datenträger)
- Assembled, tested and checked - 2 years warranty
i5-13400F
STRIX B760
TUF GAMING RTX 3070 Ti OC
32GB RAM 3.200MHz
750W be quiet!
Pure Base 500DX (BGW37)
Dark Rock 4
Windows 11 64Bit Prof.
onBoard WIFI + Bluetooth
System performance
Office
Multimedia
Gaming
Workstation/CAD
System performance
Office
Multimedia
Gaming
Workstation/CAD
Product information "WILDRABBIT Gaming PC i5-13400F STRIX B760 NVIDIA GeForce RTX 3070 Ti 32GB RAM 750W be quiet! Win 11 Pro onBoard WIFI + Bluetooth"
CPU (Processor) | Intel Core i5-13400F 10x 2.50-4.60GHz (BX8071513400F) |
Mainboard | ASUS ROG STRIX B760-A GAMING WIFI DDR4 (90MB1DD0-M0EAY0) |
Video Card (VGA Card) | ASUS TUF GAMING GeForce RTX 3070 TI OC 8GB (90YV0GY0-M0NA00) |
System Memory (RAM) | 32GB Corsair Vengeance LPX 3.200MHz (CMK32GX4M2E3200C16) |
SSD | 1TB Western Digital WD Blue SN570 NVMe M.2 (Read 3500MB/s - Write 3000MB/s) |
Power Supply Unit (PSU) | 750W be quiet! Pure Power 12 M (BN343) ATX 3.0 |
Case (Case) | be quiet! Pure Base 500DX black window silent (BGW37) |
CPU Cooler (Cooler) | be quiet! Dark Rock 4 (BK021) |
Operating System (Ready to use installed) | Windows 11 64Bit Professional installed activated digital key (ready to work - without data media) |
Case Fan | 3X 140mm Default Case Fan |
W-LAN Unit internal | onBoard WIFI + Bluetooth |
ASUS ROG STRIX B760-A GAMING WIFI DDR4 (90MB1DD0-M0EAY0)
On its face, the Strix B760-A D4 wears a light aesthetic, but beneath its grey aluminum heatsinks lies a dark PCB flush with high-performance hardware. A VRM configuration equipped to handle high-core-count Intel® 13th Gen processors, PCIe 5.0 bandwidth for graphics cards, and next-gen WiFi 6E team up to bring devilishly good gaming to this heavenly board. DIY-FRIENDLY FEATURES PCIE® SLOT Q-RELEASE A physical button unlocks the first PCIe slot?s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it?s time to upgrade to a new GPU or other compatible device. M.2 Q-LATCH The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw. BIOS FLASHBACK? BIOS FlashBack? is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed. Q-LED Four onboard LEDs indicate power status and identify problems with CPU, memory, graphics card, or boot device for quick diagnosis. ALL-ROUND PERFORMANCE The neat aesthetics of the Strix B760-A D4 were no distraction when crafting this motherboard?s power delivery and thermal arrays. You?ll get a fully fledged gaming experience and then some with this beast.? POWER ARCHITECTURE? 12 + 1 power stages deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.? ALLOY CHOKES AND DURABLE CAPACITORS High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards. SIX-LAYER PCB A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.? OPTIMEM II OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk. VRM HEATSINK ARRAY Covering the power solution are two thick heatsinks with strategic airflow channels for increased heat dissipation while powering high-performance Intel 13th Gen processors. M.2 HEATSINKS Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability. CPU FAN HEADERS Positioned near the top of the motherboard, a pair of PWM/DC fan headers give easy access for CPU coolers.? AIO PUMP FAN HEADER A dedicated PWM/DC header connects self-contained water-cooling setups. 4-PIN FAN HEADERS Each header supports auto-detection of PWM or DC fans. LEADING CONNECTIVITY The Strix B760-A D4 is entirely well-connected with high-speed wireless and wired networking, a plethora of USB I/O, and SupremeFX audio to pump crystal-clear sound through speakers or headphones for enhanced immersion.? PCIE PERFORMANCE The top PCIe 5.0 x16 SafeSlot is well-equipped for the increased size and bandwidth of next-gen graphics cards. Zippy storage options abound with three PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance. NETWORKING WIFI 6E Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments. * WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi. Intel 2.5G Ethernet Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet. USB A USB 3.2 Gen 2x2 Type-C® port offers speedy data transfers up to 20 Gbps. AUDIO SUPREMEFX ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix B760-A D4 implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets. PLAY IN STYLE Bold aesthetics and Aura Sync RGB controls let the ROG Strix B760-A D4 shine in every build. UNDENIABLY ROG STRIX? Diagonal slats, brushed aluminum, and bold RGB have become hallmarks of the ROG aesthetic, and the Strix B760-A D4 bears all of them with pride. Its white, silver, and black color scheme pairs well with both dark and lighter-colored components. 8-bit accents show some gaming pride. OUTSHINE THE COMPETITION ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look. COOLER COMPATIBILITY The ROG Strix B760-A D4 bears the same LGA 1700 socket as Z690 and B660 models, so many existing coolers are compatible, including all AIO offerings from ASUS and ROG.? THE ROG STRIX ECOSYSTEM AWAITS Level up your game with ROG Strix. Enjoy complimentary aesthetics, control, and compatibility across AIO coolers, cases, peripherals, and much more. ROG offers more choices than any other brand. SOFTWARE UTILITIES A myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertips. TWO-WAY AI NOISE CANCELATION This utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls. AI NETWORKING GameFirst VI optimizes networking performance by allocating bandwidth in real time based on application usage scenarios and corresponding learning algorithms. The latest update includes dedicated support for GeForce NOW to ensure the lowest latency possible during intense game streaming sessions. The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans. AI Suite 3 gives you digital power controls and hardware monitoring directly from the OS. Intuitive sliders and dials let you take command of your VRM, including tweaking load-line calibration, switching frequency, and voltage droop, all while tracking CPU vitals and fan speeds in real time. Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset. SONIC STUDIO LINK Easily apply Sonic Studio effects on all playback devices. Simply press the Sonic Studio Link button to enjoy the effect on any playback device. SONIC STUDIO VIRTUAL MIXER Combine audio output from selected apps with audio from the microphone input and stream the compiled mix. APP-SPECIFIC PROFILES Apply customized audio settings to different applications, so everything you do is perfectly tuned to the way you want to listen. Through the pre-loaded DTS® Sound Unbound? app, the ROG Strix B760-A D4 envelops you in rich audio, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By exploiting Microsoft spatial sound technology, DTS Sound Unbound creates an audial 3D space ? putting you right in the middle of the soundscape, where you can sense the location and direction of every gunshot, footstep, or other sound in your virtual environment. *DTS Sound Unbound requires in-game support. Check with developers for supported titles. STEREO SOUND Discrete left and right audio channels enable headphone or two-speaker setups. SURROUND SOUND Audio is split and served over multiple speaker channels ? e.g., 5.1 or 7.1 ? to create an enveloping experience on a single, logical plane. SPATIAL SOUND A virtual 360-degree soundscape immerses you in a realistic sonic experience. he ROG Strix B760-A D4 includes a sixty-day AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers*. *Support available for ROG Ryujin II and later models. Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate?s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers. You can use Armoury Crate to download drivers, tools, and user manuals, and to register products. It also taps into a special news feed that connects you to the global ASUS gaming community. * Windows 10 or 11 required for full Aura Sync functionality within Armoury Crate. For Windows 8 and earlier versions, standalone Aura Sync software is available for free download from the product support site.?
Processor
Processor manufacturer | Intel |
Processor socket | LGA 1700 |
Compatible processor series | Intel® Celeron®, Intel® Core? i3, Intel® Core? i5, Intel® Core? i7, Intel® Core? i9, Intel® Pentium® Gold |
Maximum number of SMP processors | 1 |
Supported processor sockets | LGA 1700 |
Memory
Supported memory types | DDR4-SDRAM |
Number of memory slots | 4 |
Memory slots type | DIMM |
Memory channels | Dual-channel |
Non-ECC | Y |
Supported memory clock speeds | 5333,5066,5000,4800,4600,4400,4266,4000,3733,3600,3466,3400,3333,3200,3000,2933,2800,2666,2400,2133 MHz |
Supported memory clock speed (max) | 5333 MHz |
Maximum internal memory | 128 GB |
Unbuffered memory | Y |
Storage controllers
Supported storage drive types | HDD & SSD |
Supported storage drive interfaces | M.2, SATA III |
Number of storage drives supported | 7 |
Number of HDDs supported | 4 |
RAID support | Y |
RAID levels | 0, 1, 5, 10 |
Graphics
Parallel processing technology support | Not supported |
Internal I/O
USB 2.0 connectors | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
Number of SATA III connectors | 4 |
S/PDIF out connector | Y |
Front panel audio connector | Y |
Front panel connector | Y |
ATX Power connector (24-pin) | Y |
CPU fan connector | Y |
Number of chassis fan connectors | 4 |
Peripheral (Molex) power connectors (4-pin) | 1 |
EPS power connector (8-pin) | Y |
Thunderbolt headers | 1 |
12V power connector | Y |
RGB LED pin header | Y |
Rear panel I/O ports
USB 2.0 ports quantity | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 1 |
HDMI version | 2.1 |
DisplayPorts quantity | 1 |
DisplayPort version | 1.4 |
Headphone outputs | 1 |
Line-in | Y |
Microphone in | Y |
WiFi-AP antenna jack | 2 |
Network
Ethernet LAN | Y |
Ethernet interface type | 2.5 Gigabit Ethernet |
Wi-Fi | Y |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
Bluetooth | Y |
Bluetooth version | 5.3 |
Features
Component for | PC |
Motherboard form factor | ATX |
Motherboard chipset family | Intel |
Motherboard chipset | Intel B760 |
Audio chip | Realtek ALC4080 |
Audio output channels | 7.1 channels |
Cooling type | Passive |
Power source type | ATX |
Windows operating systems supported | Windows 10, Windows 11 |
Expansion slots
PCI Express x1 (Gen 3.x) slots | 2 |
PCI Express x16 (Gen 3.x) slots | 1 |
PCI Express x16 (Gen 5.x) slots | 1 |
Number of M.2 (M) slots | 3 |
BIOS
BIOS type | UEFI AMI |
BIOS memory size | 256 Mbit |
Packaging data
Package width | 355 mm |
Package depth | 70 mm |
Package height | 275 mm |
Package weight | 1.7 kg |
Weight & dimensions
Width | 305 mm |
Depth | 244 mm |
Packaging content
User guide | Y |
Cables included | SATA |
Other features
Back-to-BIOS button | Y |
be quiet! Dark Rock 4 (BK021)
Dark Rock is the high-end series of the be quiet! range of CPU coolers. It comprises double-tower, single-tower and top-flow cooler designs. They all offer incredible performance-to-noise ratios and the highest reliability available with absolutely no compromise in silence and performance. Dark Rock coolers are virtually inaudible and place the famous be quiet! SilentWings® technology at the heart of your PC. They are excellent for overclocked systems and demanding multi-graphics platforms.
No Compromise Silence and Performance
Dark Rock 4 offers an extreme cooling performance and virtually inaudible operation. Perfect for overclocked systems and demanding workstations.
- Silent Wings 135mm PWM fan features an advanced fluid-dynamic bearing and a smooth 6-pole motor
- Optimal balance of cooling and quietness with only 21.4dB(A) at maximum fan speed
- Six high-performance copper heat pipes that provide maximal heat conductance
- Wave-contoured cooling fins for increased air circulation
- Special black coating with ceramic particles enables perfect heat transfer
- Supports an additional 120mm fan; clips are included in scope of delivery
- Easily installable black installation kit can be mounted from above
- Elegant, brushed aluminum top cover with diamond cut finish
- 3-year manufacturer’s warranty
- Product conception, design and quality control in Germany
No Compromise Silence and Performance
Dark Rock 4 offers an extreme cooling performance and virtually inaudible operation. Perfect for overclocked systems and demanding workstations.
- Silent Wings 135mm PWM fan features an advanced fluid-dynamic bearing and a smooth 6-pole motor
- Optimal balance of cooling and quietness with only 21.4dB(A) at maximum fan speed
- Six high-performance copper heat pipes that provide maximal heat conductance
- Wave-contoured cooling fins for increased air circulation
- Special black coating with ceramic particles enables perfect heat transfer
- Supports an additional 120mm fan; clips are included in scope of delivery
- Easily installable black installation kit can be mounted from above
- Elegant, brushed aluminum top cover with diamond cut finish
- 3-year manufacturer’s warranty
- Product conception, design and quality control in Germany
Performance
Suitable for | Processor |
Type | Cooler |
Fan diameter | 13.5 cm |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
Rotational speed (max) | 1400 RPM |
Noise level (low speed) | 10.5 dB |
Noise level (high speed) | 21.4 dB |
Pulse-width modulation (PWM) support | Y |
Number of fins | 51 |
Fins material | Aluminium |
Bearing type | Fluid dynamic bearing (FDB) |
Number of fans | 1 fan(s) |
Additional fan supported | Y |
Thermal Design Power (TDP) | 200 W |
Number of heat pipes | 6 |
Heat pipes diameter | 6 mm |
Design
Colour of product | Black |
Material | Copper |
Cable length | 0.22 m |
RoHS compliance | Y |
Power
Power supply | 1.32 W |
Rated voltage | 12 V |
Rated current | 0.11 A |
Weight & dimensions
Width | 136 mm |
Depth | 159.4 mm |
Height | 74.3 mm |
Weight | 920 g |
Fan dimensions (W x D x H) | 135 x 135 x 22 mm |
Package width | 205 mm |
Package depth | 149 mm |
Package height | 214 mm |
Package weight | 1.17 kg |
Technical details
Fan connector | 4-pin |
Packaging content
Screws included | Y |
1TB Western Digital WD Blue SN570 NVMe M.2 (Read 3500MB/s - Write 3000MB/s)
Spark Imagination?Inspire Your Creativity Stay in the moment and create beyond your expectations with the WD Blue SN570 NVMe SSD. This powerful internal drive delivers up to 5X the speed of our best SATA SSDs so you can let your imagination flow and worry less about PC lag or load times. Tune Up Your Performance Build your ideal creation engine. Upgrading your system or optimizing your next custom build with the slim M.2 2280 form factor. All you need is an NVMe slot. Stay in the Moment Keep your imagination flowing as you create faster while maintaining low power consumption. With read speeds up to 3,500 MB/s (500GB ? 1TB models), your system can run up to 5X faster than our best SATA SSDs so you can stay in your creative moment. A Standard for Reliability We value your content. That?s why the WD Blue reliability features help protect your content so you can stress less about losing your brilliant work. Get Extra Peace of Mind Work with extra confidence and keep your projects on point as the downloadable Western Digital SSD Dashboard helps you monitor your drive?s health, available space, temperature and more. Save on Space Pack a lot of performance into your small-form factor PC with a single-sided M.2 2280 PCIe® Gen3 x4 NVMe? SSD. Stay Organized Back up your photos, videos, and other personal files with included Acronis® True Image? for Western Digital software.
Features
SSD form factor | M.2 |
SSD capacity | 1000 GB |
Interface | PCI Express 3.0 |
NVMe | Y |
NVMe version | 1.4 |
Component for | PC |
Hardware encryption | N |
Read speed | 3500 MB/s |
Write speed | 3000 MB/s |
PCI Express interface data lanes | x4 |
TBW rating | 600 |
Weight & dimensions
Width | 22 mm |
Depth | 80 mm |
Height | 2.38 mm |
3 x 140mm Default Case Fan
750W be quiet! Pure Power 12 M (BN343) ATX 3.0
EXCEPTIONAL QUIET, SUPERIOR FEATURES Pure Power 12 M 750W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 750W offers the best combination of features with outstanding compatibility. 80 PLUS® GOLD CERTIFIED Very high operating efficiency Pure Power 12 M 750W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 92.6%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 750W is always the correct choice for quiet systems and gaming PCs! FUTURE-PROOF YOUR SYSTEM Fulfills all ATX 3.0 specifications Pure Power 12 M 750W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful present systems. THE NEW STANDARD OF POWER For massive transient loads Pure Power 12 M offers 750W of continuous power with 2 independent 12V rails. Even if the graphics card demands excessive power for a short time: Pure Power 12 M 750W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards. UNPRECEDENTED SILENT OPERATION Achieved with a silence-optimized be quiet! fan The exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality. HIGH-CLASS TECHNOLOGIES Rock-solid stability With its LLC topology Pure Power 12 M 750W provides a best-in-class voltage regulation and efficiency. That makes it perfect for building or upgrading very quiet systems as well as gaming and media creation PCs. MODULAR CABLES Utmost convenience and compatibility Thanks to their modularity, all unnecessary cables in the system are left out. Pure Power 12 M 750W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.
Power
Total power | 750 W |
Peak power | 820 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
Input current | 10/5 A |
Power factor | 0.98 |
Power Factor Correction (PFC) type | Active |
Combined power (+3.3V) | 120 W |
Combined power (+12V) | 750 W |
Combined power (+5V) | 120 W |
Combined power (-12V) | 3.6 W |
Combined power (+5Vsb) | 15 W |
Max output current (+3.3V) | 20 A |
Max output current (+12V1) | 36 A |
Max output current (+12V2) | 32 A |
Max output current (+5V) | 20 A |
Max output current (-12V) | 0.3 A |
Max output current (+5Vsb) | 3 A |
Power Good signal delay range | 100 - 150 ms |
Efficiency | 92.6% |
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit |
Ports & interfaces
Motherboard power connector | 20+4 pin ATX |
Motherboard power cable length | 55 cm |
Number of SATA power connectors | 5 |
Number of PATA power connectors | 2 |
SATA power cable length | 500,650,800,950 mm |
Peripheral (Molex) power connectors (4-pin) | 1 |
Peripheral (Molex) power cable length | 550 mm |
EPS power connector (8-pin) | Y |
EPS power connector (4+4 pin) | Y |
PCI Express power connectors (6+2 pin) | 2 |
ATX power connector (20+4 pin) | Y |
PCI Express connector | Y |
Performance
Purpose | PC |
Power supply unit (PSU) form factor | ATX |
80 PLUS certification | 80 PLUS Gold |
ATX version | 3.0 |
EPS version | 2.92 |
Noise level | 24 dB |
Mean time between failures (MTBF) | 100000 h |
Design
Product colour | Black |
Cooling type | Active |
Fan diameter | 12 cm |
Number of fans | 1 fan(s) |
Fan location | Top |
On/off switch | Y |
Operational conditions
Operating temperature (T-T) | 0 - 40 °C |
Packaging content
Cables included | PATA, PCIe, Peripheral (Molex), SATA |
Weight & dimensions
Width | 160 mm |
Depth | 150 mm |
Height | 86 mm |
Technical details
Warranty period | 10 year(s) |
Sustainability certificates | ENERGY STAR, ErP, RoHS |
Sustainability compliance | Y |
Other features
Screws included | Y |
Number of screws | 5 |
Cable ties included | Y |
Noise level (silent mode, <30%) | 8.4 dB |
Noise level (quiet mode, 50%) | 8.9 dB |
Noise level (full-load mode, 100%) | 24 dB |
Windows 11 64Bit Professional installed activated digital key (ready to work - without data media)
onBoard Sound
onBoard Sound incl. 5.1 or 7.1 look at Ports Layout PlanASUS TUF GAMING GeForce RTX 3070 TI OC 8GB (90YV0GY0-M0NA00)

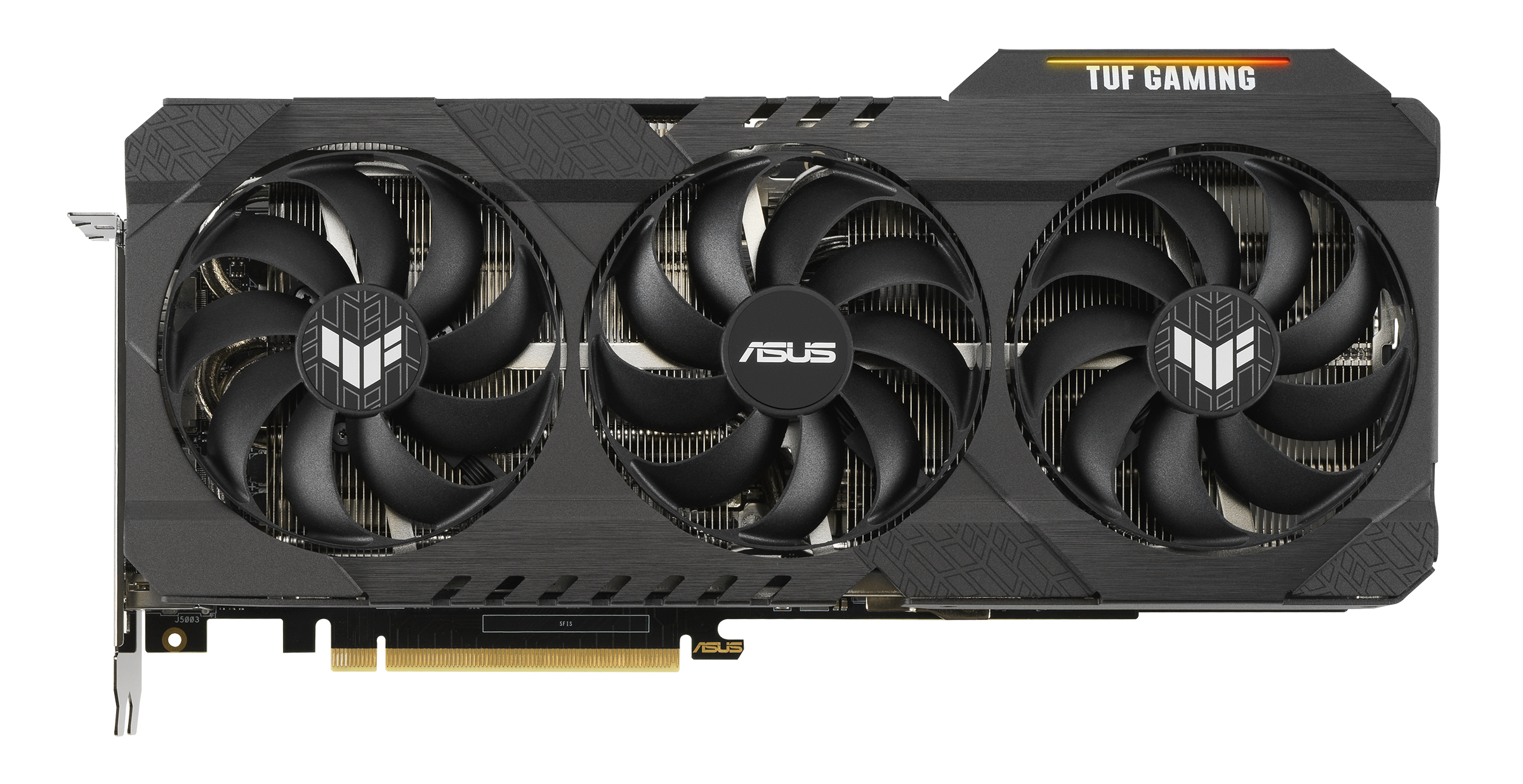

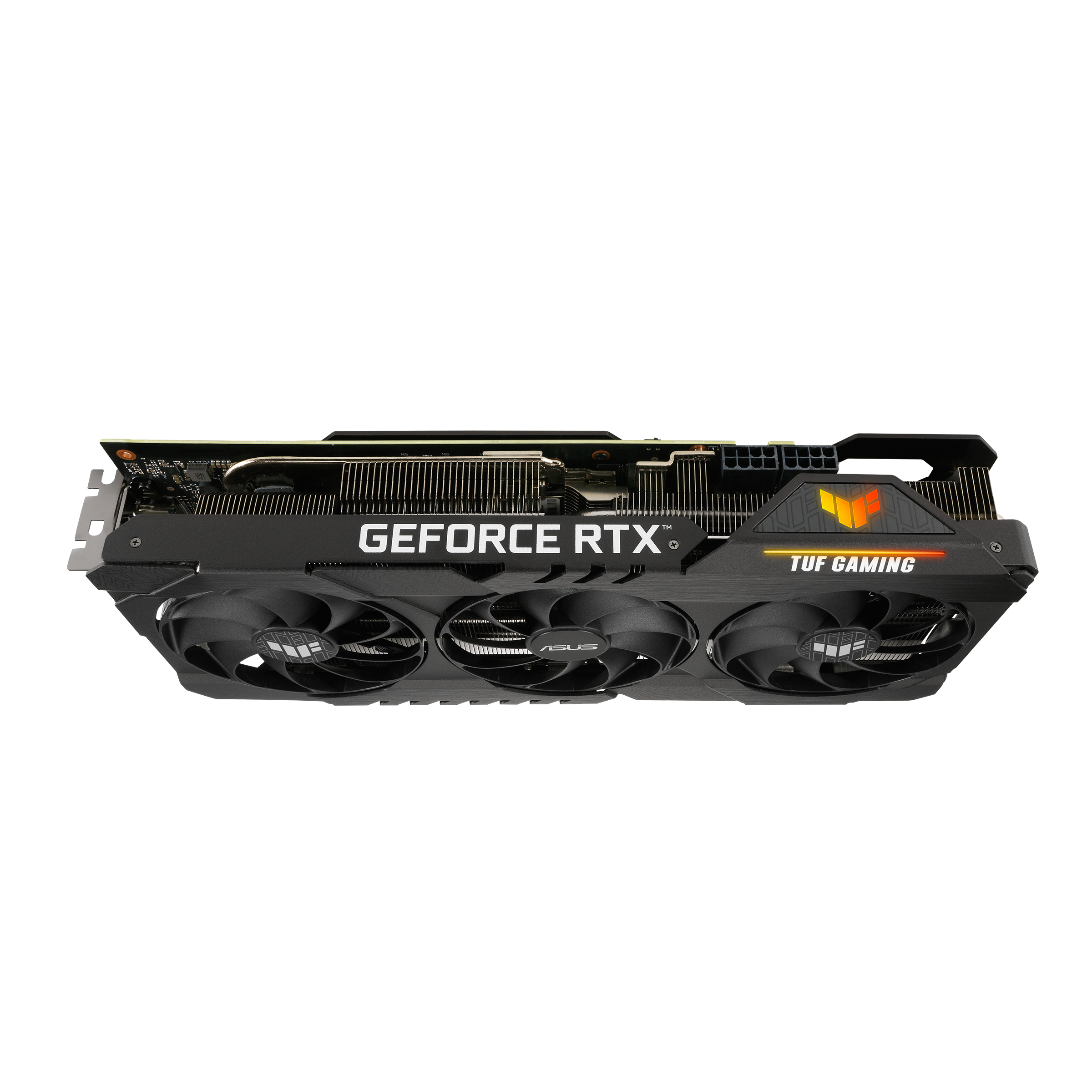

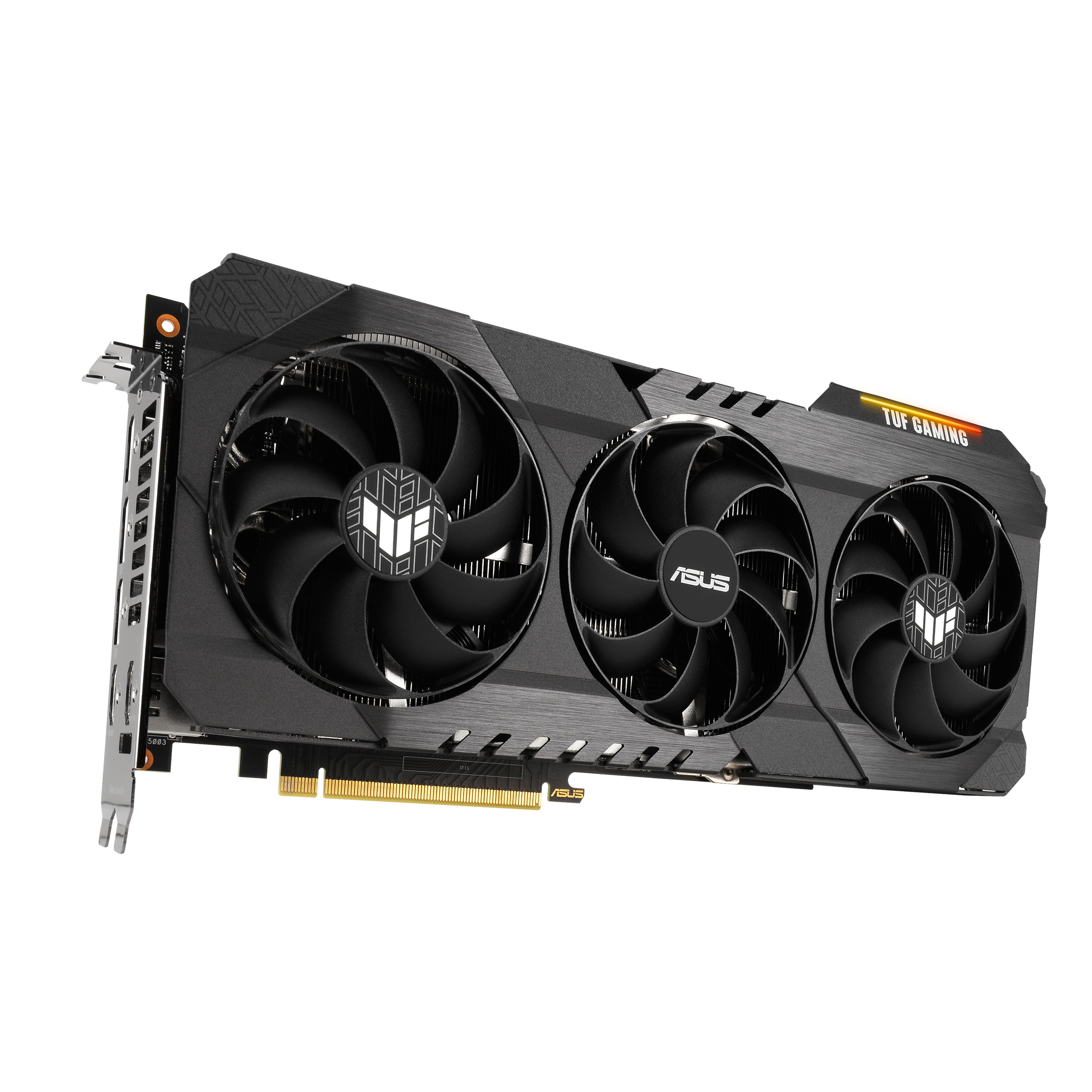

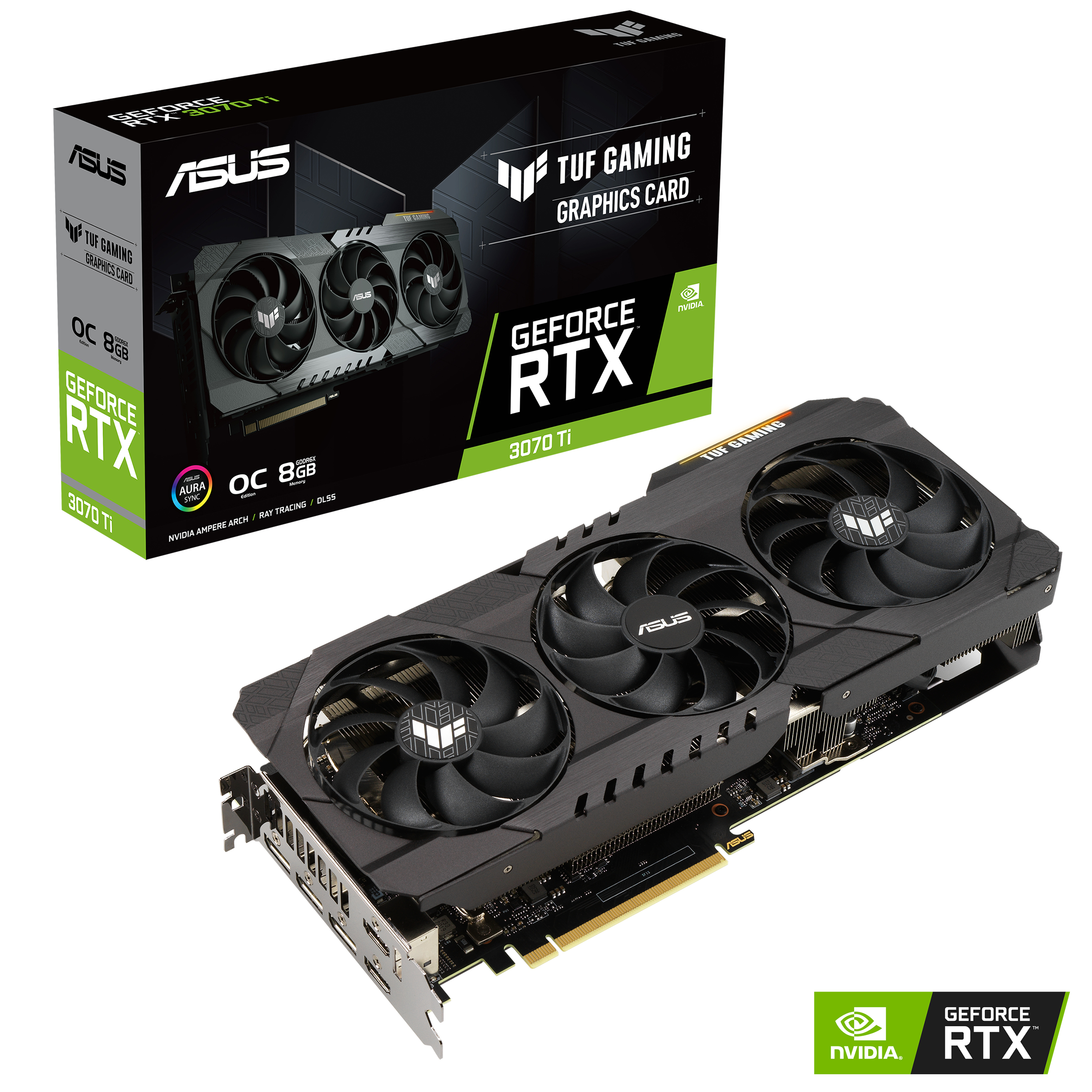

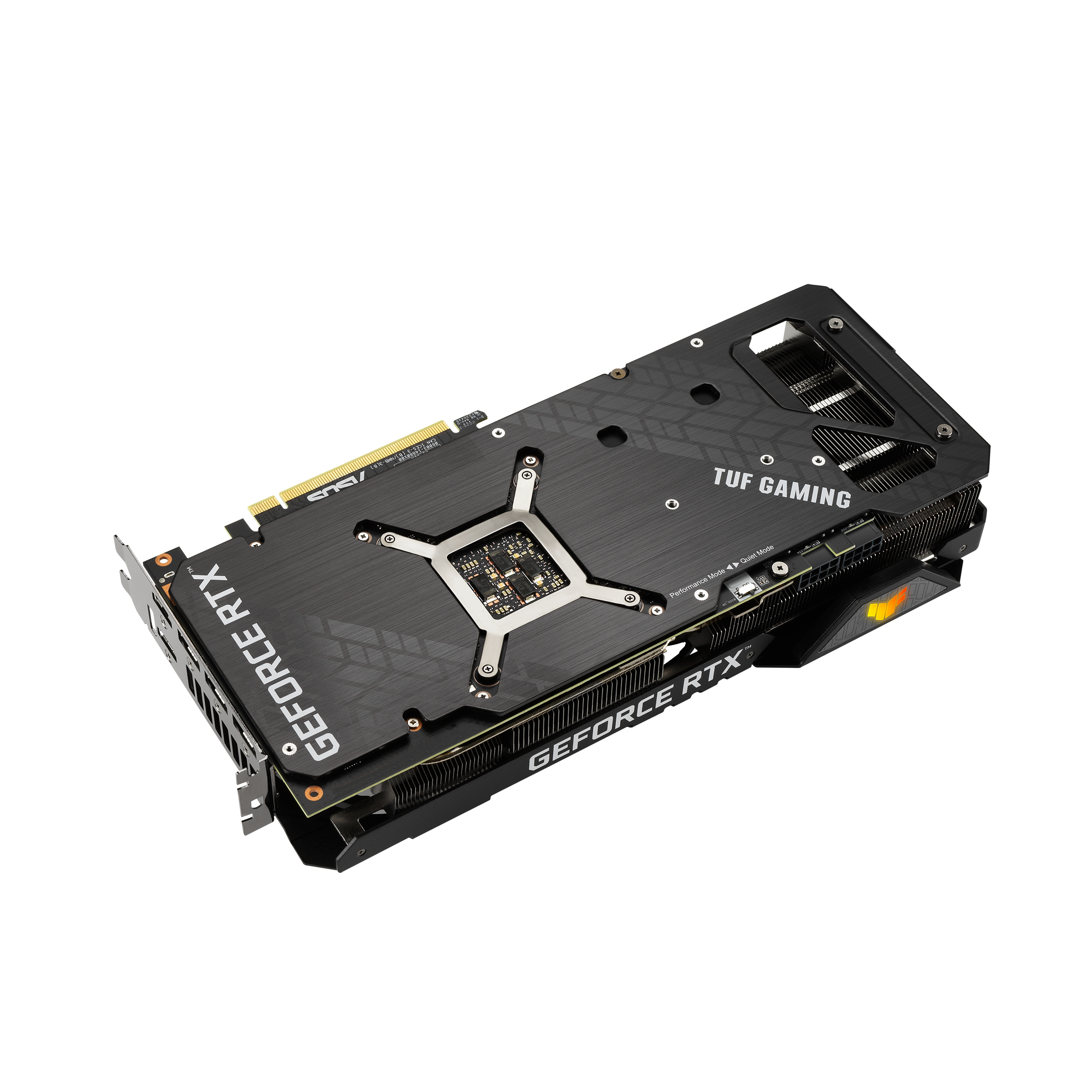

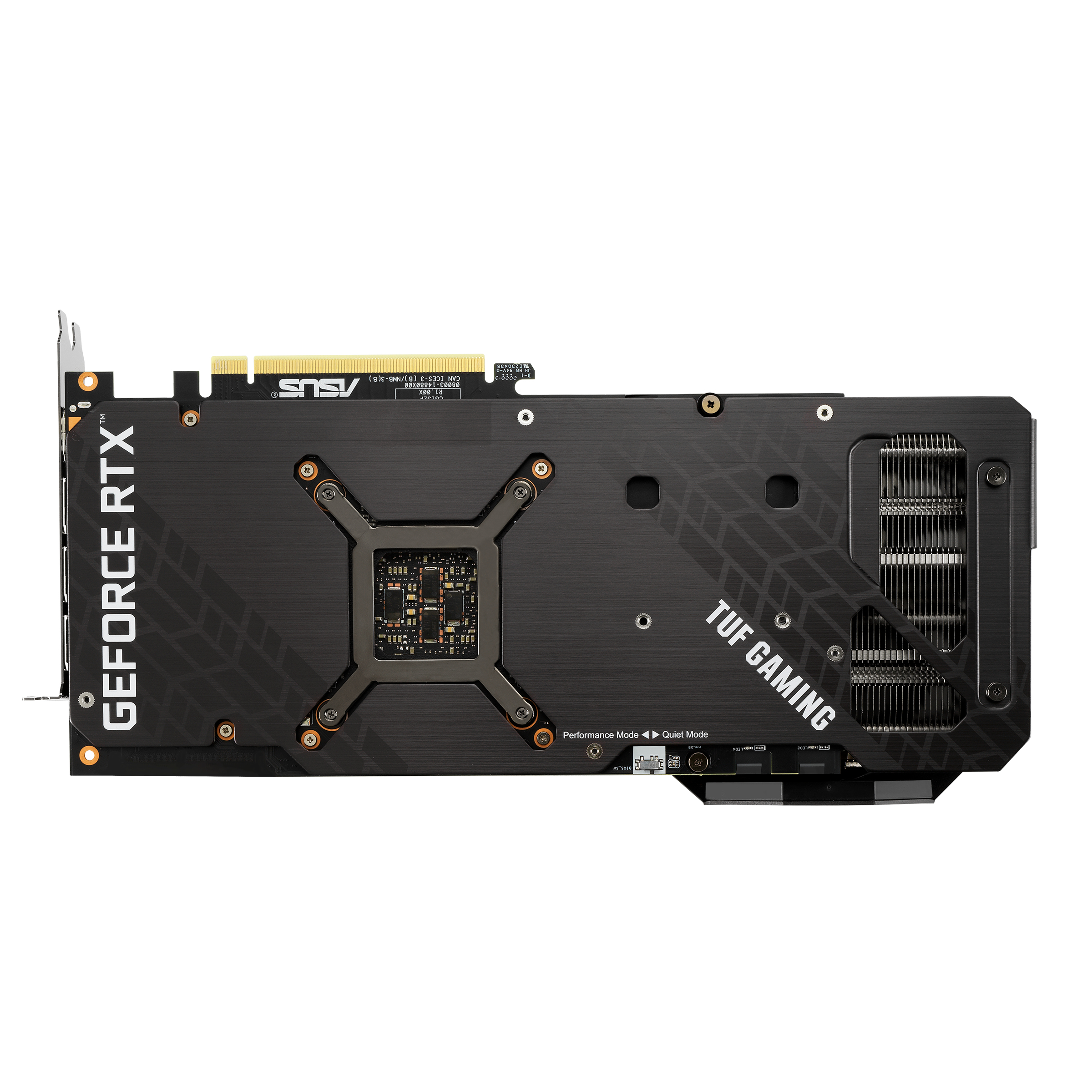

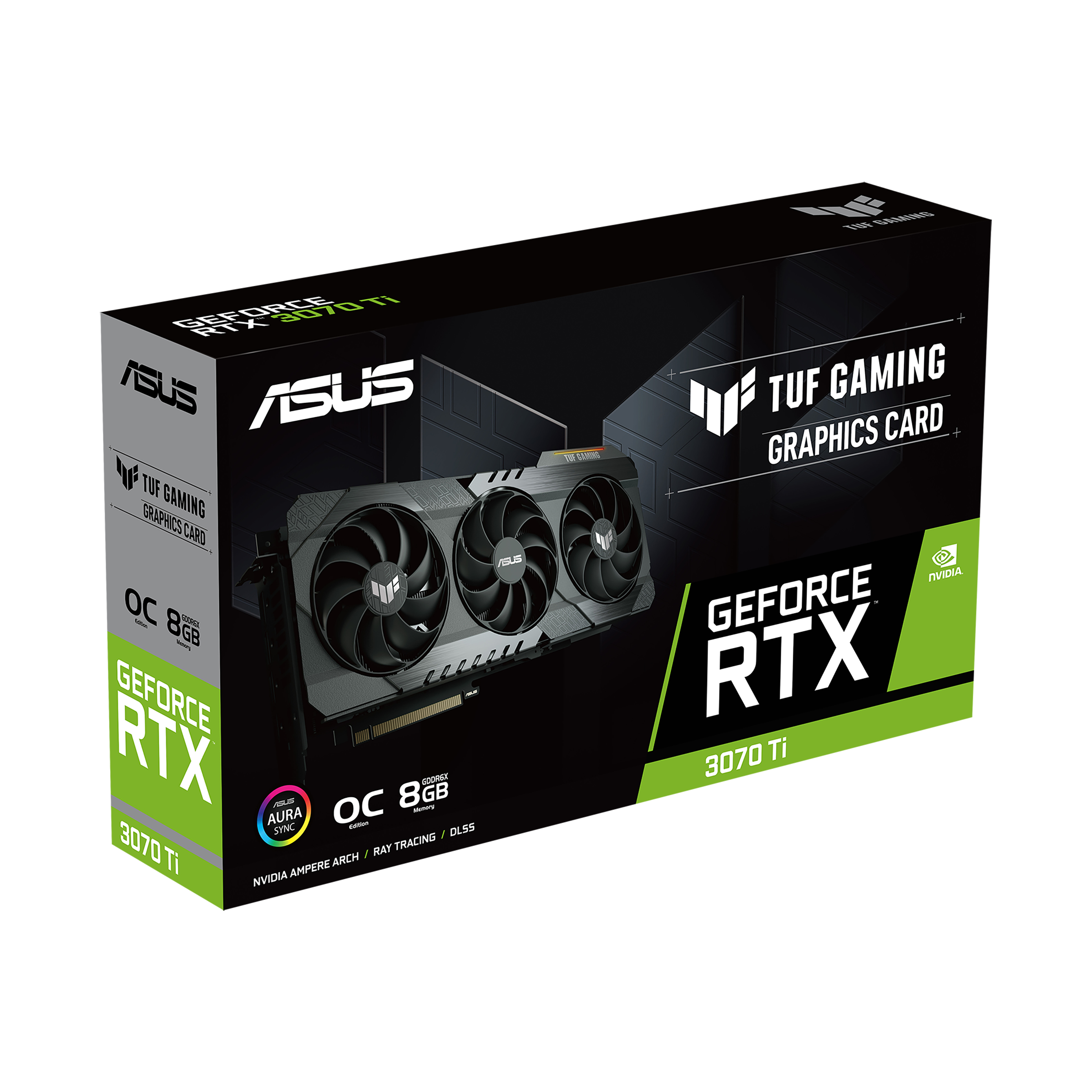

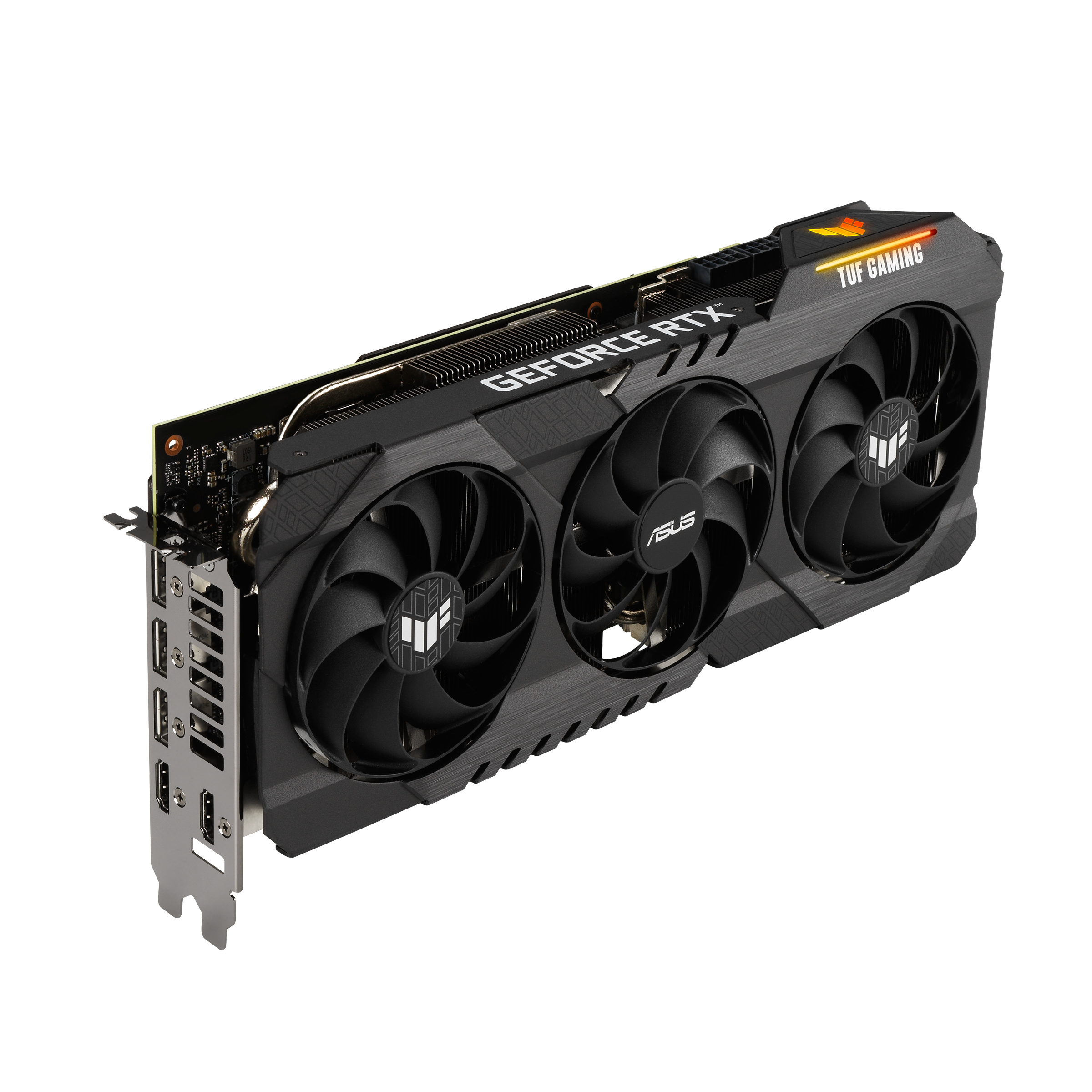

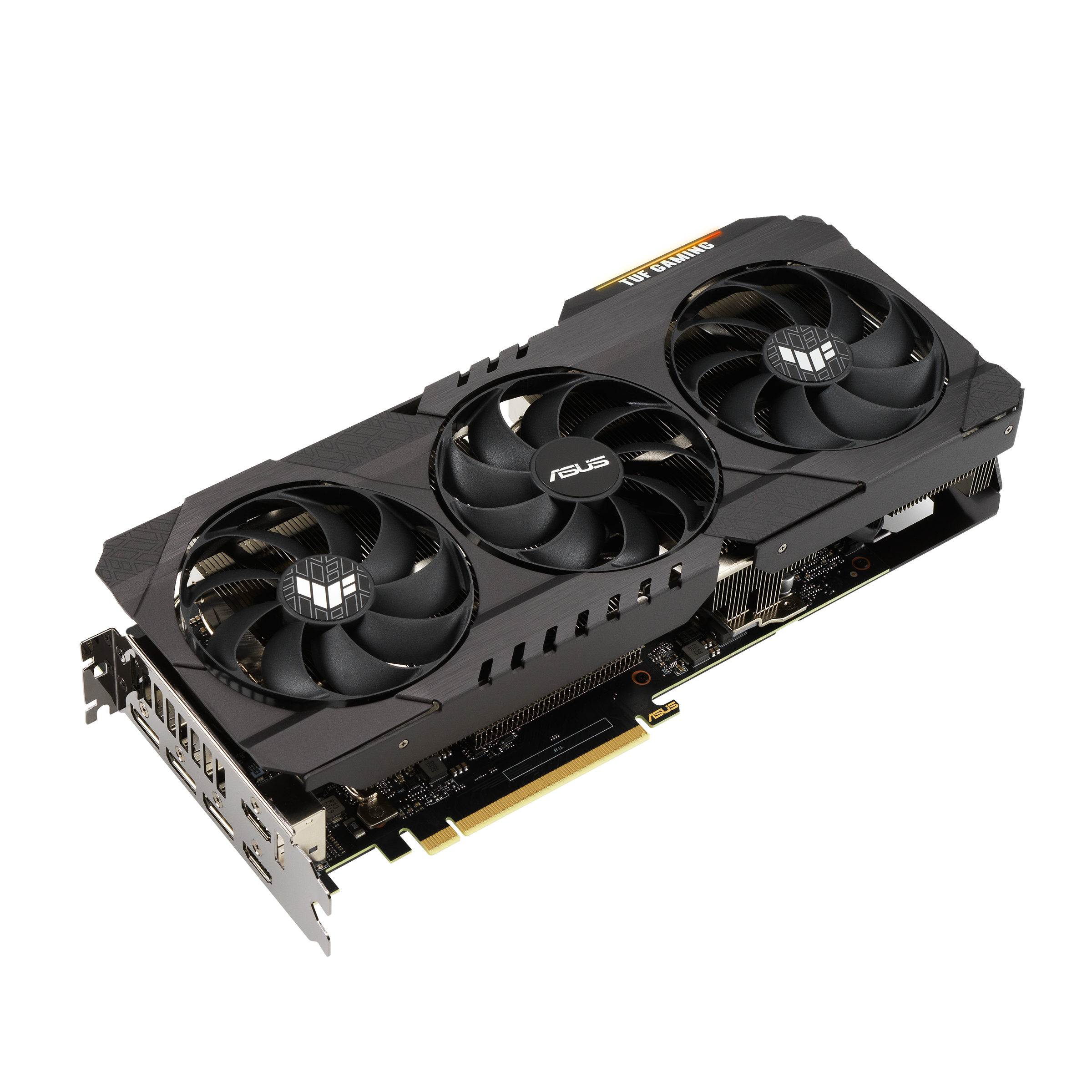

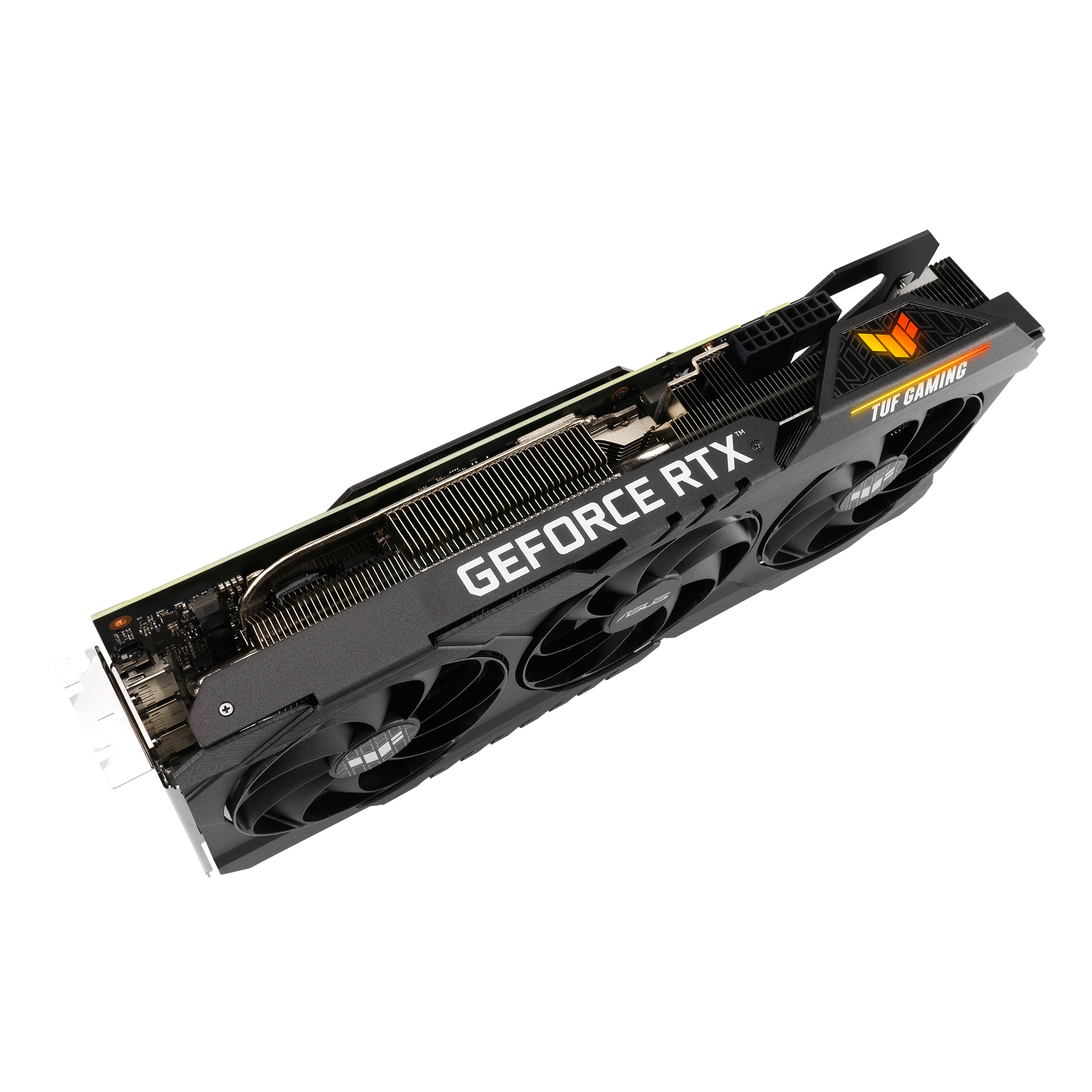

BUILT TUF The TUF GAMING GeForce RTX? 3070 Ti has been stripped down and built back up to provide more robust power and cooling. A new all-metal shroud houses three powerful axial-tech fans that utilize durable dual ball fan bearings. Fan rotation has been optimized for reduced turbulence, and a stop mode brings all three fans to a halt at low temps. Beneath, independent heatsinks for the GPU and memory keep thermals under tight control. Additional features, including TUF components, Auto-Extreme Technology, a new GPU bracket, and a backplate vent make the TUF a proper powerhouse. For builders looking for a new ?old faithful?, this card has your back. FANS AXIAL-TECH UPGRADES TUF Gaming cards leverage our tried-and-true Axial-tech fan design, with three fans working in tandem to satisfy the thermal demands of NVIDIA?s new high-octane design. The fans rely on dual ball fan bearings to ensure consistent performance and increased longevity compared to sleeve bearings and other bearing types. HEATSINK MAXCONTACT To get heat into the heatsink array efficiently, so that it can be whisked away by the powerful Axial-tech fans, we use a manufacturing process that improves the surface smoothness of the heatspreader at the microscopic level. The extra flatness allows for better contact with the die, helping to enhance thermal transfer. 2.7-SLOT DESIGN The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills most of the card?s large, 2.7-slot footprint. This generation of TUF Gaming graphics cards also feature a dedicated heatsink for VRAM to keep temperatures well under maximum operating specs. PCB TUF COMPONENTS Components are selected for TUF Gaming graphics cards based on their durability and performance. In addition to top-shelf chokes and MOSFETs, capacitors that meet military-grade certification make the TUF stand tall amongst the competition. The components are soldered to the PCB using our advanced Auto-Extreme automated manufacturing process. Smooth joints on the rear of the PCB and the elimination of human errors ensure each graphics card meets our rigorous specifications. Finally, to ensure flawless performance when it counts, the cards are subjected to a grueling 144-hour validation trial. DESIGN FRESH SHROUD An all-aluminum shroud adds robust protection to TUF Gaming graphics cards and a no-nonsense industrial design and grayscale colorway fits into any build with ease. IT?S COOLER OUT BACK The underside of the card reveals a host of improvements. Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the cooler. Beneath the GPU, a bracket provides consistent mounting pressure between the die and heat spreader. Stainless steel is used for the I/O bracket to protect ports and provide a more secure mount. A conveniently placed Dual Bios switch allows customization of the card?s default performance profile without software. FUNCTIONAL FRONT The top-side RGB element can be customized to display a range of aesthetic and functional effects and also synced with other ASUS components to enable uniform lighting. To fulfill the power demands of the GeForce RTX 3070 Ti, two 8-pin connectors are present, along with onboard LEDs that light up if PSU PCIe power connectors are not plugged in correctly. SOFTWARE GPU TWEAK II The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card. We've partnered with wtfast to help you to play free from lag, latency issues, and lost packets. With a 6-month subscription to the wtfast Gamers Private Network, you'll enjoy lower ping for a smoother, more fluid online gaming experience. Buy an ASUS graphics card - and don't be left waiting! QuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card?s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn?t collect any personal data, so your privacy stays protected. ?Get started right away with just one click!
Processor
Graphics processor family | NVIDIA |
Graphics processor | GeForce RTX 3070 Ti |
Maximum resolution | 7680 x 4320 pixels |
CUDA | Y |
CUDA cores | 6144 |
Processor boost clock speed | 1785 MHz |
Processor boost clock speed (OC mode) | 1815 MHz |
FireStream | N |
Parallel processing technology support | Not supported |
Maximum displays per videocard | 4 |
Memory
Discrete graphics adapter memory | 8 GB |
Graphics adapter memory type | GDDR6X |
Memory bus | 256 bit |
Memory bandwidth (max) | 19 GB/s |

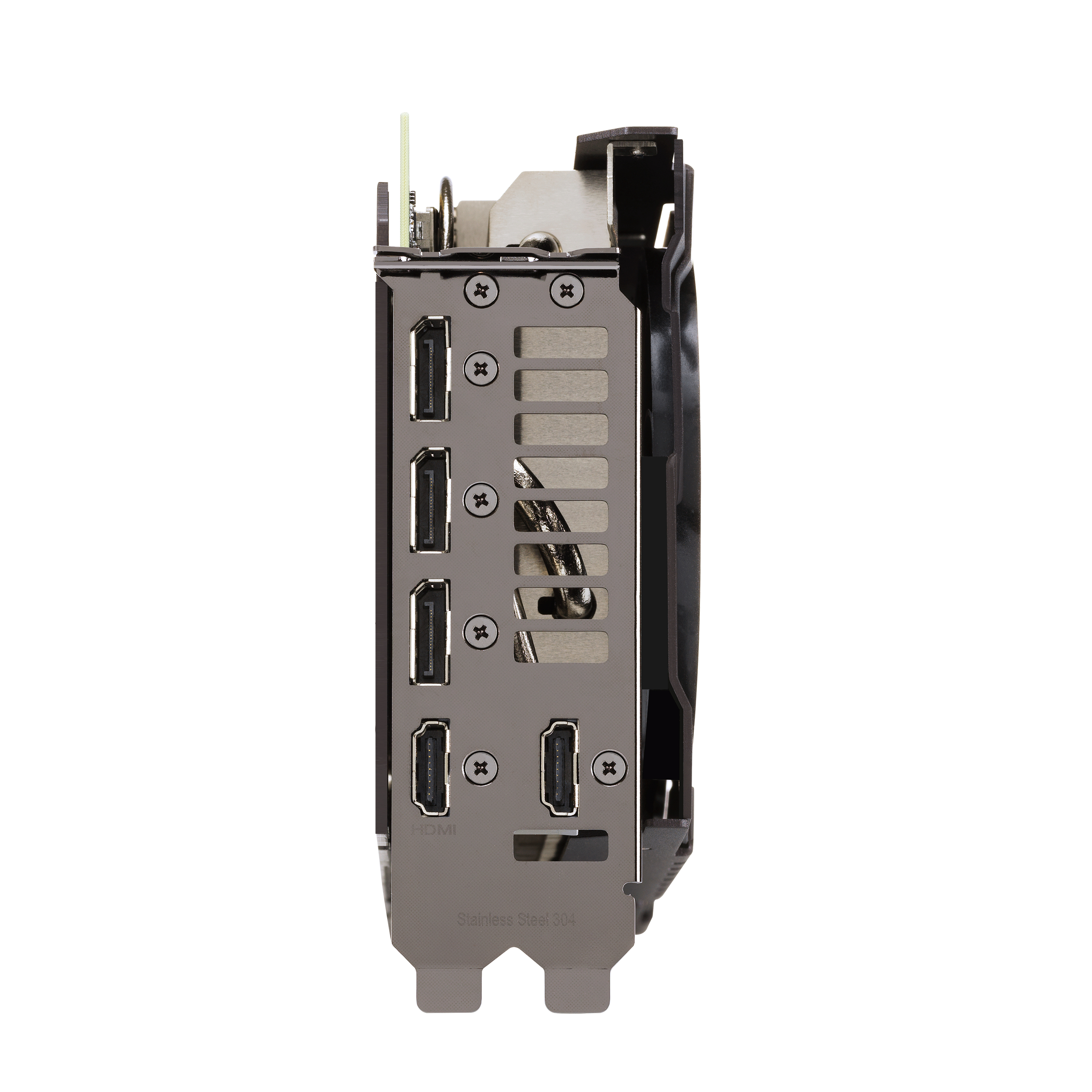

Ports & interfaces
Interface type | PCI Express 4.0 |
HDMI ports quantity | 2 |
DisplayPorts quantity | 3 |
HDMI version | 2.1 |
DisplayPort version | 1.4a |
Performance
TV tuner integrated | N |
DirectX version | 1?2 Ultimate |
OpenGL version | 4.6 |
HDCP | Y |
Dual Link DVI | N |
NVIDIA G-SYNC | Y |
Design
Cooling type | Active |
Cooling technology | ASUS Axial-tech |
Number of fans | 3 fan(s) |
Bracket height | Full-Height (FH) |
Form factor | Full-Height/Full-Length (FH/FL) |
Number of slots | 2.7 |
Illumination colour | Multi |
Illumination | Y |
Product colour | Black |
Power
Minimum system power supply | 750 W |
Supplementary power connectors | 2x 8-pin |
Weight & dimensions
Width | 51.7 mm |
Height | 126.9 mm |
Depth | 299.9 mm |
Packaging data
Manual | Y |
Package type | Box |
onBoard WIFI + Bluetooth
32GB Corsair Vengeance LPX 3.200MHz (CMK32GX4M2E3200C16)
Corsair Vengeance LPX CMK32GX4M2E3200C16, 32 GB, 2 x 16 GB, DDR4, 3200 MHz, 288-pin DIMM
Features
Internal memory | 32 GB |
Internal memory type | DDR4 |
Memory clock speed | 3200 MHz |
Component for | PC/server |
Memory form factor | 288-pin DIMM |
Memory layout (modules x size) | 2 x 16 GB |
CAS latency | 16 |
Cooling type | Heatsink |
be quiet! Pure Base 500DX black window silent (BGW37)
The be quiet! Pure Base 500DX Black is optimized for high cooling performance and designed for those who seek high airflow.
Design
Form factor | Desktop |
Type | PC |
Material | Acrylonitrile butadiene styrene (ABS),Steel,Tempered glass |
Product colour | Black |
Supported motherboard form factors | ATX,Micro ATX,Mini-ATX |
Number of 3.5' bays | 2 |
Number of 2.5' bays | 5 |
Number of expansion slots | 7 |
Side window | Y |
Illumination | Y |
Illumination colour | Red/Green/Blue |
Illumination location | Front,Internal |
Tempered glass panel(s) | Y |
Anti-dust filter | Y |
On/off button | Y |
Maximum CPU cooler height | 19 cm |
Maximum graphics card length | 36.9 cm |
Maximum PSU length | 25.8 cm |
Certification | CE, RoHS |
Power supply
Power supply included | N |
Power supply location | Bottom |
Supported power supply form factors | ATX,PS2 |
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Audio input | Y |
Audio output | Y |
Cooling
Front fans installed | 1x 140 mm |
Number of front fans supported (max) | 3 |
Front fans diameters supported | 120,140 mm |
Front fans supported description | 140x140x25 mm, 900 rpm, 17.1 dB , 55.8 cfm |
Rear fans installed | 1x 140 mm |
Number of rear fans supported (max) | 1 |
Rear fans diameters supported | 120,140 mm |
Rear fans supported description | 140x140x25 mm, 900 rpm, 17.1 dB , 55.8 cfm |
Top fans installed | 1x 140 mm |
Number of top fans supported (max) | 2 |
Top fans diameters supported | 120,140 mm |
Top fans supported description | 140x140x25 mm, 900 rpm, 17.1 dB , 55.8 cfm |
Front radiator fan sizes supported | 120,140,240,280,360 mm |
Rear radiator fan sizes supported | 120,140 mm |
Top radiator fan sizes supported | 120,140 mm |
Storage
Supported HDD sizes | 2.5,3.5' |
Weight & dimensions
Width | 232 mm |
Depth | 450 mm |
Height | 443 mm |
Weight | 7.8 kg |
Packaging data
Package width | 285 mm |
Package depth | 510 mm |
Package height | 494 mm |
Package weight | 8.49 kg |
Intel Core i5-13400F 10x 2.50-4.60GHz (BX8071513400F)
Intel Core i5-13400F, Intel® Core™ i5, LGA 1700, Intel, i5-13400F, 64-bit, 13th gen Intel® Core™ i5
Processor
Processor manufacturer | Intel |
Processor family | Intel® Core? i5 |
Processor generation | 13th gen Intel® Core? i5 |
Processor model | i5-13400F |
Processor cores | 10 |
Processor socket | LGA 1700 |
Box | Y |
Processor threads | 16 |
Processor operating modes | 64-bit |
Performance cores | 6 |
Efficient cores | 4 |
Processor boost frequency | 4.6 GHz |
Performance-core boost frequency | 4.6 GHz |
Performance-core base frequency | 2.5 GHz |
Efficient-core boost frequency | 3.3 GHz |
Efficient-core base frequency | 1.8 GHz |
Processor cache | 20 MB |
Processor cache type | Smart Cache |
Maximum turbo power | 148 W |
Processor base power | 65 W |
Maximum number of DMI lanes | 8 |
Processor codename | Raptor Lake |
Memory
Maximum internal memory supported by processor | 128 GB |
Memory types supported by processor | DDR4-SDRAM, DDR5-SDRAM |
Memory channels | Dual-channel |
Memory bandwidth (max) | 76.8 GB/s |
Graphics
On-board graphics card | N |
Discrete graphics card | N |
On-board graphics card model | Not available |
Discrete graphics card model | Not available |
Features
Thermal Monitoring Technologies | Y |
Idle States | Y |
Execute Disable Bit | Y |
Market segment | Desktop |
Use conditions | PC/Client/Tablet |
Maximum number of PCI Express lanes | 20 |
PCI Express slots version | 4.0, 5.0 |
PCI Express configurations | 1x16+1x4, 2x8+1x4 |
Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
Direct Media Interface (DMI) Revision | 4.0 |
Embedded options available | N |
Scalability | 1S |
CPU configuration (max) | 1 |
Harmonized System (HS) code | 8542310001 |
Export Control Classification Number (ECCN) | 5A992C |
Commodity Classification Automated Tracking System (CCATS) | 740.17B1 |
Processor special features
Intel® Speed Shift Technology | Y |
Enhanced Intel SpeedStep Technology | Y |
Intel® AES New Instructions (Intel® AES-NI) | Y |
Intel® Hyper Threading Technology (Intel® HT Technology) | Y |
Intel® Turbo Boost Technology | 2.0 |
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 | Y |
Intel® Control-flow Enforcement Technology (CET) | Y |
Intel® Thread Director | Y |
Intel® Deep Learning Boost (Intel® DL Boost) | Y |
Intel® Boot Guard | Y |
Intel® Volume Management Device (VMD) | Y |
Mode-based Execute Control (MBE) | Y |
Intel® Standard Manageability (ISM) | Y |
Intel Turbo Boost Max Technology 3.0 | N |
Intel® Secure Key | Y |
Intel VT-x with Extended Page Tables (EPT) | Y |
Intel® OS Guard | Y |
Intel 64 | Y |
Intel Virtualization Technology (VT-x) | Y |
Intel Virtualization Technology for Directed I/O (VT-d) | Y |
Operational conditions
Tjunction | 100 °C |
Technical details
Launch date | Q1'23 |
Weight & dimensions
Processor package size | 45 x 37.5 mm |
Other features
L2 cache | 9728 KB |
onBoard LAN
Nicht warten - einfach finanzieren!
Bezahlen Sie schnell und unkompliziert in kleinen Monatsraten. Einfach Artikel auswählen, zur Kasse gehen
und mit der Zahlungsart "Finanzierung" die Ware bezahlen.
Weitere Details
Mögliche Laufzeiten:
Laufzeit in Monaten | Monatlich Rate | Effektiver Jahreszins | Gebundener jährl. Sollzinssatz | Gesambetrag |
6 | 6×28,95 EUR | 9,9 % | 9,48 % | 173,70 EUR |
10 | 12×17,64 EUR | 9,9 % | 9,48 % | 176,43 EUR |
12 | 12×14,82 EUR | 9,9 % | 9,48 % | 177,80 EUR |
18 | 18×10,11 EUR | 9,9 % | 9,48 % | 181,96 EUR |
Diese Angaben stellen zugleich das repräsentative Beispiel im Sinne des § 6a PangV dar. Vermittlung erfolgt ausschließlich für die Commerz Finanz GmbH, Schwanthalerstr. 31, 80336 München.
Mainboard connectors PC connectors on the back
(monitor/graphics card connectors are disabled if a VGA/GPU graphics card is installed additionally)
(monitor/graphics card connectors are disabled if a VGA/GPU graphics card is installed additionally)

LAN
1x


HDMI
1x


Display Port
1x

USB 2.0
4x

USB-A 3.0 Mainboard
2x

USB-A 3.1
1x

USB-C 3.0
1x

USB-C 3.1
1x

Audio Connectors
5.1

Bluetooth
1x

W-LAN
1x
Graphics card / monitor connections

HDMI
1x

Display Port
3x
Front connections front side / top of the case

Audio In/Out
1x

USB-A 3.0
1x

USB-C 3.1
1x
Expansion cards - PCI / PCIe

W-LAN
1x
These connection options have been generated for you. In individual cases, deviations are possible.

Intel Core i5
The Intel Core i5 series is a range of processors for desktop and laptop computers. The focus of this processor family is the price-performance ratio. It offers a good balance between performance, energy efficiency and price.
mehr anzeigen
weniger anzeigen

32 GB RAM
The RAM is important for the computer's performance because it allows access to the data that is currently needed. The bigger and faster the RAM is, the better. We have installed 32 GB of RAM from a brand manufacturer in this computer.
mehr anzeigen
weniger anzeigen

Windows 11
The latest operating system from Microsoft with the latest designs, drivers and support for the most modern hardware.
This machine has Windows 11 installed with all drivers.
mehr anzeigen
weniger anzeigen

NVIDIA GeForce RTX
The NVIDIA GeForce RTX family are dedicated graphics cards specialized in ray tracing. They offer significantly more performance than the previous generation GTX. GeForce RTX cards are great for gaming, streaming and multimedia.
mehr anzeigen
weniger anzeigen

1000 GB NVMe SSD M.2 High Speed
The NVMe interface offers the fastest data transfer currently available for already fast M.2 SSDs. This 1000 GB drive uses the fast NVMe technology. Waiting times are now a thing of the past!
mehr anzeigen
weniger anzeigen

Wlan / WiFi & Bluetooth
This device has WiFi / WLAN for wireless internet reception and Bluetooth functionality for wireless connection with peripherals. Be ready for any situation!
mehr anzeigen
weniger anzeigen
