Powered by ASUS Gaming PC i5-13400F STRIX B760 NVIDIA GeForce RTX 3060 32GB RAM 2TB WD Blue SN570 NVMe 650W be quiet! Win 11 Pro onBoard WIFI + Bluetooth
Article number:
4260561741323
In stock
Bulletpoints
- [ Item number EAN: 4260561741323 ] --- Intel Core i5-13400F 10x 2.50GHz (BX8071513400F) - ASUS ROG STRIX B760-A GAMING WIFI DDR4 (90MB1DD0-M0EAY0) - 32GB Corsair Vengeance LPX 3.200MHz (CMK32GX4M2E3200C16)
- ASUS TUF Gaming RTX 3060 V2 GAMING (90YV0GC0-M0NA10) - 650W be quiet! Pure Power 12 M (BN342) - be quiet! Pure Base 600 black window (BGW21) - onBoard WIFI + Bluetooth
- 2TB Western Digital Blue SN570 NVMe M.2 (Read 3500MB/s - Write 3500MB/s) - Related to the System: DVD Writer ASUS DRW-24D5MT and it lacked for nothing.
- Windows 11 64Bit Professional installiert aktiviert DPK (Ready to Work - ohne Datenträger)
- Assembled, tested and checked - 2 years warranty
i5-13400F
STRIX B760
TUF GAMING RTX 3060 V2
32GB RAM 3.200MHz
2TB WD Blue SN570 NVMe
650W be quiet!
Pure Base 600 (BGW21)
Pure Rock 2 Silver
Windows 11 64Bit Prof.
onBoard WIFI + Bluetooth
System performance
Office
Multimedia
Gaming
Workstation/CAD
System performance
Office
Multimedia
Gaming
Workstation/CAD
Product information "Powered by ASUS Gaming PC i5-13400F STRIX B760 NVIDIA GeForce RTX 3060 32GB RAM 2TB WD Blue SN570 NVMe 650W be quiet! Win 11 Pro onBoard WIFI + Bluetooth"
CPU (Processor) | Intel Core i5-13400F 10x 2.50-4.60GHz (BX8071513400F) |
Mainboard | ASUS ROG STRIX B760-A GAMING WIFI DDR4 (90MB1DD0-M0EAY0) |
Video Card (VGA Card) | ASUS TUF Gaming RTX 3060 V2 GAMING 12 GB OC (90YV0GC0-M0NA10) |
System Memory (RAM) | 32GB Corsair Vengeance LPX 3.200MHz (CMK32GX4M2E3200C16) |
SSD | 2TB Western Digital Blue SN570 NVMe M.2 (Read 3500MB/s - Write 3500MB/s) |
Disc Drive (Drive) | ASUS DRW-24D5MT Internal DVD Super Multi DL Black (90DD01Y0-B20010) |
Power Supply Unit (PSU) | 650W be quiet! Pure Power 12 M (BN342) ATX 3.0 |

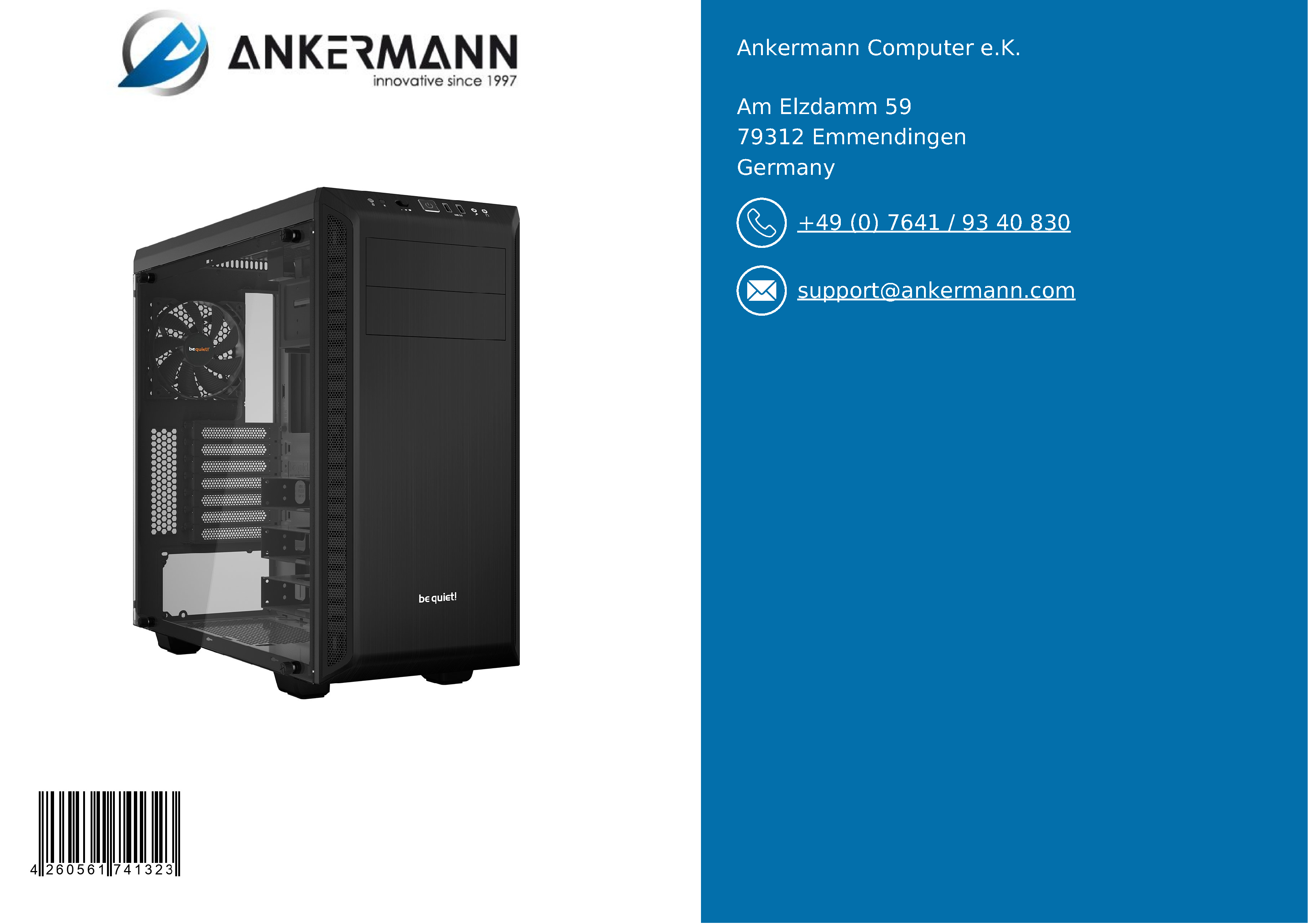

Case (Case) | be quiet! Pure Base 600 black window (BGW21) |
CPU Cooler (Cooler) | be quiet! Pure Rock 2 Silver (BK006) |
Operating System (Ready to use installed) | Windows 11 64Bit Professional installed activated digital key (ready to work - without data media) |
Case Fan | 140mm Default Case Fan 120mm Default Case Fan |
W-LAN Unit internal | onBoard WIFI + Bluetooth |
ASUS ROG STRIX B760-A GAMING WIFI DDR4 (90MB1DD0-M0EAY0)
On its face, the Strix B760-A D4 wears a light aesthetic, but beneath its grey aluminum heatsinks lies a dark PCB flush with high-performance hardware. A VRM configuration equipped to handle high-core-count Intel® 13th Gen processors, PCIe 5.0 bandwidth for graphics cards, and next-gen WiFi 6E team up to bring devilishly good gaming to this heavenly board. DIY-FRIENDLY FEATURES PCIE® SLOT Q-RELEASE A physical button unlocks the first PCIe slot?s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it?s time to upgrade to a new GPU or other compatible device. M.2 Q-LATCH The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw. BIOS FLASHBACK? BIOS FlashBack? is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed. Q-LED Four onboard LEDs indicate power status and identify problems with CPU, memory, graphics card, or boot device for quick diagnosis. ALL-ROUND PERFORMANCE The neat aesthetics of the Strix B760-A D4 were no distraction when crafting this motherboard?s power delivery and thermal arrays. You?ll get a fully fledged gaming experience and then some with this beast.? POWER ARCHITECTURE? 12 + 1 power stages deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.? ALLOY CHOKES AND DURABLE CAPACITORS High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards. SIX-LAYER PCB A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.? OPTIMEM II OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk. VRM HEATSINK ARRAY Covering the power solution are two thick heatsinks with strategic airflow channels for increased heat dissipation while powering high-performance Intel 13th Gen processors. M.2 HEATSINKS Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability. CPU FAN HEADERS Positioned near the top of the motherboard, a pair of PWM/DC fan headers give easy access for CPU coolers.? AIO PUMP FAN HEADER A dedicated PWM/DC header connects self-contained water-cooling setups. 4-PIN FAN HEADERS Each header supports auto-detection of PWM or DC fans. LEADING CONNECTIVITY The Strix B760-A D4 is entirely well-connected with high-speed wireless and wired networking, a plethora of USB I/O, and SupremeFX audio to pump crystal-clear sound through speakers or headphones for enhanced immersion.? PCIE PERFORMANCE The top PCIe 5.0 x16 SafeSlot is well-equipped for the increased size and bandwidth of next-gen graphics cards. Zippy storage options abound with three PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance. NETWORKING WIFI 6E Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments. * WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi. Intel 2.5G Ethernet Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet. USB A USB 3.2 Gen 2x2 Type-C® port offers speedy data transfers up to 20 Gbps. AUDIO SUPREMEFX ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix B760-A D4 implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets. PLAY IN STYLE Bold aesthetics and Aura Sync RGB controls let the ROG Strix B760-A D4 shine in every build. UNDENIABLY ROG STRIX? Diagonal slats, brushed aluminum, and bold RGB have become hallmarks of the ROG aesthetic, and the Strix B760-A D4 bears all of them with pride. Its white, silver, and black color scheme pairs well with both dark and lighter-colored components. 8-bit accents show some gaming pride. OUTSHINE THE COMPETITION ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look. COOLER COMPATIBILITY The ROG Strix B760-A D4 bears the same LGA 1700 socket as Z690 and B660 models, so many existing coolers are compatible, including all AIO offerings from ASUS and ROG.? THE ROG STRIX ECOSYSTEM AWAITS Level up your game with ROG Strix. Enjoy complimentary aesthetics, control, and compatibility across AIO coolers, cases, peripherals, and much more. ROG offers more choices than any other brand. SOFTWARE UTILITIES A myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertips. TWO-WAY AI NOISE CANCELATION This utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls. AI NETWORKING GameFirst VI optimizes networking performance by allocating bandwidth in real time based on application usage scenarios and corresponding learning algorithms. The latest update includes dedicated support for GeForce NOW to ensure the lowest latency possible during intense game streaming sessions. The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans. AI Suite 3 gives you digital power controls and hardware monitoring directly from the OS. Intuitive sliders and dials let you take command of your VRM, including tweaking load-line calibration, switching frequency, and voltage droop, all while tracking CPU vitals and fan speeds in real time. Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset. SONIC STUDIO LINK Easily apply Sonic Studio effects on all playback devices. Simply press the Sonic Studio Link button to enjoy the effect on any playback device. SONIC STUDIO VIRTUAL MIXER Combine audio output from selected apps with audio from the microphone input and stream the compiled mix. APP-SPECIFIC PROFILES Apply customized audio settings to different applications, so everything you do is perfectly tuned to the way you want to listen. Through the pre-loaded DTS® Sound Unbound? app, the ROG Strix B760-A D4 envelops you in rich audio, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By exploiting Microsoft spatial sound technology, DTS Sound Unbound creates an audial 3D space ? putting you right in the middle of the soundscape, where you can sense the location and direction of every gunshot, footstep, or other sound in your virtual environment. *DTS Sound Unbound requires in-game support. Check with developers for supported titles. STEREO SOUND Discrete left and right audio channels enable headphone or two-speaker setups. SURROUND SOUND Audio is split and served over multiple speaker channels ? e.g., 5.1 or 7.1 ? to create an enveloping experience on a single, logical plane. SPATIAL SOUND A virtual 360-degree soundscape immerses you in a realistic sonic experience. he ROG Strix B760-A D4 includes a sixty-day AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers*. *Support available for ROG Ryujin II and later models. Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate?s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers. You can use Armoury Crate to download drivers, tools, and user manuals, and to register products. It also taps into a special news feed that connects you to the global ASUS gaming community. * Windows 10 or 11 required for full Aura Sync functionality within Armoury Crate. For Windows 8 and earlier versions, standalone Aura Sync software is available for free download from the product support site.?
Processor
Processor manufacturer | Intel |
Processor socket | LGA 1700 |
Compatible processor series | Intel® Celeron®, Intel® Core? i3, Intel® Core? i5, Intel® Core? i7, Intel® Core? i9, Intel® Pentium® Gold |
Maximum number of SMP processors | 1 |
Supported processor sockets | LGA 1700 |
Memory
Supported memory types | DDR4-SDRAM |
Number of memory slots | 4 |
Memory slots type | DIMM |
Memory channels | Dual-channel |
Non-ECC | Y |
Supported memory clock speeds | 5333,5066,5000,4800,4600,4400,4266,4000,3733,3600,3466,3400,3333,3200,3000,2933,2800,2666,2400,2133 MHz |
Supported memory clock speed (max) | 5333 MHz |
Maximum internal memory | 128 GB |
Unbuffered memory | Y |
Storage controllers
Supported storage drive types | HDD & SSD |
Supported storage drive interfaces | M.2, SATA III |
Number of storage drives supported | 7 |
Number of HDDs supported | 4 |
RAID support | Y |
RAID levels | 0, 1, 5, 10 |
Graphics
Parallel processing technology support | Not supported |
Internal I/O
USB 2.0 connectors | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
Number of SATA III connectors | 4 |
S/PDIF out connector | Y |
Front panel audio connector | Y |
Front panel connector | Y |
ATX Power connector (24-pin) | Y |
CPU fan connector | Y |
Number of chassis fan connectors | 4 |
Peripheral (Molex) power connectors (4-pin) | 1 |
EPS power connector (8-pin) | Y |
Thunderbolt headers | 1 |
12V power connector | Y |
RGB LED pin header | Y |
Rear panel I/O ports
USB 2.0 ports quantity | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 1 |
HDMI version | 2.1 |
DisplayPorts quantity | 1 |
DisplayPort version | 1.4 |
Headphone outputs | 1 |
Line-in | Y |
Microphone in | Y |
WiFi-AP antenna jack | 2 |
Network
Ethernet LAN | Y |
Ethernet interface type | 2.5 Gigabit Ethernet |
Wi-Fi | Y |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
Bluetooth | Y |
Bluetooth version | 5.3 |
Features
Component for | PC |
Motherboard form factor | ATX |
Motherboard chipset family | Intel |
Motherboard chipset | Intel B760 |
Audio chip | Realtek ALC4080 |
Audio output channels | 7.1 channels |
Cooling type | Passive |
Power source type | ATX |
Windows operating systems supported | Windows 10, Windows 11 |
Expansion slots
PCI Express x1 (Gen 3.x) slots | 2 |
PCI Express x16 (Gen 3.x) slots | 1 |
PCI Express x16 (Gen 5.x) slots | 1 |
Number of M.2 (M) slots | 3 |
BIOS
BIOS type | UEFI AMI |
BIOS memory size | 256 Mbit |
Packaging data
Package width | 355 mm |
Package depth | 70 mm |
Package height | 275 mm |
Package weight | 1.7 kg |
Weight & dimensions
Width | 305 mm |
Depth | 244 mm |
Packaging content
User guide | Y |
Cables included | SATA |
Other features
Back-to-BIOS button | Y |
be quiet! Pure Rock 2 Silver (BK006)
Pure Rock 2 is be quiet!’s CPU cooler for silent multimedia and graphics systems. It provides an excellent price-to-performance ratio with 150W TDP cooling efficiency, four 6mm heat pipes, a Pure Wings 2 120mm PWM fan and convenient design for mounting from atop the motherboard. Among the features that give it such an excellent price-to-performance ratio are:
Performance
Suitable for | Processor |
Type | Cooling set |
Fan diameter | 12 cm |
Supported processor sockets | LGA 1150 (Socket H3),LGA 1151 (Socket H4),LGA 1155 (Socket H2),LGA 2011-v3 (Socket R),LGA 2066,Socket AM3+,Socket AM4 |
Rotational speed (max) | 1500 RPM |
Noise level (low speed) | 19.1 dB |
Noise level (high speed) | 26.8 dB |
Bearing type | Rifle bearing |
Quantity per pack | 16 pc(s) |
Design
Product colour | Silver |
Base plate material | Copper |
Number of fans | 1 fan(s) |
Number of fins | 55 |
Fins material | Aluminum |
Number of heat pipes | 4 |
Fan connector | 4-pin |
Power
Power consumption (typical) | 1.44 W |
Rated voltage | 12 V |
Thermal Design Power (TDP) | 150 W |
Rated current | 0.12 A |
Weight & dimensions
Width | 121 mm |
Depth | 87 mm |
Height | 155 mm |
Weight | 575 g |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Heat pipes diameter | 6 mm |
Cable length | 0.22 m |
Package width | 130 mm |
Package depth | 180 mm |
Package height | 180 mm |
Package weight | 976 g |
Packaging content
Package type | Box |
Other features
Heatsink dimensions (W x D x H) | 121 x 62 x 155 mm |
Logistics data
Shipping (inner) case width | 33 cm |
Shipping (inner) case length | 65.5 cm |
Shipping (inner) case height | 36 cm |
Shipping (inner) case weight | 16.1 kg |
ASUS DRW-24D5MT Internal DVD Super Multi DL Black (90DD01Y0-B20010)
LG GH24NSD1, Black, Desktop, Tray, DVD Super Multi DL, SATA, CD-R, CD-RW, DVD, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-RAM
Design
Internal | Yes |
Colour of product | Black |
Disc loading type | Tray |
Mounting | Horizontal |
Performance
Purpose | Desktop |
Optical drive type | DVD Super Multi DL |
Disc types supported | CD-R, CD-RW, DVD, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-RAM |
Interface | SATA |
Writing speed
CD write speed | 48x |
CD rewrite speed | 24x |
DVD-RW write speed | 6x |
DVD-RAM write speed | 5x |
DVD+RW write speed | 8x |
DVD-R Double Layer write speed | 8x |
DVD+R write speed | 24x |
DVD-R write speed | 24x |
DVD+R Double Layer write speed | 8x |
Reading speed
CD read speed | 48x |
CD-RW read speed | 40x |
DVD-RAM read speed | 5x |
DVD-ROM read speed | 16x |
CD-ROM read speed | 48x |
CD-R read speed | 48x |
DVD-RW read speed | 13x |
DVD+R read speed | 16x |
DVD-R read speed | 16x |
DVD+R Double Layer read speed | 12x |
DVD+RW read speed | 13x |
System requirements
Windows operating systems supported | Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
Weight & dimensions
Width | 14.6 cm |
Depth | 16.5 cm |
Height | 4.13 cm |
Weight | 700 g |
Packaging content
Bundled software | Power2Go |
Quantity | 1 |
140mm Default Case Fan
Windows 11 64Bit Professional installed activated digital key (ready to work - without data media)
ASUS TUF Gaming RTX 3060 V2 GAMING 12 GB OC (90YV0GC0-M0NA10)
ASUS TUF Gaming TUF-RTX3060-O12G-V2-GAMING, GeForce RTX 3060, 12 GB, GDDR6, 192 bit, 7680 x 4320 pixels, PCI Express 4.0
Processor
Graphics processor family | NVIDIA |
Graphics processor | GeForce RTX 3060 |
Maximum resolution | 7680 x 4320 pixels |
CUDA | Y |
CUDA cores | 3584 |
Processor boost clock speed | 1852 MHz |
Processor boost clock speed (OC mode) | 1882 MHz |
FireStream | N |
Parallel processing technology support | Not supported |
Maximum displays per videocard | 4 |
Memory
Discrete graphics adapter memory | 12 GB |
Graphics adapter memory type | GDDR6 |
Memory bus | 192 bit |
Data transfer rate | 15 Gbit/s |
Ports & interfaces
Interface type | PCI Express 4.0 |
HDMI ports quantity | 2 |
DisplayPorts quantity | 3 |
HDMI version | 2.1 |
DisplayPort version | 1.4a |
Performance
TV tuner integrated | N |
DirectX version | 1?2 Ultimate |
OpenGL version | 4.6 |
HDCP | Y |
Dual Link DVI | N |
NVIDIA G-SYNC | Y |
Design
Cooling type | Active |
Cooling technology | ASUS Axial-tech |
Number of fans | 3 fan(s) |
Bracket height | Full-Height (FH) |
Form factor | Full-Height/Full-Length (FH/FL) |
Number of slots | 2.7 |
Illumination colour | Multi |
Illumination | Y |
Product colour | Black |
Power
Minimum system power supply | 750 W |
Supplementary power connectors | 1x 8-pin |
Weight & dimensions
Width | 54 mm |
Height | 143 mm |
Depth | 301 mm |
Packaging data
Manual | Y |
Package type | Box |
onBoard Sound

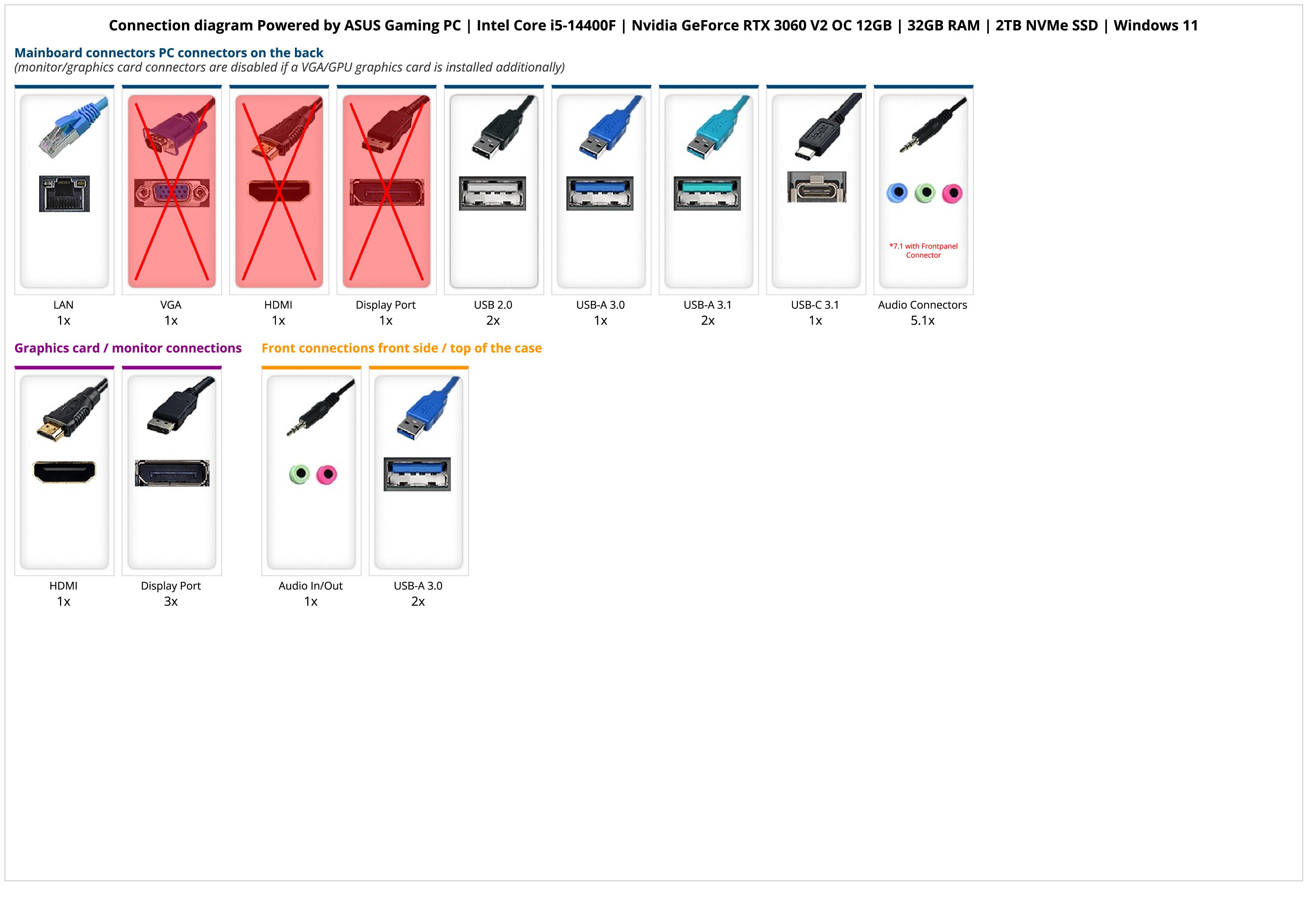

onBoard Sound incl. 5.1 or 7.1 look at Ports Layout Plan650W be quiet! Pure Power 12 M (BN342) ATX 3.0
EXCEPTIONAL QUIET, SUPERIOR FEATURES Pure Power 12 M 650W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 650W offers the best combination of features with outstanding compatibility. 80 PLUS® GOLD CERTIFIED Very high operating efficiency Pure Power 12 M 650W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 92.7%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 650W is always the correct choice for quiet systems and gaming PCs! FUTURE-PROOF YOUR SYSTEM Fulfills all ATX 3.0 specifications Pure Power 12 M 650W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful present systems. THE NEW STANDARD OF POWER For massive transient loads Pure Power 12 M offers 650W of continuous power with 2 independent 12V rails. Even if the graphics card demands excessive power for a short time: Pure Power 12 M 650W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards. UNPRECEDENTED SILENT OPERATION Achieved with a silence-optimized be quiet! fan The exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality. HIGH-CLASS TECHNOLOGIES Rock-solid stability With its LLC topology Pure Power 12 M 650W provides a best-in-class voltage regulation and efficiency. That makes it perfect for building or upgrading very quiet systems as well as gaming and media creation PCs. MODULAR CABLES Utmost convenience and compatibility Thanks to their modularity, all unnecessary cables in the system are left out. Pure Power 12 M 650W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.
Power
Total power | 650 W |
Peak power | 720 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
Input current | 10/5 A |
Power factor | 0.98 |
Power Factor Correction (PFC) type | Active |
Combined power (+3.3V) | 120 W |
Combined power (+12V) | 650 W |
Combined power (+5V) | 120 W |
Combined power (-12V) | 3.6 W |
Combined power (+5Vsb) | 15 W |
Max output current (+3.3V) | 20 A |
Max output current (+12V1) | 32 A |
Max output current (+12V2) | 28 A |
Max output current (+5V) | 20 A |
Max output current (-12V) | 0.3 A |
Max output current (+5Vsb) | 3 A |
Power Good signal delay range | 100 - 150 ms |
Efficiency | 92.7% |
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit |
Ports & interfaces
Motherboard power connector | 20+4 pin ATX |
Motherboard power cable length | 55 cm |
Number of SATA power connectors | 5 |
Number of PATA power connectors | 2 |
SATA power cable length | 500,650,800,950 mm |
Peripheral (Molex) power connectors (4-pin) | 1 |
Peripheral (Molex) power cable length | 550 mm |
EPS power connector (4+4 pin) | Y |
PCI Express power connectors (6+2 pin) | 2 |
CPU P4 connector (4-pin) | 1 |
ATX power connector (20+4 pin) | Y |
PCI Express connector | Y |
Performance
Purpose | PC |
Power supply unit (PSU) form factor | ATX |
80 PLUS certification | 80 PLUS Gold |
ATX version | 3.0 |
EPS version | 2.92 |
Noise level | 19.9 dB |
Mean time between failures (MTBF) | 100000 h |
Design
Product colour | Black |
Cooling type | Active |
Fan diameter | 12 cm |
Number of fans | 1 fan(s) |
Fan location | Top |
On/off switch | Y |
Operational conditions
Operating temperature (T-T) | 0 - 40 °C |
Packaging content
Cables included | PATA, PCIe, Peripheral (Molex), SATA |
Weight & dimensions
Width | 160 mm |
Depth | 150 mm |
Height | 86 mm |
Packaging data
Package type | Box |
Technical details
Warranty period | 10 year(s) |
Sustainability certificates | ENERGY STAR, ErP, RoHS |
Sustainability compliance | Y |
Other features
Screws included | Y |
Number of screws | 5 |
Cable ties included | Y |
Noise level (silent mode, <30%) | 8.1 dB |
Noise level (quiet mode, 50%) | 9.1 dB |
Noise level (full-load mode, 100%) | 19.9 dB |
2TB Western Digital Blue SN570 NVMe M.2 (Read 3500MB/s - Write 3500MB/s)
Western Digital WD Blue SN570, 2000 GB, M.2, 3500 MB/s
Features
SSD form factor | M.2 |
SSD capacity | 2000 GB |
Interface | PCI Express 3.0 |
Memory type | TLC |
NVMe | Y |
NVMe version | 1.4 |
Component for | PC |
Hardware encryption | N |
Read speed | 3500 MB/s |
Write speed | 3500 MB/s |
Random read (4KB) | 600000 IOPS |
Random write (4KB) | 600000 IOPS |
PCI Express interface data lanes | x4 |
Mean time between failures (MTBF) | 1500000 h |
TBW rating | 900 |
Power
Power consumption (max) | 4.5 W |
Operational conditions
Operating temperature (T-T) | 0 - 70 °C |
Storage temperature (T-T) | -40 - 85 °C |
Maximum operating temperature | 70 °C |
Operating vibration | 5 G |
Non-operating vibration | 4.9 G |
Operating shock | 1500 G |
Weight & dimensions
Width | 22 mm |
Depth | 80 mm |
Height | 2.38 mm |
Weight | 6.5 g |
onBoard WIFI + Bluetooth
32GB Corsair Vengeance LPX 3.200MHz (CMK32GX4M2E3200C16)
Corsair Vengeance LPX CMK32GX4M2E3200C16, 32 GB, 2 x 16 GB, DDR4, 3200 MHz, 288-pin DIMM
Features
Internal memory | 32 GB |
Internal memory type | DDR4 |
Memory clock speed | 3200 MHz |
Component for | PC/server |
Memory form factor | 288-pin DIMM |
Memory layout (modules x size) | 2 x 16 GB |
CAS latency | 16 |
Cooling type | Heatsink |
Intel Core i5-13400F 10x 2.50-4.60GHz (BX8071513400F)
Intel Core i5-13400F, Intel® Core™ i5, LGA 1700, Intel, i5-13400F, 64-bit, 13th gen Intel® Core™ i5
Processor
Processor manufacturer | Intel |
Processor family | Intel® Core? i5 |
Processor generation | 13th gen Intel® Core? i5 |
Processor model | i5-13400F |
Processor cores | 10 |
Processor socket | LGA 1700 |
Box | Y |
Processor threads | 16 |
Processor operating modes | 64-bit |
Performance cores | 6 |
Efficient cores | 4 |
Processor boost frequency | 4.6 GHz |
Performance-core boost frequency | 4.6 GHz |
Performance-core base frequency | 2.5 GHz |
Efficient-core boost frequency | 3.3 GHz |
Efficient-core base frequency | 1.8 GHz |
Processor cache | 20 MB |
Processor cache type | Smart Cache |
Maximum turbo power | 148 W |
Processor base power | 65 W |
Maximum number of DMI lanes | 8 |
Processor codename | Raptor Lake |
Memory
Maximum internal memory supported by processor | 128 GB |
Memory types supported by processor | DDR4-SDRAM, DDR5-SDRAM |
Memory channels | Dual-channel |
Memory bandwidth (max) | 76.8 GB/s |
Graphics
On-board graphics card | N |
Discrete graphics card | N |
On-board graphics card model | Not available |
Discrete graphics card model | Not available |
Features
Thermal Monitoring Technologies | Y |
Idle States | Y |
Execute Disable Bit | Y |
Market segment | Desktop |
Use conditions | PC/Client/Tablet |
Maximum number of PCI Express lanes | 20 |
PCI Express slots version | 4.0, 5.0 |
PCI Express configurations | 1x16+1x4, 2x8+1x4 |
Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
Direct Media Interface (DMI) Revision | 4.0 |
Embedded options available | N |
Scalability | 1S |
CPU configuration (max) | 1 |
Harmonized System (HS) code | 8542310001 |
Export Control Classification Number (ECCN) | 5A992C |
Commodity Classification Automated Tracking System (CCATS) | 740.17B1 |
Processor special features
Intel® Speed Shift Technology | Y |
Enhanced Intel SpeedStep Technology | Y |
Intel® AES New Instructions (Intel® AES-NI) | Y |
Intel® Hyper Threading Technology (Intel® HT Technology) | Y |
Intel® Turbo Boost Technology | 2.0 |
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 | Y |
Intel® Control-flow Enforcement Technology (CET) | Y |
Intel® Thread Director | Y |
Intel® Deep Learning Boost (Intel® DL Boost) | Y |
Intel® Boot Guard | Y |
Intel® Volume Management Device (VMD) | Y |
Mode-based Execute Control (MBE) | Y |
Intel® Standard Manageability (ISM) | Y |
Intel Turbo Boost Max Technology 3.0 | N |
Intel® Secure Key | Y |
Intel VT-x with Extended Page Tables (EPT) | Y |
Intel® OS Guard | Y |
Intel 64 | Y |
Intel Virtualization Technology (VT-x) | Y |
Intel Virtualization Technology for Directed I/O (VT-d) | Y |
Operational conditions
Tjunction | 100 °C |
Technical details
Launch date | Q1'23 |
Weight & dimensions
Processor package size | 45 x 37.5 mm |
Other features
L2 cache | 9728 KB |
onBoard LAN
120mm Default Case Fan
be quiet! Pure Base 600 black window (BGW21)
Exceptionally silent and functional
Pure Base 600 Window is truly multi-talented, offering a great deal of functionality and features for an attractive price. Smart usability features and whisper-quiet operation enable you to realize almost any system configuration you desire for your ATX or micro ATX PC. It is the perfect base for your system.
- Highly versatile construction, with repositionable HDD slots and removable ODD cage
- Water cooling ready for radiators up to 360mm on front, top and rear
- Adjustable top cover vent with enhanced cooling options and mounting location for a radiator
- Two pre-installed be quiet! Pure Wings 2 fans assure whisper-quiet operation
- Fully-windowed side panel from tinted and tempered glass
- Completely sound insulated with dampening material in all relevant places
- Professional cable management is adaptable with extensive cable routing options
- Product conception, design and quality control in Germany
Pure Base 600 Window is truly multi-talented, offering a great deal of functionality and features for an attractive price. Smart usability features and whisper-quiet operation enable you to realize almost any system configuration you desire for your ATX or micro ATX PC. It is the perfect base for your system.
- Highly versatile construction, with repositionable HDD slots and removable ODD cage
- Water cooling ready for radiators up to 360mm on front, top and rear
- Adjustable top cover vent with enhanced cooling options and mounting location for a radiator
- Two pre-installed be quiet! Pure Wings 2 fans assure whisper-quiet operation
- Fully-windowed side panel from tinted and tempered glass
- Completely sound insulated with dampening material in all relevant places
- Professional cable management is adaptable with extensive cable routing options
- Product conception, design and quality control in Germany
Design
Form factor | Midi-Tower |
Type | PC |
Material | ABS synthetics, Plastic, Steel, Tempered glass |
Number of 5.25' bays | 2 |
Number of 3.5' bays | 3 |
Supported motherboard form factors | ATX,Micro-ATX,Mini-ITX |
Colour of product | Black |
Number of 2.5' bays | 8 |
Number of internal 3.5' bays | 3 |
Number of external 5.25' bays | 2 |
Pump connector | 3-pin |
Side window | Y |
Anti-dust filter | Y |
Fan connector | 3-pin |
Material thickness | 1 mm |
Suitable for | Gaming |
Number of expansion slots | 7 |
Maximum CPU cooler height | 16.5 cm |
Maximum graphics card length | 42.5 cm |
Maximum PSU length | 21 cm |
Mean time between failures (MTBF) | 80000 h |
Certification | CE, RoHS |
Power supply
Power supply included | N |
Power supply location | Bottom |
Supported power supply form factors | ATX |
Ports & interfaces
USB 3.0 (3.1 Gen 1) Type-A ports quantity | 2 |
Audio input | Y |
Audio output | Y |
Cooling
Front fans installed | 1x 140 mm |
Maximum front fans | 1 |
Front fans diameters supported | 120,140 mm |
Rear fans installed | 1x 120 mm |
Maximum rear fans | 1 |
Rear fans diameters supported | 120 mm |
Maximum top fans | 3 |
Top fans diameters supported | 120,140 mm |
Noise level (high speed) | 17.1 dB |
Fan rated current | 0.09 A |
Maximum airflow | 55.8 cfm |
Front radiator fan sizes supported | 120,140,240,280,360 mm |
Rear radiator fan sizes supported | 120 mm |
Top radiator fan sizes supported | 120,240,360 mm |
Storage
Supported hard disk drive sizes | 2.5,3.5' |
Ergonomics
Cable management | Y |
LED indicators | Y |
Weight & dimensions
Width | 220 mm |
Depth | 492 mm |
Height | 470 mm |
Weight | 8.45 kg |
Packaging data
Package width | 280 mm |
Package depth | 515 mm |
Package height | 565 mm |
Package weight | 9.84 kg |
Nicht warten - einfach finanzieren!
Bezahlen Sie schnell und unkompliziert in kleinen Monatsraten. Einfach Artikel auswählen, zur Kasse gehen
und mit der Zahlungsart "Finanzierung" die Ware bezahlen.
Weitere Details
Mögliche Laufzeiten:
Laufzeit in Monaten | Monatlich Rate | Effektiver Jahreszins | Gebundener jährl. Sollzinssatz | Gesambetrag |
6 | 6×28,95 EUR | 9,9 % | 9,48 % | 173,70 EUR |
10 | 12×17,64 EUR | 9,9 % | 9,48 % | 176,43 EUR |
12 | 12×14,82 EUR | 9,9 % | 9,48 % | 177,80 EUR |
18 | 18×10,11 EUR | 9,9 % | 9,48 % | 181,96 EUR |
Diese Angaben stellen zugleich das repräsentative Beispiel im Sinne des § 6a PangV dar. Vermittlung erfolgt ausschließlich für die Commerz Finanz GmbH, Schwanthalerstr. 31, 80336 München.
Mainboard connectors PC connectors on the back
(monitor/graphics card connectors are disabled if a VGA/GPU graphics card is installed additionally)
(monitor/graphics card connectors are disabled if a VGA/GPU graphics card is installed additionally)

LAN
1x


HDMI
1x


Display Port
1x

USB 2.0
4x

USB-A 3.0 Mainboard
2x

USB-A 3.1
1x

USB-C 3.0
1x

USB-C 3.1
1x

Audio Connectors
5.1

Bluetooth
1x

W-LAN
1x
Graphics card / monitor connections

HDMI
2x

Display Port
3x
Front connections front side / top of the case

Audio In/Out
1x

USB-A 3.0
2x
Expansion cards - PCI / PCIe

W-LAN
1x
These connection options have been generated for you. In individual cases, deviations are possible.

Intel Core i5
The Intel Core i5 series is a range of processors for desktop and laptop computers. The focus of this processor family is the price-performance ratio. It offers a good balance between performance, energy efficiency and price.
mehr anzeigen
weniger anzeigen

32 GB RAM
The RAM is important for the computer's performance because it allows access to the data that is currently needed. The bigger and faster the RAM is, the better. We have installed 32 GB of RAM from a brand manufacturer in this computer.
mehr anzeigen
weniger anzeigen

Windows 11
The latest operating system from Microsoft with the latest designs, drivers and support for the most modern hardware.
This machine has Windows 11 installed with all drivers.
mehr anzeigen
weniger anzeigen

NVIDIA GeForce RTX 3060
This PC is furnished with the GeForce RTX 3060. With its sophisticated fan design, the high-speed memory and base clock of 1.32 GHz / turbo clock of 1.78 GHz as well as 6-12 GB RAM depending on the model, it is an ideal gamer graphics card.
mehr anzeigen
weniger anzeigen

2000 GB NVMe SSD M.2 High Speed
The NVMe interface offers the fastest data transfer currently available for the already fast M.2 SSDs. This 2000 GB drive uses the fast NVMe technology. Waiting times are now a thing of the past!
mehr anzeigen
weniger anzeigen

Wlan / WiFi & Bluetooth
This device has WiFi / WLAN for wireless internet reception and Bluetooth functionality for wireless connection with peripherals. Be ready for any situation!
mehr anzeigen
weniger anzeigen
