Gaming PC V0304TL Intel Core i5-12400F MSI MAG B760 RTX 4070 32GB RAM NH-D15 Win 11 Pro onBoard WIFI + Bluetooth
Article number:
4260561746922
In stock
Bulletpoints
- [ Item number EAN: 4260561746922 ] --- Intel Core i5-12400F 6x 2.50-4.40GHz (BX8071512400F) - MSI MAG B760 TOMAHAWK WIFI DDR4 (7D96-001R) - 32GB Corsair Vengeance RGB PRO 3200 MHz (CMW32GX4M2E3200C16)
- Palit GeForce RTX 4070 Dual 12GB OC (NED4070S19K9-1047D) - 850W be quiet! Straight Power 11 Platinum FM (BN308) - be quiet! Silent Base 802 black window (BGW39) - onBoard WIFI + Bluetooth
- 1TB Western Digital WD Blue SN570 NVMe M.2 (Read 3500MB/s - Write 3000MB/s)
- Windows 11 64Bit Professional installiert aktiviert DPK (Ready to Work - ohne Datenträger)
- Assembled, tested and checked - 2 years warranty
Intel Core i5-12400F
MSI MAG B760
RTX 4070
32GB RAM 3.200MHz RGB
850W Straight Power 11 FM
Silent Base 802 (BGW39)
NH-D15
Windows 11 64Bit Prof.
onBoard WIFI + Bluetooth
System performance
Office
Multimedia
Gaming
Workstation/CAD
System performance
Office
Multimedia
Gaming
Workstation/CAD
Product information "Gaming PC V0304TL Intel Core i5-12400F MSI MAG B760 RTX 4070 32GB RAM NH-D15 Win 11 Pro onBoard WIFI + Bluetooth"
CPU (Processor) | Intel Core i5-12400F 6x 2.50-4.40GHz (BX8071512400F) |
Mainboard | MSI MAG B760 TOMAHAWK WIFI DDR4 (7D96-001R) |
Video Card (VGA Card) | Palit GeForce RTX 4070 Dual 12GB OC (NED4070S19K9-1047D) |
System Memory (RAM) | 32GB Corsair Vengeance RGB PRO 3.200 MHz (CMW32GX4M2E3200C16) |
SSD | 1TB Western Digital WD Blue SN570 NVMe M.2 (Read 3500MB/s - Write 3000MB/s) |
Power Supply Unit (PSU) | 850W be quiet! Straight Power 11 Platinum FM (BN308) |
Case (Case) | be quiet! Silent Base 802 black window (BGW39) |
CPU Cooler (Cooler) | Noctua NH-D15 chromax.black (NH-D15 CHROMAX.BLACK) |
Operating System (Ready to use installed) | Windows 11 64Bit Professional installed activated digital key (ready to work - without data media) |
Case Fan | 3X 140mm Default Case Fan |
W-LAN Unit internal | onBoard WIFI + Bluetooth |

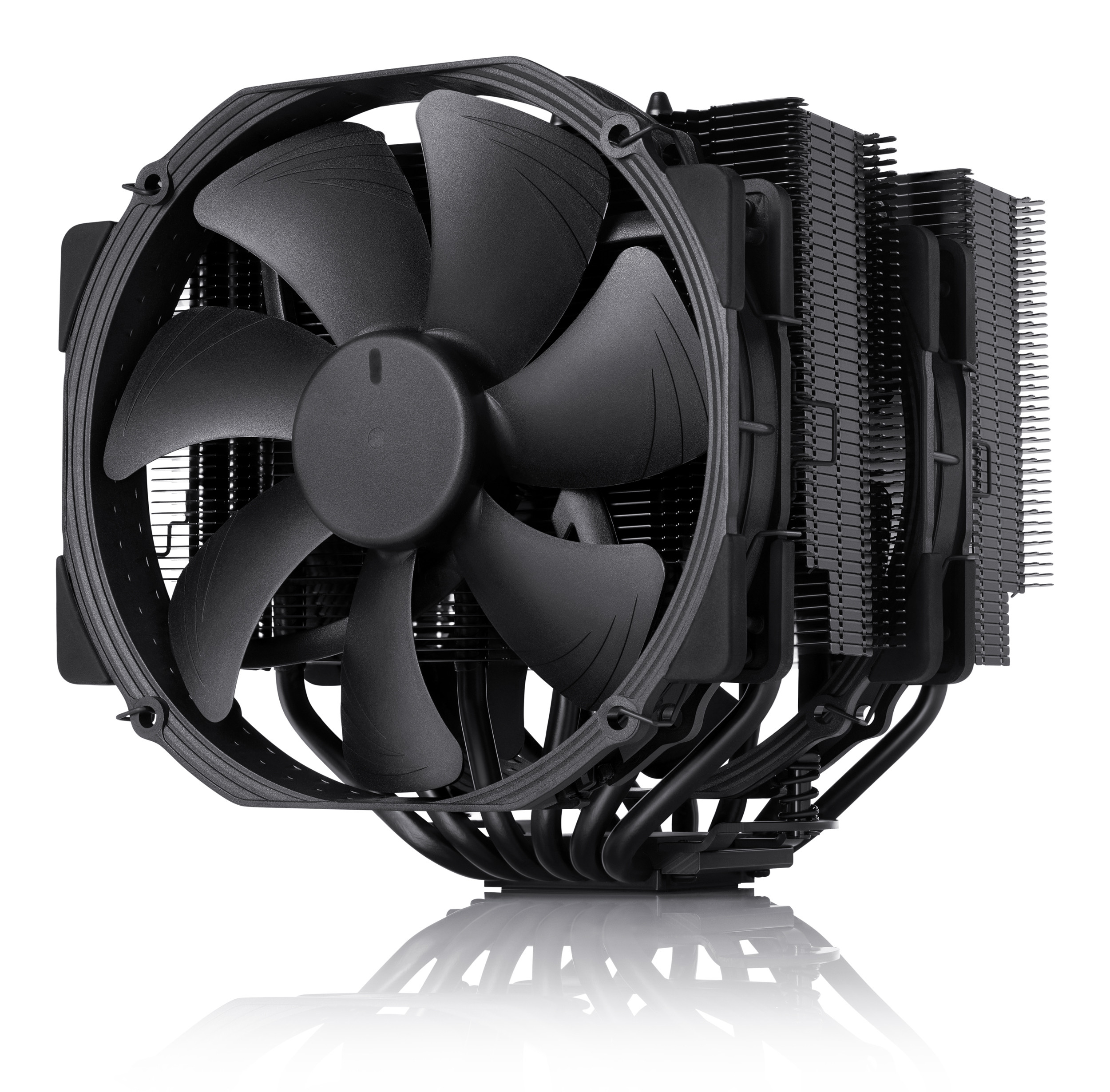

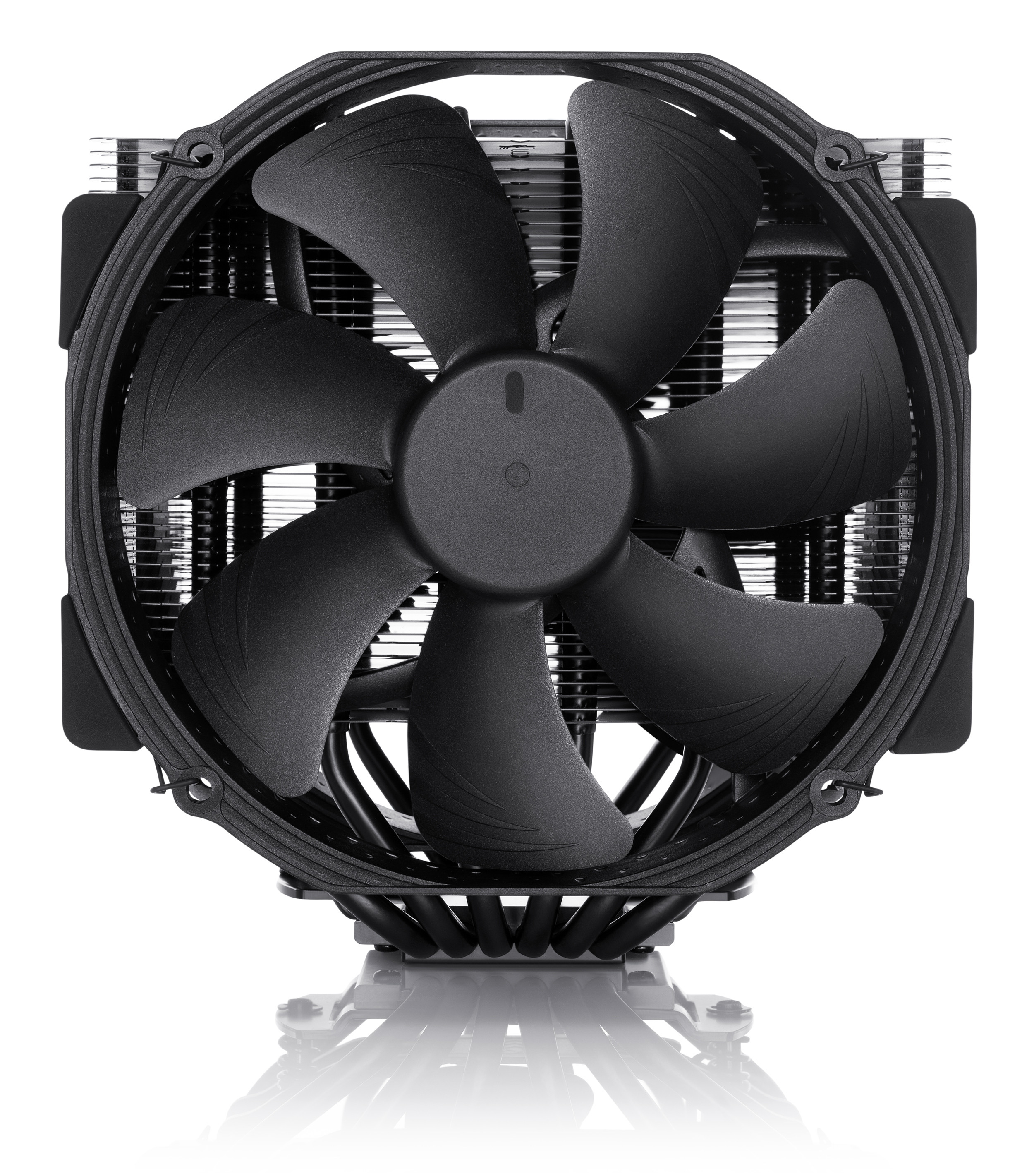

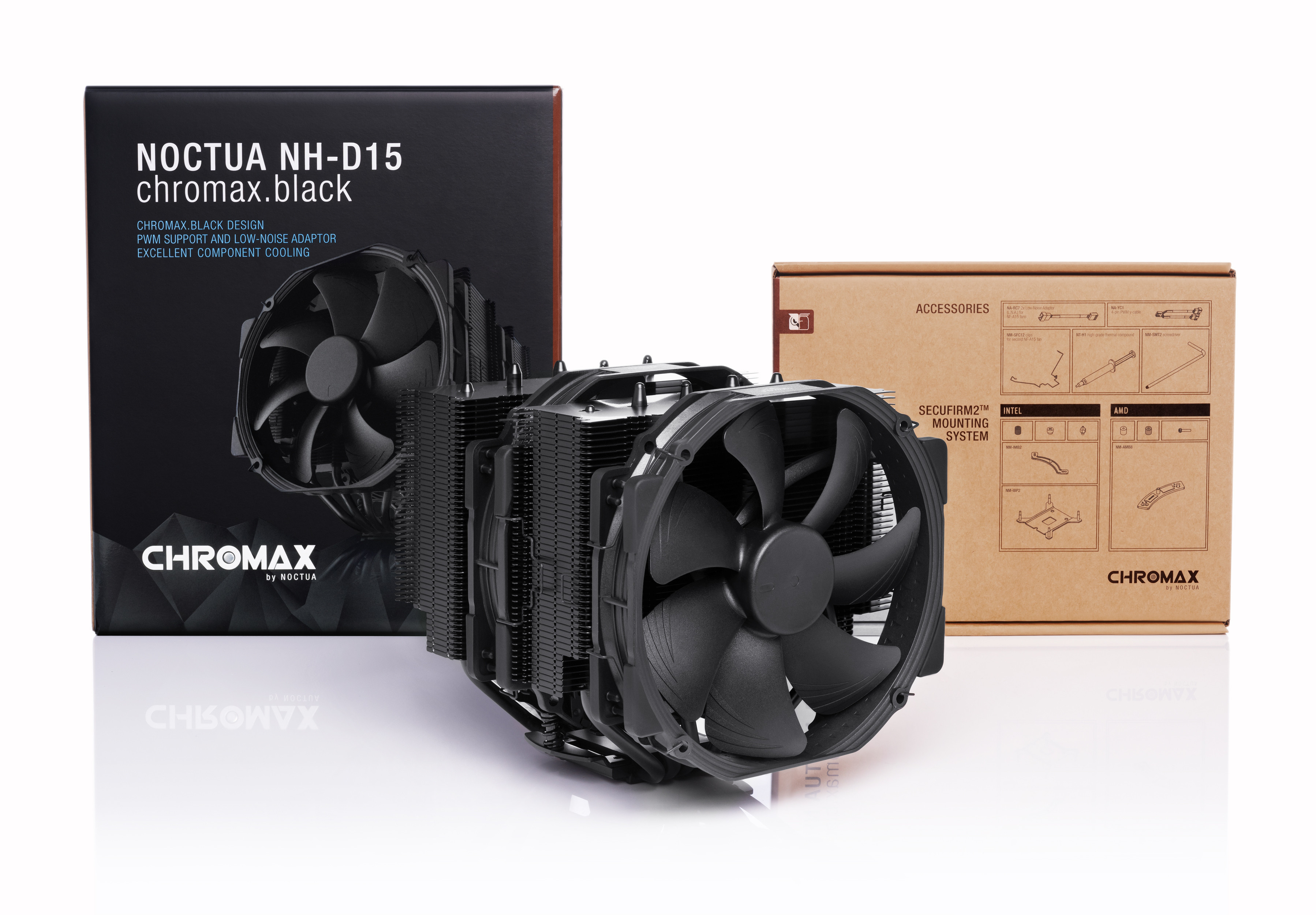

Noctua NH-D15 chromax.black (NH-D15 CHROMAX.BLACK)
The NH-D15 chromax.black is an all-black version of Noctua?s award-winning flagship model NH-D15 premium-quality quiet CPU cooler. Thanks to the same proven dual-tower heatsink design and NF-A15 PWM fans, it stays true to the NH-D15?s successful formula of rivalling the performance of all-in-one water coolers while maintaining superb quietness of operation. At the same time, the chromax.black version with its black fans and black coated heatsink combines these assets with a sleek stealth look. Topped off with the renowned SecuFirm2? multi-socket mounting system, Noctua?s enthusiast-grade NT-H1 thermal compound and a full 6-year manufacturer?s warranty, the NH-D15 chromax.black is a deluxe choice for both overclockers and silent enthusiasts who seek an elite-class heatsink that looks just as great as it cools.
Award-winning NH-D15 cooler
Tens of thousands of enthusiast users all over the world swear by the NH-D15?s quality and performance. Recommended by more than 200 international hardware websites and magazines, it is renowned for being one of the best high-end coolers on the market.

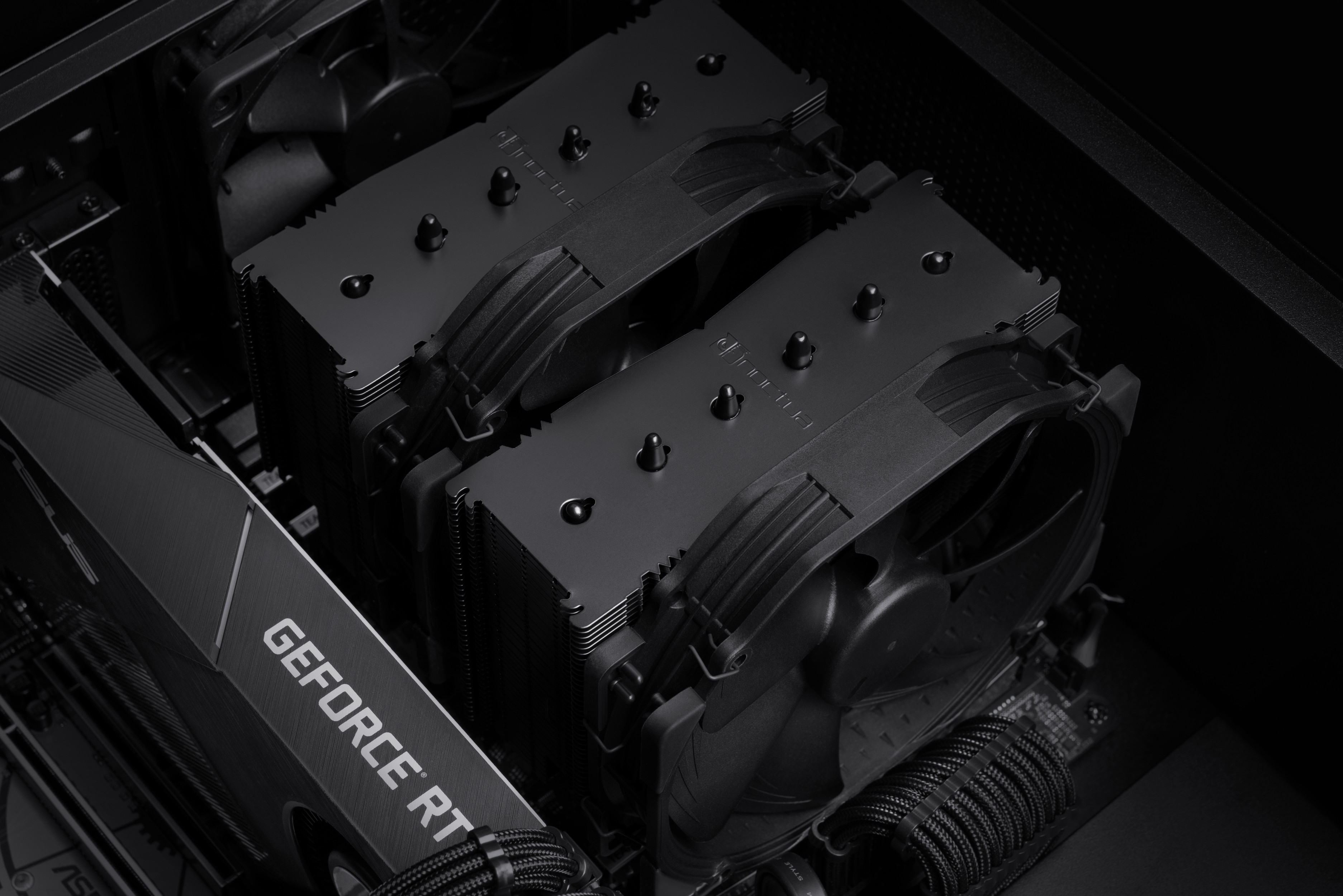

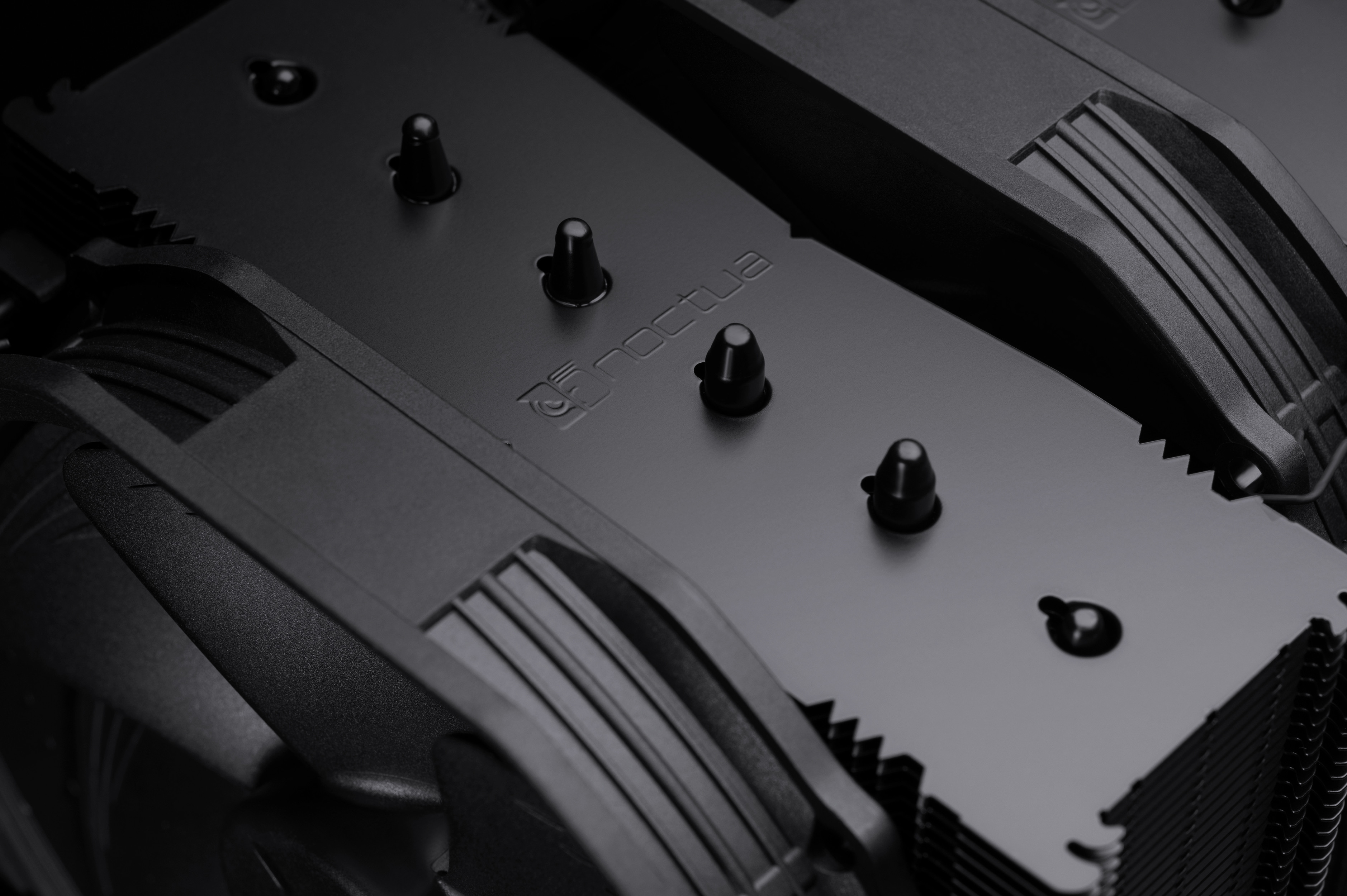

chromax.black design
The NH-D15 chromax.black is black from head to toe: Featuring a black coated heatsink, black fans with black anti-vibration-pads, black fan clips and black mounting parts, it?s right at home in all-black builds and easy to integrate with other colour schemes.
Colour-customisable
Using the optional NA-HC3 and NA-HC4 heatsink covers as well as the NA-SAVP3 anti-vibration pads (available in black, blue, green, red, yellow, white), the NH-D15 chromax.black can be fully customised to fit popular build colour schemes such as black and red or black and white.

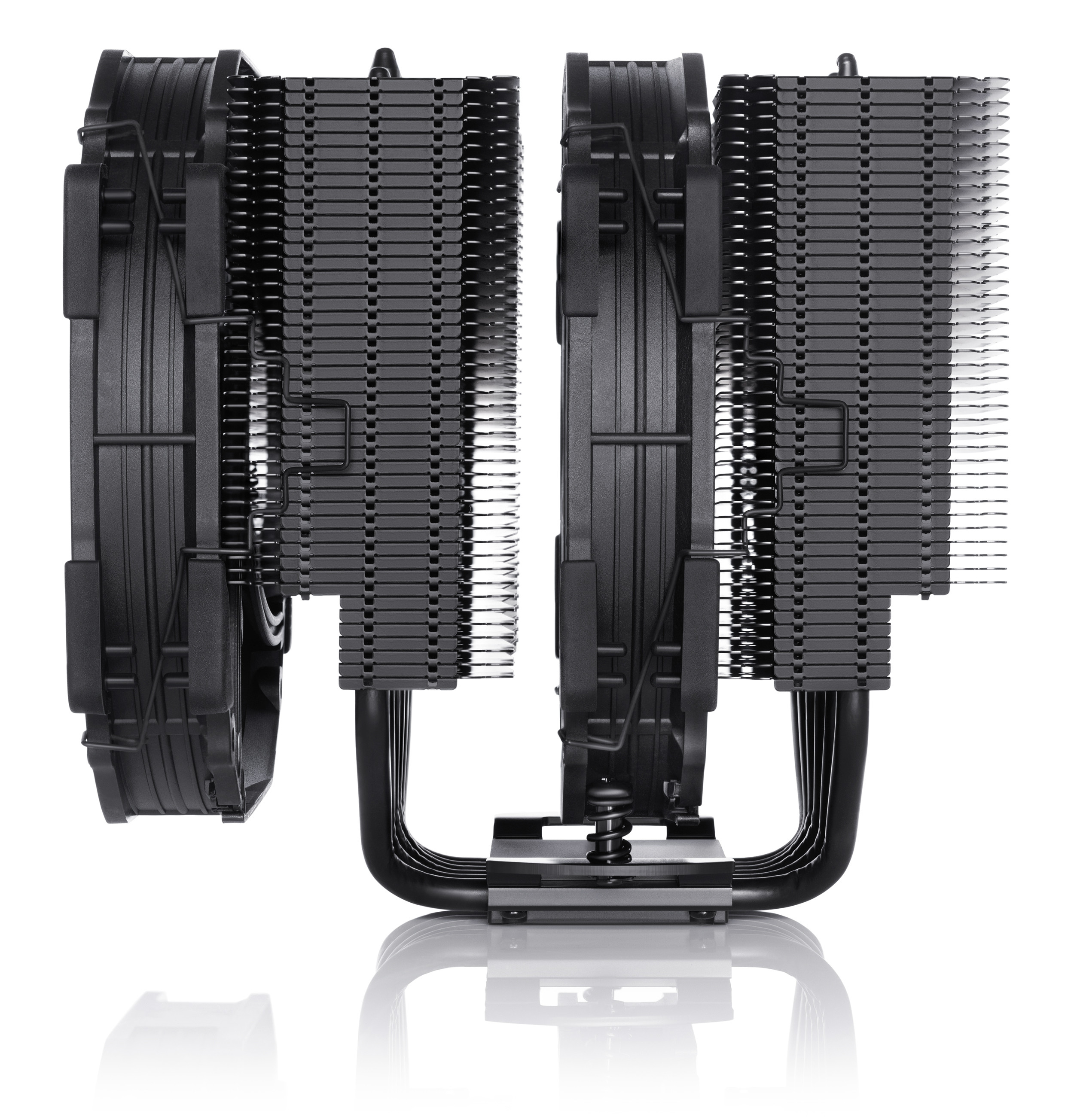

6 heatpipe dual tower design
As compared to conventional single tower heatinks, the NH-D15's fine-tuned six heatpipe dual tower design provides more surface area, better heat-distribution and superior airflow efficiency in dual fan mode.
Widened fin stack and expanded heatpipe layout
Compared to the NH-D14, the NH-D15's fin-stack has been widened from 140 to 150mm and its heatpipes are now spaced further apart, which allows for a more uniform heat distribution over a larger surface area and thus contributes to the NH-D15's superior efficiency.
High RAM compatibility in single fan mode
Thanks to its recessed lower fins, the NH-D15 provides 64mm clearance for tall memory heatsinks in single fan mode, making it compatible with most high end RAM modules on the market. In dual fan mode, the NH-D15 should be used with standard height RAM (up to 32mm).

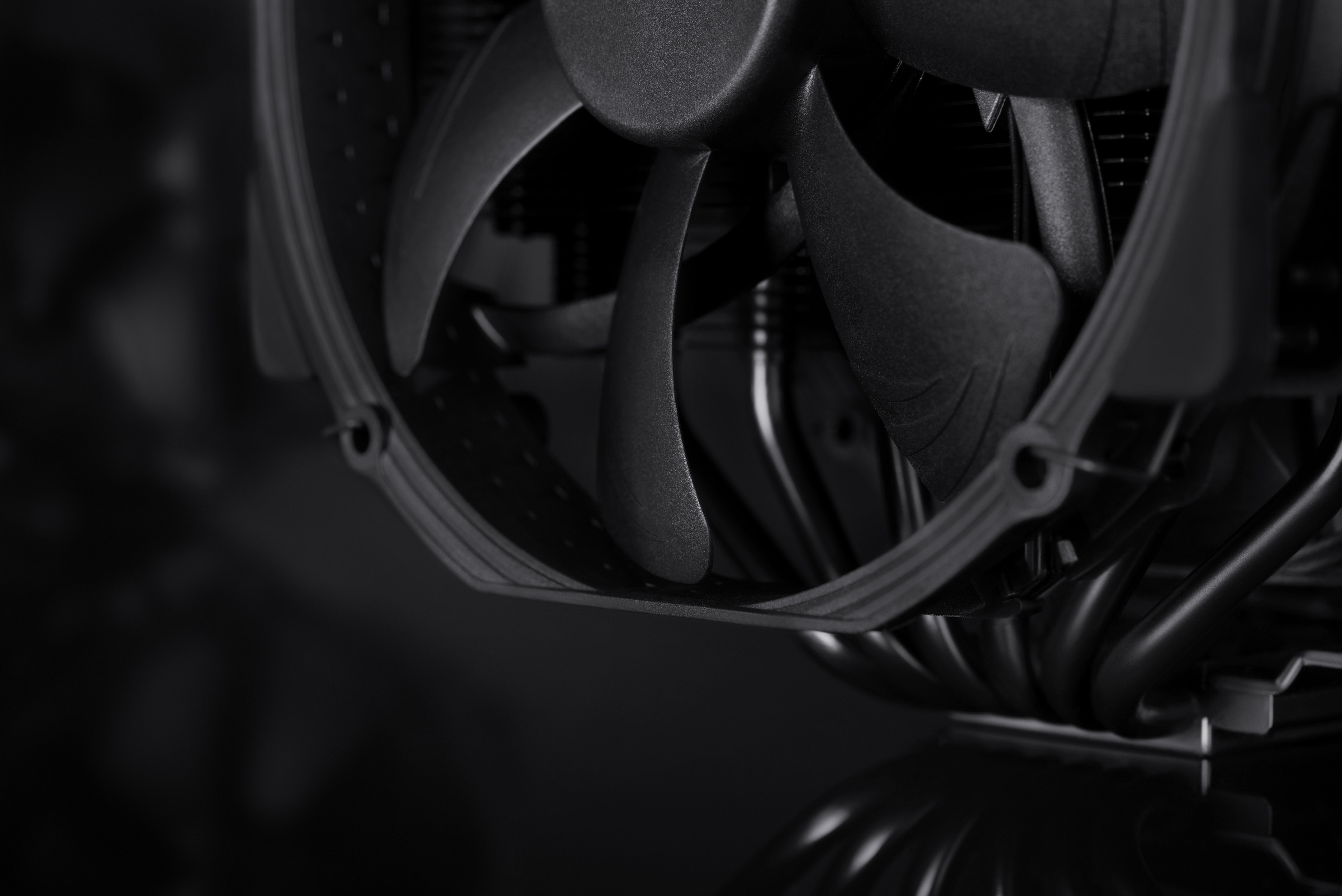

Dual NF-A15 140mm fans
The NH-D15 features two of Noctua's premium class NF-A15 140mm fans. Complying with Noctua's AAO standard and featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 has quickly built up a reputation as one of the best 140mm fans on the market.
PWM support and Low-Noise Adaptors
The NF-A15 premium fans supplied with the NH-D15 support PWM for convenient automatic speed control through the motherboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptors for even quieter operation.
Excellent component cooling
Extending below the fin-stacks, the large NF-A15 fans not only contribute to the NH-D15's superb CPU cooling capabilities but also provide massive airflow over surrounding motherboard components and heatsinks, thus ensuring excellent component cooling performance.
SecuFirm2? multi-socket mounting system
Noctua?s SecuFirm2? mounting systems have become synonymous with quality, safety and easy installation. Supporting Intel LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) and LGA20xx (LGA2066, LGA2011-0, LGA2011-3), as well as AMD AM4, AM3(+), AM2(+), FM2(+) and FM1, the SecuFirm2? mounting included with the NH-U12S is straightforward to install, provides perfect contact pressure and will stand the test of time even under heavy use.
Compatibility with past and future sockets
Thanks to Noctua?s SecuFirm? ecosystem, the NH-D15 can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets, which makes the NH-D15 a safe long-term investment.
NT-H1 thermal compound
Noctua?s much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability. Chosen again and again by overclockers and enthusiast users worldwide, it has established itself as a benchmark for premium-quality thermal compounds.
Soldered interface between heatpipes and fins
With many heatsinks, the fins are press-fitted to the heatpipes. Due to the different thermal expansion coefficients of copper and aluminium, this fit can loosen over years of thermal cycling, which may lead to reduced performance. By contrast, the NH-D15?s fins are soldered to the heatpipes in order to guarantee a superior thermal interface that doesn?t deteriorate even after many years of usage.
Award-winning NH-D15 cooler
Tens of thousands of enthusiast users all over the world swear by the NH-D15?s quality and performance. Recommended by more than 200 international hardware websites and magazines, it is renowned for being one of the best high-end coolers on the market.
chromax.black design
The NH-D15 chromax.black is black from head to toe: Featuring a black coated heatsink, black fans with black anti-vibration-pads, black fan clips and black mounting parts, it?s right at home in all-black builds and easy to integrate with other colour schemes.
Colour-customisable
Using the optional NA-HC3 and NA-HC4 heatsink covers as well as the NA-SAVP3 anti-vibration pads (available in black, blue, green, red, yellow, white), the NH-D15 chromax.black can be fully customised to fit popular build colour schemes such as black and red or black and white.
6 heatpipe dual tower design
As compared to conventional single tower heatinks, the NH-D15's fine-tuned six heatpipe dual tower design provides more surface area, better heat-distribution and superior airflow efficiency in dual fan mode.
Widened fin stack and expanded heatpipe layout
Compared to the NH-D14, the NH-D15's fin-stack has been widened from 140 to 150mm and its heatpipes are now spaced further apart, which allows for a more uniform heat distribution over a larger surface area and thus contributes to the NH-D15's superior efficiency.
High RAM compatibility in single fan mode
Thanks to its recessed lower fins, the NH-D15 provides 64mm clearance for tall memory heatsinks in single fan mode, making it compatible with most high end RAM modules on the market. In dual fan mode, the NH-D15 should be used with standard height RAM (up to 32mm).
Dual NF-A15 140mm fans
The NH-D15 features two of Noctua's premium class NF-A15 140mm fans. Complying with Noctua's AAO standard and featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 has quickly built up a reputation as one of the best 140mm fans on the market.
PWM support and Low-Noise Adaptors
The NF-A15 premium fans supplied with the NH-D15 support PWM for convenient automatic speed control through the motherboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptors for even quieter operation.
Excellent component cooling
Extending below the fin-stacks, the large NF-A15 fans not only contribute to the NH-D15's superb CPU cooling capabilities but also provide massive airflow over surrounding motherboard components and heatsinks, thus ensuring excellent component cooling performance.
SecuFirm2? multi-socket mounting system
Noctua?s SecuFirm2? mounting systems have become synonymous with quality, safety and easy installation. Supporting Intel LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) and LGA20xx (LGA2066, LGA2011-0, LGA2011-3), as well as AMD AM4, AM3(+), AM2(+), FM2(+) and FM1, the SecuFirm2? mounting included with the NH-U12S is straightforward to install, provides perfect contact pressure and will stand the test of time even under heavy use.
Compatibility with past and future sockets
Thanks to Noctua?s SecuFirm? ecosystem, the NH-D15 can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets, which makes the NH-D15 a safe long-term investment.
NT-H1 thermal compound
Noctua?s much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability. Chosen again and again by overclockers and enthusiast users worldwide, it has established itself as a benchmark for premium-quality thermal compounds.
Soldered interface between heatpipes and fins
With many heatsinks, the fins are press-fitted to the heatpipes. Due to the different thermal expansion coefficients of copper and aluminium, this fit can loosen over years of thermal cycling, which may lead to reduced performance. By contrast, the NH-D15?s fins are soldered to the heatpipes in order to guarantee a superior thermal interface that doesn?t deteriorate even after many years of usage.
Performance
Suitable for | Processor |
Type | Cooler |
Fan diameter | 15 cm |
Supported processor sockets | LGA 1150 (Socket H3),LGA 1151 (Socket H4),LGA 1155 (Socket H2),LGA 1156 (Socket H),LGA 2011 (Socket R),LGA 2011-v3 (Socket R),LGA 2066,Socket AM2,Socket AM2+,Socket AM3,Socket AM3+,Socket AM4,Socket FM1,Socket FM2,Socket FM2+ |
Compatible processor series | AMD A, Intel® Celeron®, Intel® Core? i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel® Pentium® |
Rotational speed (min) | 300 RPM |
Rotational speed (max) | 1500 RPM |
Rotational speed with LNA (max) | 1200 RPM |
Noise level (high speed) | 24.6 dB |
Noise level with LNA (max) | 19.2 dB |
Airflow | 140.2 m³/h |
Airflow with LNA (max) | 115.5 m³/h |
Maximum air pressure | 2.08 mmH2O |
Maximum air pressure with LNA | 1.51 mmH2O |
Pulse-width modulation (PWM) support | Y |
Bearing type | Self-Stabilising Oil-pressure Bearing (SSO) |
Design
Product colour | Black |
Base plate material | Copper |
Number of fans | 2 fan(s) |
Fins material | Aluminum |
Fan connector | 4-pin |
Power
Power supply | 1.56 W |
Rated voltage | 12 V |
Weight & dimensions
Width | 150 mm |
Depth | 161 mm |
Height | 165 mm |
Weight | 1.32 kg |
Heatsink weight | 980 g |
Package width | 190 mm |
Package depth | 268 mm |
Package height | 235 mm |
Package weight | 2.22 kg |
Packaging content
Package type | Box |
Cables included | Fan |
Other features
Heatsink dimensions (W x D x H) | 150 x 135 x 160 mm |
Mean time to failure (MTTF) | 150000 h |
Logistics data
Master (outer) case width | 41.5 cm |
Master (outer) case length | 50.9 cm |
Master (outer) case height | 57.3 cm |
Master (outer) case weight | 20.4 kg |
1TB Western Digital WD Blue SN570 NVMe M.2 (Read 3500MB/s - Write 3000MB/s)
Spark Imagination?Inspire Your Creativity Stay in the moment and create beyond your expectations with the WD Blue SN570 NVMe SSD. This powerful internal drive delivers up to 5X the speed of our best SATA SSDs so you can let your imagination flow and worry less about PC lag or load times. Tune Up Your Performance Build your ideal creation engine. Upgrading your system or optimizing your next custom build with the slim M.2 2280 form factor. All you need is an NVMe slot. Stay in the Moment Keep your imagination flowing as you create faster while maintaining low power consumption. With read speeds up to 3,500 MB/s (500GB ? 1TB models), your system can run up to 5X faster than our best SATA SSDs so you can stay in your creative moment. A Standard for Reliability We value your content. That?s why the WD Blue reliability features help protect your content so you can stress less about losing your brilliant work. Get Extra Peace of Mind Work with extra confidence and keep your projects on point as the downloadable Western Digital SSD Dashboard helps you monitor your drive?s health, available space, temperature and more. Save on Space Pack a lot of performance into your small-form factor PC with a single-sided M.2 2280 PCIe® Gen3 x4 NVMe? SSD. Stay Organized Back up your photos, videos, and other personal files with included Acronis® True Image? for Western Digital software.
Features
SSD form factor | M.2 |
SSD capacity | 1000 GB |
Interface | PCI Express 3.0 |
NVMe | Y |
NVMe version | 1.4 |
Component for | PC |
Hardware encryption | N |
Read speed | 3500 MB/s |
Write speed | 3000 MB/s |
PCI Express interface data lanes | x4 |
TBW rating | 600 |
Weight & dimensions
Width | 22 mm |
Depth | 80 mm |
Height | 2.38 mm |
be quiet! Silent Base 802 black window (BGW39)
EXCELLENT VERSATILITY, PERFORMANCE AND SILENCE
The be quiet! Silent Base 802 Window Black is the perfect solution for sophisticated users who strive for whisper-quiet operation and maximum performance alike.
The be quiet! Silent Base 802 Window Black is the perfect solution for sophisticated users who strive for whisper-quiet operation and maximum performance alike.
Design
Form factor | Midi Tower |
Type | PC |
Material | Acrylonitrile butadiene styrene (ABS), Steel |
Product colour | Black |
Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
Number of 3.5' bays | 3 |
Number of 2.5' bays | 7 |
Number of expansion slots | 9 |
Side window | Y |
Tempered glass panel(s) | Y |
Anti-dust filter | Y |
Cable management | Y |
On/off button | Y |
Maximum CPU cooler height | 18.5 cm |
Maximum graphics card length | 44.9 cm |
Maximum PSU length | 28.8 cm |
Certification | CE, RoHS |
Power supply
Power supply included | N |
Power supply location | Bottom |
Supported power supply form factors | ATX,PS2 |
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Audio input | Y |
Audio output | Y |
Cooling
Front fans installed | 2x 140 mm |
Number of front fans supported (max) | 3 |
Front fans diameters supported | 120,140 mm |
Rear fans installed | 1x 140 mm |
Number of rear fans supported (max) | 1 |
Rear fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 3 |
Top fans diameters supported | 120,140 mm |
Liquid cooling capability | Y |
Front radiator fan sizes supported | 120,140,240,280,360,420 mm |
Rear radiator fan sizes supported | 120,140 mm |
Top radiator fan sizes supported | 120,240,360 mm |
Storage
Supported HDD sizes | 2.5,3.5' |
Weight & dimensions
Width | 281 mm |
Depth | 539 mm |
Height | 553 mm |
Weight | 13.2 kg |
Packaging data
Package width | 323 mm |
Package depth | 651 mm |
Package height | 615 mm |
Package weight | 14.9 kg |
Other features
Stand included | Y |
Screws included | Y |
3 x 140mm Default Case Fan
Windows 11 64Bit Professional installed activated digital key (ready to work - without data media)
Intel Core i5-12400F 6x 2.50-4.40GHz (BX8071512400F)
Intel Core i5-12400F, 12th gen Intel® Core™ i3, LGA 1700, Intel, i3-12100F, 64-bit, 4.3 GHz
Processor
Processor manufacturer | Intel |
Processor family | 12th gen Intel® Core? i3 |
Processor cores | 4 |
Processor socket | LGA 1700 |
Box | Y |
Processor model | i3-12100F |
Processor threads | 8 |
Processor operating modes | 64-bit |
Performance cores | 4 |
Processor boost frequency | 4.3 GHz |
Performance-core boost frequency | 4.3 GHz |
Performance-core base frequency | 3.3 GHz |
Processor cache | 12 MB |
Processor cache type | Smart Cache |
Processor base power | 58 W |
Maximum turbo power | 89 W |
Maximum number of DMI lanes | 8 |
Processor codename | Alder Lake |
Memory
Maximum internal memory supported by processor | 128 GB |
Memory types supported by processor | DDR4-SDRAM,DDR5-SDRAM |
Memory channels | Dual-channel |
Memory bandwidth (max) | 76.8 GB/s |
Graphics
On-board graphics adapter | N |
Discrete graphics adapter | N |
On-board graphics adapter model | Not available |
Discrete graphics adapter model | Not available |
Features
Thermal Monitoring Technologies | Y |
Idle States | Y |
Execute Disable Bit | Y |
Market segment | Desktop |
Maximum number of PCI Express lanes | 20 |
PCI Express slots version | 4.0,5.0 |
PCI Express configurations | 1x16+1x4,2x8+1x4 |
Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
Scalability | 1S |
Embedded options available | N |
Direct Media Interface (DMI) Revision | 4.0 |
CPU configuration (max) | 1 |
Harmonized System (HS) code | 8542310001 |
Export Control Classification Number (ECCN) | 5A992CN3 |
Commodity Classification Automated Tracking System (CCATS) | G167599 |
Processor special features
Intel® Speed Shift Technology | Y |
Enhanced Intel SpeedStep Technology | Y |
Intel® AES New Instructions (Intel® AES-NI) | Y |
Intel® Hyper Threading Technology (Intel® HT Technology) | Y |
Intel® Turbo Boost Technology | 2.0 |
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 | Y |
Intel® Control-flow Enforcement Technology (CET) | Y |
Intel® Thread Director | N |
Intel® Boot Guard | Y |
Intel® Optane? Memory Ready | Y |
Intel® Deep Learning Boost (Intel® DL Boost) | Y |
Intel® Volume Management Device (VMD) | Y |
Mode-based Execute Control (MBE) | Y |
Intel Turbo Boost Max Technology 3.0 | N |
Intel® Secure Key | Y |
Intel VT-x with Extended Page Tables (EPT) | Y |
Intel® OS Guard | Y |
Intel 64 | Y |
Intel Virtualization Technology (VT-x) | Y |
Intel Virtualization Technology for Directed I/O (VT-d) | Y |
Operational conditions
Tjunction | 100 °C |
Technical details
Status | Launched |
Launch date | Q1'22 |
Weight & dimensions
Processor package size | 45 x 37.5 mm |
onBoard Sound
onBoard Sound incl. 5.1 or 7.1 look at Ports Layout PlanPalit GeForce RTX 4070 Dual 12GB OC (NED4070S19K9-1047D)
Palit NED4070S19K9-1047D, GeForce RTX 4070, 12 GB, GDDR6X, 192 bit, PCI Express 4.0, 2 fan(s)
Processor
Graphics processor family | NVIDIA |
Graphics processor | GeForce RTX 4070 |
CUDA | Y |
CUDA cores | 5888 |
Processor frequency | 1920 MHz |
Processor boost clock speed | 2550 MHz |
Memory
Discrete graphics card memory | 12 GB |
Graphics card memory type | GDDR6X |
Memory bus | 192 bit |
Data transfer rate | 21 Gbit/s |
Memory bandwidth (max) | 504 GB/s |
Ports & interfaces
Interface type | PCI Express 4.0 |
HDMI ports quantity | 1 |
DisplayPorts quantity | 3 |
HDMI version | 2.1a |
DisplayPort version | 1.4a |
Performance
TV tuner integrated | N |
DirectX version | 12 Ultimate |
OpenGL version | 4.6 |
HDCP | Y |
HDCP version | 2.3 |
Dual Link DVI | N |
NVIDIA G-SYNC | Y |
Design
Cooling type | Active |
Number of fans | 2 fan(s) |
Product colour | Black |
Power
Minimum system power supply | 750 W |
Power consumption (typical) | 200 W |
System requirements
Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Linux operating systems supported | Y |
Weight & dimensions
Width | 269.1 mm |
Height | 40.1 mm |
Depth | 127.5 mm |
Packaging data
Package type | Box |
850W be quiet! Straight Power 11 Platinum FM (BN308)
be quiet! Straight Power 11 850W Platinum, 850 W, 100 - 240 V, 920 W, 50/60 Hz, 10/5 A, Active
Power
Total power | 850 W |
Peak power | 920 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
Input current | 10/5 A |
Power factor | 0.99 |
Power Factor Correction (PFC) type | Active |
Combined power (+3.3V) | 150 W |
Combined power (+12V) | 849.6 W |
Combined power (+5V) | 150 W |
Combined power (-12V) | 6 W |
Combined power (+5Vsb) | 15 W |
Max output current (+3.3V) | 25 A |
Max output current (+12V) | 70.8 A |
Max output current (+12V1) | 21 A |
Max output current (+12V2) | 21 A |
Max output current (+12V4) | 26 A |
Max output current (+12V3) | 26 A |
Max output current (+5V) | 25 A |
Max output current (-12V) | 0.5 A |
Max output current (+5Vsb) | 3 A |
Hold time | 22 ms |
Efficiency | 94% |
Power protection features | Over current,Over power,Over voltage,Overheating,Short circuit,Under voltage |
Ports & interfaces
Motherboard power connector | 20+4 pin ATX |
Motherboard power cable length | 60 cm |
Number of PATA power connectors | 4 |
Number of SATA power connectors | 11 |
EPS power connector (8-pin) | Y |
EPS power connector (4+4 pin) | Y |
EPS cable length | 70 cm |
PCI Express power connectors (6+2 pin) | 4 |
PCI Express power cable length | 60 cm |
Floppy drive power connector | 1 |
Performance
Purpose | PC |
Power supply unit (PSU) form factor | ATX |
80 PLUS certification | 80 PLUS Platinum |
ATX version | 2.51 |
EPS version | 2.92 |
Noise level | 22 dB |
Noise level (silent mode, <30%) | 7.7 dB |
Noise level (quiet mode, 50%) | 7.9 dB |
Noise level (full-load mode, 100%) | 22 dB |
Bearing technology | FDB |
Parallel processing technology support | Dual Graphics |
Mean time between failures (MTBF) | 100000 h |
RoHS compliance | Y |
Energy Star certified | Y |
Certification | CE, CB, TÜV, FCC, cTUVus, RCM (Australia), BSMI, CU (Russia), CCC |
Design
Product colour | Black |
Cooling type | Active |
Fan diameter | 13.5 cm |
Number of fans | 1 fan(s) |
Fan speed | 0 - 2100 RPM |
Fan location | Top |
Weight & dimensions
Width | 150 mm |
Depth | 170 mm |
Height | 86 mm |
Weight | 1.84 kg |
Packaging data
Screws included | Y |
Cable ties included | Y |
Manual | Y |
Package width | 248 mm |
Package depth | 328 mm |
Package height | 102 mm |
Package weight | 2.8 kg |
Package type | Box |
Logistics data
Master (outer) case width | 28.2 cm |
Master (outer) case length | 65.1 cm |
Master (outer) case height | 34.6 cm |
Master (outer) case gross weight | 23.3 kg |
onBoard WIFI + Bluetooth
onBoard LAN
MSI MAG B760 TOMAHAWK WIFI DDR4 (7D96-001R)
unite as one The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability. Extended Heatsink Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed. M.2 Shield Frozr Keeps M.2 SSDs safe while preventing throttling, making them run faster. Heavy Plated VRM Heatsink The VRM heatsink covers the upper MOS and helps dissipate the heat. 7W/mK Thermal Pad & Additional Choke Pad High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically. Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE. OPTIMIZED FOR WATER COOLING Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ?keep-out-zone? allows for easy and safe installation and a perfect fit. DIY 2.0 ? INTEGRATING WITH THE SYSTEM ENVIRONMENT Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header. 12+1+1 DUET RAIL POWER SYSTEM Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG B760 series motherboard is ready to sustain heavy gaming loadings. EZ M.2 CLIP Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly. WINDOWS 11 CERTIFIED With MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 11. With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product. PRE-INSTALLED I/O SHIELD The design protect your IO ports and makes your installation process easier and safer. XL CLIP The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer. EZ DEBUG LED Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again. KEEP OUT ZONE MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard. LIGHTNING GEN 5 PCI-E Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s. SMT PCIE 5.0 SLOT The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal. REINFORCED, HEAVY SOLDERED CONNECTIONS Secure to the motherboard with extra solder points and support the weight of heavy graphics cards. FAST AND FUTURE-READY STORAGE MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies. DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20G Using USB 3.2 devices has never been faster! MAG B760 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C. USB FRONT TYPE-C MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
Processor
Processor manufacturer | Intel |
Processor socket | LGA 1700 |
Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
Maximum number of SMP processors | 1 |
Supported processor sockets | LGA 1700 |
Memory
Supported memory types | DDR4-SDRAM |
Number of memory slots | 4 |
Memory slots type | DIMM |
Memory channels | Dual-channel |
Non-ECC | Y |
Supported memory clock speeds | 2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,3800,4000,4400,4600,4800,5000,5066,5200,5333 MHz |
Supported memory clock speed (max) | 5333 MHz |
Maximum internal memory | 128 GB |
Storage controllers
Supported storage drive interfaces | M.2, SATA III |
RAID support | Y |
RAID levels | 0, 1, 5, 10 |
Internal I/O
USB 2.0 connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
Number of SATA III connectors | 4 |
S/PDIF out connector | Y |
Front panel audio connector | Y |
Front panel connector | Y |
ATX Power connector (24-pin) | Y |
CPU fan connector | Y |
TPM connector | Y |
RGB LED pin header | Y |
Rear panel I/O ports
USB 2.0 ports quantity | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 1 |
HDMI version | 2.1 |
DisplayPorts quantity | 1 |
DisplayPort version | 1.4 |
Network
Ethernet LAN | Y |
Ethernet interface type | 2.5 Gigabit Ethernet |
Wi-Fi | Y |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
Bluetooth | Y |
Bluetooth version | 5.3 |
Features
Component for | PC |
Motherboard form factor | ATX |
Motherboard chipset family | Intel |
Audio chip | Realtek ALC897 |
Audio output channels | 7.1 channels |
Power source type | ATX |
Windows operating systems supported | Windows 10, Windows 11 |
Expansion slots
PCI Express x1 (Gen 3.x) slots | 2 |
BIOS
BIOS type | UEFI AMI |
BIOS memory size | 256 Mbit |
ACPI version | 6.4 |
System Management BIOS (SMBIOS) version | 3.5 |
Weight & dimensions
Width | 243.8 mm |
Depth | 304.8 mm |
32GB Corsair Vengeance RGB PRO 3.200 MHz (CMW32GX4M2E3200C16)
Corsair Vengeance RGB PRO, 32 GB, 2 x 16 GB, DDR4, 3200 MHz, 288-pin DIMM
Features
Internal memory | 32 GB |
Memory layout (modules x size) | 2 x 16 GB |
Internal memory type | DDR4 |
Memory clock speed | 3200 MHz |
Memory form factor | 288-pin DIMM |
CAS latency | 38 |
Memory voltage | 1.2,1.3 V |
SPD profile | Y |
Backlight | Y |
Compatible products | Intel Z390,AMD 400 Series,AMD X570 |
Nicht warten - einfach finanzieren!
Bezahlen Sie schnell und unkompliziert in kleinen Monatsraten. Einfach Artikel auswählen, zur Kasse gehen
und mit der Zahlungsart "Finanzierung" die Ware bezahlen.
Weitere Details
Mögliche Laufzeiten:
Laufzeit in Monaten | Monatlich Rate | Effektiver Jahreszins | Gebundener jährl. Sollzinssatz | Gesambetrag |
6 | 6×28,95 EUR | 9,9 % | 9,48 % | 173,70 EUR |
10 | 12×17,64 EUR | 9,9 % | 9,48 % | 176,43 EUR |
12 | 12×14,82 EUR | 9,9 % | 9,48 % | 177,80 EUR |
18 | 18×10,11 EUR | 9,9 % | 9,48 % | 181,96 EUR |
Diese Angaben stellen zugleich das repräsentative Beispiel im Sinne des § 6a PangV dar. Vermittlung erfolgt ausschließlich für die Commerz Finanz GmbH, Schwanthalerstr. 31, 80336 München.
Mainboard connectors PC connectors on the back
(monitor/graphics card connectors are disabled if a VGA/GPU graphics card is installed additionally)
(monitor/graphics card connectors are disabled if a VGA/GPU graphics card is installed additionally)

LAN
1x


HDMI
1x


Display Port
1x

USB 2.0
4x

USB-A 3.1
4x

USB-C 3.1
1x

Audio Connectors Toslink
7.1x

Bluetooth
1x

W-LAN
1x
Graphics card / monitor connections

HDMI
1x

Display Port
3x
Front connections front side / top of the case

Audio In/Out
1x

USB-A 3.0
2x

USB-C 3.1
1x
Expansion cards - PCI / PCIe

W-LAN
1x
These connection options have been generated for you. In individual cases, deviations are possible.

Intel Core i5
The Intel Core i5 series is a range of processors for desktop and laptop computers. The focus of this processor family is the price-performance ratio. It offers a good balance between performance, energy efficiency and price.
mehr anzeigen
weniger anzeigen

Windows 11
The latest operating system from Microsoft with the latest designs, drivers and support for the most modern hardware.
This machine has Windows 11 installed with all drivers.
mehr anzeigen
weniger anzeigen

1000 GB NVMe SSD M.2 High Speed
The NVMe interface offers the fastest data transfer currently available for already fast M.2 SSDs. This 1000 GB drive uses the fast NVMe technology. Waiting times are now a thing of the past!
mehr anzeigen
weniger anzeigen

Wlan / WiFi & Bluetooth
This device has WiFi / WLAN for wireless internet reception and Bluetooth functionality for wireless connection with peripherals. Be ready for any situation!
mehr anzeigen
weniger anzeigen
