FHD / WQHD Gaming PC I5-13400 MSI MAG B760 MSI GEFORCE RTX 4070 VENTUS 2X 12G OC (V513-058R) 32GB RAM 650W be quiet! Win 11 Pro onBoard WIFI + Bluetooth
Article number:
4260561747035
In stock
Bulletpoints
- [ Item number EAN: 4260561747035 ] --- Intel Core I5-13400 10x 2.50 GHz (BX8071513400) - MSI MAG B760 TOMAHAWK WIFI DDR4 (7D96-001R) - 32GB G.Skill Ripjaws V 3.200MHz (F4-3200C16D-32GVK)
- MSI GEFORCE RTX 4070 VENTUS 2X 12G OC (V513-058R) - 650W be quiet! Pure Power 12 M (BN342) - Cooler Master CMP 510 (CP510-KGNN-S00) - onBoard WIFI + Bluetooth
- 1TB Western Digital WD Blue SN570 NVMe M.2 (Read 3500MB/s - Write 3000MB/s)
- Windows 11 64Bit Professional installiert aktiviert DPK (Ready to Work - ohne Datenträger)
- Assembled, tested and checked - 2 years warranty
I5-13400
MSI MAG B760
MSI GEFORCE RTX 4070 VENTUS 2X 12G OC (V513-058R)
32GB RAM 3.200MHz
650W be quiet!
Pure Rock 2 Silver
Windows 11 64Bit Prof.
onBoard WIFI + Bluetooth
System performance
Office
Multimedia
Gaming
Workstation/CAD
System performance
Office
Multimedia
Gaming
Workstation/CAD
Product information "FHD / WQHD Gaming PC I5-13400 MSI MAG B760 MSI GEFORCE RTX 4070 VENTUS 2X 12G OC (V513-058R) 32GB RAM 650W be quiet! Win 11 Pro onBoard WIFI + Bluetooth"
CPU (Processor) | Intel Core I5-13400 10x 2.50-4.60GHz (BX8071513400) |
Mainboard | MSI MAG B760 TOMAHAWK WIFI DDR4 (7D96-001R) |
Video Card (VGA Card) | MSI GEFORCE RTX 4070 VENTUS 2X 12G OC (V513-058R) |
System Memory (RAM) | 32GB G.Skill Ripjaws V 3.200MHz (F4-3200C16D-32GVK) |
SSD | 1TB Western Digital WD Blue SN570 NVMe M.2 (Read 3500MB/s - Write 3000MB/s) |
Power Supply Unit (PSU) | 650W be quiet! Pure Power 12 M (BN342) ATX 3.0 |
Case (Case) | Cooler Master CMP 510 (CP510-KGNN-S00) |
CPU Cooler (Cooler) | be quiet! Pure Rock 2 Silver (BK006) |
Operating System (Ready to use installed) | Windows 11 64Bit Professional installed activated digital key (ready to work - without data media) |
Case Fan | 3X 120mm Default Case Fan (RGB LED) 120mm Default Case Fan |
W-LAN Unit internal | onBoard WIFI + Bluetooth |
be quiet! Pure Rock 2 Silver (BK006)
Pure Rock 2 is be quiet!’s CPU cooler for silent multimedia and graphics systems. It provides an excellent price-to-performance ratio with 150W TDP cooling efficiency, four 6mm heat pipes, a Pure Wings 2 120mm PWM fan and convenient design for mounting from atop the motherboard. Among the features that give it such an excellent price-to-performance ratio are:
Performance
Suitable for | Processor |
Type | Cooling set |
Fan diameter | 12 cm |
Supported processor sockets | LGA 1150 (Socket H3),LGA 1151 (Socket H4),LGA 1155 (Socket H2),LGA 2011-v3 (Socket R),LGA 2066,Socket AM3+,Socket AM4 |
Rotational speed (max) | 1500 RPM |
Noise level (low speed) | 19.1 dB |
Noise level (high speed) | 26.8 dB |
Bearing type | Rifle bearing |
Quantity per pack | 16 pc(s) |
Design
Product colour | Silver |
Base plate material | Copper |
Number of fans | 1 fan(s) |
Number of fins | 55 |
Fins material | Aluminum |
Number of heat pipes | 4 |
Fan connector | 4-pin |
Power
Power consumption (typical) | 1.44 W |
Rated voltage | 12 V |
Thermal Design Power (TDP) | 150 W |
Rated current | 0.12 A |
Weight & dimensions
Width | 121 mm |
Depth | 87 mm |
Height | 155 mm |
Weight | 575 g |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Heat pipes diameter | 6 mm |
Cable length | 0.22 m |
Package width | 130 mm |
Package depth | 180 mm |
Package height | 180 mm |
Package weight | 976 g |
Packaging content
Package type | Box |
Other features
Heatsink dimensions (W x D x H) | 121 x 62 x 155 mm |
Logistics data
Shipping (inner) case width | 33 cm |
Shipping (inner) case length | 65.5 cm |
Shipping (inner) case height | 36 cm |
Shipping (inner) case weight | 16.1 kg |
Cooler Master CMP 510 (CP510-KGNN-S00)
The Saber's Edge With a construction that provides generous airflow and a stream of light, the CMP 510 boasts a glowing ARGB edge to adorn the front panel. Mesh makes up a substantial portion of its structure to provide optimum performance potential. Liquid-cooling support and the capability to house a total of 6 fans ensures the CMP 510 is always ready for thermal upgrades. Graphics card clearance spans 350mm to support the latest, largest cards. ARGB Strip A glowing ARGB edge is cut into the clean geometry of the front panel design. Versatile Cooling Options Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised. Large Filtered Intakes The front panel is constructed with a substantially large, unrestricted intake grill to provide superb airflow to the system. Full Black Coating & PSU Cover Let your system stand out with an all-black background and a PSU cover to hide cables. Breathable Power Supply Shroud The PSU cover is ventilated on top of the power supply location, this allows actively cooled units to be installed either with the fan facing the top or bottom, also with the possibility of installing passively cooled power supplies. Room For Upgrades Support for up to a 350mm graphics card, a 162mm CPU cooler, and multiple fans/radiators locations provides room for upgrades to stay ahead of the game.
Design
Form factor | Midi Tower |
Type | PC |
Material | Plastic, Steel, Tempered glass |
Product colour | Black |
Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
Number of 3.5' bays | 2 |
Number of 2.5' bays | 4 |
Number of expansion slots | 7 |
Illumination | Y |
Illumination colour | Multi |
Anti-dust filter | Y |
Maximum CPU cooler height | 16.1 cm |
Maximum graphics card length | 35 cm |
Maximum PSU length | 16 cm |
Power supply
Power supply included | N |
Power supply location | Bottom |
Supported power supply form factors | ATX |
Ports & interfaces
USB 2.0 ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Audio input | Y |
Audio output | Y |
Cooling
Front fans installed | 3x 120 mm |
Number of front fans supported (max) | 3 |
Front fans diameters supported | 120,140 mm |
Number of rear fans supported (max) | 1 |
Rear fans diameters supported | 120 mm |
Number of top fans supported (max) | 2 |
Top fans diameters supported | 120,140 mm |
Front radiator fan sizes supported | 120,140,240,280 mm |
Rear radiator fan sizes supported | 120 mm |
Top radiator fan sizes supported | 120,140 mm |
Storage
Supported HDD sizes | 2.5,3.5' |
HDD/SSD combo cage | Y |
Weight & dimensions
Width | 204 mm |
Depth | 445 mm |
Height | 463 mm |
Weight | 6.08 kg |
Packaging data
LED controller | Y |
Package width | 266 mm |
Package depth | 505 mm |
Package height | 504 mm |
Package weight | 7.13 kg |
Other features
Volume | 39.85 L |
32GB G.Skill Ripjaws V 3.200MHz (F4-3200C16D-32GVK)
G.Skill Ripjaws V, 32 GB, 2 x 16 GB, DDR4, 3200 MHz, Black
Memory
Internal memory | 32 GB |
Internal memory type | DDR4 |
Memory clock speed | 3200 MHz |
Component for | PC/server |
Memory layout (modules x size) | 2 x 16 GB |
Memory voltage | 1.2,1.3 V |
ECC | N |
Intel Extreme Memory Profile (XMP) | Y |
Memory channels | Dual |
Unbuffered memory | Y |
Design
Colour of product | Black |
Cooling type | Heatsink |
Weight & dimensions
Height | 42 mm |
Intel Core I5-13400 10x 2.50-4.60GHz (BX8071513400)
Intel Core i5-13400, Intel® Core™ i5, LGA 1700, Intel, i5-13400, 64-bit, 13th gen Intel® Core™ i5
Processor
Processor manufacturer | Intel |
Processor family | Intel® Core? i5 |
Processor generation | 13th gen Intel® Core? i5 |
Processor model | i5-13400 |
Processor cores | 10 |
Processor socket | LGA 1700 |
Box | Y |
Processor threads | 16 |
Processor operating modes | 64-bit |
Performance cores | 6 |
Efficient cores | 4 |
Processor boost frequency | 4.6 GHz |
Performance-core boost frequency | 4.6 GHz |
Performance-core base frequency | 2.5 GHz |
Efficient-core boost frequency | 3.3 GHz |
Efficient-core base frequency | 1.8 GHz |
Processor cache | 20 MB |
Processor cache type | Smart Cache |
Maximum turbo power | 154 W |
Processor base power | 65 W |
Maximum number of DMI lanes | 8 |
Processor codename | Raptor Lake |
Memory
Maximum internal memory supported by processor | 128 GB |
Memory types supported by processor | DDR4-SDRAM, DDR5-SDRAM |
Memory channels | Dual-channel |
Memory bandwidth (max) | 76.8 GB/s |
Graphics
Discrete graphics card | N |
On-board graphics card | Y |
On-board graphics card model | Intel UHD Graphics 730 |
On-board graphics card outputs supported | Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1 |
On-board graphics card dynamic frequency (max) | 1550 MHz |
On-board graphics card base frequency | 300 MHz |
Number of displays supported (on-board graphics) | 4 |
On-board graphics card DirectX version | 12.0 |
On-board graphics card OpenGL version | 4.5 |
On-board graphics card maximum resolution (HDMI) | 4096 x 2160 pixels |
On-board graphics card maximum resolution (eDP - Integrated Flat Panel) | 5120 x 3200 pixels |
On-board graphics card maximum resolution (DisplayPort) | 7680 x 4320 pixels |
On-board graphics card refresh rate at maximum resolution (HDMI) | 60 Hz |
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) | 120 Hz |
On-board graphics card refresh rate at maximum resolution (DisplayPort) | 60 Hz |
On-board graphics card ID | 0x4682/0xA782 |
Discrete graphics card model | Not available |
Number of execution units | 24 |
Multi-Format Codec Engines | 1 |
Features
Thermal Monitoring Technologies | Y |
Idle States | Y |
Execute Disable Bit | Y |
Market segment | Desktop |
Use conditions | PC/Client/Tablet |
Maximum number of PCI Express lanes | 20 |
PCI Express slots version | 4.0, 5.0 |
PCI Express configurations | 1x16+1x4, 2x8+1x4 |
Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
Direct Media Interface (DMI) Revision | 4.0 |
Embedded options available | Y |
Scalability | 1S |
CPU configuration (max) | 1 |
Harmonized System (HS) code | 8542310001 |
Export Control Classification Number (ECCN) | 5A992C |
Commodity Classification Automated Tracking System (CCATS) | 740.17B1 |
Processor special features
Enhanced Intel SpeedStep Technology | Y |
Intel® Speed Shift Technology | Y |
Intel® AES New Instructions (Intel® AES-NI) | Y |
Intel® Clear Video HD Technology (Intel® CVT HD) | Y |
Intel® Turbo Boost Technology | 2.0 |
Intel® Quick Sync Video Technology | Y |
Intel® Hyper Threading Technology (Intel® HT Technology) | Y |
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 | Y |
Intel® Control-flow Enforcement Technology (CET) | Y |
Intel® Thread Director | Y |
Intel® Deep Learning Boost (Intel® DL Boost) | Y |
Intel® Boot Guard | Y |
Intel® Volume Management Device (VMD) | Y |
Intel® Standard Manageability (ISM) | Y |
Intel Turbo Boost Max Technology 3.0 | N |
Mode-based Execute Control (MBE) | Y |
Intel VT-x with Extended Page Tables (EPT) | Y |
Intel® Secure Key | Y |
Intel® OS Guard | Y |
Intel 64 | Y |
Intel Virtualization Technology (VT-x) | Y |
Intel Virtualization Technology for Directed I/O (VT-d) | Y |
Operational conditions
Tjunction | 100 °C |
Technical details
OpenCL version | 3.0 |
Launch date | Q1'23 |
Weight & dimensions
Processor package size | 45 x 37.5 mm |
Other features
L2 cache | 9728 KB |
Graphics output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
1TB Western Digital WD Blue SN570 NVMe M.2 (Read 3500MB/s - Write 3000MB/s)
Spark Imagination?Inspire Your Creativity Stay in the moment and create beyond your expectations with the WD Blue SN570 NVMe SSD. This powerful internal drive delivers up to 5X the speed of our best SATA SSDs so you can let your imagination flow and worry less about PC lag or load times. Tune Up Your Performance Build your ideal creation engine. Upgrading your system or optimizing your next custom build with the slim M.2 2280 form factor. All you need is an NVMe slot. Stay in the Moment Keep your imagination flowing as you create faster while maintaining low power consumption. With read speeds up to 3,500 MB/s (500GB ? 1TB models), your system can run up to 5X faster than our best SATA SSDs so you can stay in your creative moment. A Standard for Reliability We value your content. That?s why the WD Blue reliability features help protect your content so you can stress less about losing your brilliant work. Get Extra Peace of Mind Work with extra confidence and keep your projects on point as the downloadable Western Digital SSD Dashboard helps you monitor your drive?s health, available space, temperature and more. Save on Space Pack a lot of performance into your small-form factor PC with a single-sided M.2 2280 PCIe® Gen3 x4 NVMe? SSD. Stay Organized Back up your photos, videos, and other personal files with included Acronis® True Image? for Western Digital software.
Features
SSD form factor | M.2 |
SSD capacity | 1000 GB |
Interface | PCI Express 3.0 |
NVMe | Y |
NVMe version | 1.4 |
Component for | PC |
Hardware encryption | N |
Read speed | 3500 MB/s |
Write speed | 3000 MB/s |
PCI Express interface data lanes | x4 |
TBW rating | 600 |
Weight & dimensions
Width | 22 mm |
Depth | 80 mm |
Height | 2.38 mm |
Windows 11 64Bit Professional installed activated digital key (ready to work - without data media)
onBoard Sound

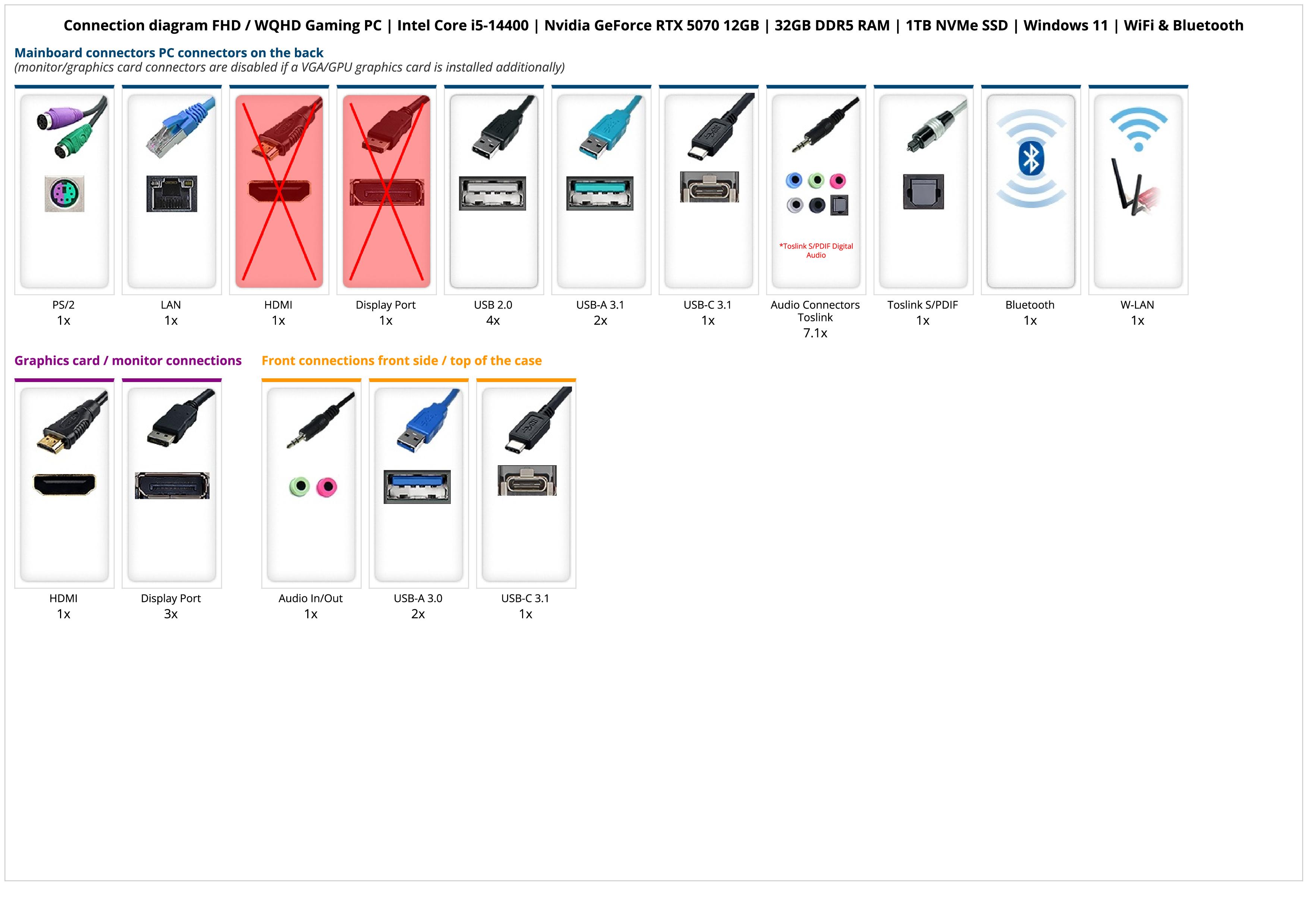

onBoard Sound incl. 5.1 or 7.1 look at Ports Layout Plan3 x 120mm Default Case Fan (RGB LED)
650W be quiet! Pure Power 12 M (BN342) ATX 3.0
EXCEPTIONAL QUIET, SUPERIOR FEATURES Pure Power 12 M 650W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 650W offers the best combination of features with outstanding compatibility. 80 PLUS® GOLD CERTIFIED Very high operating efficiency Pure Power 12 M 650W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 92.7%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 650W is always the correct choice for quiet systems and gaming PCs! FUTURE-PROOF YOUR SYSTEM Fulfills all ATX 3.0 specifications Pure Power 12 M 650W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful present systems. THE NEW STANDARD OF POWER For massive transient loads Pure Power 12 M offers 650W of continuous power with 2 independent 12V rails. Even if the graphics card demands excessive power for a short time: Pure Power 12 M 650W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards. UNPRECEDENTED SILENT OPERATION Achieved with a silence-optimized be quiet! fan The exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality. HIGH-CLASS TECHNOLOGIES Rock-solid stability With its LLC topology Pure Power 12 M 650W provides a best-in-class voltage regulation and efficiency. That makes it perfect for building or upgrading very quiet systems as well as gaming and media creation PCs. MODULAR CABLES Utmost convenience and compatibility Thanks to their modularity, all unnecessary cables in the system are left out. Pure Power 12 M 650W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.
Power
Total power | 650 W |
Peak power | 720 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
Input current | 10/5 A |
Power factor | 0.98 |
Power Factor Correction (PFC) type | Active |
Combined power (+3.3V) | 120 W |
Combined power (+12V) | 650 W |
Combined power (+5V) | 120 W |
Combined power (-12V) | 3.6 W |
Combined power (+5Vsb) | 15 W |
Max output current (+3.3V) | 20 A |
Max output current (+12V1) | 32 A |
Max output current (+12V2) | 28 A |
Max output current (+5V) | 20 A |
Max output current (-12V) | 0.3 A |
Max output current (+5Vsb) | 3 A |
Power Good signal delay range | 100 - 150 ms |
Efficiency | 92.7% |
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit |
Ports & interfaces
Motherboard power connector | 20+4 pin ATX |
Motherboard power cable length | 55 cm |
Number of SATA power connectors | 5 |
Number of PATA power connectors | 2 |
SATA power cable length | 500,650,800,950 mm |
Peripheral (Molex) power connectors (4-pin) | 1 |
Peripheral (Molex) power cable length | 550 mm |
EPS power connector (4+4 pin) | Y |
PCI Express power connectors (6+2 pin) | 2 |
CPU P4 connector (4-pin) | 1 |
ATX power connector (20+4 pin) | Y |
PCI Express connector | Y |
Performance
Purpose | PC |
Power supply unit (PSU) form factor | ATX |
80 PLUS certification | 80 PLUS Gold |
ATX version | 3.0 |
EPS version | 2.92 |
Noise level | 19.9 dB |
Mean time between failures (MTBF) | 100000 h |
Design
Product colour | Black |
Cooling type | Active |
Fan diameter | 12 cm |
Number of fans | 1 fan(s) |
Fan location | Top |
On/off switch | Y |
Operational conditions
Operating temperature (T-T) | 0 - 40 °C |
Packaging content
Cables included | PATA, PCIe, Peripheral (Molex), SATA |
Weight & dimensions
Width | 160 mm |
Depth | 150 mm |
Height | 86 mm |
Packaging data
Package type | Box |
Technical details
Warranty period | 10 year(s) |
Sustainability certificates | ENERGY STAR, ErP, RoHS |
Sustainability compliance | Y |
Other features
Screws included | Y |
Number of screws | 5 |
Cable ties included | Y |
Noise level (silent mode, <30%) | 8.1 dB |
Noise level (quiet mode, 50%) | 9.1 dB |
Noise level (full-load mode, 100%) | 19.9 dB |
onBoard WIFI + Bluetooth
MSI GEFORCE RTX 4070 VENTUS 2X 12G OC (V513-058R)
TAKE THE ESSENTIALS
VENTUS brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 lets VENTUS breeze through any task.
REVOLUTIONARY
DUAL-FAN THERMAL
Two fans on a huge heatsink ensures a cool and quiet experience.
CORE PIPE
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.
COPPER BASEPLATE
Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.
CORE PIPE
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.
TORX FAN 4.0
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the Dual-Fan cooling system.
DrMos
DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
Fuse
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
VENTUS brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 lets VENTUS breeze through any task.
REVOLUTIONARY
DUAL-FAN THERMAL
Two fans on a huge heatsink ensures a cool and quiet experience.
CORE PIPE
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.
COPPER BASEPLATE
Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.
CORE PIPE
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.
TORX FAN 4.0
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the Dual-Fan cooling system.
DrMos
DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
Fuse
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
Processor
Graphics processor family | NVIDIA |
Graphics processor | GeForce RTX 4070 |
Maximum resolution | 7680 x 4320 pixels |
CUDA | Y |
CUDA cores | 5888 |
Processor frequency | 2520 MHz |
Processor boost clock speed | 2505 MHz |
Maximum displays per videocard | 4 |
Memory
Discrete graphics card memory | 12 GB |
Graphics card memory type | GDDR6X |
Memory bus | 192 bit |
Data transfer rate | 21 Gbit/s |
Ports & interfaces
Interface type | PCI Express 4.0 |
HDMI ports quantity | 1 |
DisplayPorts quantity | 3 |
HDMI version | 1.2a |
DisplayPort version | 1.4a |
Performance
TV tuner integrated | N |
DirectX version | 12 Ultimate |
OpenGL version | 4.6 |
Dual Link DVI | N |
NVIDIA G-SYNC | Y |
Design
Cooling type | Active |
Cooling technology | MSI TORX Fan 4.0 |
Number of fans | 3 fan(s) |
Form factor | Full-Height/Full-Length (FH/FL) |
Product colour | Black, Silver |
Power
Minimum system power supply | 650 W |
Power consumption (typical) | 200 W |
Supplementary power connectors | 1x 8-pin |
Weight & dimensions
Weight | 242 g |
Depth | 43 mm |
Height | 125 mm |
Width | 651 mm |
Packaging data
Package weight | 947 g |
Package type | Box |
onBoard LAN
120mm Default Case Fan
MSI MAG B760 TOMAHAWK WIFI DDR4 (7D96-001R)
unite as one The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability. Extended Heatsink Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed. M.2 Shield Frozr Keeps M.2 SSDs safe while preventing throttling, making them run faster. Heavy Plated VRM Heatsink The VRM heatsink covers the upper MOS and helps dissipate the heat. 7W/mK Thermal Pad & Additional Choke Pad High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically. Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE. OPTIMIZED FOR WATER COOLING Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ?keep-out-zone? allows for easy and safe installation and a perfect fit. DIY 2.0 ? INTEGRATING WITH THE SYSTEM ENVIRONMENT Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header. 12+1+1 DUET RAIL POWER SYSTEM Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG B760 series motherboard is ready to sustain heavy gaming loadings. EZ M.2 CLIP Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly. WINDOWS 11 CERTIFIED With MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 11. With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product. PRE-INSTALLED I/O SHIELD The design protect your IO ports and makes your installation process easier and safer. XL CLIP The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer. EZ DEBUG LED Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again. KEEP OUT ZONE MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard. LIGHTNING GEN 5 PCI-E Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s. SMT PCIE 5.0 SLOT The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal. REINFORCED, HEAVY SOLDERED CONNECTIONS Secure to the motherboard with extra solder points and support the weight of heavy graphics cards. FAST AND FUTURE-READY STORAGE MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies. DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20G Using USB 3.2 devices has never been faster! MAG B760 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C. USB FRONT TYPE-C MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
Processor
Processor manufacturer | Intel |
Processor socket | LGA 1700 |
Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
Maximum number of SMP processors | 1 |
Supported processor sockets | LGA 1700 |
Memory
Supported memory types | DDR4-SDRAM |
Number of memory slots | 4 |
Memory slots type | DIMM |
Memory channels | Dual-channel |
Non-ECC | Y |
Supported memory clock speeds | 2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,3800,4000,4400,4600,4800,5000,5066,5200,5333 MHz |
Supported memory clock speed (max) | 5333 MHz |
Maximum internal memory | 128 GB |
Storage controllers
Supported storage drive interfaces | M.2, SATA III |
RAID support | Y |
RAID levels | 0, 1, 5, 10 |
Internal I/O
USB 2.0 connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
Number of SATA III connectors | 4 |
S/PDIF out connector | Y |
Front panel audio connector | Y |
Front panel connector | Y |
ATX Power connector (24-pin) | Y |
CPU fan connector | Y |
TPM connector | Y |
RGB LED pin header | Y |
Rear panel I/O ports
USB 2.0 ports quantity | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 1 |
HDMI version | 2.1 |
DisplayPorts quantity | 1 |
DisplayPort version | 1.4 |
Network
Ethernet LAN | Y |
Ethernet interface type | 2.5 Gigabit Ethernet |
Wi-Fi | Y |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
Bluetooth | Y |
Bluetooth version | 5.3 |
Features
Component for | PC |
Motherboard form factor | ATX |
Motherboard chipset family | Intel |
Audio chip | Realtek ALC897 |
Audio output channels | 7.1 channels |
Power source type | ATX |
Windows operating systems supported | Windows 10, Windows 11 |
Expansion slots
PCI Express x1 (Gen 3.x) slots | 2 |
BIOS
BIOS type | UEFI AMI |
BIOS memory size | 256 Mbit |
ACPI version | 6.4 |
System Management BIOS (SMBIOS) version | 3.5 |
Weight & dimensions
Width | 243.8 mm |
Depth | 304.8 mm |
Nicht warten - einfach finanzieren!
Bezahlen Sie schnell und unkompliziert in kleinen Monatsraten. Einfach Artikel auswählen, zur Kasse gehen
und mit der Zahlungsart "Finanzierung" die Ware bezahlen.
Weitere Details
Mögliche Laufzeiten:
Laufzeit in Monaten | Monatlich Rate | Effektiver Jahreszins | Gebundener jährl. Sollzinssatz | Gesambetrag |
6 | 6×28,95 EUR | 9,9 % | 9,48 % | 173,70 EUR |
10 | 12×17,64 EUR | 9,9 % | 9,48 % | 176,43 EUR |
12 | 12×14,82 EUR | 9,9 % | 9,48 % | 177,80 EUR |
18 | 18×10,11 EUR | 9,9 % | 9,48 % | 181,96 EUR |
Diese Angaben stellen zugleich das repräsentative Beispiel im Sinne des § 6a PangV dar. Vermittlung erfolgt ausschließlich für die Commerz Finanz GmbH, Schwanthalerstr. 31, 80336 München.
Mainboard connectors PC connectors on the back
(monitor/graphics card connectors are disabled if a VGA/GPU graphics card is installed additionally)
(monitor/graphics card connectors are disabled if a VGA/GPU graphics card is installed additionally)

LAN
1x


HDMI
1x


Display Port
1x

USB 2.0
4x

USB-A 3.1
4x

USB-C 3.1
1x

Audio Connectors Toslink
7.1x

Bluetooth
1x

W-LAN
1x
Graphics card / monitor connections

HDMI
1x

Display Port
3x
Front connections front side / top of the case

Audio In/Out
1x

USB 2.0
1x

USB-A 3.0
1x
Expansion cards - PCI / PCIe

W-LAN
1x
These connection options have been generated for you. In individual cases, deviations are possible.

Intel Core i5
The Intel Core i5 series is a range of processors for desktop and laptop computers. The focus of this processor family is the price-performance ratio. It offers a good balance between performance, energy efficiency and price.
mehr anzeigen
weniger anzeigen

Windows 11
The latest operating system from Microsoft with the latest designs, drivers and support for the most modern hardware.
This machine has Windows 11 installed with all drivers.
mehr anzeigen
weniger anzeigen

1000 GB NVMe SSD M.2 High Speed
The NVMe interface offers the fastest data transfer currently available for already fast M.2 SSDs. This 1000 GB drive uses the fast NVMe technology. Waiting times are now a thing of the past!
mehr anzeigen
weniger anzeigen

Wlan / WiFi & Bluetooth
This device has WiFi / WLAN for wireless internet reception and Bluetooth functionality for wireless connection with peripherals. Be ready for any situation!
mehr anzeigen
weniger anzeigen
