Gaming Business V2 | Intel Core i7-11700F | NVIDIA GeForce RTX 3060 12GB | 32GB RAM | 1000GB M.2 | Wildrabbit RGB Case | 650W BeQuiet! | Win 11 | WiFi | LibreOffice

Article number: 4260561747202

Item condition: New

Brand: Ankermann-PC

Availability: In stock

Bulletpoints

EAN 4260561747202 - Our V2 PC features a fast Intel Core i7 11700F 8 x 2.5 GHz 11th gen processor with 32GB 3200MHz branded double channel RAM on an ASUS / Gigabyte motherboard. Benefit from the combined power of a fast CPU and fast RAM!
The PC is equipped with a lightning-fast 1TB M.2 NVMe SSD and is easily expandable with 4 free SATA 6GB/s ports. It features 4 x USB 3.0 and 4 x USB 2.0 ports.
Our PC is equipped with a Nvidia GeForce RTX 3060 12GB with 1 x HDMI / 3 x Displayport ports. The Wildrabbit case with 4 RGB fans and a tempered glass side panel is an eye-catcher. The PC is equipped with an efficient 80+ bronze Be Quiet! power supply.
For your best user experience, our Ankermann PC is equipped with Windows 11 and a Wi-Fi USB stick to get started right away, without bloatware and software trial versions. Windows and all drivers are installed. Including LibreOffice 7 with Writer / Calc / Impress / Draw / Base / Math.
Ankermann's service offers you many years of experience with manufacturing, distribution and QA of PCs in Germany and 24 months warranty on our hardware. 6 months return service in case of warranty and a fast and friendly customer support are self-evident.

Intel Core i7-11700F

H510

Nvidia RTX 3060

32GB RAM

1TB NVMe SSD

650W be quiet

Silent

Windows 11 64Bit Prof.

WLAN/WIFI

Office

Lead time to ship

kssTheme.product.detail.delivery.title

kssTheme.product.detail.delivery.text

5-8 Business Days

Delivery

1-3 days with

DHL Standard

GO! Express

Self Pickup

Lead time to ship

5-8 business days: Material for this item is on its way to us. It is individually built, finished and tested before it is dispatched. This can take 5-8 business days.

5-8 Business Days

Delivery

1-3 days with

DHL Standard

GO! Express

Self Pickup

€999.00

€1,310.00

including 19 % VAT, plus Shipping costs

In stock Lead time to ship:
5-8 Business Days

Delivery with

DHL Standard

GO! Express

Self Pickup

1-3 days

Configure

System performance

Office

Multimedia

Gaming

Workstation/CAD

System performance

Office

Multimedia

Gaming

Workstation/CAD

CPU (Processor)	Intel Core i7-11700F 8x 2.50-4.90GHz (BX8070811700F)
Mainboard	Intel H510M Mainboard Asus / Gigabyte
Video Card (VGA Card)	Nvidia GeForce RTX 3060 12GB 1x HDMI - 3x DisplayPort
System Memory (RAM)	32 GB Performance RAM DDR4
SSD	1000GB M.2 NVME High Performance PCIe SSD
Power Supply Unit (PSU)	650W be quiet! System Power 10 (BN328)
Case (Case)	Wild Rabbit AERO
CPU Cooler (Cooler)	Performance Marken CPU Kühler Quality Silent
Operating System (Ready to use installed)	Windows 11 64Bit Professional installed activated digital key (ready to work - without data media)
Case Fan	4X 120mm Default Case Fan (RGB LED)
W-LAN Unit internal	W-LAN USB Stick 300MBit/s
Office	LIBRE Open Office (pre-installed - ready to use)

Intel H510M Mainboard Asus / Gigabyte

Intel H510M, Intel, LGA 1200, Intel® Celeron®, Intel® Core? i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel® Pentium®G, LGA 1200 (Socket H5), DDR4-SDRAM, 64 GB

Processor

Processor manufacturer Intel

Processor socket LGA 1200

Compatible processors Intel® Celeron®, Intel® Core? i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel® Pentium®G

Supported processor slots LGA 1200 (Socket H5)

Memory

Supported memory DDR4-SDRAM

Number of memory slots 2

Memory type DIMM

Memory channels Dual-channel

Without ECC Yes

Supported memory speed 2133,2400,2666,2800,2933,3200 MHz

RAM memory maximum 64 GB

Unbuffered memory Yes

Memory controller

Supported storage drives HDD & SSD

Supported storage drive interfaces M.2,PCI Express 3.0,SATA III

Number of supported storage drives 5

Graphics

Parallel processing technology Not supported

Maximum resolution 3840 x 2160 pixels

Internal I/O ports

Number of USB 2.0 ports 1

USB 3.2 Gen 1 (3.1 Gen 1) ports 1

SATA III ports 2

S/PDIF out connector Yes

Front panel audio connector Yes

ATX power connector (24-pin) Yes

CPU fan connector Yes

Number of chassis fan connectors 1

EPS power connector (8-pin) Yes

12 V power connector Yes

Number of COM connectors 1

TPM connector Yes

RGB LED header Yes

I/O connectors on the back

Number of USB 2.0 ports 4

Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports 2

Number of Ethernet LAN ports (RJ-45) 1

Number of PS/2 ports 1

Number of VGA (D-Sub) ports 1

Number of HDMI ports 1

HDMI version 1.4/2.0

Headphone outputs 3

Microphone input Yes

USB connector USB Type-A

Features

Component for PC

Motherboard form factor micro ATX

Motherboard chipset family Intel

Motherboard chipset Intel H510

Audio chip Realtek ALC887 / Realtek ALC897

Audio channels 7.1 channels

Translated with www.DeepL.com/Translator (free version)

Nvidia GeForce RTX 3060 12GB 1x HDMI - 3x DisplayPort

LIBRE Open Office (pre-installed - ready to use)

LibreOffice is a powerful office suite. It offers a clear interface and powerful tools.

LibreOffice bundles several applications: Word processor, spreadsheet, presentation program, drawing program, database, formula editor. This makes it the most attractive free office suite on the market.

650W be quiet! System Power 10 (BN328)

PROVEN RELIABILITY, QUIET OPERATION System Power 10 650W has been built with price-conscious users in mind that do not want to dispense on reliability and quietness. Elaborated features such as a temperature-controlled fan and a remarkably low stand-by-drain underline the value System Power 10 650W offers even at entry-level. VERY QUIET OPERATION High-quality fan for low noise System Power 10 650W is equipped with a temperature-controlled 120mm quality fan. It provides the low noise operation that be quiet! is famous for, offering remarkable quietness at this price-level. HIGH PERFORMANCE FOR YOUR SYSTEM Proven reliability for CPU and GPU System Power 10 650W provides stable and dependable power for CPU and GPU. This ensures a steady and reliable operation even when your PC meets an unexpectedly heavy load. 80 PLUS® BRONZE CERTIFICATION Efficient operation The 80 PLUS Bronze certification of System Power 10 650W with an efficiency rating of up to 88.5% is convincing evidence of this PSU?s power saving operation. STRONG 12V RAIL For a stable PCIe graphics support System Power 10 650W provides enough power for demanding graphics cards. Safety protections defend against overcurrents, over- and undervoltages, overtemperature, short circuits and overloads, thus keeping your valuable components safe.

Power

Total power	650 W
AC input voltage	200 - 240 V
AC input frequency	50 Hz
Input current	5 A
Power factor	0.95
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	120 W
Combined power (+12V)	650 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	54.17 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power Good signal delay range	100 - 150 ms
Efficiency	88.5%
Hold time	17 ms
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector	20+4 pin ATX
Motherboard power cable length	55 cm
Number of PATA power connectors	1
Number of SATA power connectors	5
SATA power cable length	450,550,570,670,690,790 mm
Peripheral (Molex) power connectors (4-pin)	1
Peripheral (Molex) power cable length	790 mm
PCI Express power connectors (6+2 pin)	2
PCI Express power cable length	50 cm
CPU P4 connector (4-pin)	1
CPU power connector (4+4 pin)	Y
CPU power cable length	60 cm
ATX power connector (20+4 pin)	Y
Cabling type	Non-Modular

Performance

Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Bronze
ATX version	2.52
EPS version	2.92
Noise level	30.7 dB
Bearing technology	Sleeve
Mean time between failures (MTBF)	100000 h
Certification	CB, TÜV, cRUus, cTUVus, RCM (Australia), BSMI, CU (Russia)
Country of origin	Germany

Design

Product colour	Black
Cooling type	Active
Fan diameter	12 cm
Number of fans	1 fan(s)
Fan speed	0 - 2100 RPM
On/off switch	Y

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%

Weight & dimensions

Width	140 mm
Depth	86 mm
Height	150 mm
Weight	1.86 kg

Packaging data

Manual	Y
Manual languages	German, English, Spanish, French, Polish, Russian
Package width	195 mm
Package depth	268 mm
Package height	97 mm
Package weight	2.3 kg

Technical details

Warranty period	5 year(s)
Sustainability certificates	CCC, CE, ENERGY STAR, ErP, Federal Communications Commission (FCC), RoHS, WEEE

Other features

Screws included	Y
Noise level (silent mode, <30%)	8.9 dB
Noise level (quiet mode, 50%)	11.2 dB
Noise level (full-load mode, 100%)	30.7 dB

Wild Rabbit AERO

Windows 11 64Bit Professional installed activated digital key (ready to work - without data media)

Performance Marken CPU Kühler Quality Silent

1000GB M.2 NVME High Performance PCIe SSD

W-LAN USB Stick 300MBit/s

onBoard Sound

onBoard Sound incl. 5.1 or 7.1 look at Ports Layout Plan

4 x 120mm Default Case Fan (RGB LED)

onBoard LAN

32 GB Performance RAM DDR4

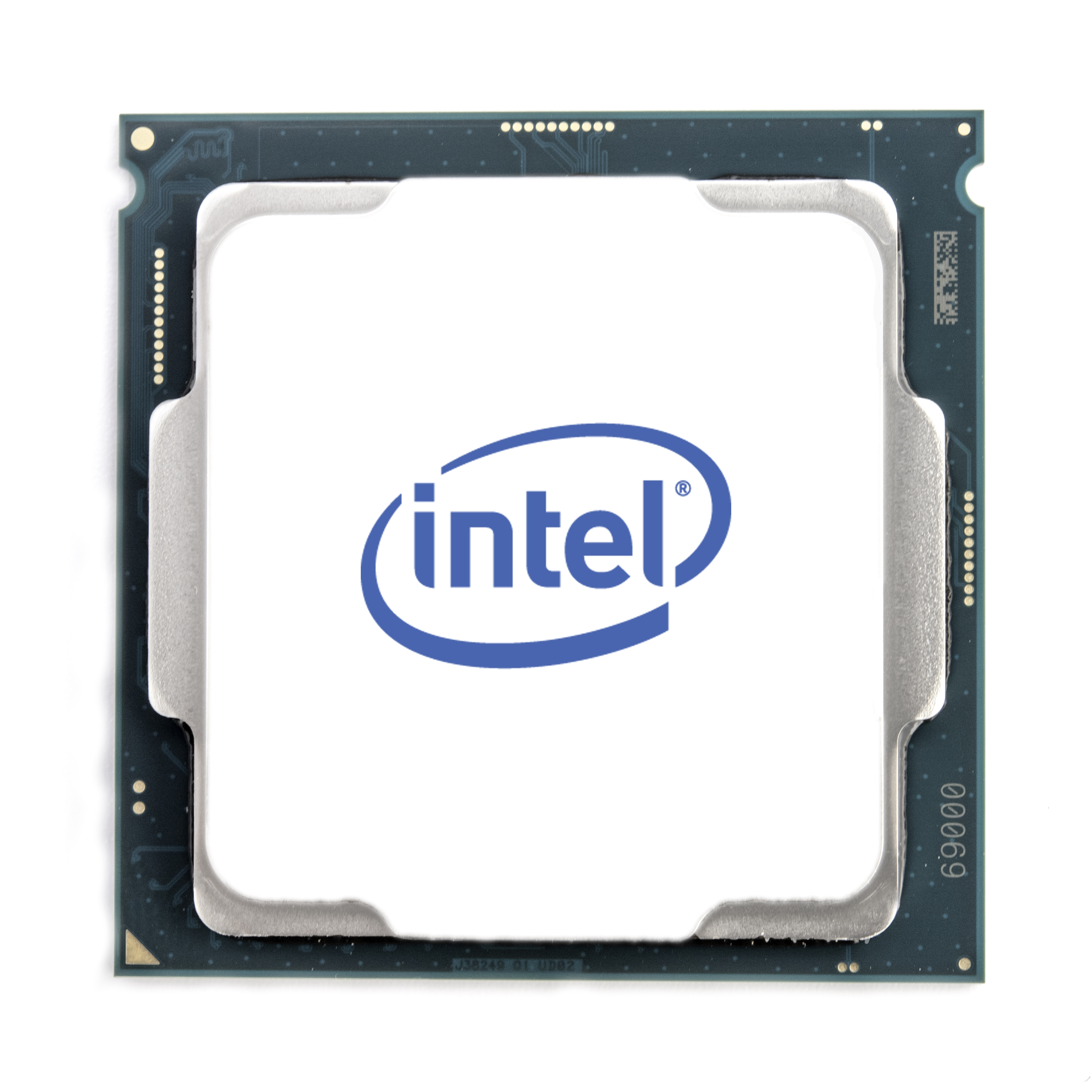

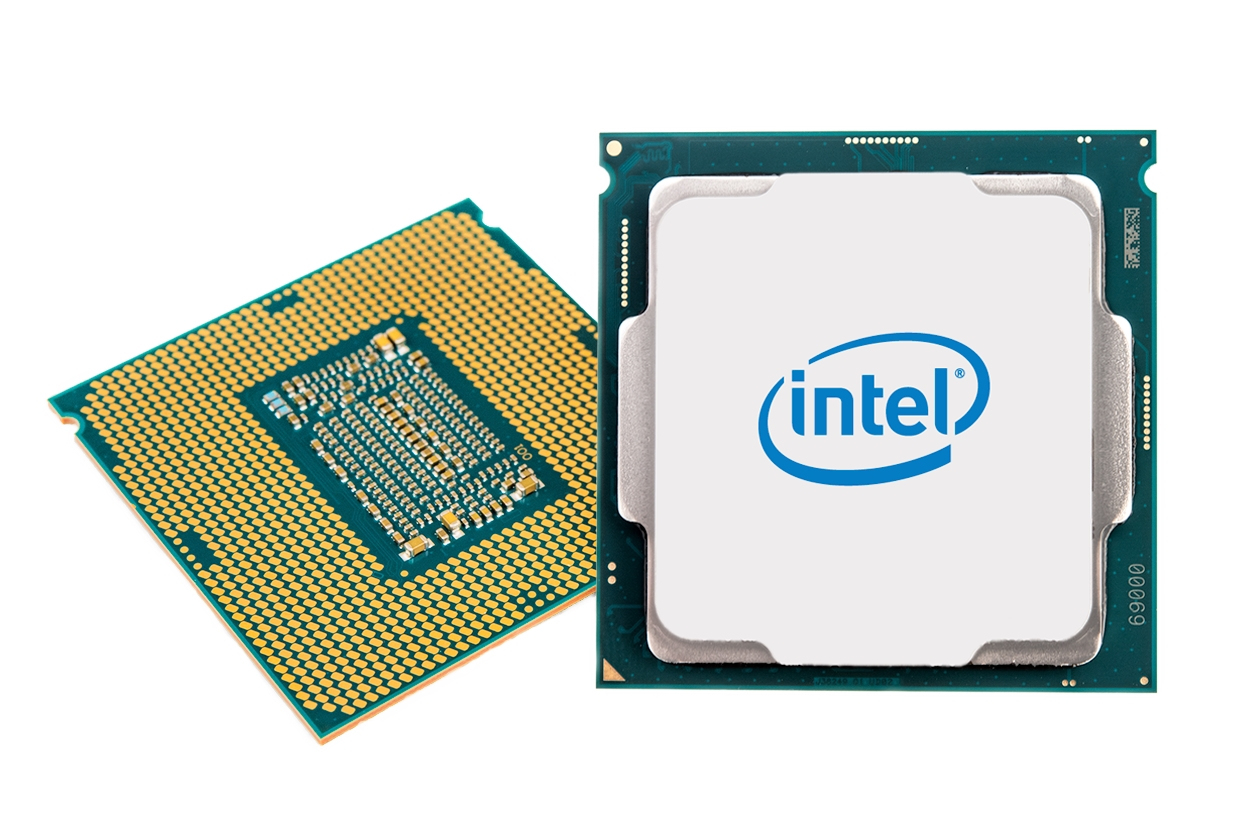

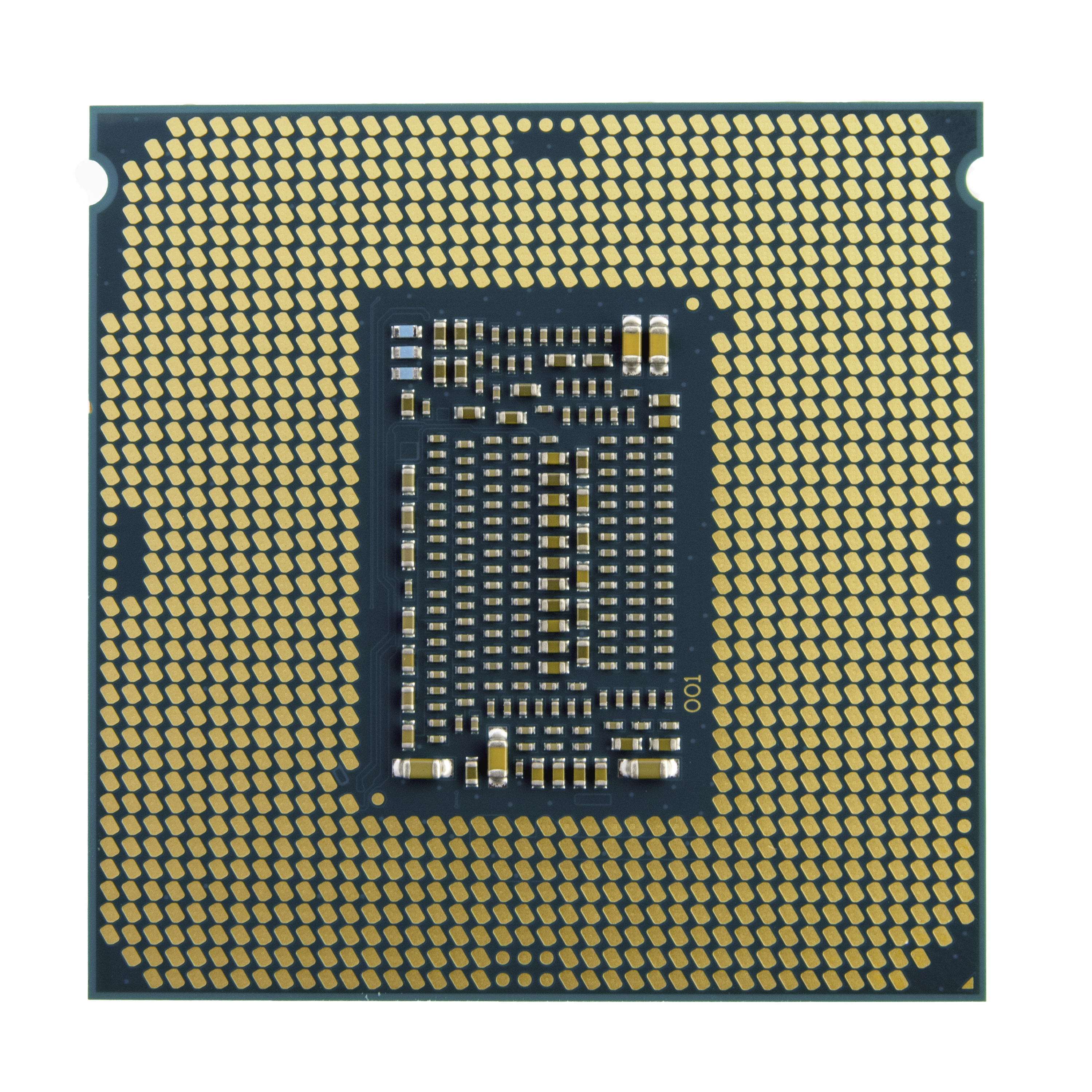

Intel Core i7-11700F 8x 2.50-4.90GHz (BX8070811700F)

Intel® Turbo Boost Technology Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don?t. Intel® Hyper-Threading Technology Intel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner. Intel® Virtualization Technology (VT-x) Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple ?virtual? platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions. Intel® Virtualization Technology for Directed I/O (VT-d) Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments. Intel® VT-x with Extended Page Tables (EPT) Intel® VT-x with Extended Page Tables (EPT), also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Extended Page Tables in Intel® Virtualization Technology platforms reduces the memory and power overhead costs and increases battery life through hardware optimization of page table management. Intel® 64 Intel® 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software.¹ Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory. Instruction Set An instruction set refers to the basic set of commands and instructions that a microprocessor understands and can carry out. The value shown represents which Intel?s instruction set this processor is compatible with. Instruction Set Extensions Instruction Set Extensions are additional instructions which can increase performance when the same operations are performed on multiple data objects. These can include SSE (Streaming SIMD Extensions) and AVX (Advanced Vector Extensions). Idle States Idle States (C-states) are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states. Enhanced Intel SpeedStep® Technology Enhanced Intel SpeedStep® Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep® Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep® Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery. Thermal Monitoring Technologies Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. An on-die Digital Thermal Sensor (DTS) detects the core's temperature, and the thermal management features reduce package power consumption and thereby temperature when required in order to remain within normal operating limits. Intel® Identity Protection Technology Intel® Identity Protection Technology is a built-in security token technology that helps provide a simple, tamper-resistant method for protecting access to your online customer and business data from threats and fraud. Intel® IPT provides a hardware-based proof of a unique user?s PC to websites, financial institutions, and network services; providing verification that it is not malware attempting to login. Intel® IPT can be a key component in two-factor authentication solutions to protect your information at websites and business log-ins. Intel® Deep Learning Boost (Intel® DL Boost) A new set of embedded processor technologies designed to accelerate AI deep learning use cases. It extends Intel AVX-512 with a new Vector Neural Network Instruction (VNNI) that significantly increases deep learning inference performance over previous generations.

Processor

Processor manufacturer	Intel
Processor family	Intel® Core? i7
Processor generation	11th gen Intel® Core? i7
Processor model	i7-11700F
Processor base frequency	2.5 GHz
Processor cores	8
Processor socket	LGA 1200 (Socket H5)
Processor lithography	14 nm
Box	Y
Component for	PC
Processor threads	16
System bus rate	8 GT/s
Processor operating modes	64-bit
Processor boost frequency	4.9 GHz
Processor cache	16 MB
Processor cache type	Smart Cache
Thermal Design Power (TDP)	65 W
Memory bandwidth supported by processor (max)	50 GB/s
Processor ARK ID	212280

Memory

Maximum internal memory supported by processor	128 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	3200 MHz
Memory channels	Dual-channel
Memory bandwidth (max)	50 GB/s
ECC	N

Graphics

On-board graphics card	N
Discrete graphics card	N
On-board graphics card model	Not available
Discrete graphics card model	Not available

Features

Thermal Monitoring Technologies	Y
Idle States	Y
Execute Disable Bit	Y
Market segment	Desktop
Use conditions	PC/Client/Tablet
Maximum number of PCI Express lanes	20
PCI Express slots version	4.0
PCI Express configurations	1x16+1x4,2x8+1x4,1x8+3x4
Supported instruction sets	SSE4.1,SSE4.2,AVX 2.0,AVX-512
CPU configuration (max)	1
Embedded options available	N
Scalability	1S
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	5A992CN3
Commodity Classification Automated Tracking System (CCATS)	G167599

Processor special features

Intel Trusted Execution Technology	N
Intel® Hyper Threading Technology (Intel® HT Technology)	Y
Enhanced Intel SpeedStep Technology	Y
Intel® AES New Instructions (Intel® AES-NI)	Y
Intel® Identity Protection Technology (Intel® IPT)	Y
Intel® Turbo Boost Technology	2.0
Intel® Thermal Velocity Boost	N
Intel® Turbo Boost Technology 2.0 frequency	4.8 GHz
Intel® Turbo Boost Max Technology 3.0 frequency	4.9 GHz
Intel® Gaussian & Neural Accelerator (Intel® GNA) 2.0	Y
Intel® Optane? Memory Ready	Y
Intel Turbo Boost Max Technology 3.0	Y
Intel® Boot Guard	Y
Intel® Deep Learning Boost (Intel® DL Boost)	Y
Intel® vPro? Platform Eligibility	N
Intel Virtualization Technology for Directed I/O (VT-d)	Y
Intel® Secure Key	Y
Intel Stable Image Platform Program (SIPP)	N
Intel VT-x with Extended Page Tables (EPT)	Y
Intel® OS Guard	Y
Intel Software Guard Extensions (Intel SGX)	N
Intel 64	Y
Intel Virtualization Technology (VT-x)	Y

Operational conditions

Tjunction

100 °C

Packaging data

Package type

Retail box

Technical details

Supported memory types	DDR4-SDRAM
Target market	Gaming, Content Creation
Status	Launched
Launch date	Q1'21

Weight & dimensions

Processor package size

37.5 x 37.5 mm

Other features

Maximum internal memory

128 GB

Nicht warten - einfach finanzieren!

Bezahlen Sie schnell und unkompliziert in kleinen Monatsraten. Einfach Artikel auswählen, zur Kasse gehen und mit der Zahlungsart "Finanzierung" die Ware bezahlen.
Weitere Details

Mögliche Laufzeiten:

Laufzeit in Monaten	Monatlich Rate	Effektiver Jahreszins	Gebundener jährl. Sollzinssatz	Gesambetrag
6	6×28,95 EUR	9,9 %	9,48 %	173,70 EUR
10	12×17,64 EUR	9,9 %	9,48 %	176,43 EUR
12	12×14,82 EUR	9,9 %	9,48 %	177,80 EUR
18	18×10,11 EUR	9,9 %	9,48 %	181,96 EUR

Diese Angaben stellen zugleich das repräsentative Beispiel im Sinne des § 6a PangV dar. Vermittlung erfolgt ausschließlich für die Commerz Finanz GmbH, Schwanthalerstr. 31, 80336 München.

Mainboard connectors PC connectors on the back
(monitor/graphics card connectors are disabled if a VGA/GPU graphics card is installed additionally)

PS/2

LAN

VGA

HDMI

USB 2.0

USB-A 3.0 Mainboard

Audio Connectors

5.1

Graphics card / monitor connections

HDMI

Display Port

Front connections front side / top of the case

Audio In/Out

USB-A 3.0

Expansion cards - PCI / PCIe

W-LAN

These connection options have been generated for you. In individual cases, deviations are possible.

PDF download

Intel Core i7

Intel has continuously refined and improved the Core i7 processors over the years. They offer fast and efficient instruction processing and advanced features that make them a good choice for gamers, professionals and enthusiasts alike.
