Workstation PC 7700X MSI PRO X670-P WIFI NVIDIA GeForce RTX 3060 64GB 5200MHz DDR5 1TB NVMe M.2 SSD 650W be quiet! Win 11 Pro onBoard WIFI + Bluetooth
Article number:
4260561746892
In stock
Bulletpoints
- [ Item number EAN: 4260561746892 ] --- AMD Ryzen 7 7700X 8x 4.50GHz (100-100000591WOF) - MSI PRO X670-P WIFI (7D67-001R) - 64GB Kingston FURY Beast 5200MHz DDR5 (KF552C40BBK2-64)
- ASUS DUAL GeForce RTX 3060 V2 OC (LHR) (90YV0GB2-M0NA10) - 650W be quiet! Pure Power 12 M (BN342) - be quiet! Pure Base 600 black (BG021) - onBoard WIFI + Bluetooth
- 1TB Samsung 980 NVMe M.2 (Read 3500MB/s - Write 3000MB/s) - Related to the System: DVD Writer ASUS DRW-24D5MT and it lacked for nothing.
- Windows 11 64Bit Professional installiert aktiviert DPK (Ready to Work - ohne Datenträger)
- Assembled, tested and checked - 2 years warranty
AMD Ryzen 7 7700X
MSI PRO X670-P WIFI
ASUS RTX 3060 V2 OC (LHR)
64GB 5200MHz DDR5
Samsung 980 M.2 1000 GB
650W be quiet!
Dark Rock 4
Windows 11 64Bit Prof.
onBoard WIFI + Bluetooth
System performance
Office
Multimedia
Gaming
Workstation/CAD
System performance
Office
Multimedia
Gaming
Workstation/CAD
Product information "Workstation PC 7700X MSI PRO X670-P WIFI NVIDIA GeForce RTX 3060 64GB 5200MHz DDR5 1TB NVMe M.2 SSD 650W be quiet! Win 11 Pro onBoard WIFI + Bluetooth"
CPU (Processor) | AMD Ryzen 7 7700X 8x 4.50-5.40GHz (100-100000591WOF) |
Mainboard | MSI PRO X670-P WIFI (7D67-001R) |
Video Card (VGA Card) | ASUS DUAL GeForce RTX 3060 V2 OC 12 GB (LHR) (90YV0GB2-M0NA10) |
System Memory (RAM) | 64GB Kingston FURY Beast 5200MHz DDR5 (KF552C40BBK2-64) |
SSD | 1TB Samsung 980 NVMe M.2 (Read 3500MB/s - Write 3000MB/s) |
Disc Drive (Drive) | ASUS DRW-24D5MT Internal DVD Super Multi DL Black (90DD01Y0-B20010) |

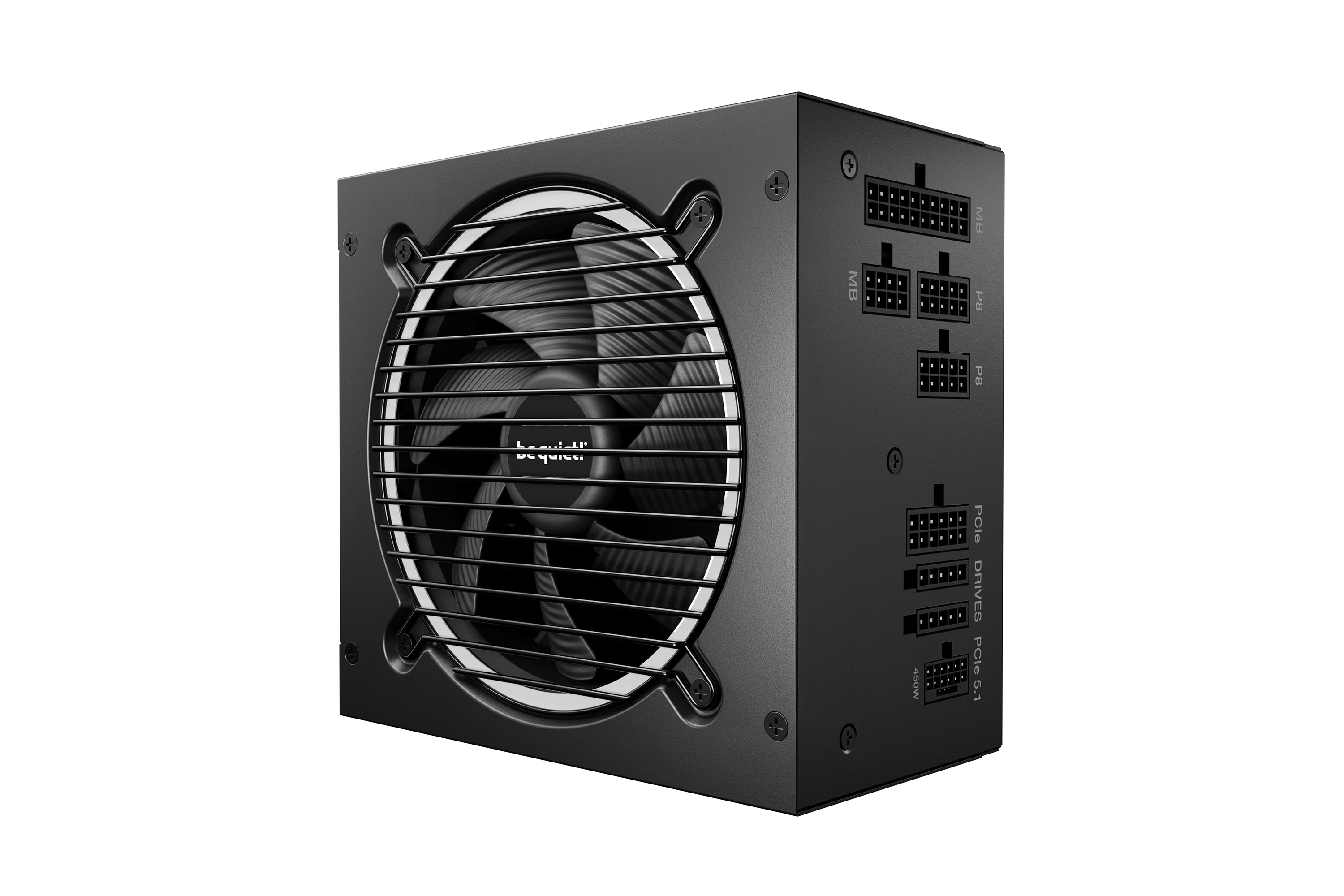

Power Supply Unit (PSU) | 650W be quiet! Pure Power 12 M (BN342) ATX 3.0 |
Case (Case) | be quiet! Pure Base 600 black (BG021) |
CPU Cooler (Cooler) | be quiet! Dark Rock 4 (BK021) |
Operating System (Ready to use installed) | Windows 11 64Bit Professional installed activated digital key (ready to work - without data media) |
Case Fan | 140mm Default Case Fan 120mm Default Case Fan |
W-LAN Unit internal | onBoard WIFI + Bluetooth |
ASUS DRW-24D5MT Internal DVD Super Multi DL Black (90DD01Y0-B20010)
LG GH24NSD1, Black, Desktop, Tray, DVD Super Multi DL, SATA, CD-R, CD-RW, DVD, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-RAM
Design
Internal | Yes |
Colour of product | Black |
Disc loading type | Tray |
Mounting | Horizontal |
Performance
Purpose | Desktop |
Optical drive type | DVD Super Multi DL |
Disc types supported | CD-R, CD-RW, DVD, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-RAM |
Interface | SATA |
Writing speed
CD write speed | 48x |
CD rewrite speed | 24x |
DVD-RW write speed | 6x |
DVD-RAM write speed | 5x |
DVD+RW write speed | 8x |
DVD-R Double Layer write speed | 8x |
DVD+R write speed | 24x |
DVD-R write speed | 24x |
DVD+R Double Layer write speed | 8x |
Reading speed
CD read speed | 48x |
CD-RW read speed | 40x |
DVD-RAM read speed | 5x |
DVD-ROM read speed | 16x |
CD-ROM read speed | 48x |
CD-R read speed | 48x |
DVD-RW read speed | 13x |
DVD+R read speed | 16x |
DVD-R read speed | 16x |
DVD+R Double Layer read speed | 12x |
DVD+RW read speed | 13x |
System requirements
Windows operating systems supported | Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
Weight & dimensions
Width | 14.6 cm |
Depth | 16.5 cm |
Height | 4.13 cm |
Weight | 700 g |
Packaging content
Bundled software | Power2Go |
Quantity | 1 |
ASUS DUAL GeForce RTX 3060 V2 OC 12 GB (LHR) (90YV0GB2-M0NA10)
2x Fans. 2x Fun. Featuring the latest NVIDIA® Ampere architecture, ASUS Dual GeForce RTX™ 3060 fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for maximizing airflow to the heatsink — are packed into the 20 cm long, 2-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build. Axial-tech Fan Design Better, faster, stronger Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure. 0dB Technology Quiet intelligence To eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 50 degrees and power consumption is low. 2-slot Design Sink your heat into this A carefully designed shroud, heatsink, and heatpipe layout allows the two Axial-tech fans to leverage chassis side-panel ventilation and deliver thermal performance that belies the card’s size. Auto-Extreme Technology Precision automated manufacturing Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall. Protective Backplate That's so metal! The PCB is reinforced by an aluminum backplate that adds structural rigidity, helping to prevent flex and protect components and trace pathways from damage. Stainless Steel Bracket Steel yourself The mounting bracket of the Dual has been beefed up with 304 Stainless Steel that’s harder and more resistant to corrosion. GPU Tweak II Monitor, tweak, and tune The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card. XSplit Premium streaming XSplit offers a premium streaming experience with in-game annotations and other advanced features. Enjoy a free license with the purchase of select ASUS graphics cards. See you online! wtfast Play lag-free We've partnered with wtfast to help you to play free from lag, latency issues, and lost packets. With a 6-month subscription to the wtfast Gamers Private Network, you'll enjoy lower ping for a smoother, more fluid online gaming experience. Buy an ASUS graphics card - and don't be left waiting! QuantumCloud Profit from GPU power QuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. ?Get started right away with just one click! 144-hour Validation Program “Extensive” may be an understatement A 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games. Subtle Lighting A bit lit The shroud features a subtle illuminated strip that creates a stylish accent for your build. NVIDIA AMPERE ARCHITECTURE The all-new NVIDIA Ampere architecture delivers the ultimate play, featuring advanced 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput. RTX. IT’S ON. Experience today’s biggest blockbusters like never before with the visual fidelity of real-time ray tracing and the ultimate performance of AI-powered DLSS. DLSS AI ACCELERATION NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has come to gaming. VICTORY MEASURED IN MILLISECONDS NVIDIA Reflex delivers the ultimate competitive advantage. The lowest latency. The best responsiveness. Powered by GeForce RTX 30 Series GPUs and NVIDIA® G-SYNC® monitors. Acquire targets faster, react quicker, and increase aim precision through a revolutionary suite of technologies to measure and optimize system latency for competitive games. UP YOUR CREATIVE GAME Take your creative projects to a new level with GeForce RTX 30 Series GPUs. Delivering AI-acceleration in top creative apps. Backed by the NVIDIA Studio platform of dedicated drivers and exclusive tools. And built to perform in record time. Whether you’re rendering complex 3D scenes, editing 8K video, or livestreaming with the best encoding and image quality, GeForce RTX GPUs give you the performance to create your best. STREAM LIKE A BOSS Steal the show with incredible graphics and smooth, stutter-free live streaming. Next-generation hardware encoding and decoding combine to show off all your best moments in exquisite detail. And the all-new NVIDIA Broadcast app gives you powerful AI capabilities to improve audio and video quality with effects like virtual background, webcam auto frame, and microphone noise removal. So you can give your audience your best—every time. DIRECTX 12 ULTIMATE Developers can now add even more amazing graphics effects to Microsoft Windows-based PC games. GeForce RTX graphics cards deliver advanced DX12 features like ray tracing and variable rate shading, bringing games to life with ultra-realistic visual effects and faster frame rates.
Processor
Graphics processor family | NVIDIA |
Graphics processor | GeForce RTX 3060 |
Maximum resolution | 7680 x 4320 pixels |
CUDA | Y |
CUDA cores | 3584 |
Processor boost clock speed | 1837 MHz |
Processor boost clock speed (OC mode) | 1867 MHz |
FireStream | N |
Parallel processing technology support | Not supported |
Maximum displays per videocard | 4 |
Memory
Discrete graphics adapter memory | 12 GB |
Graphics adapter memory type | GDDR6 |
Memory bus | 192 bit |
Memory bandwidth (max) | 15 GB/s |
Ports & interfaces
Interface type | PCI Express 4.0 |
HDMI ports quantity | 1 |
DisplayPorts quantity | 3 |
HDMI version | 2.1 |
DisplayPort version | 1.4a |
Performance
TV tuner integrated | N |
DirectX version | 1?2 Ultimate |
OpenGL version | 4.6 |
HDCP | Y |
Dual Link DVI | N |
NVIDIA G-SYNC | Y |
Design
Cooling type | Active |
Cooling technology | ASUS Axial-tech |
Number of fans | 2 fan(s) |
Number of slots | 2 |
Illumination | Y |
Product colour | Black |
Power
Minimum system power supply | 650 W |
Supplementary power connectors | 1x 8-pin |
Weight & dimensions
Width | 38 mm |
Height | 123 mm |
Depth | 200 mm |
Packaging data
Manual | Y |
Package type | Box |
be quiet! Dark Rock 4 (BK021)
Dark Rock is the high-end series of the be quiet! range of CPU coolers. It comprises double-tower, single-tower and top-flow cooler designs. They all offer incredible performance-to-noise ratios and the highest reliability available with absolutely no compromise in silence and performance. Dark Rock coolers are virtually inaudible and place the famous be quiet! SilentWings® technology at the heart of your PC. They are excellent for overclocked systems and demanding multi-graphics platforms.
No Compromise Silence and Performance
Dark Rock 4 offers an extreme cooling performance and virtually inaudible operation. Perfect for overclocked systems and demanding workstations.
- Silent Wings 135mm PWM fan features an advanced fluid-dynamic bearing and a smooth 6-pole motor
- Optimal balance of cooling and quietness with only 21.4dB(A) at maximum fan speed
- Six high-performance copper heat pipes that provide maximal heat conductance
- Wave-contoured cooling fins for increased air circulation
- Special black coating with ceramic particles enables perfect heat transfer
- Supports an additional 120mm fan; clips are included in scope of delivery
- Easily installable black installation kit can be mounted from above
- Elegant, brushed aluminum top cover with diamond cut finish
- 3-year manufacturer’s warranty
- Product conception, design and quality control in Germany
No Compromise Silence and Performance
Dark Rock 4 offers an extreme cooling performance and virtually inaudible operation. Perfect for overclocked systems and demanding workstations.
- Silent Wings 135mm PWM fan features an advanced fluid-dynamic bearing and a smooth 6-pole motor
- Optimal balance of cooling and quietness with only 21.4dB(A) at maximum fan speed
- Six high-performance copper heat pipes that provide maximal heat conductance
- Wave-contoured cooling fins for increased air circulation
- Special black coating with ceramic particles enables perfect heat transfer
- Supports an additional 120mm fan; clips are included in scope of delivery
- Easily installable black installation kit can be mounted from above
- Elegant, brushed aluminum top cover with diamond cut finish
- 3-year manufacturer’s warranty
- Product conception, design and quality control in Germany
Performance
Suitable for | Processor |
Type | Cooler |
Fan diameter | 13.5 cm |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
Rotational speed (max) | 1400 RPM |
Noise level (low speed) | 10.5 dB |
Noise level (high speed) | 21.4 dB |
Pulse-width modulation (PWM) support | Y |
Number of fins | 51 |
Fins material | Aluminium |
Bearing type | Fluid dynamic bearing (FDB) |
Number of fans | 1 fan(s) |
Additional fan supported | Y |
Thermal Design Power (TDP) | 200 W |
Number of heat pipes | 6 |
Heat pipes diameter | 6 mm |
Design
Colour of product | Black |
Material | Copper |
Cable length | 0.22 m |
RoHS compliance | Y |
Power
Power supply | 1.32 W |
Rated voltage | 12 V |
Rated current | 0.11 A |
Weight & dimensions
Width | 136 mm |
Depth | 159.4 mm |
Height | 74.3 mm |
Weight | 920 g |
Fan dimensions (W x D x H) | 135 x 135 x 22 mm |
Package width | 205 mm |
Package depth | 149 mm |
Package height | 214 mm |
Package weight | 1.17 kg |
Technical details
Fan connector | 4-pin |
Packaging content
Screws included | Y |

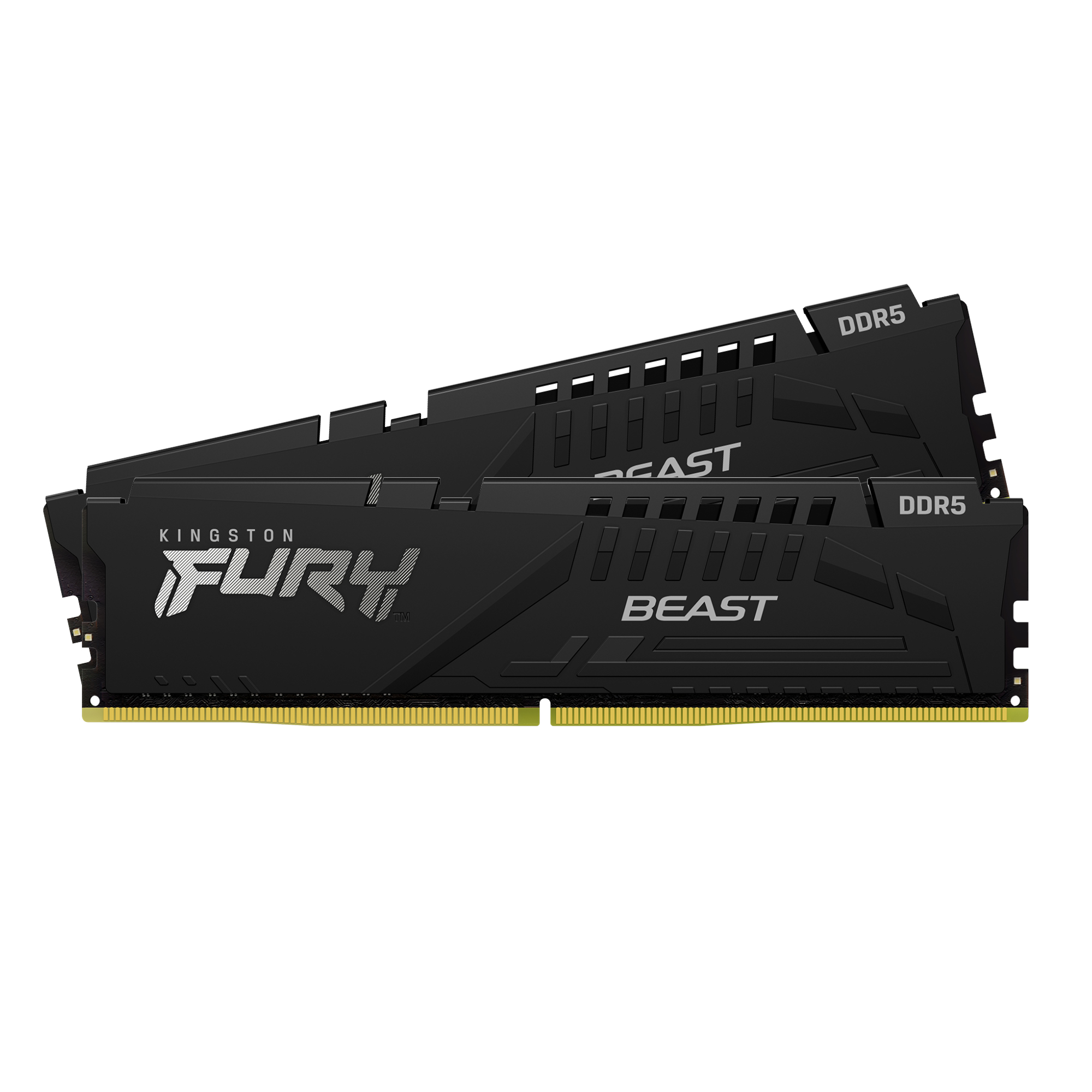

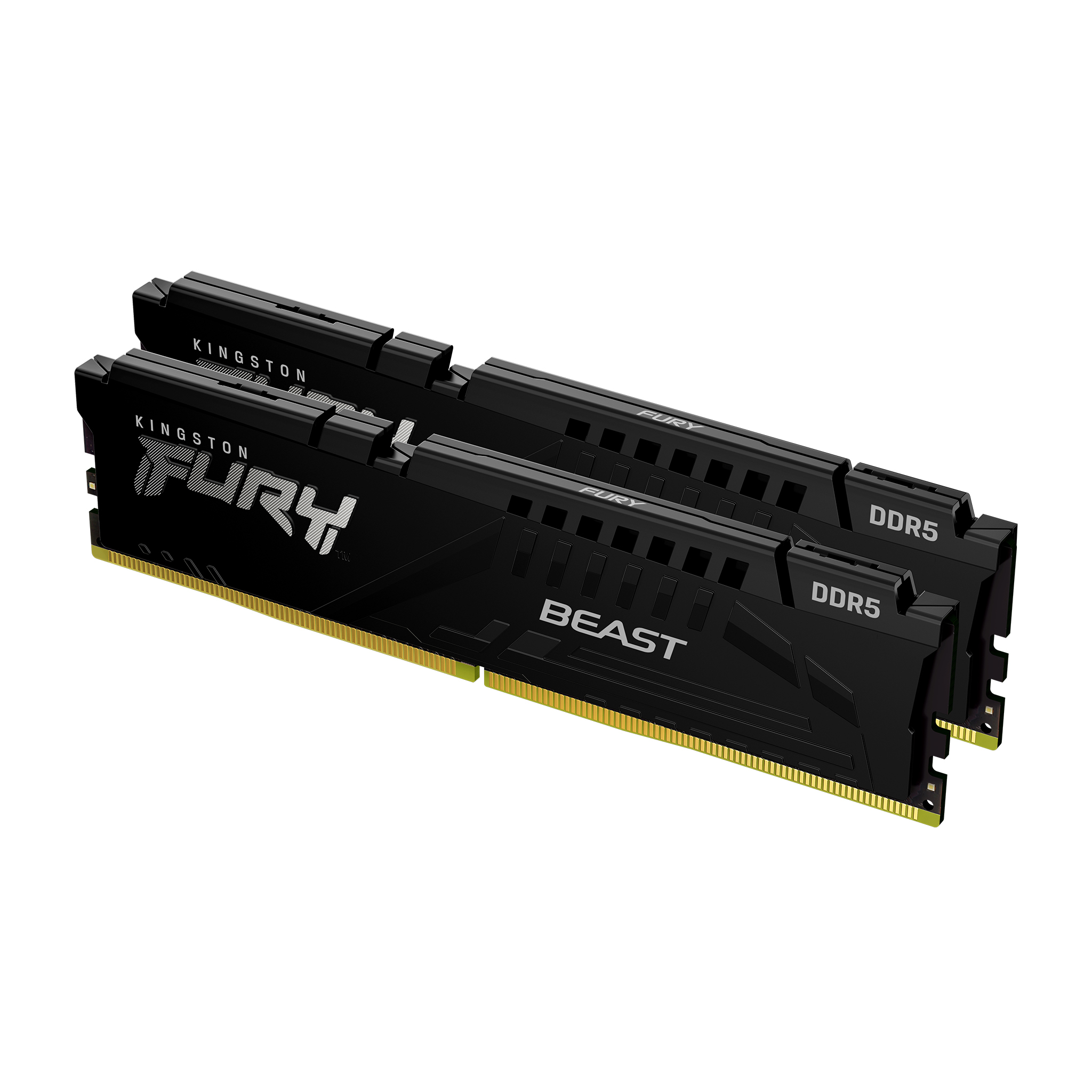

64GB Kingston FURY Beast 5200MHz DDR5 (KF552C40BBK2-64)
Kingston Technology FURY Beast, 64 GB, 2 x 32 GB, DDR5, 5200 MHz, 288-pin DIMM
Features
Buffered memory type | Unregistered (unbuffered) |
Internal memory | 64 GB |
Memory layout (modules x size) | 2 x 32 GB |
Internal memory type | DDR5 |
Memory clock speed | 5200 MHz |
Component for | PC/Server |
Memory form factor | 288-pin DIMM |
ECC | N |
On-Die ECC | Y |
CAS latency | 40 |
Memory ranking | 2 |
Memory voltage | 1.25 V |
Module configuration | 4096M x 64 |
Row cycle time | 48 ns |
Refresh row cycle time | 295 ns |
Row active time | 32 ns |
Intel Extreme Memory Profile (XMP) | Y |
Intel Extreme Memory Profile (XMP) version | 3.0 |
Programming power voltage (VPP) | 1.8 V |
Cooling type | Heatsink |
Lead plating | Gold |
JEDEC standard | Y |
Operational conditions
Operating temperature (T-T) | 0 - 85 °C |
Storage temperature (T-T) | -55 - 100 °C |
Weight & dimensions
Width | 133.3 mm |
Height | 31.2 mm |

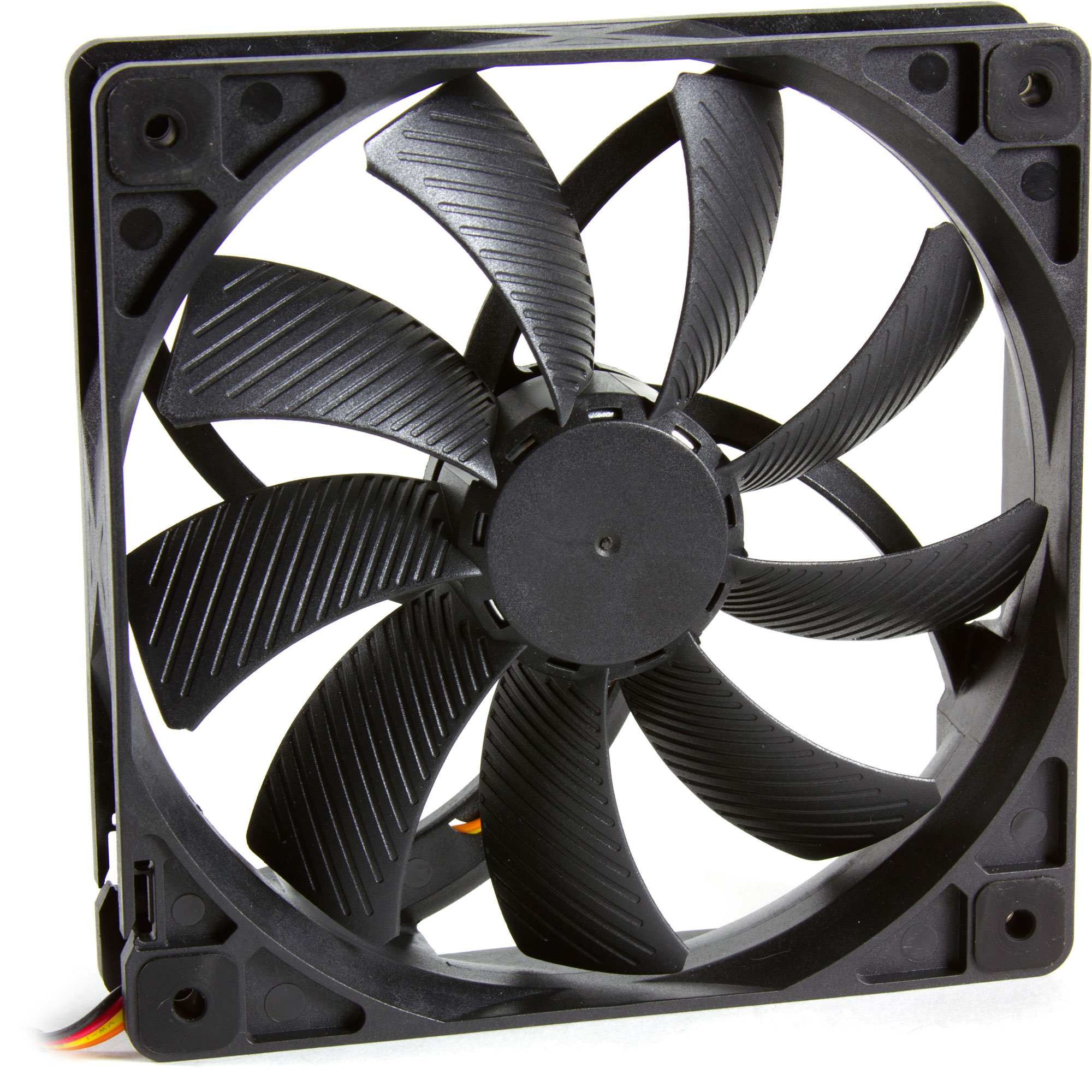

140mm Default Case Fan
Windows 11 64Bit Professional installed activated digital key (ready to work - without data media)

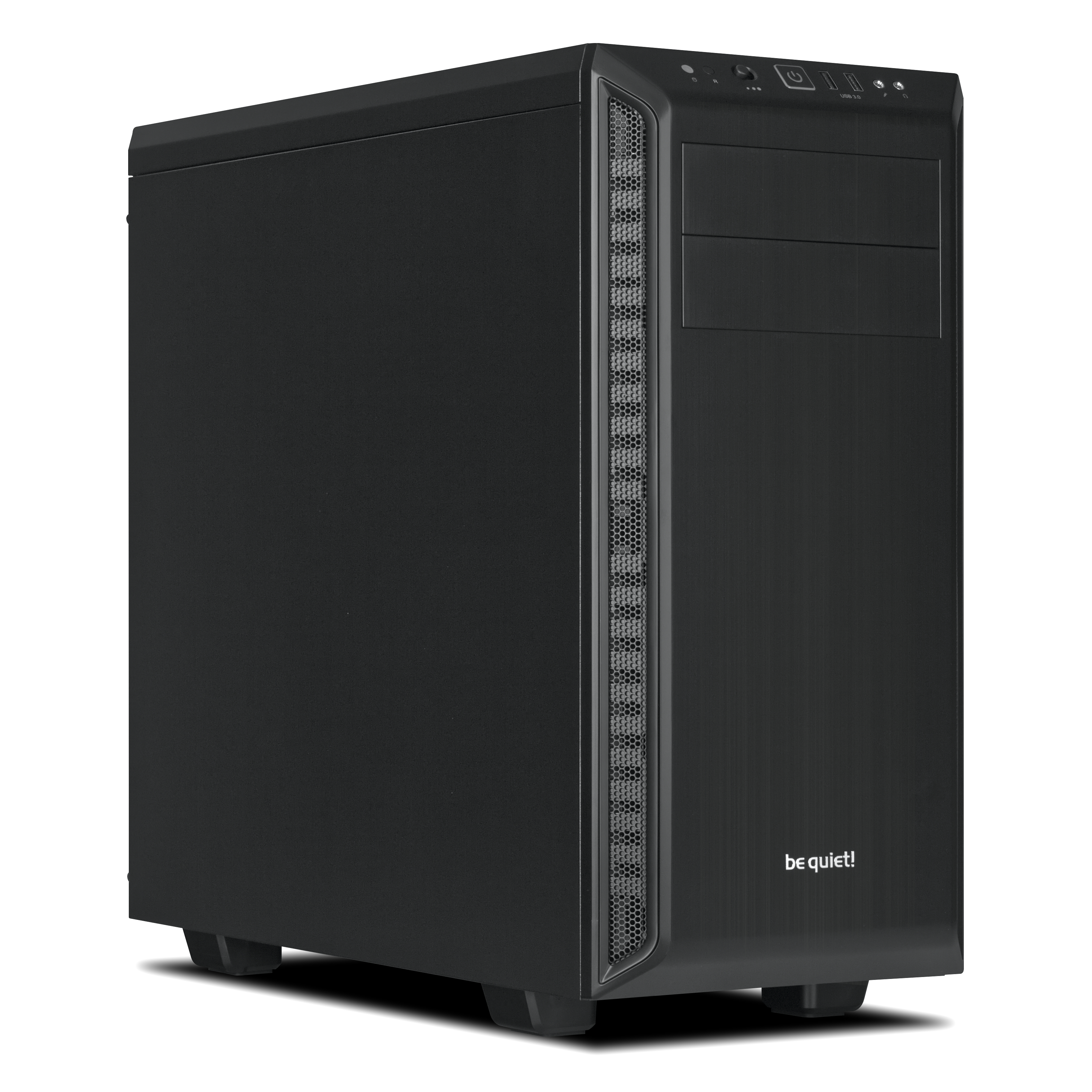

be quiet! Pure Base 600 black (BG021)
Ideal applications highlights
- Air-cooled and water-cooled systems.
- Gaming and multimedia PCs.
- Quiet home theater PCs.
Highlights
- Highly versatile construction.
- Water cooling optimized with adjustable top cover vent.
- Two pre-installed Pure Wings 2 fans.
- Completely sound-insulated on top, side and front.
Exceptionally Silent and Functional
Pure Base 600 is truly multi-talented, offering a great deal of functionality and features for an attractive price.
- Highly versatile construction with repositionable HDD slots and a removable ODD cage.
- Optimized for liquid cooling with three specially designed areas of up to 360mm to add water cooling radiators.
- Adjustable top cover vent that can be closed for absolute silence, partially open for more air exhaust or fully open, with the added possibility to mount a radiator.
- Whisper-quiet operation thanks to two pre-installed Pure Wings 2 fans featuring nine airflow-optimized fan blades that reduce turbulence while increasing the air pressure.
- Completely sound insulated with integrated dampening material on top, side and front.
- Professional cable management is adaptable with extensive cable routing options.
- 3-year manufacturer’s warranty.
- Product conception, design and quality control in Germany.
Smart usability features and whisper-quiet operation enable you to realize almost any system configuration you desire for your ATX or micro ATX PC. It is the perfect base for your system.
- Air-cooled and water-cooled systems.
- Gaming and multimedia PCs.
- Quiet home theater PCs.
Highlights
- Highly versatile construction.
- Water cooling optimized with adjustable top cover vent.
- Two pre-installed Pure Wings 2 fans.
- Completely sound-insulated on top, side and front.
Exceptionally Silent and Functional
Pure Base 600 is truly multi-talented, offering a great deal of functionality and features for an attractive price.
- Highly versatile construction with repositionable HDD slots and a removable ODD cage.
- Optimized for liquid cooling with three specially designed areas of up to 360mm to add water cooling radiators.
- Adjustable top cover vent that can be closed for absolute silence, partially open for more air exhaust or fully open, with the added possibility to mount a radiator.
- Whisper-quiet operation thanks to two pre-installed Pure Wings 2 fans featuring nine airflow-optimized fan blades that reduce turbulence while increasing the air pressure.
- Completely sound insulated with integrated dampening material on top, side and front.
- Professional cable management is adaptable with extensive cable routing options.
- 3-year manufacturer’s warranty.
- Product conception, design and quality control in Germany.
Smart usability features and whisper-quiet operation enable you to realize almost any system configuration you desire for your ATX or micro ATX PC. It is the perfect base for your system.
Design
Form factor | Midi-Tower |
Type | PC |
Material | ABS synthetics, Steel |
Number of 5.25' bays | 2 |
Number of 3.5' bays | 3 |
Supported motherboard form factors | ATX, Micro-ATX, Mini-ITX |
Colour of product | Black |
Number of 2.5' bays | 6 |
Number of internal 3.5' bays | 3 |
Number of external 5.25' bays | 2 |
Suitable for | Gaming |
Material thickness | 1 mm |
Side window | N |
Number of expansion slots | 7 |
Maximum CPU cooler height | 16.5 cm |
Maximum graphics card length | 28 cm |
Maximum PSU length | 21 cm |
Power supply
Power supply included | N |
Supported power supply form factors | ATX |
Ports & interfaces
USB 3.0 (3.1 Gen 1) Type-A ports quantity | 2 |
Audio input | Y |
Audio output | Y |
Cooling
Front fans installed | 1x 140 mm |
Maximum front fans | 3 |
Front fans diameters supported | 120,140 mm |
Rear fans installed | 1x 120 mm |
Maximum rear fans | 1 |
Rear fans diameters supported | 120 mm |
Maximum top fans | 3 |
Top fans diameters supported | 120,140 mm |
Liquid cooling capability | Y |
Front radiator fan sizes supported | 120,140,240,280,360 mm |
Rear radiator fan sizes supported | 120 mm |
Top radiator fan sizes supported | 120,140,360 mm |
Storage
Supported hard disk drive sizes | 2.5,3.5' |
Weight & dimensions
Width | 220 mm |
Depth | 492 mm |
Height | 470 mm |
Weight | 7.44 kg |
Packaging data
Package weight | 8.74 kg |
onBoard Sound
onBoard Sound incl. 5.1 or 7.1 look at Ports Layout Plan650W be quiet! Pure Power 12 M (BN342) ATX 3.0
EXCEPTIONAL QUIET, SUPERIOR FEATURES Pure Power 12 M 650W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 650W offers the best combination of features with outstanding compatibility. 80 PLUS® GOLD CERTIFIED Very high operating efficiency Pure Power 12 M 650W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 92.7%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 650W is always the correct choice for quiet systems and gaming PCs! FUTURE-PROOF YOUR SYSTEM Fulfills all ATX 3.0 specifications Pure Power 12 M 650W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful present systems. THE NEW STANDARD OF POWER For massive transient loads Pure Power 12 M offers 650W of continuous power with 2 independent 12V rails. Even if the graphics card demands excessive power for a short time: Pure Power 12 M 650W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards. UNPRECEDENTED SILENT OPERATION Achieved with a silence-optimized be quiet! fan The exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality. HIGH-CLASS TECHNOLOGIES Rock-solid stability With its LLC topology Pure Power 12 M 650W provides a best-in-class voltage regulation and efficiency. That makes it perfect for building or upgrading very quiet systems as well as gaming and media creation PCs. MODULAR CABLES Utmost convenience and compatibility Thanks to their modularity, all unnecessary cables in the system are left out. Pure Power 12 M 650W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.
Power
Total power | 650 W |
Peak power | 720 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
Input current | 10/5 A |
Power factor | 0.98 |
Power Factor Correction (PFC) type | Active |
Combined power (+3.3V) | 120 W |
Combined power (+12V) | 650 W |
Combined power (+5V) | 120 W |
Combined power (-12V) | 3.6 W |
Combined power (+5Vsb) | 15 W |
Max output current (+3.3V) | 20 A |
Max output current (+12V1) | 32 A |
Max output current (+12V2) | 28 A |
Max output current (+5V) | 20 A |
Max output current (-12V) | 0.3 A |
Max output current (+5Vsb) | 3 A |
Power Good signal delay range | 100 - 150 ms |
Efficiency | 92.7% |
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit |
Ports & interfaces
Motherboard power connector | 20+4 pin ATX |
Motherboard power cable length | 55 cm |
Number of SATA power connectors | 5 |
Number of PATA power connectors | 2 |
SATA power cable length | 500,650,800,950 mm |
Peripheral (Molex) power connectors (4-pin) | 1 |
Peripheral (Molex) power cable length | 550 mm |
EPS power connector (4+4 pin) | Y |
PCI Express power connectors (6+2 pin) | 2 |
CPU P4 connector (4-pin) | 1 |
ATX power connector (20+4 pin) | Y |
PCI Express connector | Y |
Performance
Purpose | PC |
Power supply unit (PSU) form factor | ATX |
80 PLUS certification | 80 PLUS Gold |
ATX version | 3.0 |
EPS version | 2.92 |
Noise level | 19.9 dB |
Mean time between failures (MTBF) | 100000 h |
Design
Product colour | Black |
Cooling type | Active |
Fan diameter | 12 cm |
Number of fans | 1 fan(s) |
Fan location | Top |
On/off switch | Y |
Operational conditions
Operating temperature (T-T) | 0 - 40 °C |
Packaging content
Cables included | PATA, PCIe, Peripheral (Molex), SATA |
Weight & dimensions
Width | 160 mm |
Depth | 150 mm |
Height | 86 mm |
Packaging data
Package type | Box |
Technical details
Warranty period | 10 year(s) |
Sustainability certificates | ENERGY STAR, ErP, RoHS |
Sustainability compliance | Y |
Other features
Screws included | Y |
Number of screws | 5 |
Cable ties included | Y |
Noise level (silent mode, <30%) | 8.1 dB |
Noise level (quiet mode, 50%) | 9.1 dB |
Noise level (full-load mode, 100%) | 19.9 dB |
1TB Samsung 980 NVMe M.2 (Read 3500MB/s - Write 3000MB/s)
Samsung 980, 1000 GB, M.2, 3500 MB/s
Features
SSD form factor | M.2 |
SSD capacity | 1000 GB |
Interface | PCI Express 3.0 |
Memory type | V-NAND |
NVMe | Y |
NVMe version | 1.4 |
Component for | PC/notebook |
Hardware encryption | Y |
Security algorithms | 256-bit AES |
Read speed | 3500 MB/s |
Write speed | 3000 MB/s |
Random read (4KB) | 500000 IOPS |
Random write (4KB) | 480000 IOPS |
PCI Express interface data lanes | x4 |
S.M.A.R.T. support | Y |
Mean time between failures (MTBF) | 1500000 h |
Power
Operating voltage | 3.3 V |
Power consumption (max) | 5.3 W |
Power consumption (average) | 4.6 W |
Operational conditions
Operating temperature (T-T) | 0 - 70 °C |
Operating vibration | 1500 G |
Weight & dimensions
Weight | 8 g |
onBoard WIFI + Bluetooth
onBoard LAN
AMD Ryzen 7 7700X 8x 4.50-5.40GHz (100-100000591WOF)
AMD Ryzen 7 7700X, AMD Ryzen™ 7, Socket AM5, AMD, 7700X, 4.5 GHz, 32-bit, 64-bit
Processor
Processor manufacturer | AMD |
Processor family | AMD Ryzen? 7 |
Processor model | 7700X |
Processor base frequency | 4.5 GHz |
Processor cores | 8 |
Processor socket | Socket AM5 |
Box | Y |
Processor threads | 16 |
Processor operating modes | 32-bit, 64-bit |
Processor boost frequency | 5.4 GHz |
Processor cache | 32 MB |
Processor cache type | L3 |
Thermal Design Power (TDP) | 105 W |
Memory
Maximum internal memory supported by processor | 128 GB |
Memory clock speeds supported by processor | 3600,5200 MHz |
Memory channels | Dual-channel |
ECC | Y |
Graphics
Discrete graphics card | N |
On-board graphics card | Y |
On-board graphics card model | AMD Radeon Graphics |
On-board graphics card dynamic frequency (max) | 2200 MHz |
On-board graphics card base frequency | 400 MHz |
Discrete graphics card model | Not available |
Features
Compatible operating systems | Windows 11 - 64-Bit, Windows 10 - 64-Bit, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
I/O configuration
USB version | 2.0/3.2 Gen 2 (3.1 Gen 2) |
USB ports quantity | 5 |
Operational conditions
Maximum operating temperature | 95 °C |
Technical details
Launch date | 9/15/2022 |
Other features
L1 cache | 0.512 MB |
L2 cache | 8000 KB |
120mm Default Case Fan
MSI PRO X670-P WIFI (7D67-001R)
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency. LIGHTNING GEN 4 PCI-E MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation. REINFORCED, HEAVY SOLDERED CONNECTIONS MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference. FAST AND FUTURE-READY STORAGE MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies. DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20G Using USB 3.2 devices has never been faster! MSI PRO series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C. HIGH-BANDWIDTH AND LOW-LATENCY NETWORK MSI's premium network solution provides incredible data transfer speed for demanding users. GLOW YOUR PC Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.
Processor
Processor manufacturer | AMD |
Processor socket | Socket AM5 |
Compatible processor series | AMD Ryzen? 7 |
Maximum number of SMP processors | 1 |
Memory
Supported memory types | DDR5-SDRAM |
Number of memory slots | 4 |
Memory slots type | DIMM |
Memory channels | Dual-channel |
Maximum internal memory | 128 GB |
Storage controllers
Supported storage drive types | HDD & SSD |
Supported storage drive interfaces | M.2, SATA III |
RAID levels | 0, 1, 10 |
Internal I/O
USB 2.0 connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
Number of SATA III connectors | 6 |
Audio connector | Y |
Front panel connector | Y |
CPU fan connector | Y |
Chassis intrusion connector | Y |
RGB LED pin header | Y |
Rear panel I/O ports
USB 2.0 ports quantity | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 1 |
HDMI version | 2.1 |
DisplayPorts quantity | 1 |
DisplayPort version | 1.4 |
S/PDIF out port | Y |
Digital audio optical out | 1 |
Network
Ethernet LAN | Y |
Ethernet interface type | 2.5 Gigabit Ethernet |
LAN controller | Realtek RTL8125-BG |
Wi-Fi | Y |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
Bluetooth | Y |
Bluetooth version | 5.2 |
Features
Component for | PC |
Motherboard form factor | ATX |
Motherboard chipset family | AMD |
Motherboard chipset | AMD X670 |
Audio chip | Realtek ALC4080 |
Audio output channels | 7.1 channels |
Windows operating systems supported | Windows 10 Enterprise x64, Windows 11 x64 |
Expansion slots
Number of M.2 (M) slots | 4 |
Weight & dimensions
Width | 243.8 mm |
Depth | 304.8 mm |
Packaging content
Cables included | SATA |
Drivers included | Y |
Nicht warten - einfach finanzieren!
Bezahlen Sie schnell und unkompliziert in kleinen Monatsraten. Einfach Artikel auswählen, zur Kasse gehen
und mit der Zahlungsart "Finanzierung" die Ware bezahlen.
Weitere Details
Mögliche Laufzeiten:
Laufzeit in Monaten | Monatlich Rate | Effektiver Jahreszins | Gebundener jährl. Sollzinssatz | Gesambetrag |
6 | 6×28,95 EUR | 9,9 % | 9,48 % | 173,70 EUR |
10 | 12×17,64 EUR | 9,9 % | 9,48 % | 176,43 EUR |
12 | 12×14,82 EUR | 9,9 % | 9,48 % | 177,80 EUR |
18 | 18×10,11 EUR | 9,9 % | 9,48 % | 181,96 EUR |
Diese Angaben stellen zugleich das repräsentative Beispiel im Sinne des § 6a PangV dar. Vermittlung erfolgt ausschließlich für die Commerz Finanz GmbH, Schwanthalerstr. 31, 80336 München.

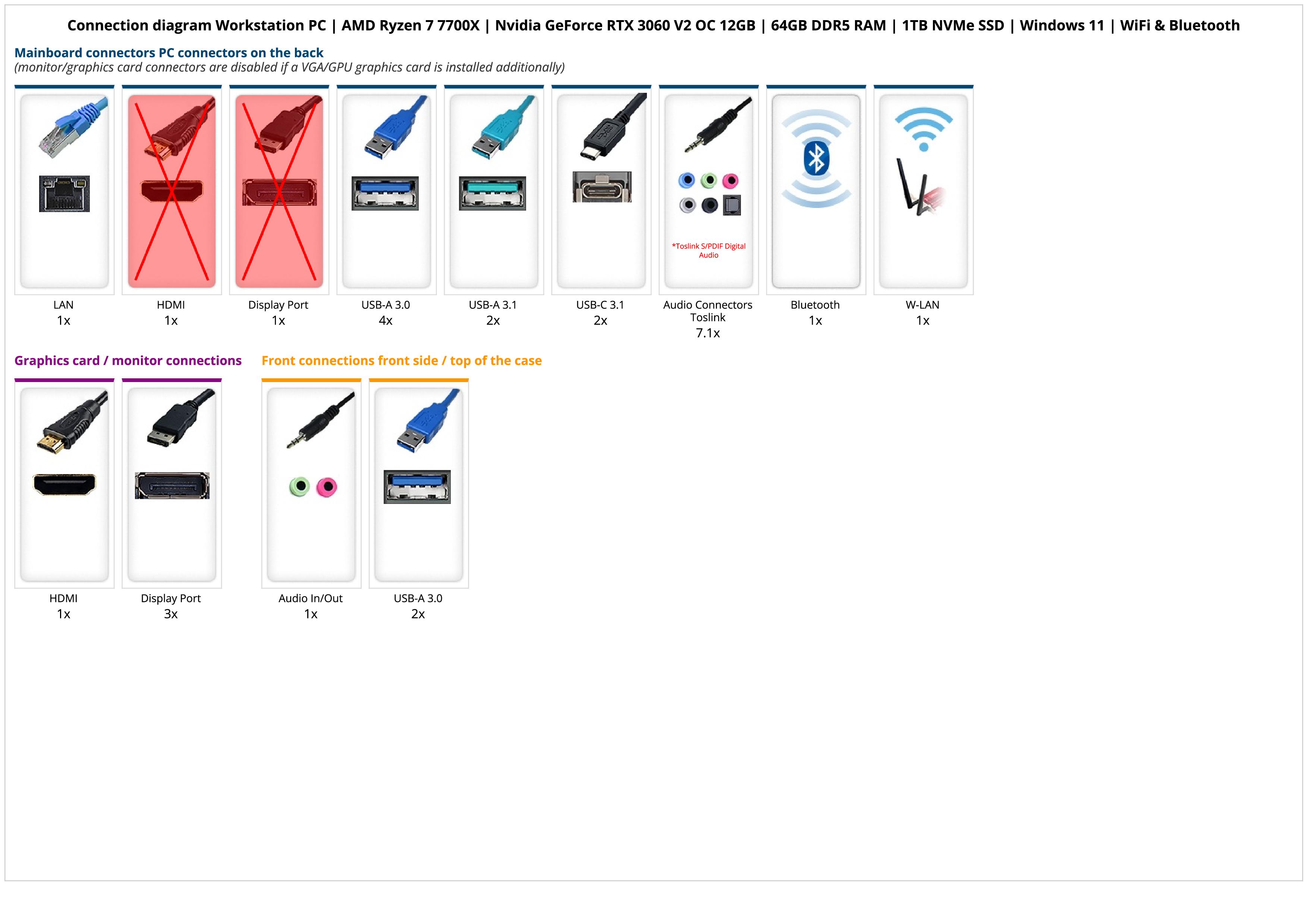

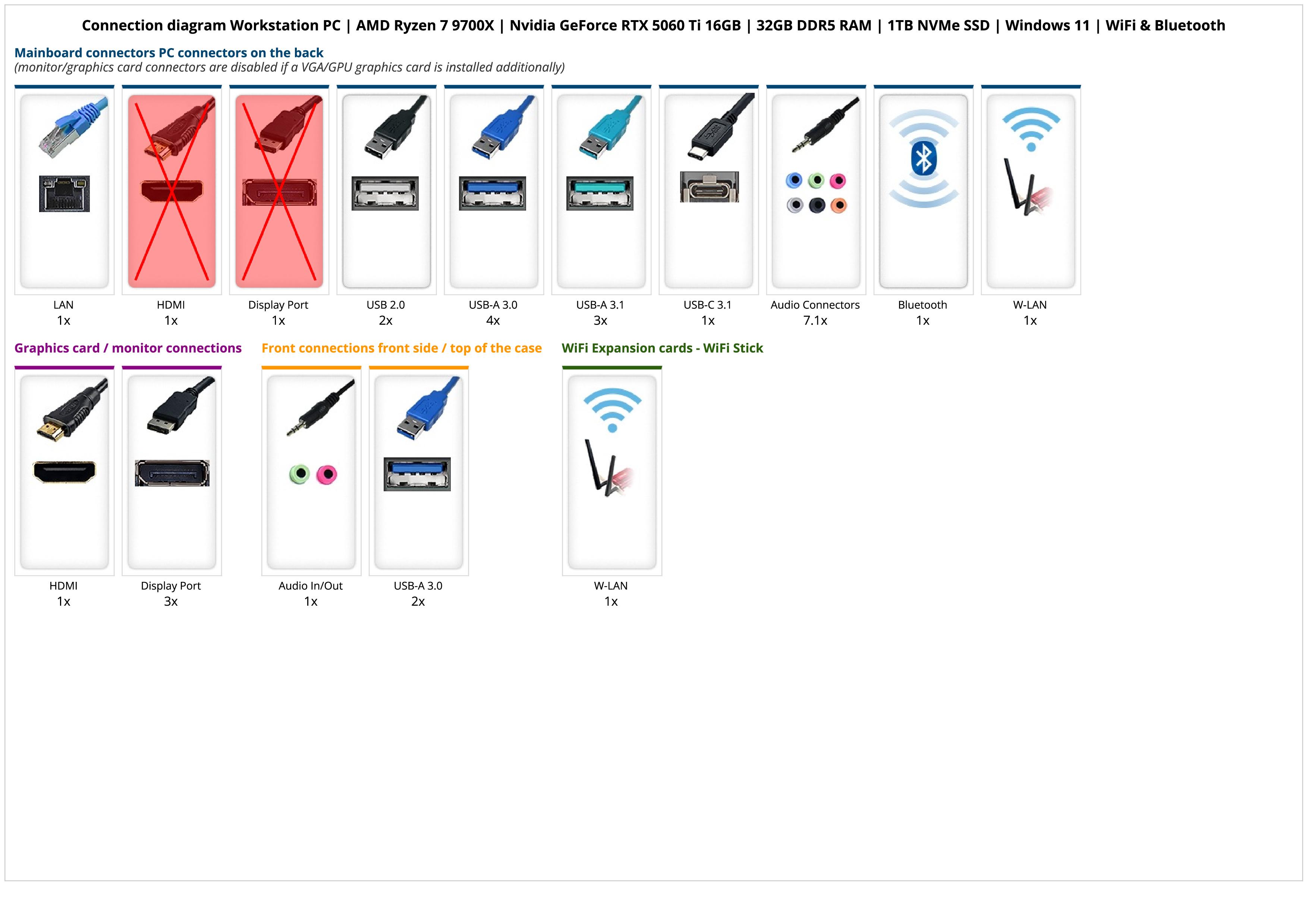

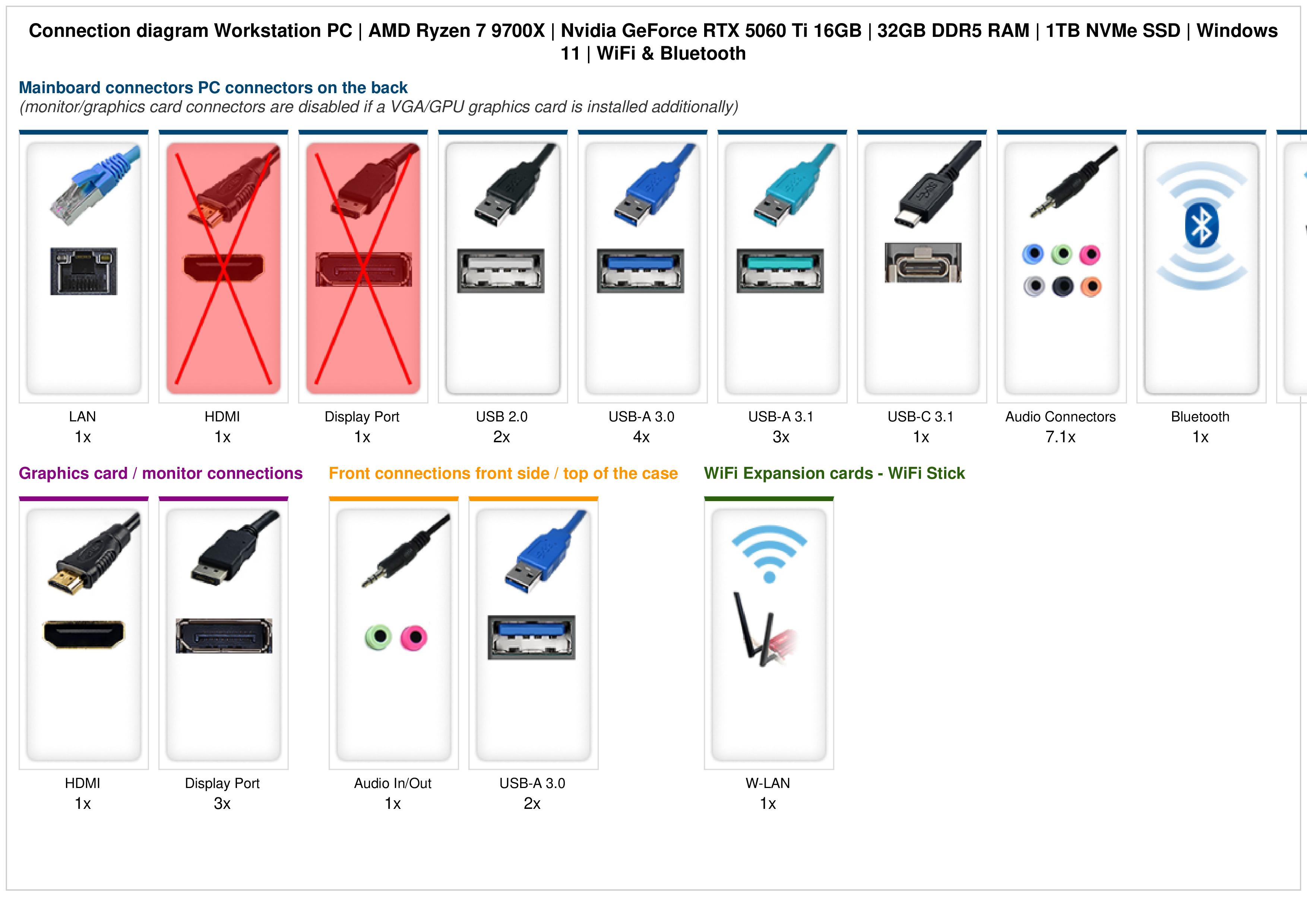

Mainboard connectors PC connectors on the back
(monitor/graphics card connectors are disabled if a VGA/GPU graphics card is installed additionally)
(monitor/graphics card connectors are disabled if a VGA/GPU graphics card is installed additionally)

LAN
1x


HDMI
1x


Display Port
1x

USB-A 3.0 Mainboard
4x

USB-A 3.1
2x

USB-C 3.1
2x

Audio Connectors Toslink
7.1x

Bluetooth
1x

W-LAN
1x
Graphics card / monitor connections

HDMI
1x

Display Port
3x
Front connections front side / top of the case

Audio In/Out
1x

USB-A 3.0
2x
Expansion cards - PCI / PCIe

W-LAN
1x
These connection options have been generated for you. In individual cases, deviations are possible.

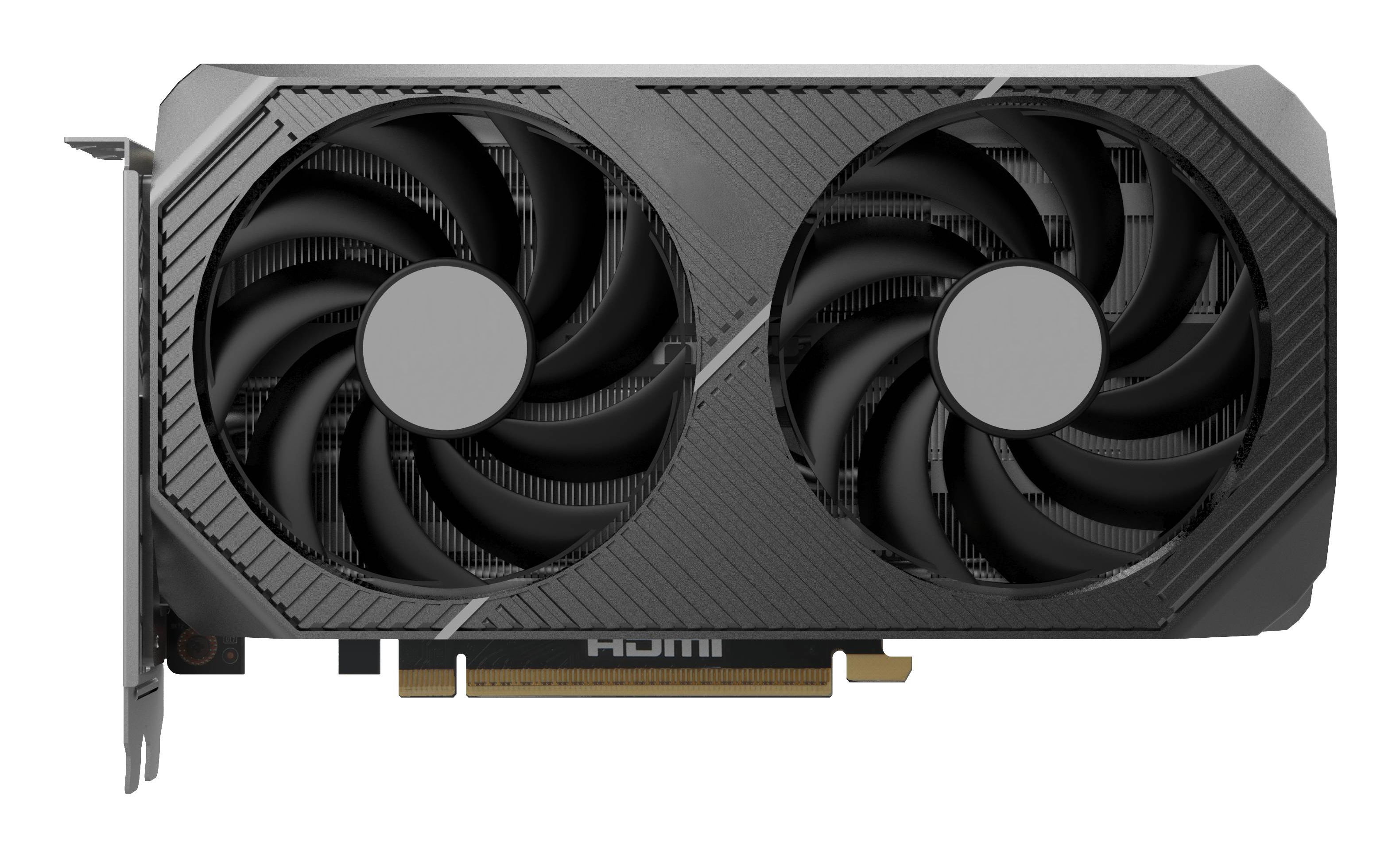

NVIDIA GeForce RTX 3060
This PC is furnished with the GeForce RTX 3060. With its sophisticated fan design, the high-speed memory and base clock of 1.32 GHz / turbo clock of 1.78 GHz as well as 6-12 GB RAM depending on the model, it is an ideal gamer graphics card.
mehr anzeigen
weniger anzeigen

Windows 11
The latest operating system from Microsoft with the latest designs, drivers and support for the most modern hardware.
This machine has Windows 11 installed with all drivers.
mehr anzeigen
weniger anzeigen

1000 GB NVMe SSD M.2 High Speed
The NVMe interface offers the fastest data transfer currently available for already fast M.2 SSDs. This 1000 GB drive uses the fast NVMe technology. Waiting times are now a thing of the past!
mehr anzeigen
weniger anzeigen

Wlan / WiFi & Bluetooth
This device has WiFi / WLAN for wireless internet reception and Bluetooth functionality for wireless connection with peripherals. Be ready for any situation!
mehr anzeigen
weniger anzeigen
