Gamer Business PC V2 | Intel Core i7 10700 | GeForce GTX 1650 4GB | 32 GB RAM | 1000 GB M.2 SSD | Wildrabbit AERO RGB Case | 450W BeQuiet! | Windows 11 | LibreOffice

Article number: 4260561746472

In stock

Bulletpoints

EAN 4260561746472 - Our V2 PC features a fast Intel Core i7 10700 8 x 2.9 GHz 10th gen processor with 32GB 2666 MHz branded RAM on an ASUS / Gigabyte motherboard. Benefit from the combined power of a fast CPU and fast RAM!
The PC is equipped with a lightning-fast 1000GB M.2 NVMe SSD and is easily expandable with 4 free SATA 6GB/s ports. It features 3 x USB 3.2 and 6 x USB 2.0 ports.
Our PC is equipped with a Nvidia GeForce GTX 1650 4GB with HDMI / DVI-D ports. The case with a tempered glass window on the side and 3 RGB fans on the front is an eye-catcher. The PC is equipped with the power-saving 80+ bronze certified Be Quiet! power supply.
For your best user experience, our Ankermann PC is equipped with Windows 11 to get started right away, without bloatware and software trial versions. Windows and all drivers are installed and updated. Including LibreOffice 7 with Writer / Calc / Impress / Draw / Base / Math.
Ankermann's service offers you many years of experience with manufacturing, distribution and QA of PCs in Germany and 24 months warranty on our hardware. 6 months pick up & return service in case of warranty and a fast and friendly customer support are self-evident.

Intel Core i7-10700F

H510

32GB RAM

1TB NVMe SSD

450W be quiet

Windows 11 64Bit Prof.

Office

€749.00

€1,004.00

including 19 % VAT, plus Shipping costs

In stock Lead time to ship: 1-3 Business Days

System performance

Office

Multimedia

Gaming

Workstation/CAD

System performance

Office

Multimedia

Gaming

Workstation/CAD

More pictures

CPU (Processor)	Intel Core i7-10700F 8x 2.90-4.80GHz (BX8070110700F)
Mainboard	Intel H510M Mainboard Asus / Gigabyte
Video Card (VGA Card)	Nvidia GeForce GTX 1650 4GB GDDR5, 1xDVI, 1xHDMI
System Memory (RAM)	32GB Crucial / TEAM / G.Skill RAM DDR4 Memory
SSD	1000GB M.2 NVME High Performance PCIe SSD
Power Supply Unit (PSU)	450W be quiet! System Power B9 (BN208)

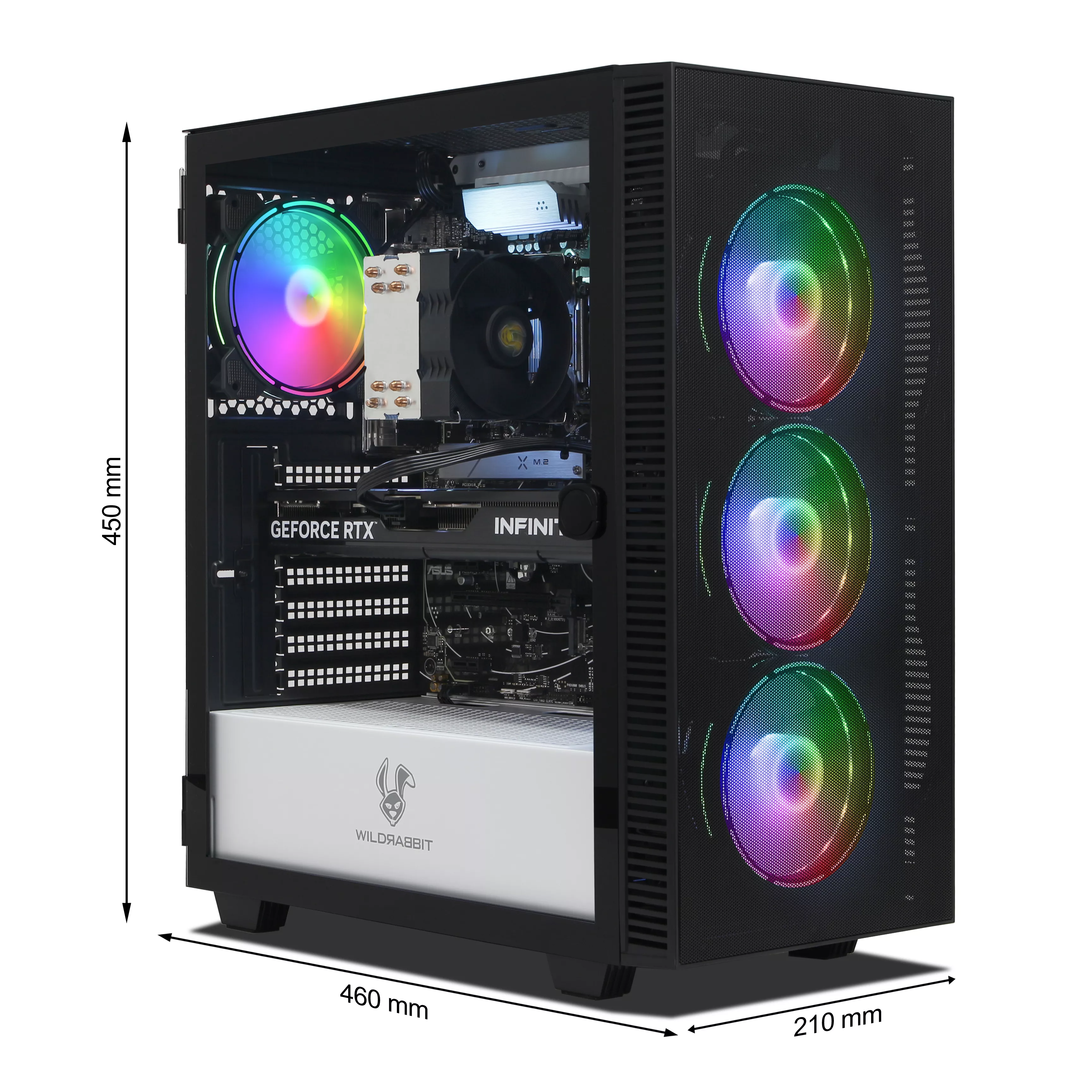

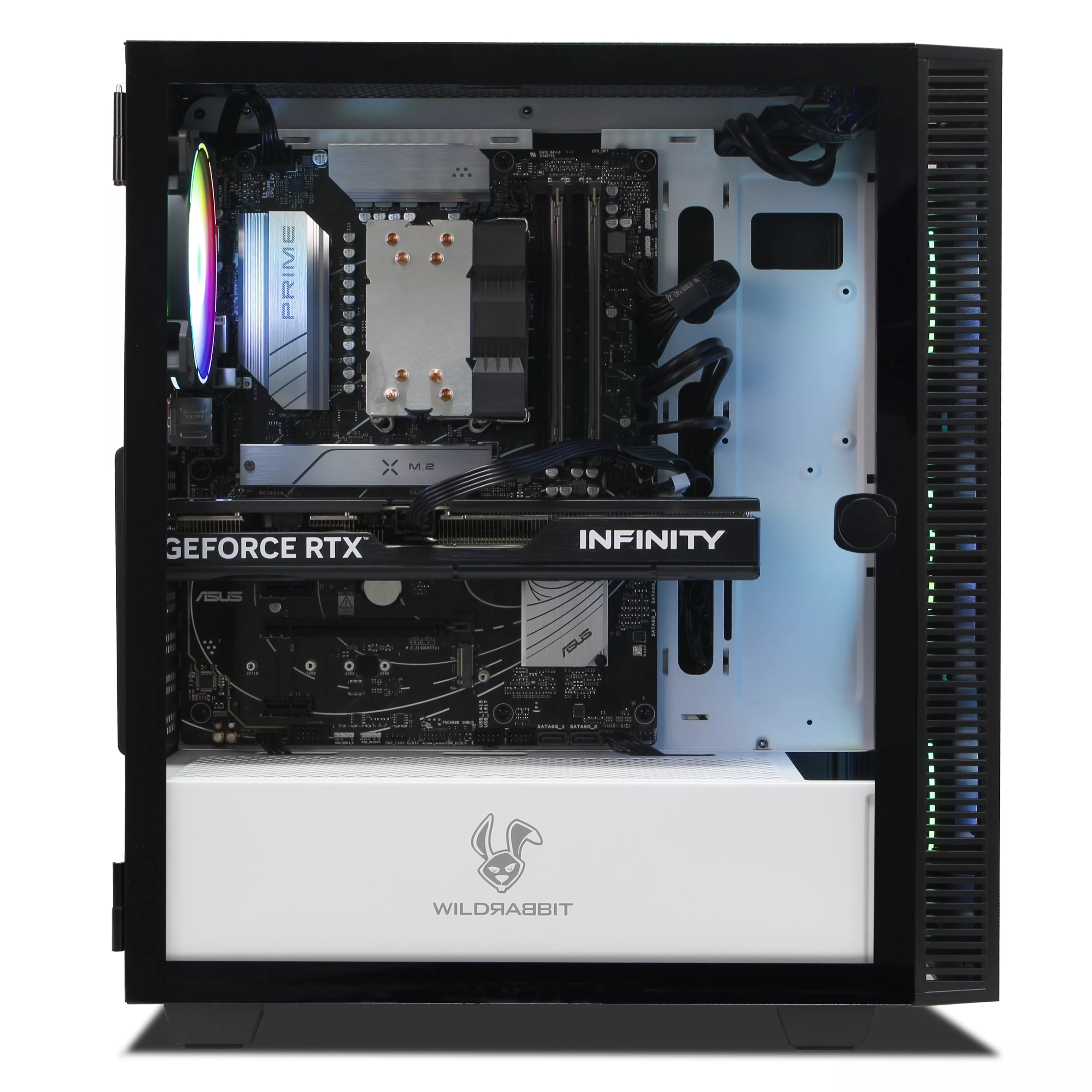

Case (Case)	Wild Rabbit AERO
Operating System (Ready to use installed)	Windows 11 64Bit Professional installed activated digital key (ready to work - without data media)
Case Fan	4X 120mm Default Case Fan (RGB LED)
Office	LIBRE Open Office (pre-installed - ready to use)

Intel H510M Mainboard Asus / Gigabyte

Intel H510M, Intel, LGA 1200, Intel® Celeron®, Intel® Core? i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel® Pentium®G, LGA 1200 (Socket H5), DDR4-SDRAM, 64 GB

Processor

Processor manufacturer Intel

Processor socket LGA 1200

Compatible processors Intel® Celeron®, Intel® Core? i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel® Pentium®G

Supported processor slots LGA 1200 (Socket H5)

Memory

Supported memory DDR4-SDRAM

Number of memory slots 2

Memory type DIMM

Memory channels Dual-channel

Without ECC Yes

Supported memory speed 2133,2400,2666,2800,2933,3200 MHz

RAM memory maximum 64 GB

Unbuffered memory Yes

Memory controller

Supported storage drives HDD & SSD

Supported storage drive interfaces M.2,PCI Express 3.0,SATA III

Number of supported storage drives 5

Graphics

Parallel processing technology Not supported

Maximum resolution 3840 x 2160 pixels

Internal I/O ports

Number of USB 2.0 ports 1

USB 3.2 Gen 1 (3.1 Gen 1) ports 1

SATA III ports 4

S/PDIF out connector Yes

Front panel audio connector Yes

ATX power connector (24-pin) Yes

CPU fan connector Yes

Number of chassis fan connectors 1

EPS power connector (8-pin) Yes

12 V power connector Yes

Number of COM connectors 1

TPM connector Yes

RGB LED header Yes

I/O connectors on the back

Number of USB 2.0 ports 4

Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports 2

Number of Ethernet LAN ports (RJ-45) 1

Number of PS/2 ports 1

Number of VGA (D-Sub) ports 1

Number of HDMI ports 1

HDMI version 1.4/2.0

Headphone outputs 3

Microphone input Yes

USB connector USB Type-A

Features

Component for PC

Motherboard form factor micro ATX

Motherboard chipset family Intel

Motherboard chipset Intel H510

Audio chip Realtek ALC887 / Realtek ALC897

Audio channels 7.1 channels

Translated with www.DeepL.com/Translator (free version)

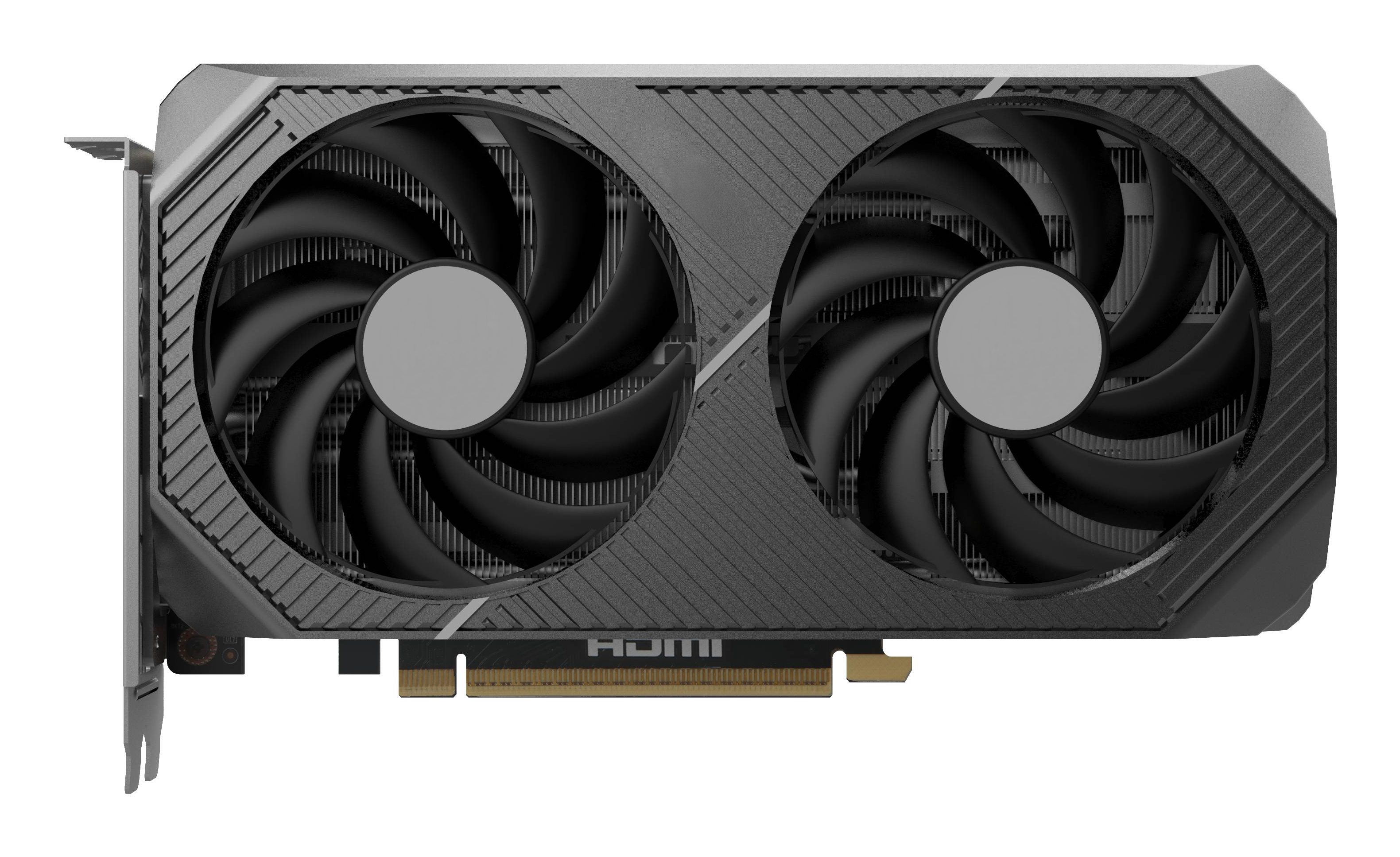

Nvidia GeForce GTX 1650 4GB GDDR5, 1xDVI, 1xHDMI

LIBRE Open Office (pre-installed - ready to use)

LibreOffice is a powerful office suite. It offers a clear interface and powerful tools.

LibreOffice bundles several applications: Word processor, spreadsheet, presentation program, drawing program, database, formula editor. This makes it the most attractive free office suite on the market.

Wild Rabbit AERO

Windows 11 64Bit Professional installed activated digital key (ready to work - without data media)

450W be quiet! System Power B9 (BN208)

Proven Reliability and Good Efficiency
Specially designed by be quiet! with the price-concious PC builder in mind: System Power B9 450W (bulk) offers renowned be quiet! performance and quietness and makes it possible for you to build cost-effective and reliable systems.

- Production-optimized bulk packaging
- Rock-solid stability with two strong 12V-rails
- Equipped with DC-to-DC technology for tight voltage regulation
- Two PCIe connectors for multi-GPU system configurations
- Temperature-controlled 120mm fan reduces system noise
- Low stand-by drain of less than 0.15 watts
- 80PLUS® Bronze efficiency of up to 89%
- Complete suite of top safety features
- Meets latest Intel® C6/C7, ErP and Energy Star 6.1 guidelines
- Supports latest Intel® and AMD? processors
- 3-year manufacturer?s warranty
- Product conception, design and quality control in Germany

Power

Total power	450 W
AC input voltage	200 - 240
AC input frequency	50
Input current	4
Power factor	0.95
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	110 W
Combined power (+12V)	420 W
Combined power (+5V)	110 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	24 A
Max output current (+12V1)	23 A
Max output current (+12V2)	19 A
Max output current (+5V)	15 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Hold time	17 ms
Efficiency	89%

Cooling

Fan diameter	12 cm
Number of fans	1 fan(s)

Ports & interfaces

Motherboard power connector	20+4 pin ATX
Motherboard power cable length	55 cm
Number of PATA power connectors	2
Number of SATA power connectors	6
SATA power cable length	500 mm
PCI Express power connectors (6+2 pin)	2
PCI Express power cable length	50 cm
CPU power connector (4+4 pin)	Y
CPU power cable length	60 cm
Cabling type	Non-Modular

Performance

Purpose	PC
Power supply unit (PSU) form factor	ATX
ATX version	2.4
Silent mode	Y
Noise level (silent mode, <30%)	8.9 dB
Noise level (quiet mode, 50%)	11 dB
Noise level (full-load mode, 100%)	24 dB
On/off switch	Y

Design

Colour of product	Grey
Illumination	N

Technical details

Cables included

Weight & dimensions

Width	150 mm
Depth	140 mm
Height	86 mm
Weight	1.86 kg

Certificates

80 PLUS certification	80 PLUS Bronze
Energy Star certified	Y
RoHS compliance	Y
Certification	CE, CB, TÜV, RCM, CU

1000GB M.2 NVME High Performance PCIe SSD

onBoard Sound

onBoard Sound incl. 5.1 or 7.1 look at Ports Layout Plan

4 x 120mm Default Case Fan (RGB LED)

32GB Crucial / TEAM / G.Skill RAM DDR4 Memory

Memory

Internal memory	32 GB
Internal memory type	DDR4
Memory clock speed	2666 MHz
Component for	PC/server
Memory form factor	DIMM
Memory layout (modules x size)	2 x 16 GB
CAS latency	19
Memory voltage	1.2 V
ECC	N
Unbuffered memory	Y

onBoard LAN

Intel Core i7-10700F 8x 2.90-4.80GHz (BX8070110700F)

Intel Core i7-10700F, 10th gen Intel® Core™ i7, 2.9 GHz, LGA 1200 (Socket H5), PC, 14 nm, Intel

Processor

Processor manufacturer	Intel
Processor family	10th gen Intel® Core? i7
Processor frequency	2.9 GHz
Processor cores	8
Processor socket	LGA 1200 (Socket H5)
Component for	PC
Processor lithography	14 nm
Box	Y
Processor model	i7-10700F
Processor threads	16
System bus rate	8 GT/s
Processor operating modes	64-bit
Processor cache	16 MB
Processor cache type	Smart Cache
Memory bandwidth supported by processor (max)	45.8 GB/s
Processor boost frequency	4.8 GHz
Processor codename	Comet Lake
Processor ARK ID	199318
Generation	10th Generation

Memory

Maximum internal memory supported by processor	128 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2933 MHz
Memory channels	Dual-channel
ECC	N

Graphics

On-board graphics adapter	N
Discrete graphics adapter	N
On-board graphics adapter model	Not available
Discrete graphics adapter model	Not available

Power

Thermal Design Power (TDP)

65 W

Features

Execute Disable Bit	Y
Thermal Monitoring Technologies	Y
Idle States	Y
Maximum number of PCI Express lanes	16
PCI Express slots version	3.0
PCI Express configurations	1x16,2x8,1x8+2x4
Supported instruction sets	SSE4.1,SSE4.2,AVX 2.0
PCI Express CEM revision	3.0
Thermal solution specification	PCG 2015C
Embedded options available	N
Scalability	1S
CPU configuration (max)	1
Harmonized System (HS) code	8542310001

Processor special features

Enhanced Intel SpeedStep Technology	Y
Intel Trusted Execution Technology	N
Intel® AES New Instructions (Intel® AES-NI)	Y
Intel® Turbo Boost Technology	2.0
Intel® Identity Protection Technology (Intel® IPT)	Y
Intel® Hyper Threading Technology (Intel® HT Technology)	Y
Intel® Thermal Velocity Boost	N
Intel Turbo Boost Max Technology 3.0	Y
Intel Virtualization Technology for Directed I/O (VT-d)	Y
Intel® Optane? Memory Ready	Y
Intel Virtualization Technology (VT-x)	Y
Intel® Boot Guard	Y
Intel® vPro? Platform Eligibility	N
Intel Stable Image Platform Program (SIPP)	N
Intel VT-x with Extended Page Tables (EPT)	Y
Intel® Secure Key	Y
Intel® OS Guard	Y
Intel Software Guard Extensions (Intel SGX)	Y
Intel 64	Y

Operational conditions

Tjunction

100 °C

Technical details

Product type	Processor
Bus speed	8 GT/s
Maximum memory	128 GB
Status	Launched
Launch date	Q2'20

Weight & dimensions

Processor package size

37.5 x 37.5 mm

Nicht warten - einfach finanzieren!

Bezahlen Sie schnell und unkompliziert in kleinen Monatsraten. Einfach Artikel auswählen, zur Kasse gehen und mit der Zahlungsart "Finanzierung" die Ware bezahlen.
Weitere Details

Mögliche Laufzeiten:

Laufzeit in Monaten	Monatlich Rate	Effektiver Jahreszins	Gebundener jährl. Sollzinssatz	Gesambetrag
6	6×28,95 EUR	9,9 %	9,48 %	173,70 EUR
10	12×17,64 EUR	9,9 %	9,48 %	176,43 EUR
12	12×14,82 EUR	9,9 %	9,48 %	177,80 EUR
18	18×10,11 EUR	9,9 %	9,48 %	181,96 EUR

Diese Angaben stellen zugleich das repräsentative Beispiel im Sinne des § 6a PangV dar. Vermittlung erfolgt ausschließlich für die Commerz Finanz GmbH, Schwanthalerstr. 31, 80336 München.

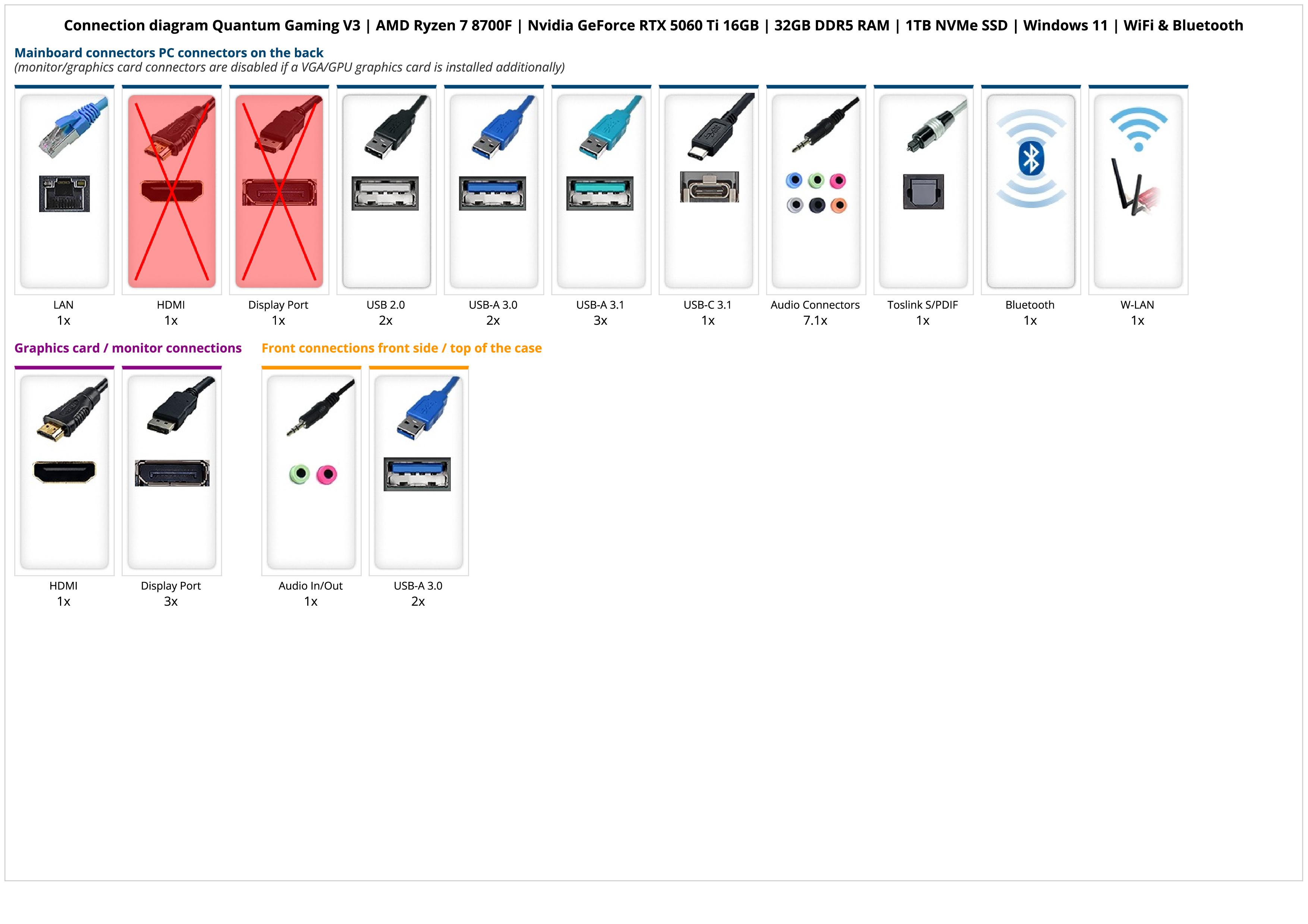

Mainboard connectors PC connectors on the back
(monitor/graphics card connectors are disabled if a VGA/GPU graphics card is installed additionally)

PS/2

LAN

VGA

HDMI

USB 2.0

USB-A 3.0 Mainboard

Audio Connectors

5.1

Graphics card / monitor connections

DVI-D

HDMI

Front connections front side / top of the case

Audio In/Out

USB-A 3.0

These connection options have been generated for you. In individual cases, deviations are possible.

PDF download

03_Basic_gaming_PC_Datenblatt_zum_Energieverbrauch

Intel Core i7-10700F

The Intel Core i7 10700F is an eight-core processor of the tenth generation from Intel's i7 family. With a base clock of 2.9 GHz and a Turbo clock of 4.8 GHz, it is ideally suited for gamers and price-conscious users with high demands.
