FHD / WQHD Gaming PC Intel Core i5-13600KF MSI MAG B760 AMD Radeon RX 6700 XT 32GB RAM 750W be quiet! Win 11 Pro onBoard WIFI + Bluetooth
Article number:
4260561746984
In stock
Bulletpoints
- [ Item number EAN: 4260561746984 ] --- Intel Core i5-13600KF processor 24 MB Smart Cache Box (BX8071513600KF) - MSI MAG B760 TOMAHAWK WIFI DDR4 (7D96-001R) - 32GB Corsair Vengeance LPX 3.200MHz (CMK32GX4M2E3200C16)
- MSI Radeon RX 6700 XT MECH 2X 12 GB OC (V398-002R) - 750W be quiet! Pure Power 12 M (BN343) - be quiet! Pure Base 500DX white window silent (BGW38) - onBoard WIFI + Bluetooth
- 1TB Western Digital WD Blue SN570 NVMe M.2 (Read 3500MB/s - Write 3000MB/s)
- Windows 11 64Bit Professional installiert aktiviert DPK (Ready to Work - ohne Datenträger)
- Assembled, tested and checked - 2 years warranty
Intel Core i5-13600KF
MSI MAG B760
MSI RX 6700 XT MECH 2X
32GB RAM 3.200MHz
750W be quiet!
Pure Base 500DX (BGW38)
Dark Rock 4
Windows 11 64Bit Prof.
onBoard WIFI + Bluetooth
System performance
Office
Multimedia
Gaming
Workstation/CAD
System performance
Office
Multimedia
Gaming
Workstation/CAD
Product information "FHD / WQHD Gaming PC Intel Core i5-13600KF MSI MAG B760 AMD Radeon RX 6700 XT 32GB RAM 750W be quiet! Win 11 Pro onBoard WIFI + Bluetooth"
CPU (Processor) | Intel Core i5-13600KF, 6C+8c/20T, 3.50-5.10GHz (BX8071513600KF) |
Mainboard | MSI MAG B760 TOMAHAWK WIFI DDR4 (7D96-001R) |
Video Card (VGA Card) | MSI Radeon RX 6700 XT MECH 2X 12 GB OC (V398-002R) |
System Memory (RAM) | 32GB Corsair Vengeance LPX 3.200MHz (CMK32GX4M2E3200C16) |
SSD | 1TB Western Digital WD Blue SN570 NVMe M.2 (Read 3500MB/s - Write 3000MB/s) |
Power Supply Unit (PSU) | 750W be quiet! Pure Power 12 M (BN343) ATX 3.0 |
Case (Case) | be quiet! Pure Base 500DX white window silent (BGW38) |
CPU Cooler (Cooler) | be quiet! Dark Rock 4 (BK021) |
Operating System (Ready to use installed) | Windows 11 64Bit Professional installed activated digital key (ready to work - without data media) |
Case Fan | 3X 140mm Default Case Fan |
W-LAN Unit internal | onBoard WIFI + Bluetooth |
MSI Radeon RX 6700 XT MECH 2X 12 GB OC (V398-002R)
MSI Radeon RX 6700 XT MECH 2X 12G, Radeon RX 6700 XT, 12 GB, GDDR6, 256 bit, 7680 x 4320 pixels, PCI Express 4.0
Processor
Graphics processor family | AMD |
Graphics processor | Radeon RX 6700 XT |
Maximum resolution | 7680 x 4320 pixels |
CUDA | N |
Maximum displays per videocard | 4 |
Stream processors | 2560 |
Parallel processing technology support | 2-Way CrossFireX |
Memory
Discrete graphics adapter memory | 12 GB |
Graphics adapter memory type | GDDR6 |
Memory bus | 256 bit |
Data transfer rate | 16 Gbit/s |
Ports & interfaces
Interface type | PCI Express 4.0 |
HDMI ports quantity | 1 |
DisplayPorts quantity | 3 |
HDMI version | 2.1 |
DisplayPort version | 1.4 |
Performance
PhysX | N |
TV tuner integrated | N |
DirectX version | 12.0 |
OpenGL version | 4.6 |
Virtual Reality (VR) ready | Y |
HDCP | Y |
Dual Link DVI | N |
AMD FreeSync | Y |
Design
Cooling type | Active |
Cooling technology | MSI TORX Fan 3.0 |
Number of fans | 2 fan(s) |
Product colour | Black, Stainless steel |
Power
Minimum system power supply | 650 W |
Supplementary power connectors | 2x 8-pin |
Weight & dimensions
Weight | 921 g |
Width | 51 mm |
Depth | 247 mm |
Height | 131 mm |
Packaging data
Manual | Y |
Package weight | 1.39 kg |
Package type | Box |
Intel Core i5-13600KF, 6C+8c/20T, 3.50-5.10GHz (BX8071513600KF)
Intel Core i5-13600KF, Intel® Core™ i5, LGA 1700, Intel, i5-13600KF, 64-bit, 13th gen Intel® Core™ i5
Processor
Processor manufacturer | Intel |
Processor family | Intel® Core? i5 |
Processor generation | 13th gen Intel® Core? i5 |
Processor model | i5-13600KF |
Processor cores | 14 |
Processor socket | LGA 1700 |
Box | Y |
Processor threads | 20 |
Processor operating modes | 64-bit |
Performance cores | 6 |
Efficient cores | 8 |
Processor boost frequency | 5.1 GHz |
Performance-core boost frequency | 5.1 GHz |
Performance-core base frequency | 3.5 GHz |
Efficient-core boost frequency | 3.9 GHz |
Efficient-core base frequency | 2.6 GHz |
Processor cache | 24 MB |
Processor cache type | Smart Cache |
Maximum turbo power | 181 W |
Processor base power | 125 W |
Stepping | B0 |
Maximum number of DMI lanes | 8 |
Processor codename | Raptor Lake |
Memory
Maximum internal memory supported by processor | 128 GB |
Memory types supported by processor | DDR4-SDRAM, DDR5-SDRAM |
Memory channels | Dual-channel |
Memory bandwidth (max) | 89.6 GB/s |
Graphics
On-board graphics card | N |
Discrete graphics card | N |
On-board graphics card model | Not available |
Discrete graphics card model | Not available |
Features
Thermal Monitoring Technologies | Y |
Idle States | Y |
Execute Disable Bit | Y |
Market segment | Desktop |
Use conditions | PC/Client/Tablet |
Maximum number of PCI Express lanes | 20 |
PCI Express slots version | 4.0, 5.0 |
PCI Express configurations | 1x16+1x4, 2x8+1x4 |
Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
Direct Media Interface (DMI) Revision | 4.0 |
Embedded options available | N |
Scalability | 1S |
CPU configuration (max) | 1 |
Harmonized System (HS) code | 8542310001 |
Export Control Classification Number (ECCN) | 5A992C |
Commodity Classification Automated Tracking System (CCATS) | 740.17B1 |
Processor special features
Intel® Speed Shift Technology | Y |
Enhanced Intel SpeedStep Technology | Y |
Intel® AES New Instructions (Intel® AES-NI) | Y |
Intel® Hyper Threading Technology (Intel® HT Technology) | Y |
Intel® Turbo Boost Technology | 2.0 |
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 | Y |
Intel® Control-flow Enforcement Technology (CET) | Y |
Intel® Thread Director | Y |
Intel® Deep Learning Boost (Intel® DL Boost) | Y |
Intel® Boot Guard | Y |
Intel® Volume Management Device (VMD) | Y |
Mode-based Execute Control (MBE) | Y |
Intel® Standard Manageability (ISM) | Y |
Intel Turbo Boost Max Technology 3.0 | N |
Intel® Secure Key | Y |
Intel VT-x with Extended Page Tables (EPT) | Y |
Intel® OS Guard | Y |
Intel 64 | Y |
Intel Virtualization Technology (VT-x) | Y |
Intel Virtualization Technology for Directed I/O (VT-d) | Y |
Operational conditions
Tjunction | 100 °C |
Technical details
Status | Launched |
Launch date | Q4'22 |
Other features
L2 cache | 20480 KB |
be quiet! Dark Rock 4 (BK021)
Dark Rock is the high-end series of the be quiet! range of CPU coolers. It comprises double-tower, single-tower and top-flow cooler designs. They all offer incredible performance-to-noise ratios and the highest reliability available with absolutely no compromise in silence and performance. Dark Rock coolers are virtually inaudible and place the famous be quiet! SilentWings® technology at the heart of your PC. They are excellent for overclocked systems and demanding multi-graphics platforms.
No Compromise Silence and Performance
Dark Rock 4 offers an extreme cooling performance and virtually inaudible operation. Perfect for overclocked systems and demanding workstations.
- Silent Wings 135mm PWM fan features an advanced fluid-dynamic bearing and a smooth 6-pole motor
- Optimal balance of cooling and quietness with only 21.4dB(A) at maximum fan speed
- Six high-performance copper heat pipes that provide maximal heat conductance
- Wave-contoured cooling fins for increased air circulation
- Special black coating with ceramic particles enables perfect heat transfer
- Supports an additional 120mm fan; clips are included in scope of delivery
- Easily installable black installation kit can be mounted from above
- Elegant, brushed aluminum top cover with diamond cut finish
- 3-year manufacturer’s warranty
- Product conception, design and quality control in Germany
No Compromise Silence and Performance
Dark Rock 4 offers an extreme cooling performance and virtually inaudible operation. Perfect for overclocked systems and demanding workstations.
- Silent Wings 135mm PWM fan features an advanced fluid-dynamic bearing and a smooth 6-pole motor
- Optimal balance of cooling and quietness with only 21.4dB(A) at maximum fan speed
- Six high-performance copper heat pipes that provide maximal heat conductance
- Wave-contoured cooling fins for increased air circulation
- Special black coating with ceramic particles enables perfect heat transfer
- Supports an additional 120mm fan; clips are included in scope of delivery
- Easily installable black installation kit can be mounted from above
- Elegant, brushed aluminum top cover with diamond cut finish
- 3-year manufacturer’s warranty
- Product conception, design and quality control in Germany
Performance
Suitable for | Processor |
Type | Cooler |
Fan diameter | 13.5 cm |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
Rotational speed (max) | 1400 RPM |
Noise level (low speed) | 10.5 dB |
Noise level (high speed) | 21.4 dB |
Pulse-width modulation (PWM) support | Y |
Number of fins | 51 |
Fins material | Aluminium |
Bearing type | Fluid dynamic bearing (FDB) |
Number of fans | 1 fan(s) |
Additional fan supported | Y |
Thermal Design Power (TDP) | 200 W |
Number of heat pipes | 6 |
Heat pipes diameter | 6 mm |
Design
Colour of product | Black |
Material | Copper |
Cable length | 0.22 m |
RoHS compliance | Y |
Power
Power supply | 1.32 W |
Rated voltage | 12 V |
Rated current | 0.11 A |
Weight & dimensions
Width | 136 mm |
Depth | 159.4 mm |
Height | 74.3 mm |
Weight | 920 g |
Fan dimensions (W x D x H) | 135 x 135 x 22 mm |
Package width | 205 mm |
Package depth | 149 mm |
Package height | 214 mm |
Package weight | 1.17 kg |
Technical details
Fan connector | 4-pin |
Packaging content
Screws included | Y |
1TB Western Digital WD Blue SN570 NVMe M.2 (Read 3500MB/s - Write 3000MB/s)
Spark Imagination?Inspire Your Creativity Stay in the moment and create beyond your expectations with the WD Blue SN570 NVMe SSD. This powerful internal drive delivers up to 5X the speed of our best SATA SSDs so you can let your imagination flow and worry less about PC lag or load times. Tune Up Your Performance Build your ideal creation engine. Upgrading your system or optimizing your next custom build with the slim M.2 2280 form factor. All you need is an NVMe slot. Stay in the Moment Keep your imagination flowing as you create faster while maintaining low power consumption. With read speeds up to 3,500 MB/s (500GB ? 1TB models), your system can run up to 5X faster than our best SATA SSDs so you can stay in your creative moment. A Standard for Reliability We value your content. That?s why the WD Blue reliability features help protect your content so you can stress less about losing your brilliant work. Get Extra Peace of Mind Work with extra confidence and keep your projects on point as the downloadable Western Digital SSD Dashboard helps you monitor your drive?s health, available space, temperature and more. Save on Space Pack a lot of performance into your small-form factor PC with a single-sided M.2 2280 PCIe® Gen3 x4 NVMe? SSD. Stay Organized Back up your photos, videos, and other personal files with included Acronis® True Image? for Western Digital software.
Features
SSD form factor | M.2 |
SSD capacity | 1000 GB |
Interface | PCI Express 3.0 |
NVMe | Y |
NVMe version | 1.4 |
Component for | PC |
Hardware encryption | N |
Read speed | 3500 MB/s |
Write speed | 3000 MB/s |
PCI Express interface data lanes | x4 |
TBW rating | 600 |
Weight & dimensions
Width | 22 mm |
Depth | 80 mm |
Height | 2.38 mm |
3 x 140mm Default Case Fan

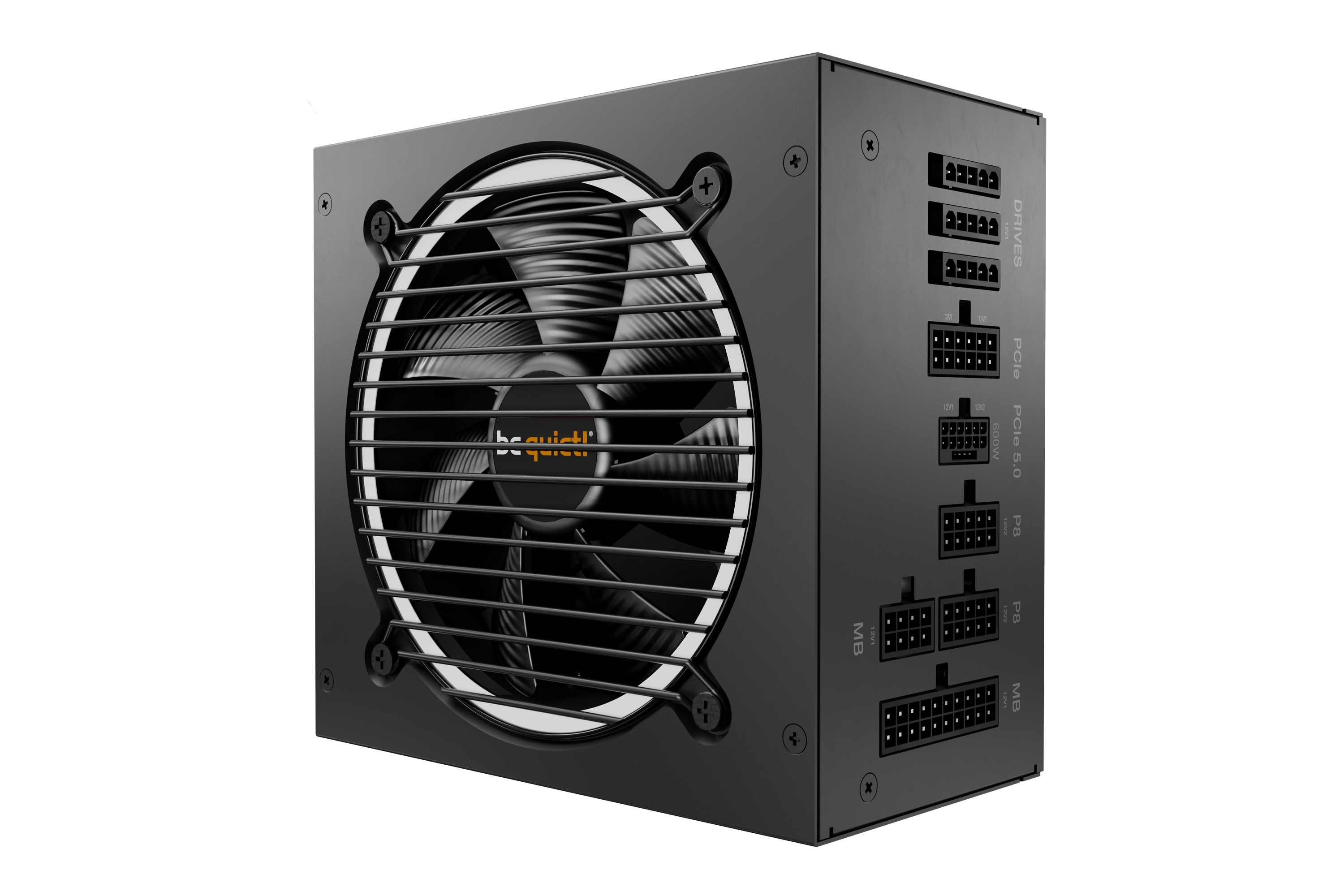

750W be quiet! Pure Power 12 M (BN343) ATX 3.0
EXCEPTIONAL QUIET, SUPERIOR FEATURES Pure Power 12 M 750W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 750W offers the best combination of features with outstanding compatibility. 80 PLUS® GOLD CERTIFIED Very high operating efficiency Pure Power 12 M 750W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 92.6%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 750W is always the correct choice for quiet systems and gaming PCs! FUTURE-PROOF YOUR SYSTEM Fulfills all ATX 3.0 specifications Pure Power 12 M 750W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful present systems. THE NEW STANDARD OF POWER For massive transient loads Pure Power 12 M offers 750W of continuous power with 2 independent 12V rails. Even if the graphics card demands excessive power for a short time: Pure Power 12 M 750W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards. UNPRECEDENTED SILENT OPERATION Achieved with a silence-optimized be quiet! fan The exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality. HIGH-CLASS TECHNOLOGIES Rock-solid stability With its LLC topology Pure Power 12 M 750W provides a best-in-class voltage regulation and efficiency. That makes it perfect for building or upgrading very quiet systems as well as gaming and media creation PCs. MODULAR CABLES Utmost convenience and compatibility Thanks to their modularity, all unnecessary cables in the system are left out. Pure Power 12 M 750W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.
Power
Total power | 750 W |
Peak power | 820 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
Input current | 10/5 A |
Power factor | 0.98 |
Power Factor Correction (PFC) type | Active |
Combined power (+3.3V) | 120 W |
Combined power (+12V) | 750 W |
Combined power (+5V) | 120 W |
Combined power (-12V) | 3.6 W |
Combined power (+5Vsb) | 15 W |
Max output current (+3.3V) | 20 A |
Max output current (+12V1) | 36 A |
Max output current (+12V2) | 32 A |
Max output current (+5V) | 20 A |
Max output current (-12V) | 0.3 A |
Max output current (+5Vsb) | 3 A |
Power Good signal delay range | 100 - 150 ms |
Efficiency | 92.6% |
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit |
Ports & interfaces
Motherboard power connector | 20+4 pin ATX |
Motherboard power cable length | 55 cm |
Number of SATA power connectors | 5 |
Number of PATA power connectors | 2 |
SATA power cable length | 500,650,800,950 mm |
Peripheral (Molex) power connectors (4-pin) | 1 |
Peripheral (Molex) power cable length | 550 mm |
EPS power connector (8-pin) | Y |
EPS power connector (4+4 pin) | Y |
PCI Express power connectors (6+2 pin) | 2 |
ATX power connector (20+4 pin) | Y |
PCI Express connector | Y |
Performance
Purpose | PC |
Power supply unit (PSU) form factor | ATX |
80 PLUS certification | 80 PLUS Gold |
ATX version | 3.0 |
EPS version | 2.92 |
Noise level | 24 dB |
Mean time between failures (MTBF) | 100000 h |
Design
Product colour | Black |
Cooling type | Active |
Fan diameter | 12 cm |
Number of fans | 1 fan(s) |
Fan location | Top |
On/off switch | Y |
Operational conditions
Operating temperature (T-T) | 0 - 40 °C |
Packaging content
Cables included | PATA, PCIe, Peripheral (Molex), SATA |
Weight & dimensions
Width | 160 mm |
Depth | 150 mm |
Height | 86 mm |
Technical details
Warranty period | 10 year(s) |
Sustainability certificates | ENERGY STAR, ErP, RoHS |
Sustainability compliance | Y |
Other features
Screws included | Y |
Number of screws | 5 |
Cable ties included | Y |
Noise level (silent mode, <30%) | 8.4 dB |
Noise level (quiet mode, 50%) | 8.9 dB |
Noise level (full-load mode, 100%) | 24 dB |
Windows 11 64Bit Professional installed activated digital key (ready to work - without data media)
onBoard Sound
onBoard Sound incl. 5.1 or 7.1 look at Ports Layout PlanonBoard WIFI + Bluetooth
32GB Corsair Vengeance LPX 3.200MHz (CMK32GX4M2E3200C16)
Corsair Vengeance LPX CMK32GX4M2E3200C16, 32 GB, 2 x 16 GB, DDR4, 3200 MHz, 288-pin DIMM
Features
Internal memory | 32 GB |
Internal memory type | DDR4 |
Memory clock speed | 3200 MHz |
Component for | PC/server |
Memory form factor | 288-pin DIMM |
Memory layout (modules x size) | 2 x 16 GB |
CAS latency | 16 |
Cooling type | Heatsink |
onBoard LAN
MSI MAG B760 TOMAHAWK WIFI DDR4 (7D96-001R)
unite as one The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability. Extended Heatsink Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed. M.2 Shield Frozr Keeps M.2 SSDs safe while preventing throttling, making them run faster. Heavy Plated VRM Heatsink The VRM heatsink covers the upper MOS and helps dissipate the heat. 7W/mK Thermal Pad & Additional Choke Pad High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically. Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE. OPTIMIZED FOR WATER COOLING Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ?keep-out-zone? allows for easy and safe installation and a perfect fit. DIY 2.0 ? INTEGRATING WITH THE SYSTEM ENVIRONMENT Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header. 12+1+1 DUET RAIL POWER SYSTEM Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG B760 series motherboard is ready to sustain heavy gaming loadings. EZ M.2 CLIP Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly. WINDOWS 11 CERTIFIED With MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 11. With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product. PRE-INSTALLED I/O SHIELD The design protect your IO ports and makes your installation process easier and safer. XL CLIP The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer. EZ DEBUG LED Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again. KEEP OUT ZONE MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard. LIGHTNING GEN 5 PCI-E Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s. SMT PCIE 5.0 SLOT The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal. REINFORCED, HEAVY SOLDERED CONNECTIONS Secure to the motherboard with extra solder points and support the weight of heavy graphics cards. FAST AND FUTURE-READY STORAGE MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies. DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20G Using USB 3.2 devices has never been faster! MAG B760 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C. USB FRONT TYPE-C MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
Processor
Processor manufacturer | Intel |
Processor socket | LGA 1700 |
Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
Maximum number of SMP processors | 1 |
Supported processor sockets | LGA 1700 |
Memory
Supported memory types | DDR4-SDRAM |
Number of memory slots | 4 |
Memory slots type | DIMM |
Memory channels | Dual-channel |
Non-ECC | Y |
Supported memory clock speeds | 2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,3800,4000,4400,4600,4800,5000,5066,5200,5333 MHz |
Supported memory clock speed (max) | 5333 MHz |
Maximum internal memory | 128 GB |
Storage controllers
Supported storage drive interfaces | M.2, SATA III |
RAID support | Y |
RAID levels | 0, 1, 5, 10 |
Internal I/O
USB 2.0 connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
Number of SATA III connectors | 4 |
S/PDIF out connector | Y |
Front panel audio connector | Y |
Front panel connector | Y |
ATX Power connector (24-pin) | Y |
CPU fan connector | Y |
TPM connector | Y |
RGB LED pin header | Y |
Rear panel I/O ports
USB 2.0 ports quantity | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 1 |
HDMI version | 2.1 |
DisplayPorts quantity | 1 |
DisplayPort version | 1.4 |
Network
Ethernet LAN | Y |
Ethernet interface type | 2.5 Gigabit Ethernet |
Wi-Fi | Y |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
Bluetooth | Y |
Bluetooth version | 5.3 |
Features
Component for | PC |
Motherboard form factor | ATX |
Motherboard chipset family | Intel |
Audio chip | Realtek ALC897 |
Audio output channels | 7.1 channels |
Power source type | ATX |
Windows operating systems supported | Windows 10, Windows 11 |
Expansion slots
PCI Express x1 (Gen 3.x) slots | 2 |
BIOS
BIOS type | UEFI AMI |
BIOS memory size | 256 Mbit |
ACPI version | 6.4 |
System Management BIOS (SMBIOS) version | 3.5 |
Weight & dimensions
Width | 243.8 mm |
Depth | 304.8 mm |
be quiet! Pure Base 500DX white window silent (BGW38)
The be quiet! Pure Base 500DX White is optimized for high cooling performance and designed for those who seek high airflow.
Design
Form factor | Desktop |
Type | PC |
Material | Acrylonitrile butadiene styrene (ABS), Steel, Tempered glass |
Product colour | White |
Supported motherboard form factors | ATX, micro ATX, Mini-ATX |
Number of 3.5' bays | 2 |
Number of 2.5' bays | 5 |
Number of expansion slots | 7 |
Side window | Y |
Illumination | Y |
Illumination colour | Red/Green/Blue |
Illumination location | Front, Internal |
Tempered glass panel(s) | Y |
Anti-dust filter | Y |
On/off button | Y |
Maximum CPU cooler height | 19 cm |
Maximum graphics card length | 36.9 cm |
Maximum PSU length | 25.8 cm |
Certification | CE, RoHS |
Power supply
Power supply included | N |
Power supply location | Bottom |
Supported power supply form factors | ATX,PS2 |
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Audio input | Y |
Audio output | Y |
Cooling
Front fans installed | 1x 140 mm |
Number of front fans supported (max) | 3 |
Front fans diameters supported | 120,140 mm |
Front fans supported description | 140x140x25 mm, 900 rpm, 17.1 dB , 55.8 cfm |
Rear fans installed | 1x 140 mm |
Number of rear fans supported (max) | 1 |
Rear fans diameters supported | 120,140 mm |
Rear fans supported description | 140x140x25 mm, 900 rpm, 17.1 dB , 55.8 cfm |
Top fans installed | 1x 140 mm |
Number of top fans supported (max) | 2 |
Top fans diameters supported | 120,140 mm |
Top fans supported description | 140x140x25 mm, 900 rpm, 17.1 dB , 55.8 cfm |
Front radiator fan sizes supported | 120,140,240,280,360 mm |
Rear radiator fan sizes supported | 120,140 mm |
Top radiator fan sizes supported | 120,140 mm |
Storage
Supported HDD sizes | 2.5,3.5' |
Weight & dimensions
Width | 232 mm |
Depth | 450 mm |
Height | 443 mm |
Weight | 7.8 kg |
Packaging data
Package width | 285 mm |
Package depth | 510 mm |
Package height | 494 mm |
Package weight | 8.49 kg |
Nicht warten - einfach finanzieren!
Bezahlen Sie schnell und unkompliziert in kleinen Monatsraten. Einfach Artikel auswählen, zur Kasse gehen
und mit der Zahlungsart "Finanzierung" die Ware bezahlen.
Weitere Details
Mögliche Laufzeiten:
Laufzeit in Monaten | Monatlich Rate | Effektiver Jahreszins | Gebundener jährl. Sollzinssatz | Gesambetrag |
6 | 6×28,95 EUR | 9,9 % | 9,48 % | 173,70 EUR |
10 | 12×17,64 EUR | 9,9 % | 9,48 % | 176,43 EUR |
12 | 12×14,82 EUR | 9,9 % | 9,48 % | 177,80 EUR |
18 | 18×10,11 EUR | 9,9 % | 9,48 % | 181,96 EUR |
Diese Angaben stellen zugleich das repräsentative Beispiel im Sinne des § 6a PangV dar. Vermittlung erfolgt ausschließlich für die Commerz Finanz GmbH, Schwanthalerstr. 31, 80336 München.

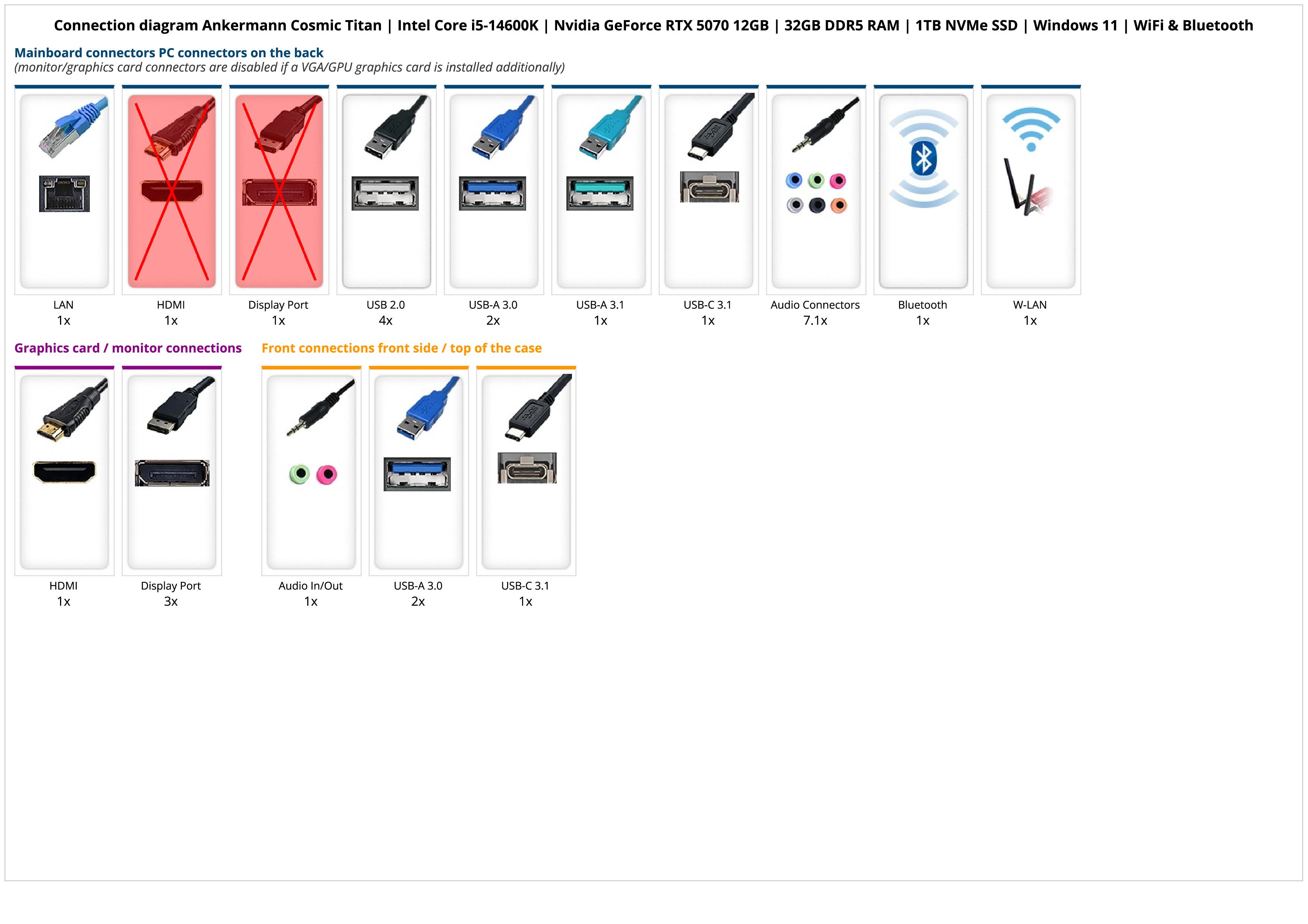

Mainboard connectors PC connectors on the back
(monitor/graphics card connectors are disabled if a VGA/GPU graphics card is installed additionally)
(monitor/graphics card connectors are disabled if a VGA/GPU graphics card is installed additionally)

LAN
1x


HDMI
1x


Display Port
1x

USB 2.0
4x

USB-A 3.1
4x

USB-C 3.1
1x

Audio Connectors Toslink
7.1x

Bluetooth
1x

W-LAN
1x
Graphics card / monitor connections

HDMI
1x

Display Port
3x
Front connections front side / top of the case

Audio In/Out
1x

USB-A 3.0
1x

USB-C 3.1
1x
Expansion cards - PCI / PCIe

W-LAN
1x
These connection options have been generated for you. In individual cases, deviations are possible.

Intel Core i5
The Intel Core i5 series is a range of processors for desktop and laptop computers. The focus of this processor family is the price-performance ratio. It offers a good balance between performance, energy efficiency and price.
mehr anzeigen
weniger anzeigen

32 GB RAM
The RAM is important for the computer's performance because it allows access to the data that is currently needed. The bigger and faster the RAM is, the better. We have installed 32 GB of RAM from a brand manufacturer in this computer.
mehr anzeigen
weniger anzeigen

Windows 11
The latest operating system from Microsoft with the latest designs, drivers and support for the most modern hardware.
This machine has Windows 11 installed with all drivers.
mehr anzeigen
weniger anzeigen

AMD Radeon Graphics
AMD Radeon Graphics are graphics processors from AMD. They are based on the AMD RDNA architecture, which delivers next-generation performance, graphics, and efficiency. Depending on the model, they offer various features such as ray tracing, AI acceleration, AMD FidelityFX Super Resolution, and more. Available as an iGPU or dedicated graphics card.
mehr anzeigen
weniger anzeigen

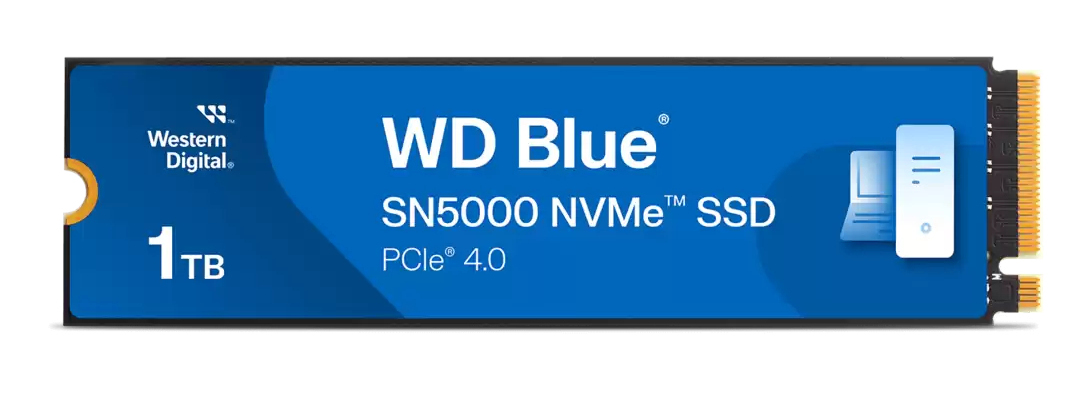

1000 GB NVMe SSD M.2 High Speed
The NVMe interface offers the fastest data transfer currently available for already fast M.2 SSDs. This 1000 GB drive uses the fast NVMe technology. Waiting times are now a thing of the past!
mehr anzeigen
weniger anzeigen

Wlan / WiFi & Bluetooth
This device has WiFi / WLAN for wireless internet reception and Bluetooth functionality for wireless connection with peripherals. Be ready for any situation!
mehr anzeigen
weniger anzeigen
