FHD / WQHD Gaming PC I5-13400 MSI MAG B760 MSI GEFORCE RTX 4070 VENTUS 2X 12G OC (V513-058R) 32GB RAM 2TB WD Blue SN570 NVMe Win 11 Pro onBoard WIFI + Bluetooth

Article number: 4260561747134
In stock

Bulletpoints

  • [ Item number EAN: 4260561747134 ] --- Intel Core I5-13400 10x 2.50 GHz (BX8071513400) - MSI MAG B760 TOMAHAWK WIFI DDR4 (7D96-001R) - 32GB Corsair Vengeance LPX 3.200MHz (CMK32GX4M2E3200C16)
  • MSI GEFORCE RTX 4070 VENTUS 2X 12G OC (V513-058R) - 750W EVGA SuperNOVA GA FM (220-GA-0750-X2) - MSI MPG Gungnir 110R Window (306-7G10R21-W57) - onBoard WIFI + Bluetooth
  • 2TB Western Digital Blue SN570 NVMe M.2 (Read 3500MB/s - Write 3500MB/s)
  • Windows 11 64Bit Professional installiert aktiviert DPK (Ready to Work - ohne Datenträger)
  • Assembled, tested and checked - 2 years warranty
I5-13400
MSI MAG B760
MSI GEFORCE RTX 4070 VENTUS 2X 12G OC (V513-058R)
32GB RAM 3.200MHz
2TB WD Blue SN570 NVMe
750W SuperNOVA GA FM
MPG Gungnir 110R
Pure Rock 2 Silver
Windows 11 64Bit Prof.
onBoard WIFI + Bluetooth

€1,871.50

including 19 % VAT, plus Shipping costs

In stock Lead time to ship: 5-8 Business Days

System performance

Office

Multimedia

Gaming

Workstation/CAD

System performance

Office

Multimedia

Gaming

Workstation/CAD

Product information "FHD / WQHD Gaming PC I5-13400 MSI MAG B760 MSI GEFORCE RTX 4070 VENTUS 2X 12G OC (V513-058R) 32GB RAM 2TB WD Blue SN570 NVMe Win 11 Pro onBoard WIFI + Bluetooth"
CPU (Processor)Intel Core I5-13400 10x 2.50-4.60GHz (BX8071513400)
MainboardMSI MAG B760 TOMAHAWK WIFI DDR4 (7D96-001R)
Video Card (VGA Card)MSI GEFORCE RTX 4070 VENTUS 2X 12G OC (V513-058R)
System Memory (RAM)32GB Corsair Vengeance LPX 3.200MHz (CMK32GX4M2E3200C16)
SSD2TB Western Digital Blue SN570 NVMe M.2 (Read 3500MB/s - Write 3500MB/s)
Power Supply Unit (PSU)750W EVGA SuperNOVA GA FM (220-GA-0750-X2)
Case (Case)MSI MPG Gungnir 110R Window (306-7G10R21-W57)
CPU Cooler (Cooler)be quiet! Pure Rock 2 Silver (BK006)
Operating System (Ready to use installed)Windows 11 64Bit Professional installed activated digital key (ready to work - without data media)
Case Fan4X 120mm Default Case Fan (RGB LED)
W-LAN Unit internalonBoard WIFI + Bluetooth

be quiet! Pure Rock 2 Silver (BK006)

Pure Rock 2 is be quiet!’s CPU cooler for silent multimedia and graphics systems. It provides an excellent price-to-performance ratio with 150W TDP cooling efficiency, four 6mm heat pipes, a Pure Wings 2 120mm PWM fan and convenient design for mounting from atop the motherboard. Among the features that give it such an excellent price-to-performance ratio are:
Performance
Suitable for Processor
Type Cooling set
Fan diameter 12 cm
Supported processor sockets LGA 1150 (Socket H3),LGA 1151 (Socket H4),LGA 1155 (Socket H2),LGA 2011-v3 (Socket R),LGA 2066,Socket AM3+,Socket AM4
Rotational speed (max) 1500 RPM
Noise level (low speed) 19.1 dB
Noise level (high speed) 26.8 dB
Bearing type Rifle bearing
Quantity per pack 16 pc(s)
Design
Product colour Silver
Base plate material Copper
Number of fans 1 fan(s)
Number of fins 55
Fins material Aluminum
Number of heat pipes 4
Fan connector 4-pin
Power
Power consumption (typical) 1.44 W
Rated voltage 12 V
Thermal Design Power (TDP) 150 W
Rated current 0.12 A
Weight & dimensions
Width 121 mm
Depth 87 mm
Height 155 mm
Weight 575 g
Fan dimensions (W x D x H) 120 x 120 x 25 mm
Heat pipes diameter 6 mm
Cable length 0.22 m
Package width 130 mm
Package depth 180 mm
Package height 180 mm
Package weight 976 g
Packaging content
Package type Box
Other features
Heatsink dimensions (W x D x H) 121 x 62 x 155 mm
Logistics data
Shipping (inner) case width 33 cm
Shipping (inner) case length 65.5 cm
Shipping (inner) case height 36 cm
Shipping (inner) case weight 16.1 kg

Intel Core I5-13400 10x 2.50-4.60GHz (BX8071513400)

Intel Core i5-13400, Intel® Core™ i5, LGA 1700, Intel, i5-13400, 64-bit, 13th gen Intel® Core™ i5
Processor
Processor manufacturer Intel
Processor family Intel® Core? i5
Processor generation 13th gen Intel® Core? i5
Processor model i5-13400
Processor cores 10
Processor socket LGA 1700
Box Y
Processor threads 16
Processor operating modes 64-bit
Performance cores 6
Efficient cores 4
Processor boost frequency 4.6 GHz
Performance-core boost frequency 4.6 GHz
Performance-core base frequency 2.5 GHz
Efficient-core boost frequency 3.3 GHz
Efficient-core base frequency 1.8 GHz
Processor cache 20 MB
Processor cache type Smart Cache
Maximum turbo power 154 W
Processor base power 65 W
Maximum number of DMI lanes 8
Processor codename Raptor Lake
Memory
Maximum internal memory supported by processor 128 GB
Memory types supported by processor DDR4-SDRAM, DDR5-SDRAM
Memory channels Dual-channel
Memory bandwidth (max) 76.8 GB/s
Graphics
Discrete graphics card N
On-board graphics card Y
On-board graphics card model Intel UHD Graphics 730
On-board graphics card outputs supported Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1
On-board graphics card dynamic frequency (max) 1550 MHz
On-board graphics card base frequency 300 MHz
Number of displays supported (on-board graphics) 4
On-board graphics card DirectX version 12.0
On-board graphics card OpenGL version 4.5
On-board graphics card maximum resolution (HDMI) 4096 x 2160 pixels
On-board graphics card maximum resolution (eDP - Integrated Flat Panel) 5120 x 3200 pixels
On-board graphics card maximum resolution (DisplayPort) 7680 x 4320 pixels
On-board graphics card refresh rate at maximum resolution (HDMI) 60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) 120 Hz
On-board graphics card refresh rate at maximum resolution (DisplayPort) 60 Hz
On-board graphics card ID 0x4682/0xA782
Discrete graphics card model Not available
Number of execution units 24
Multi-Format Codec Engines 1
Features
Thermal Monitoring Technologies Y
Idle States Y
Execute Disable Bit Y
Market segment Desktop
Use conditions PC/Client/Tablet
Maximum number of PCI Express lanes 20
PCI Express slots version 4.0, 5.0
PCI Express configurations 1x16+1x4, 2x8+1x4
Supported instruction sets AVX 2.0, SSE4.1, SSE4.2
Direct Media Interface (DMI) Revision 4.0
Embedded options available Y
Scalability 1S
CPU configuration (max) 1
Harmonized System (HS) code 8542310001
Export Control Classification Number (ECCN) 5A992C
Commodity Classification Automated Tracking System (CCATS) 740.17B1
Processor special features
Enhanced Intel SpeedStep Technology Y
Intel® Speed Shift Technology Y
Intel® AES New Instructions (Intel® AES-NI) Y
Intel® Clear Video HD Technology (Intel® CVT HD) Y
Intel® Turbo Boost Technology 2.0
Intel® Quick Sync Video Technology Y
Intel® Hyper Threading Technology (Intel® HT Technology) Y
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 Y
Intel® Control-flow Enforcement Technology (CET) Y
Intel® Thread Director Y
Intel® Deep Learning Boost (Intel® DL Boost) Y
Intel® Boot Guard Y
Intel® Volume Management Device (VMD) Y
Intel® Standard Manageability (ISM) Y
Intel Turbo Boost Max Technology 3.0 N
Mode-based Execute Control (MBE) Y
Intel VT-x with Extended Page Tables (EPT) Y
Intel® Secure Key Y
Intel® OS Guard Y
Intel 64 Y
Intel Virtualization Technology (VT-x) Y
Intel Virtualization Technology for Directed I/O (VT-d) Y
Operational conditions
Tjunction 100 °C
Technical details
OpenCL version 3.0
Launch date Q1'23
Weight & dimensions
Processor package size 45 x 37.5 mm
Other features
L2 cache 9728 KB
Graphics output eDP 1.4b, DP 1.4a, HDMI 2.1

Windows 11 64Bit Professional installed activated digital key (ready to work - without data media)

MSI MPG Gungnir 110R Window (306-7G10R21-W57)


Design
Form factor Midi Tower
Type PC
Material Glass,Metal
Product colour Black
Supported motherboard form factors ATX,Micro ATX,Mini-ITX
Number of internal 3.5' bays 2
Number of expansion slots 7
Rack mounting N
Side window Y
Suitable for Gaming
Illumination Y
Illumination colour Multi
Illumination location Case fans
Tempered glass panel(s) Y
Anti-dust filter Y
Built-in speaker(s) N
Cable management Y
Transport wheels N
On/off button Y
Reset button Y
LED indicators HDD
Maximum PSU length 25 cm
Power supply
Power supply included N
Power supply location Bottom
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
Audio input Y
Audio output Y
Cooling
Front fans installed 3x 120 mm
Number of front fans supported (max) 3
Front fans diameters supported 120,140 mm
Rear fans installed 1x 120 mm
Number of rear fans supported (max) 1
Rear fans diameters supported 120 mm
Number of top fans supported (max) 2
Top fans diameters supported 120,140 mm
Liquid cooling capability Y
Front radiator fan sizes supported 120,140,240,280,360 mm
Rear radiator fan sizes supported 120 mm
Top radiator fan sizes supported 120,240 mm
Storage
Supported HDD sizes 2.5,3.5'
Card reader integrated N
Weight & dimensions
Width 215 mm
Depth 430 mm
Height 450 mm

onBoard Sound

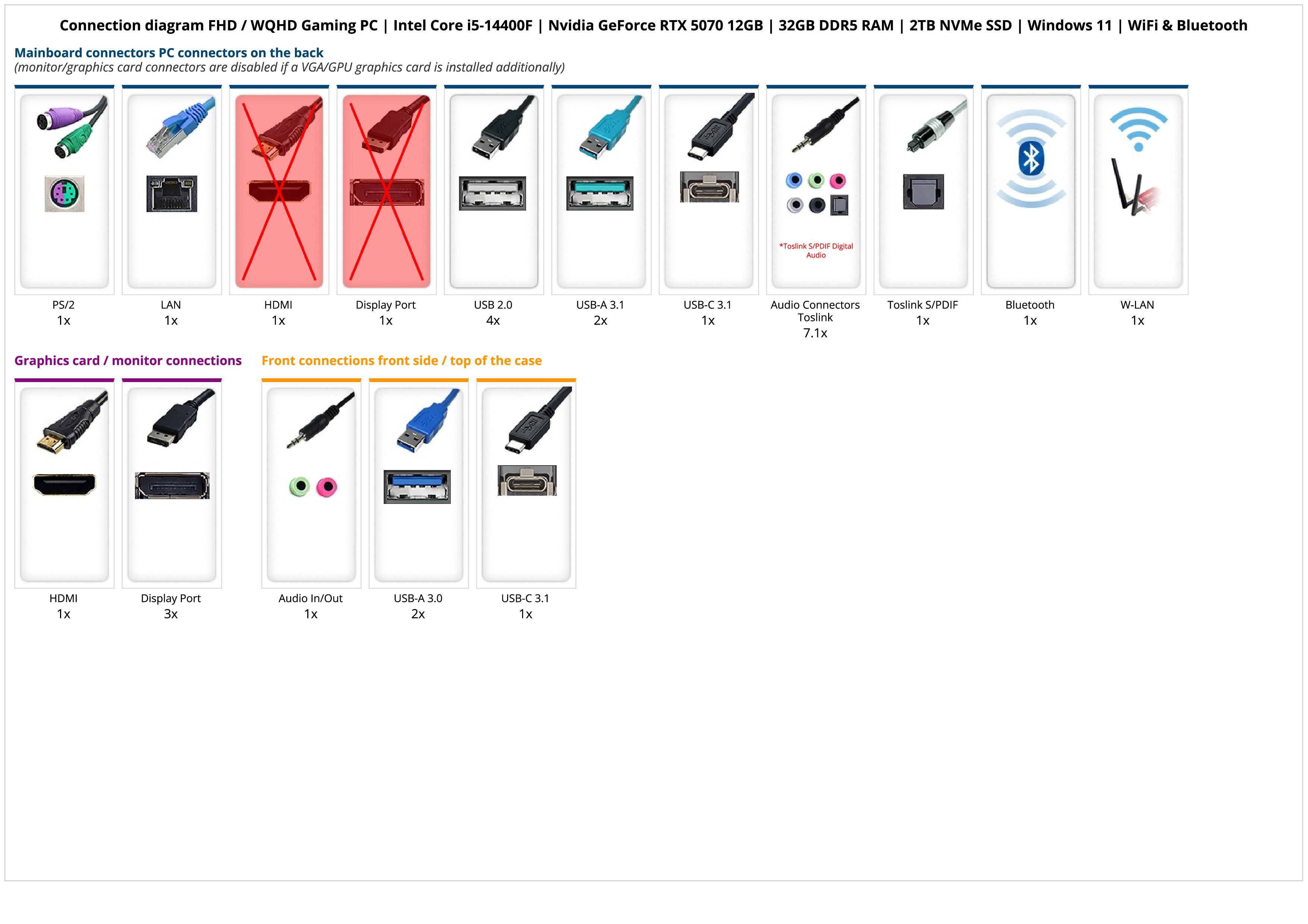

onBoard Sound incl. 5.1 or 7.1 look at Ports Layout Plan

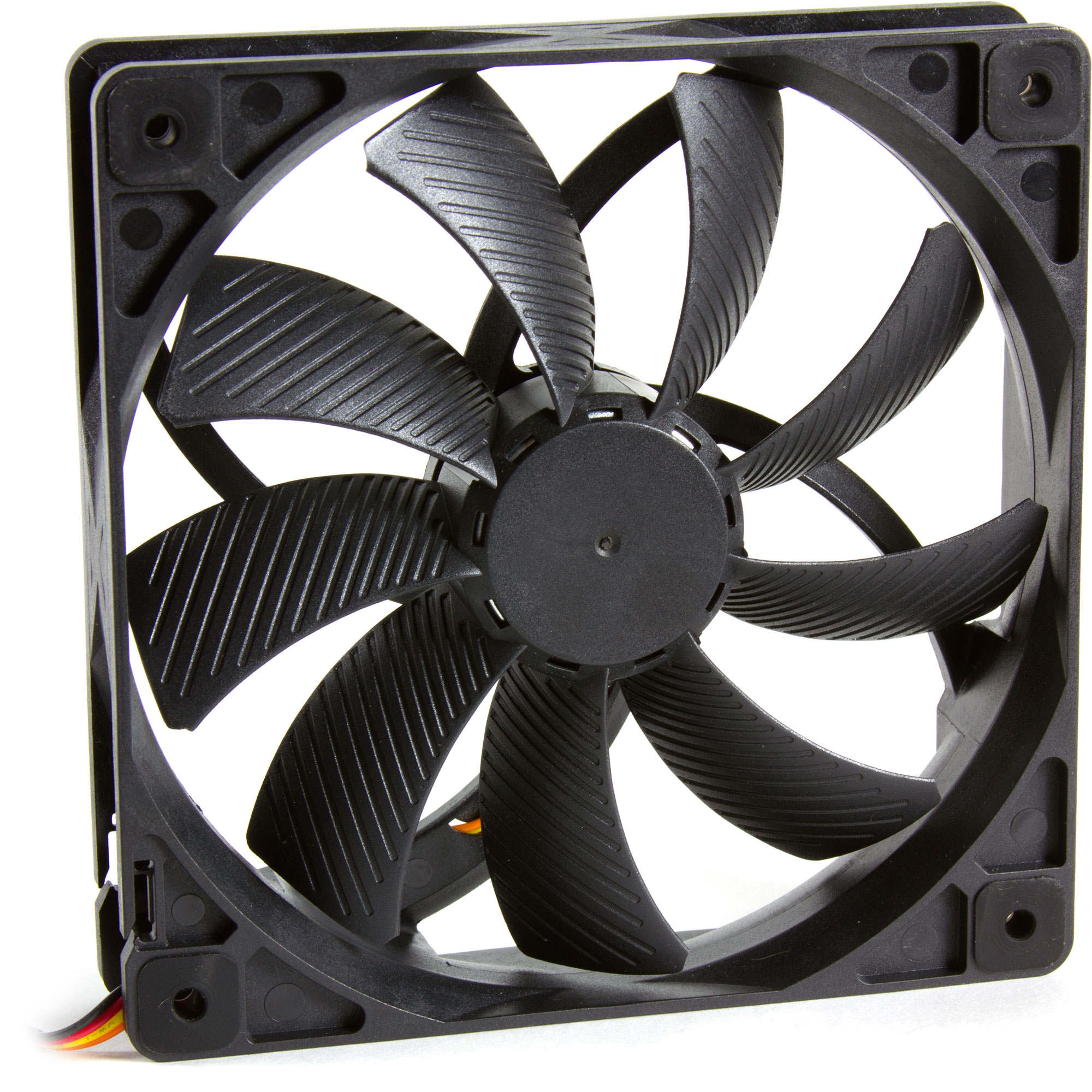

4 x 120mm Default Case Fan (RGB LED)

750W EVGA SuperNOVA GA FM (220-GA-0750-X2)

2TB Western Digital Blue SN570 NVMe M.2 (Read 3500MB/s - Write 3500MB/s)

Western Digital WD Blue SN570, 2000 GB, M.2, 3500 MB/s
Features
SSD form factor M.2
SSD capacity 2000 GB
Interface PCI Express 3.0
Memory type TLC
NVMe Y
NVMe version 1.4
Component for PC
Hardware encryption N
Read speed 3500 MB/s
Write speed 3500 MB/s
Random read (4KB) 600000 IOPS
Random write (4KB) 600000 IOPS
PCI Express interface data lanes x4
Mean time between failures (MTBF) 1500000 h
TBW rating 900
Power
Power consumption (max) 4.5 W
Operational conditions
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -40 - 85 °C
Maximum operating temperature 70 °C
Operating vibration 5 G
Non-operating vibration 4.9 G
Operating shock 1500 G
Weight & dimensions
Width 22 mm
Depth 80 mm
Height 2.38 mm
Weight 6.5 g

onBoard WIFI + Bluetooth


32GB Corsair Vengeance LPX 3.200MHz (CMK32GX4M2E3200C16)

Corsair Vengeance LPX CMK32GX4M2E3200C16, 32 GB, 2 x 16 GB, DDR4, 3200 MHz, 288-pin DIMM
Features
Internal memory 32 GB
Internal memory type DDR4
Memory clock speed 3200 MHz
Component for PC/server
Memory form factor 288-pin DIMM
Memory layout (modules x size) 2 x 16 GB
CAS latency 16
Cooling type Heatsink

MSI GEFORCE RTX 4070 VENTUS 2X 12G OC (V513-058R)

TAKE THE ESSENTIALS
VENTUS brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 lets VENTUS breeze through any task.

REVOLUTIONARY
DUAL-FAN THERMAL
Two fans on a huge heatsink ensures a cool and quiet experience.

CORE PIPE
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.

COPPER BASEPLATE
Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.

CORE PIPE
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.

TORX FAN 4.0
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the Dual-Fan cooling system.

DrMos
DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.

Fuse
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.

Processor
Graphics processor family NVIDIA
Graphics processor GeForce RTX 4070
Maximum resolution 7680 x 4320 pixels
CUDA Y
CUDA cores 5888
Processor frequency 2520 MHz
Processor boost clock speed 2505 MHz
Maximum displays per videocard 4
Memory
Discrete graphics card memory 12 GB
Graphics card memory type GDDR6X
Memory bus 192 bit
Data transfer rate 21 Gbit/s
Ports & interfaces
Interface type PCI Express 4.0
HDMI ports quantity 1
DisplayPorts quantity 3
HDMI version 1.2a
DisplayPort version 1.4a
Performance
TV tuner integrated N
DirectX version 12 Ultimate
OpenGL version 4.6
Dual Link DVI N
NVIDIA G-SYNC Y
Design
Cooling type Active
Cooling technology MSI TORX Fan 4.0
Number of fans 3 fan(s)
Form factor Full-Height/Full-Length (FH/FL)
Product colour Black, Silver
Power
Minimum system power supply 650 W
Power consumption (typical) 200 W
Supplementary power connectors 1x 8-pin
Weight & dimensions
Weight 242 g
Depth 43 mm
Height 125 mm
Width 651 mm
Packaging data
Package weight 947 g
Package type Box

onBoard LAN

MSI MAG B760 TOMAHAWK WIFI DDR4 (7D96-001R)

unite as one The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability. Extended Heatsink Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed. M.2 Shield Frozr Keeps M.2 SSDs safe while preventing throttling, making them run faster. Heavy Plated VRM Heatsink The VRM heatsink covers the upper MOS and helps dissipate the heat. 7W/mK Thermal Pad & Additional Choke Pad High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically. Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE. OPTIMIZED FOR WATER COOLING Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ?keep-out-zone? allows for easy and safe installation and a perfect fit. DIY 2.0 ? INTEGRATING WITH THE SYSTEM ENVIRONMENT Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header. 12+1+1 DUET RAIL POWER SYSTEM Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG B760 series motherboard is ready to sustain heavy gaming loadings. EZ M.2 CLIP Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly. WINDOWS 11 CERTIFIED With MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 11. With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product. PRE-INSTALLED I/O SHIELD The design protect your IO ports and makes your installation process easier and safer. XL CLIP The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer. EZ DEBUG LED Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again. KEEP OUT ZONE MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard. LIGHTNING GEN 5 PCI-E Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s. SMT PCIE 5.0 SLOT The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal. REINFORCED, HEAVY SOLDERED CONNECTIONS Secure to the motherboard with extra solder points and support the weight of heavy graphics cards. FAST AND FUTURE-READY STORAGE MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies. DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20G Using USB 3.2 devices has never been faster! MAG B760 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C. USB FRONT TYPE-C MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
Processor
Processor manufacturer Intel
Processor socket LGA 1700
Compatible processor series Intel® Celeron®, Intel® Pentium® Gold
Maximum number of SMP processors 1
Supported processor sockets LGA 1700
Memory
Supported memory types DDR4-SDRAM
Number of memory slots 4
Memory slots type DIMM
Memory channels Dual-channel
Non-ECC Y
Supported memory clock speeds 2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,3800,4000,4400,4600,4800,5000,5066,5200,5333 MHz
Supported memory clock speed (max) 5333 MHz
Maximum internal memory 128 GB
Storage controllers
Supported storage drive interfaces M.2, SATA III
RAID support Y
RAID levels 0, 1, 5, 10
Internal I/O
USB 2.0 connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Number of SATA III connectors 4
S/PDIF out connector Y
Front panel audio connector Y
Front panel connector Y
ATX Power connector (24-pin) Y
CPU fan connector Y
TPM connector Y
RGB LED pin header Y
Rear panel I/O ports
USB 2.0 ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4
USB 3.2 Gen 2x2 Type-C ports quantity 1
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
HDMI version 2.1
DisplayPorts quantity 1
DisplayPort version 1.4
Network
Ethernet LAN Y
Ethernet interface type 2.5 Gigabit Ethernet
Wi-Fi Y
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth Y
Bluetooth version 5.3
Features
Component for PC
Motherboard form factor ATX
Motherboard chipset family Intel
Audio chip Realtek ALC897
Audio output channels 7.1 channels
Power source type ATX
Windows operating systems supported Windows 10, Windows 11
Expansion slots
PCI Express x1 (Gen 3.x) slots 2
BIOS
BIOS type UEFI AMI
BIOS memory size 256 Mbit
ACPI version 6.4
System Management BIOS (SMBIOS) version 3.5
Weight & dimensions
Width 243.8 mm
Depth 304.8 mm

Nicht warten - einfach finanzieren!

Bezahlen Sie schnell und unkompliziert in kleinen Monatsraten. Einfach Artikel auswählen, zur Kasse gehen und mit der Zahlungsart "Finanzierung" die Ware bezahlen.
Weitere Details

Mögliche Laufzeiten:

Laufzeit in Monaten Monatlich Rate Effektiver Jahreszins Gebundener jährl. Sollzinssatz Gesambetrag
6 6×28,95 EUR 9,9 % 9,48 % 173,70 EUR
10 12×17,64 EUR 9,9 % 9,48 % 176,43 EUR
12 12×14,82 EUR 9,9 % 9,48 % 177,80 EUR
18 18×10,11 EUR 9,9 % 9,48 % 181,96 EUR

Diese Angaben stellen zugleich das repräsentative Beispiel im Sinne des § 6a PangV dar. Vermittlung erfolgt ausschließlich für die Commerz Finanz GmbH, Schwanthalerstr. 31, 80336 München.

Mainboard connectors PC connectors on the back
(monitor/graphics card connectors are disabled if a VGA/GPU graphics card is installed additionally)
LAN
1x
HDMI
1x
Display Port
1x
USB 2.0
4x
USB-A 3.1
4x
USB-C 3.1
1x
Audio Connectors Toslink
7.1x
Bluetooth
1x
W-LAN
1x
Graphics card / monitor connections
HDMI
1x
Display Port
3x
Front connections front side / top of the case
Audio In/Out
1x
USB-A 3.0
2x
USB-C 3.1
1x
Expansion cards - PCI / PCIe
W-LAN
1x
These connection options have been generated for you. In individual cases, deviations are possible.
Intel Core i5
The Intel Core i5 series is a range of processors for desktop and laptop computers. The focus of this processor family is the price-performance ratio. It offers a good balance between performance, energy efficiency and price.
mehr anzeigen weniger anzeigen
2000 GB NVMe SSD M.2 High Speed
The NVMe interface offers the fastest data transfer currently available for the already fast M.2 SSDs. This 2000 GB drive uses the fast NVMe technology. Waiting times are now a thing of the past!
mehr anzeigen weniger anzeigen
Wlan / WiFi & Bluetooth
This device has WiFi / WLAN for wireless internet reception and Bluetooth functionality for wireless connection with peripherals. Be ready for any situation!
mehr anzeigen weniger anzeigen
32 GB RAM
The RAM is important for the computer's performance because it allows access to the data that is currently needed. The bigger and faster the RAM is, the better. We have installed 32 GB of RAM from a brand manufacturer in this computer.
mehr anzeigen weniger anzeigen
Windows 11
The latest operating system from Microsoft with the latest designs, drivers and support for the most modern hardware. This machine has Windows 11 installed with all drivers.
mehr anzeigen weniger anzeigen
