FHD Gaming PC V2 | Intel Core i5-12400F | NVIDIA GeForce RTX 3060 12GB | 32GB RAM | 1TB NVMe M.2 | Cooler Master CMP 510 | 650W be quiet!| Win 11 | WiFi
Article number:
4260561746878
In stock
Bulletpoints
- EAN 4260561746878 - Our FHD Gaming PC V2 boasts the Intel Core i5 12400F 6 x 2.5 GHz 12th Gen in combination with 32GB 3200 MHz Dual Channel memory on an ASUS motherboard. Benefit from the combined power of a fast CPU and fast dual channel RAM!
- The PC is equipped with a lightning-fast 1TB M.2 NVMe SSD. It has 4 x USB 3.0 and 4 x USB 2.0 ports.
- Our Zephyr PC is equipped with a Nvidia GeForce RTX 3060 12GB 1 x HDMI / 3 x DisplayPort graphics card. The amazing case with tempered glass side window and 3 RGB case fans in the front is a real eye-catcher. The PC is rounded off by the Be Quiet! power supply with 650W.
- For your best user experience, our Ankermann PC is equipped with Windows 11 to get started right away, without bloatware and software trial versions. We have a WiFi card installed. Windows and all drivers are installed and updated.
- Ankermann's service offers you many years of experience with manufacturing, distribution and quality assurance of PCs in Germany and 24 months warranty on our hardware. 6 months pick up & return service in case of warranty and a fast and friendly customer support are self-evident. We are Microsoft partner.
Intel Core i5-12400F
ASUS PRIME H610M-A
ASUS RTX 3060 V2 OC (LHR)
32GB RAM 3.200MHz
650W be quiet
Pure Rock Slim 2
Windows 11 64Bit Prof.
ASUS PCE-N15 WIFI 2.4Ghz
System performance
Office
Multimedia
Gaming
Workstation/CAD
System performance
Office
Multimedia
Gaming
Workstation/CAD
Product information "FHD Gaming PC V2 | Intel Core i5-12400F | NVIDIA GeForce RTX 3060 12GB | 32GB RAM | 1TB NVMe M.2 | Cooler Master CMP 510 | 650W be quiet!| Win 11 | WiFi"
CPU (Processor) | Intel Core i5-12400F 6x 2.50-4.40GHz (BX8071512400F) |
Mainboard | ASUS PRIME H610M-A (90MB19P0-M0EAY0) |
Video Card (VGA Card) | ASUS DUAL GeForce RTX 3060 V2 OC 12 GB (LHR) (90YV0GB2-M0NA10) |
System Memory (RAM) | 32GB Corsair Vengeance LPX 3.200MHz (CMK32GX4M2E3200C16) |
SSD | 1TB Western Digital WD Blue SN570 NVMe M.2 (Read 3500MB/s - Write 3000MB/s) |
Power Supply Unit (PSU) | 650W be quiet! System Power 10 (BN328) |
Case (Case) | Cooler Master CMP 510 (CP510-KGNN-S00) |
CPU Cooler (Cooler) | be quiet! Pure Rock Slim 2 (BK030) |
Operating System (Ready to use installed) | Windows 11 64Bit Professional installed activated digital key (ready to work - without data media) |
Case Fan | 3X 120mm Default Case Fan (RGB LED) 120mm Default Case Fan |
W-LAN Unit internal | ASUS PCE-N15 WIFI 2.4Ghz (90-IG1U003M00-0PA0) |
Cooler Master CMP 510 (CP510-KGNN-S00)
The Saber's Edge With a construction that provides generous airflow and a stream of light, the CMP 510 boasts a glowing ARGB edge to adorn the front panel. Mesh makes up a substantial portion of its structure to provide optimum performance potential. Liquid-cooling support and the capability to house a total of 6 fans ensures the CMP 510 is always ready for thermal upgrades. Graphics card clearance spans 350mm to support the latest, largest cards. ARGB Strip A glowing ARGB edge is cut into the clean geometry of the front panel design. Versatile Cooling Options Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised. Large Filtered Intakes The front panel is constructed with a substantially large, unrestricted intake grill to provide superb airflow to the system. Full Black Coating & PSU Cover Let your system stand out with an all-black background and a PSU cover to hide cables. Breathable Power Supply Shroud The PSU cover is ventilated on top of the power supply location, this allows actively cooled units to be installed either with the fan facing the top or bottom, also with the possibility of installing passively cooled power supplies. Room For Upgrades Support for up to a 350mm graphics card, a 162mm CPU cooler, and multiple fans/radiators locations provides room for upgrades to stay ahead of the game.
Design
Form factor | Midi Tower |
Type | PC |
Material | Plastic, Steel, Tempered glass |
Product colour | Black |
Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
Number of 3.5' bays | 2 |
Number of 2.5' bays | 4 |
Number of expansion slots | 7 |
Illumination | Y |
Illumination colour | Multi |
Anti-dust filter | Y |
Maximum CPU cooler height | 16.1 cm |
Maximum graphics card length | 35 cm |
Maximum PSU length | 16 cm |
Power supply
Power supply included | N |
Power supply location | Bottom |
Supported power supply form factors | ATX |
Ports & interfaces
USB 2.0 ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Audio input | Y |
Audio output | Y |
Cooling
Front fans installed | 3x 120 mm |
Number of front fans supported (max) | 3 |
Front fans diameters supported | 120,140 mm |
Number of rear fans supported (max) | 1 |
Rear fans diameters supported | 120 mm |
Number of top fans supported (max) | 2 |
Top fans diameters supported | 120,140 mm |
Front radiator fan sizes supported | 120,140,240,280 mm |
Rear radiator fan sizes supported | 120 mm |
Top radiator fan sizes supported | 120,140 mm |
Storage
Supported HDD sizes | 2.5,3.5' |
HDD/SSD combo cage | Y |
Weight & dimensions
Width | 204 mm |
Depth | 445 mm |
Height | 463 mm |
Weight | 6.08 kg |
Packaging data
LED controller | Y |
Package width | 266 mm |
Package depth | 505 mm |
Package height | 504 mm |
Package weight | 7.13 kg |
Other features
Volume | 39.85 L |
ASUS DUAL GeForce RTX 3060 V2 OC 12 GB (LHR) (90YV0GB2-M0NA10)
2x Fans. 2x Fun. Featuring the latest NVIDIA® Ampere architecture, ASUS Dual GeForce RTX™ 3060 fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for maximizing airflow to the heatsink — are packed into the 20 cm long, 2-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build. Axial-tech Fan Design Better, faster, stronger Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure. 0dB Technology Quiet intelligence To eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 50 degrees and power consumption is low. 2-slot Design Sink your heat into this A carefully designed shroud, heatsink, and heatpipe layout allows the two Axial-tech fans to leverage chassis side-panel ventilation and deliver thermal performance that belies the card’s size. Auto-Extreme Technology Precision automated manufacturing Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall. Protective Backplate That's so metal! The PCB is reinforced by an aluminum backplate that adds structural rigidity, helping to prevent flex and protect components and trace pathways from damage. Stainless Steel Bracket Steel yourself The mounting bracket of the Dual has been beefed up with 304 Stainless Steel that’s harder and more resistant to corrosion. GPU Tweak II Monitor, tweak, and tune The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card. XSplit Premium streaming XSplit offers a premium streaming experience with in-game annotations and other advanced features. Enjoy a free license with the purchase of select ASUS graphics cards. See you online! wtfast Play lag-free We've partnered with wtfast to help you to play free from lag, latency issues, and lost packets. With a 6-month subscription to the wtfast Gamers Private Network, you'll enjoy lower ping for a smoother, more fluid online gaming experience. Buy an ASUS graphics card - and don't be left waiting! QuantumCloud Profit from GPU power QuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. ?Get started right away with just one click! 144-hour Validation Program “Extensive” may be an understatement A 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games. Subtle Lighting A bit lit The shroud features a subtle illuminated strip that creates a stylish accent for your build. NVIDIA AMPERE ARCHITECTURE The all-new NVIDIA Ampere architecture delivers the ultimate play, featuring advanced 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput. RTX. IT’S ON. Experience today’s biggest blockbusters like never before with the visual fidelity of real-time ray tracing and the ultimate performance of AI-powered DLSS. DLSS AI ACCELERATION NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has come to gaming. VICTORY MEASURED IN MILLISECONDS NVIDIA Reflex delivers the ultimate competitive advantage. The lowest latency. The best responsiveness. Powered by GeForce RTX 30 Series GPUs and NVIDIA® G-SYNC® monitors. Acquire targets faster, react quicker, and increase aim precision through a revolutionary suite of technologies to measure and optimize system latency for competitive games. UP YOUR CREATIVE GAME Take your creative projects to a new level with GeForce RTX 30 Series GPUs. Delivering AI-acceleration in top creative apps. Backed by the NVIDIA Studio platform of dedicated drivers and exclusive tools. And built to perform in record time. Whether you’re rendering complex 3D scenes, editing 8K video, or livestreaming with the best encoding and image quality, GeForce RTX GPUs give you the performance to create your best. STREAM LIKE A BOSS Steal the show with incredible graphics and smooth, stutter-free live streaming. Next-generation hardware encoding and decoding combine to show off all your best moments in exquisite detail. And the all-new NVIDIA Broadcast app gives you powerful AI capabilities to improve audio and video quality with effects like virtual background, webcam auto frame, and microphone noise removal. So you can give your audience your best—every time. DIRECTX 12 ULTIMATE Developers can now add even more amazing graphics effects to Microsoft Windows-based PC games. GeForce RTX graphics cards deliver advanced DX12 features like ray tracing and variable rate shading, bringing games to life with ultra-realistic visual effects and faster frame rates.
Processor
Graphics processor family | NVIDIA |
Graphics processor | GeForce RTX 3060 |
Maximum resolution | 7680 x 4320 pixels |
CUDA | Y |
CUDA cores | 3584 |
Processor boost clock speed | 1837 MHz |
Processor boost clock speed (OC mode) | 1867 MHz |
FireStream | N |
Parallel processing technology support | Not supported |
Maximum displays per videocard | 4 |
Memory
Discrete graphics adapter memory | 12 GB |
Graphics adapter memory type | GDDR6 |
Memory bus | 192 bit |
Memory bandwidth (max) | 15 GB/s |
Ports & interfaces
Interface type | PCI Express 4.0 |
HDMI ports quantity | 1 |
DisplayPorts quantity | 3 |
HDMI version | 2.1 |
DisplayPort version | 1.4a |
Performance
TV tuner integrated | N |
DirectX version | 1?2 Ultimate |
OpenGL version | 4.6 |
HDCP | Y |
Dual Link DVI | N |
NVIDIA G-SYNC | Y |
Design
Cooling type | Active |
Cooling technology | ASUS Axial-tech |
Number of fans | 2 fan(s) |
Number of slots | 2 |
Illumination | Y |
Product colour | Black |
Power
Minimum system power supply | 650 W |
Supplementary power connectors | 1x 8-pin |
Weight & dimensions
Width | 38 mm |
Height | 123 mm |
Depth | 200 mm |
Packaging data
Manual | Y |
Package type | Box |
650W be quiet! System Power 10 (BN328)
PROVEN RELIABILITY, QUIET OPERATION System Power 10 650W has been built with price-conscious users in mind that do not want to dispense on reliability and quietness. Elaborated features such as a temperature-controlled fan and a remarkably low stand-by-drain underline the value System Power 10 650W offers even at entry-level. VERY QUIET OPERATION High-quality fan for low noise System Power 10 650W is equipped with a temperature-controlled 120mm quality fan. It provides the low noise operation that be quiet! is famous for, offering remarkable quietness at this price-level. HIGH PERFORMANCE FOR YOUR SYSTEM Proven reliability for CPU and GPU System Power 10 650W provides stable and dependable power for CPU and GPU. This ensures a steady and reliable operation even when your PC meets an unexpectedly heavy load. 80 PLUS® BRONZE CERTIFICATION Efficient operation The 80 PLUS Bronze certification of System Power 10 650W with an efficiency rating of up to 88.5% is convincing evidence of this PSU?s power saving operation. STRONG 12V RAIL For a stable PCIe graphics support System Power 10 650W provides enough power for demanding graphics cards. Safety protections defend against overcurrents, over- and undervoltages, overtemperature, short circuits and overloads, thus keeping your valuable components safe.
Power
Total power | 650 W |
AC input voltage | 200 - 240 V |
AC input frequency | 50 Hz |
Input current | 5 A |
Power factor | 0.95 |
Power Factor Correction (PFC) type | Active |
Combined power (+3.3V) | 120 W |
Combined power (+12V) | 650 W |
Combined power (+5V) | 120 W |
Combined power (-12V) | 3.6 W |
Combined power (+5Vsb) | 15 W |
Max output current (+3.3V) | 20 A |
Max output current (+12V) | 54.17 A |
Max output current (+5V) | 20 A |
Max output current (-12V) | 0.3 A |
Max output current (+5Vsb) | 3 A |
Power Good signal delay range | 100 - 150 ms |
Efficiency | 88.5% |
Hold time | 17 ms |
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Ports & interfaces
Motherboard power connector | 20+4 pin ATX |
Motherboard power cable length | 55 cm |
Number of PATA power connectors | 1 |
Number of SATA power connectors | 5 |
SATA power cable length | 450,550,570,670,690,790 mm |
Peripheral (Molex) power connectors (4-pin) | 1 |
Peripheral (Molex) power cable length | 790 mm |
PCI Express power connectors (6+2 pin) | 2 |
PCI Express power cable length | 50 cm |
CPU P4 connector (4-pin) | 1 |
CPU power connector (4+4 pin) | Y |
CPU power cable length | 60 cm |
ATX power connector (20+4 pin) | Y |
Cabling type | Non-Modular |
Performance
Purpose | PC |
Power supply unit (PSU) form factor | ATX |
80 PLUS certification | 80 PLUS Bronze |
ATX version | 2.52 |
EPS version | 2.92 |
Noise level | 30.7 dB |
Bearing technology | Sleeve |
Mean time between failures (MTBF) | 100000 h |
Certification | CB, TÜV, cRUus, cTUVus, RCM (Australia), BSMI, CU (Russia) |
Country of origin | Germany |
Design
Product colour | Black |
Cooling type | Active |
Fan diameter | 12 cm |
Number of fans | 1 fan(s) |
Fan speed | 0 - 2100 RPM |
On/off switch | Y |
Operational conditions
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -20 - 70 °C |
Operating relative humidity (H-H) | 0 - 90% |
Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
Width | 140 mm |
Depth | 86 mm |
Height | 150 mm |
Weight | 1.86 kg |
Packaging data
Manual | Y |
Manual languages | German, English, Spanish, French, Polish, Russian |
Package width | 195 mm |
Package depth | 268 mm |
Package height | 97 mm |
Package weight | 2.3 kg |
Technical details
Warranty period | 5 year(s) |
Sustainability certificates | CCC, CE, ENERGY STAR, ErP, Federal Communications Commission (FCC), RoHS, WEEE |
Other features
Screws included | Y |
Noise level (silent mode, <30%) | 8.9 dB |
Noise level (quiet mode, 50%) | 11.2 dB |
Noise level (full-load mode, 100%) | 30.7 dB |
1TB Western Digital WD Blue SN570 NVMe M.2 (Read 3500MB/s - Write 3000MB/s)
Spark Imagination?Inspire Your Creativity Stay in the moment and create beyond your expectations with the WD Blue SN570 NVMe SSD. This powerful internal drive delivers up to 5X the speed of our best SATA SSDs so you can let your imagination flow and worry less about PC lag or load times. Tune Up Your Performance Build your ideal creation engine. Upgrading your system or optimizing your next custom build with the slim M.2 2280 form factor. All you need is an NVMe slot. Stay in the Moment Keep your imagination flowing as you create faster while maintaining low power consumption. With read speeds up to 3,500 MB/s (500GB ? 1TB models), your system can run up to 5X faster than our best SATA SSDs so you can stay in your creative moment. A Standard for Reliability We value your content. That?s why the WD Blue reliability features help protect your content so you can stress less about losing your brilliant work. Get Extra Peace of Mind Work with extra confidence and keep your projects on point as the downloadable Western Digital SSD Dashboard helps you monitor your drive?s health, available space, temperature and more. Save on Space Pack a lot of performance into your small-form factor PC with a single-sided M.2 2280 PCIe® Gen3 x4 NVMe? SSD. Stay Organized Back up your photos, videos, and other personal files with included Acronis® True Image? for Western Digital software.
Features
SSD form factor | M.2 |
SSD capacity | 1000 GB |
Interface | PCI Express 3.0 |
NVMe | Y |
NVMe version | 1.4 |
Component for | PC |
Hardware encryption | N |
Read speed | 3500 MB/s |
Write speed | 3000 MB/s |
PCI Express interface data lanes | x4 |
TBW rating | 600 |
Weight & dimensions
Width | 22 mm |
Depth | 80 mm |
Height | 2.38 mm |
Windows 11 64Bit Professional installed activated digital key (ready to work - without data media)
Intel Core i5-12400F 6x 2.50-4.40GHz (BX8071512400F)
Intel Core i5-12400F, 12th gen Intel® Core™ i3, LGA 1700, Intel, i3-12100F, 64-bit, 4.3 GHz
Processor
Processor manufacturer | Intel |
Processor family | 12th gen Intel® Core? i3 |
Processor cores | 4 |
Processor socket | LGA 1700 |
Box | Y |
Processor model | i3-12100F |
Processor threads | 8 |
Processor operating modes | 64-bit |
Performance cores | 4 |
Processor boost frequency | 4.3 GHz |
Performance-core boost frequency | 4.3 GHz |
Performance-core base frequency | 3.3 GHz |
Processor cache | 12 MB |
Processor cache type | Smart Cache |
Processor base power | 58 W |
Maximum turbo power | 89 W |
Maximum number of DMI lanes | 8 |
Processor codename | Alder Lake |
Memory
Maximum internal memory supported by processor | 128 GB |
Memory types supported by processor | DDR4-SDRAM,DDR5-SDRAM |
Memory channels | Dual-channel |
Memory bandwidth (max) | 76.8 GB/s |
Graphics
On-board graphics adapter | N |
Discrete graphics adapter | N |
On-board graphics adapter model | Not available |
Discrete graphics adapter model | Not available |
Features
Thermal Monitoring Technologies | Y |
Idle States | Y |
Execute Disable Bit | Y |
Market segment | Desktop |
Maximum number of PCI Express lanes | 20 |
PCI Express slots version | 4.0,5.0 |
PCI Express configurations | 1x16+1x4,2x8+1x4 |
Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
Scalability | 1S |
Embedded options available | N |
Direct Media Interface (DMI) Revision | 4.0 |
CPU configuration (max) | 1 |
Harmonized System (HS) code | 8542310001 |
Export Control Classification Number (ECCN) | 5A992CN3 |
Commodity Classification Automated Tracking System (CCATS) | G167599 |
Processor special features
Intel® Speed Shift Technology | Y |
Enhanced Intel SpeedStep Technology | Y |
Intel® AES New Instructions (Intel® AES-NI) | Y |
Intel® Hyper Threading Technology (Intel® HT Technology) | Y |
Intel® Turbo Boost Technology | 2.0 |
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 | Y |
Intel® Control-flow Enforcement Technology (CET) | Y |
Intel® Thread Director | N |
Intel® Boot Guard | Y |
Intel® Optane? Memory Ready | Y |
Intel® Deep Learning Boost (Intel® DL Boost) | Y |
Intel® Volume Management Device (VMD) | Y |
Mode-based Execute Control (MBE) | Y |
Intel Turbo Boost Max Technology 3.0 | N |
Intel® Secure Key | Y |
Intel VT-x with Extended Page Tables (EPT) | Y |
Intel® OS Guard | Y |
Intel 64 | Y |
Intel Virtualization Technology (VT-x) | Y |
Intel Virtualization Technology for Directed I/O (VT-d) | Y |
Operational conditions
Tjunction | 100 °C |
Technical details
Status | Launched |
Launch date | Q1'22 |
Weight & dimensions
Processor package size | 45 x 37.5 mm |
ASUS PCE-N15 WIFI 2.4Ghz (90-IG1U003M00-0PA0)
WPS(Wi-Fi Protected Setup) button
For quickly setting up a secure wireless connection. Press the Hardware WPS button on PCE-N15 about 3 seconds, then press the WPS button on router as well. Either you can choose to use software WPS, enabling the WPS utility in the WPS Wizard interface. And finish the setup with 3 steps
Software AP
Software AP mode allows the WLAN card to act as a virtual access point. The computer needs to be connected to a wired network using an Ethernet connection in order to provide network access to WLAN client.
For quickly setting up a secure wireless connection. Press the Hardware WPS button on PCE-N15 about 3 seconds, then press the WPS button on router as well. Either you can choose to use software WPS, enabling the WPS utility in the WPS Wizard interface. And finish the setup with 3 steps
Software AP
Software AP mode allows the WLAN card to act as a virtual access point. The computer needs to be connected to a wired network using an Ethernet connection in order to provide network access to WLAN client.
Ports & interfaces
Connectivity technology | Wireless |
Host interface | PCI-E |
Interface | WLAN |
Internal | Yes |
Bandwidth
Data transfer rate (max) | 300 Mbit/s |
Networking
Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Modulation | OFDM |
Frequency band | 2.4 GHz |
Wireless LAN features
Wi-Fi | Yes |
Wi-Fi standards | 802.11b, 802.11g, 802.11n |
Antenna
Antenna connector type | R-SMA |
Performance
Security algorithms | 128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS |
Windows operating systems supported | Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 98, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
Linux operating systems supported | Yes |
Source data-sheet | . |
Weight & dimensions
Width | 120.5 mm |
Depth | 21.6 mm |
Height | 22 mm |
Weight | 62.6 g |
Certificates
Certification | CE, FCC, C-Tick, IC |
Operational conditions
Operating temperature (T-T) | 0 - 45 °C |
Storage temperature (T-T) | -20 - 65 °C |
Operating relative humidity (H-H) | 5 - 95 % |
Storage relative humidity (H-H) | 5 - 95 % |
Other features
Channels quantity | 13 |
Output power | b: 15 - 19 dBm, g: 13 - 17 dBm, n: 12 - 16 dBm |
be quiet! Pure Rock Slim 2 (BK030)
be quiet! Pure Rock Slim 2 is particularly applicable to compact and quiet multimedia systems. If you’re looking for the famously silent be quiet! operation (max. 25.4dB(A)) and cooling performance at a budget price, the Pure Rock Slim 2 is the CPU cooler of your choice.
Performance
Suitable for | Processor |
Type | Cooler |
Fan diameter | 9.2 cm |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), Socket AM3, Socket AM3+, Socket AM4 |
Rotational speed (max) | 2000 RPM |
Noise level (low speed) | 13.1 dB |
Noise level (high speed) | 25.4 dB |
Bearing type | Rifle bearing |
Quantity per pack | 1 pc(s) |
Mean time between failures (MTBF) | 80000 h |
Design
Product colour | Silver |
Radiator material | Aluminum |
Base plate material | Copper |
Number of fan blades | 7 |
Fins material | Aluminium |
Number of heat pipes | 3 |
Fan connector | 4-pin |
Power
Power consumption (typical) | 3.84 W |
Rated voltage | 12 V |
Thermal Design Power (TDP) | 130 W |
Rated current | 0.32 A |
Weight & dimensions
Width | 97 mm |
Depth | 58 mm |
Height | 135 mm |
Weight | 385 g |
Fan dimensions (W x D x H) | 92 x 92 x 25 mm |
Heat pipes diameter | 6 mm |
Cable length | 0.46 m |
Package width | 126 mm |
Package depth | 159 mm |
Package height | 159 mm |
Package weight | 600 g |
Technical details
Sustainability certificates | CE, RoHS |
Sustainability compliance | Y |
Packaging content
Mounting kit | Y |
Manual | Y |
Logistics data
Quantity per shipping (inner) case | 16 pc(s) |
Shipping (inner) case width | 33.4 cm |
Shipping (inner) case length | 52.2 cm |
Shipping (inner) case height | 34 cm |
Shipping (inner) case weight | 11 kg |
onBoard Sound
onBoard Sound incl. 5.1 or 7.1 look at Ports Layout Plan3 x 120mm Default Case Fan (RGB LED)
ASUS PRIME H610M-A (90MB19P0-M0EAY0)
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features. FLEXIBILITY Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. Intelligent Control All-Around Energy Efficiency The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode ? a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers. Flexible cooling controls Prime 600 Series motherboards offer comprehensive control over system fans, via the included Fan Xpert 2+ software. Auto-Tuning mode intelligently configures all parameters with a single click. Precise Digital Power Control The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance. * Specifications vary by models. UEFI BIOS The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. Advanced Tuning for Serious Tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. Quick and Simple Setup EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings ? all to help you get your rig up and running in no time. Intuitive Graphical Fan Control Fine-tune individual fan settings simply by dragging a curve with the mouse. EZ XMP Improve DRAM performance with one click. Aura On/Off Mode (Stealth) Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch. COOLING Prime H610 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Heatsinks VRM Heatsink and Thermal Pad VRM heatsink and thermal pad improve heat transfer from the MOSFETs and chokes for better cooling performance. Cooler by Design Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS. Multiple Temperature Sources Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks. Smart Protection A dedicated integrated circuit protects each fan header from overheating and overcurrent. 4-Pin PWM/DC Fan Each onboard header supports auto-detection of PWM or DC fans. PERFORMANCE Prime H610 series are built to handle the additional cores and increased bandwidth of 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. Storage Dual M.2 slots (up to 32 Gbps) Prime H610M-A D4 offers two M.2 slots that support data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives. * Actual transmission speeds will be lower than the theoretical maximum speed. Connectivity PCIe® 4.0 Prime H610 motherboards are designed specifically for 12th Generation Intel® Core? CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly. USB 3.2 Gen 2 ports Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A ports with fast USB 3.2 Gen 2 for transmission speeds of up to 10 Gbps. Intel® 1 Gb Ethernet Intel® Ethernet Connection I219-V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer. Personalization Aura Sync Outshine the Competition A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers ? and it can all be synced with an ever-growing portfolio of Aura-capable hardware. Addressable Gen 2 Headers Three addressable Gen 2 headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear. Armoury Crate Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and news to help you stay in touch with the ASUS community. Q-LED Core The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues. Fortified PCIe slot prevents damage SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, SafeSlot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots. Overvoltage Protection World-class circuit-protecting power design An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies. DRAM Overcurrent Protection Short-circuit damage prevention Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices. Stainless-Steel Back I/O 3X corrosion-resistance for greater durability Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels. LANGuard Pumped-up throughput 2.5X higher surge tolerance ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.
Processor
Processor manufacturer | Intel |
Processor socket | LGA 1700 |
Compatible processor series | Intel® Celeron®, Intel® Core? i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel® Pentium®, Intel® Pentium® Gold |
Maximum number of SMP processors | 1 |
Memory
Supported memory types | DDR4-SDRAM |
Number of memory slots | 2 |
Memory slots type | DIMM |
Memory channels | Dual-channel |
Non-ECC | Y |
Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200 MHz |
Maximum internal memory | 64 GB |
Unbuffered memory | Y |
Storage controllers
Supported storage drive types | HDD & SSD |
Supported storage drive interfaces | M.2,SATA |
Graphics
Number of displays supported | 3 |
Internal I/O
USB 2.0 connectors | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
Number of SATA III connectors | 4 |
S/PDIF out connector | Y |
Front panel audio connector | Y |
ATX Power connector (24-pin) | Y |
CPU fan connector | Y |
Number of chassis fan connectors | 2 |
EPS power connector (8-pin) | Y |
12V power connector | Y |
Number of COM connectors | 1 |
TPM connector | Y |
RGB LED pin header | Y |
Rear panel I/O ports
USB 2.0 ports quantity | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Ethernet LAN (RJ-45) ports | 1 |
PS/2 ports quantity | 2 |
VGA (D-Sub) ports quantity | 1 |
HDMI ports quantity | 1 |
HDMI version | 2.1 |
DisplayPorts quantity | 1 |
DisplayPort version | 1.4 |
Headphone outputs | 1 |
Microphone in | Y |
Network
Ethernet LAN | Y |
Ethernet interface type | Gigabit Ethernet |
Wi-Fi | N |
Features
Component for | PC |
Motherboard form factor | micro ATX |
Motherboard chipset family | Intel |
Motherboard chipset | Intel H610 |
Audio output channels | 7.1 channels |
Windows operating systems supported | Windows 10 x64,Windows 11 x64 |
Expansion slots
PCI Express x1 (Gen 3.x) slots | 1 |
PCI Express x16 (Gen 4.x) slots | 1 |
Number of M.2 (M) slots | 2 |
BIOS
BIOS type | UEFI AMI |
BIOS memory size | 128 Mbit |
Weight & dimensions
Width | 244 mm |
Depth | 211 mm |
Packaging content
Cables included | SATA |
Drivers included | Y |
32GB Corsair Vengeance LPX 3.200MHz (CMK32GX4M2E3200C16)
Corsair Vengeance LPX CMK32GX4M2E3200C16, 32 GB, 2 x 16 GB, DDR4, 3200 MHz, 288-pin DIMM
Features
Internal memory | 32 GB |
Internal memory type | DDR4 |
Memory clock speed | 3200 MHz |
Component for | PC/server |
Memory form factor | 288-pin DIMM |
Memory layout (modules x size) | 2 x 16 GB |
CAS latency | 16 |
Cooling type | Heatsink |
onBoard LAN
120mm Default Case Fan
Nicht warten - einfach finanzieren!
Bezahlen Sie schnell und unkompliziert in kleinen Monatsraten. Einfach Artikel auswählen, zur Kasse gehen
und mit der Zahlungsart "Finanzierung" die Ware bezahlen.
Weitere Details
Mögliche Laufzeiten:
Laufzeit in Monaten | Monatlich Rate | Effektiver Jahreszins | Gebundener jährl. Sollzinssatz | Gesambetrag |
6 | 6×28,95 EUR | 9,9 % | 9,48 % | 173,70 EUR |
10 | 12×17,64 EUR | 9,9 % | 9,48 % | 176,43 EUR |
12 | 12×14,82 EUR | 9,9 % | 9,48 % | 177,80 EUR |
18 | 18×10,11 EUR | 9,9 % | 9,48 % | 181,96 EUR |
Diese Angaben stellen zugleich das repräsentative Beispiel im Sinne des § 6a PangV dar. Vermittlung erfolgt ausschließlich für die Commerz Finanz GmbH, Schwanthalerstr. 31, 80336 München.

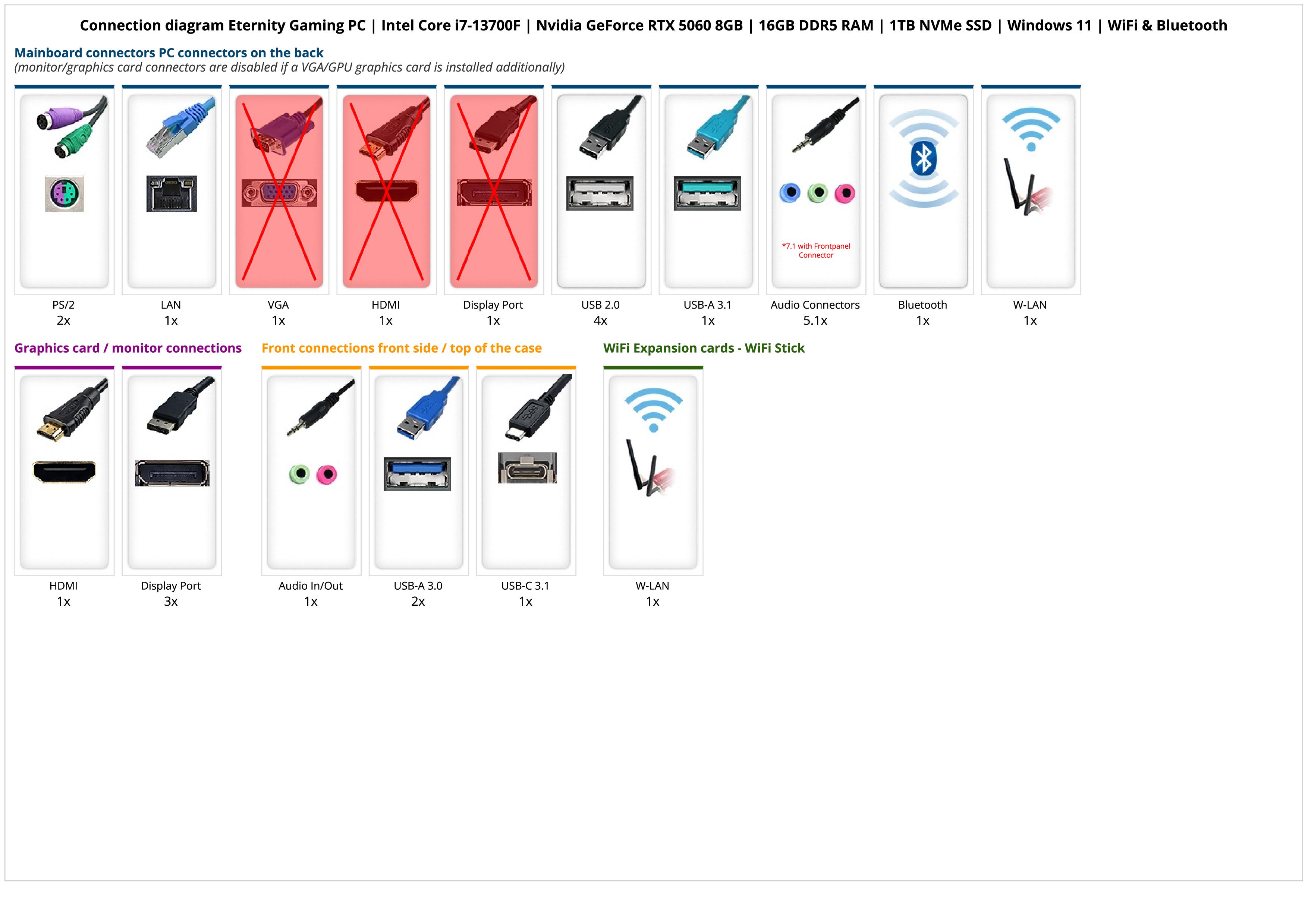

Mainboard connectors PC connectors on the back
(monitor/graphics card connectors are disabled if a VGA/GPU graphics card is installed additionally)
(monitor/graphics card connectors are disabled if a VGA/GPU graphics card is installed additionally)

PS/2
2x

LAN
1x


VGA
1x


HDMI
1x


Display Port
1x

USB 2.0
4x

USB-A 3.1
2x

Audio Connectors
5.1
Graphics card / monitor connections

HDMI
1x

Display Port
3x
Front connections front side / top of the case

Audio In/Out
1x

USB 2.0
1x

USB-A 3.0
1x
Expansion cards - PCI / PCIe

W-LAN
1x
These connection options have been generated for you. In individual cases, deviations are possible.

Intel Core i5
The Intel Core i5 series is a range of processors for desktop and laptop computers. The focus of this processor family is the price-performance ratio. It offers a good balance between performance, energy efficiency and price.
mehr anzeigen
weniger anzeigen

32 GB RAM
The RAM is important for the computer's performance because it allows access to the data that is currently needed. The bigger and faster the RAM is, the better. We have installed 32 GB of RAM from a brand manufacturer in this computer.
mehr anzeigen
weniger anzeigen

Windows 11
The latest operating system from Microsoft with the latest designs, drivers and support for the most modern hardware.
This machine has Windows 11 installed with all drivers.
mehr anzeigen
weniger anzeigen

NVIDIA GeForce RTX 3060
This PC is furnished with the GeForce RTX 3060. With its sophisticated fan design, the high-speed memory and base clock of 1.32 GHz / turbo clock of 1.78 GHz as well as 6-12 GB RAM depending on the model, it is an ideal gamer graphics card.
mehr anzeigen
weniger anzeigen

1000 GB NVMe SSD M.2 High Speed
The NVMe interface offers the fastest data transfer currently available for already fast M.2 SSDs. This 1000 GB drive uses the fast NVMe technology. Waiting times are now a thing of the past!
mehr anzeigen
weniger anzeigen
