High End Videoschnitt PC 8k UHD Intel Core i9-13900K PRIME Z790-A WIFI RTX4090 64GB 5600MHz DDR5 1TB NVMe M.2 SSD 1000W be quiet! NH-D15 Win 11 Pro onBoard WIFI + Bluetooth
Article number:
4260561745178
In stock
Bulletpoints
- [ Item number EAN: 4260561745178 ] --- Intel CPU i9-13900K 24 Cores 5.8GHz LGA1700 (BX8071513900K) - ASUS PRIME Z790-A WIFI (90MB1CS0-M0EAY0) - 64GB Kingston FURY Beast 5600MHz DDR5 (KF556C40BBK2-64)
- ASUS TUF Gaming RTX 4090 O24G (90YV0IE0-M0NA00) - 1000W Be Quiet! PURE POWER 12 M (BN345) - be quiet! Silent Base 802 black window (BGW39) - onBoard WIFI + Bluetooth
- 1TB Samsung 980 PRO NVMe M.2 (Read 7000MB/s - Write 5000MB/s)
- Windows 11 64Bit Professional installiert aktiviert DPK (Ready to Work - ohne Datenträger)
- Assembled, tested and checked - 2 years warranty
Intel Core i9-13900K
PRIME Z790-A WIFI
RTX4090
64GB 5600MHz DDR5
1TB Samsung 980 PRO
1000W be quiet!
Silent Base 802 (BGW39)
NH-D15
Windows 11 64Bit Prof.
onBoard WIFI + Bluetooth
System performance
Office
Multimedia
Gaming
Workstation/CAD
System performance
Office
Multimedia
Gaming
Workstation/CAD
Product information "High End Videoschnitt PC 8k UHD Intel Core i9-13900K PRIME Z790-A WIFI RTX4090 64GB 5600MHz DDR5 1TB NVMe M.2 SSD 1000W be quiet! NH-D15 Win 11 Pro onBoard WIFI + Bluetooth"
CPU (Processor) | Intel Core i9-13900K, 8C+16c/32T, 3.00-5.80GHz (BX8071513900K) |
Mainboard | ASUS PRIME Z790-A WIFI (90MB1CS0-M0EAY0) |

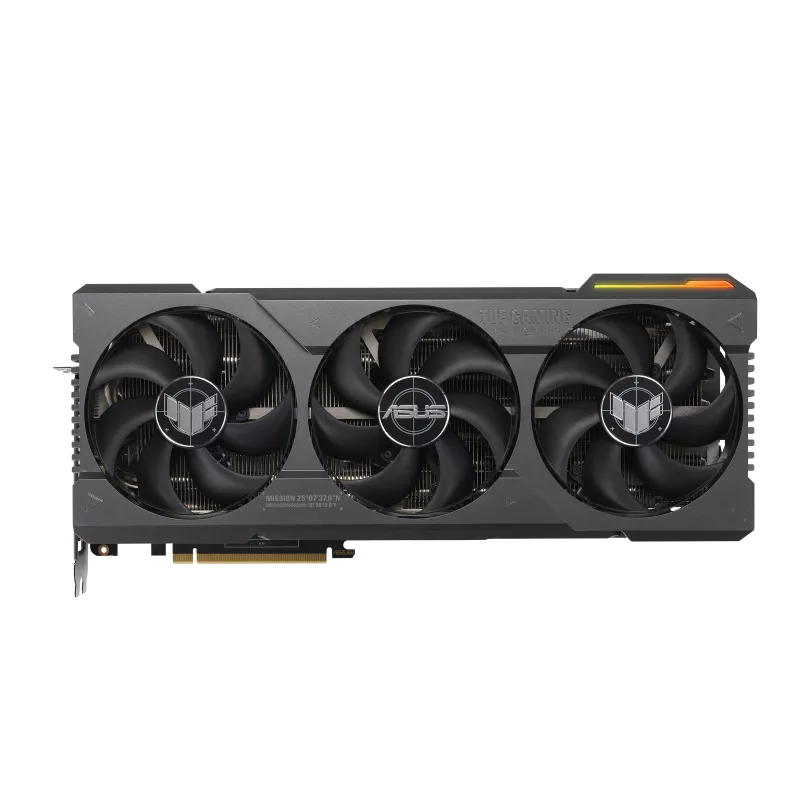

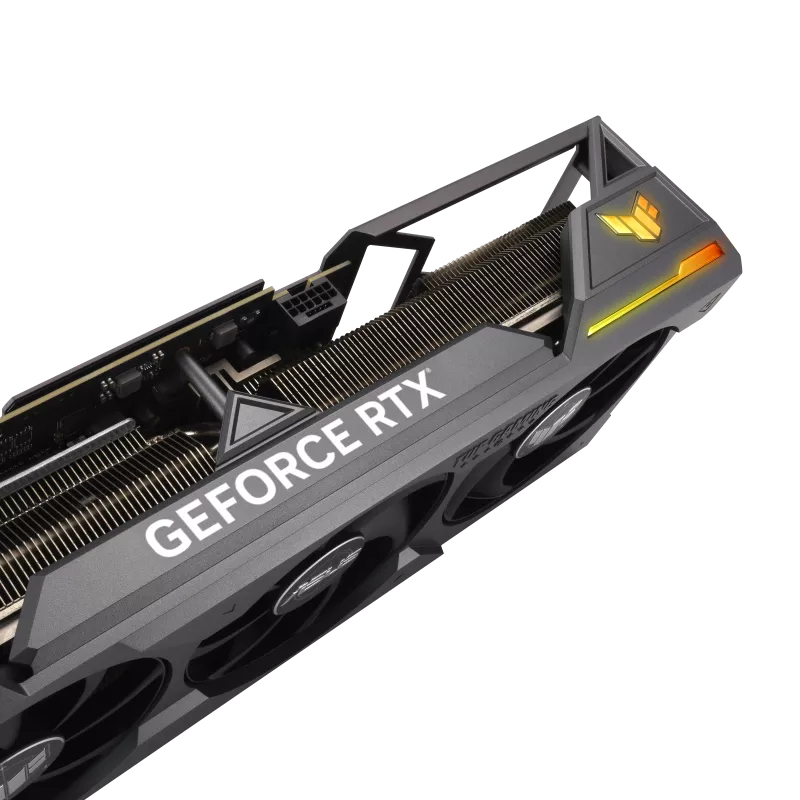

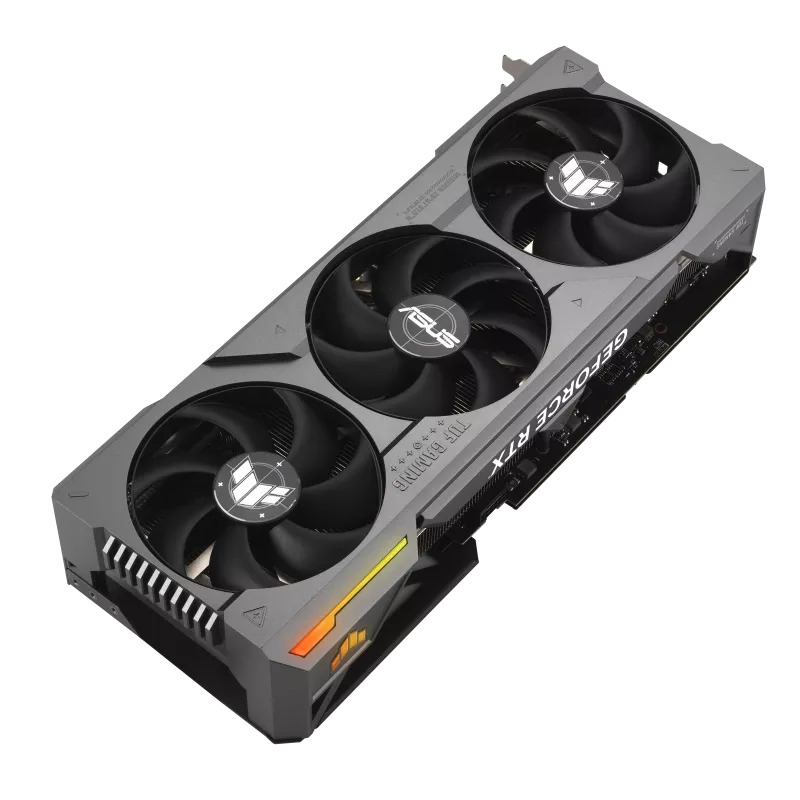

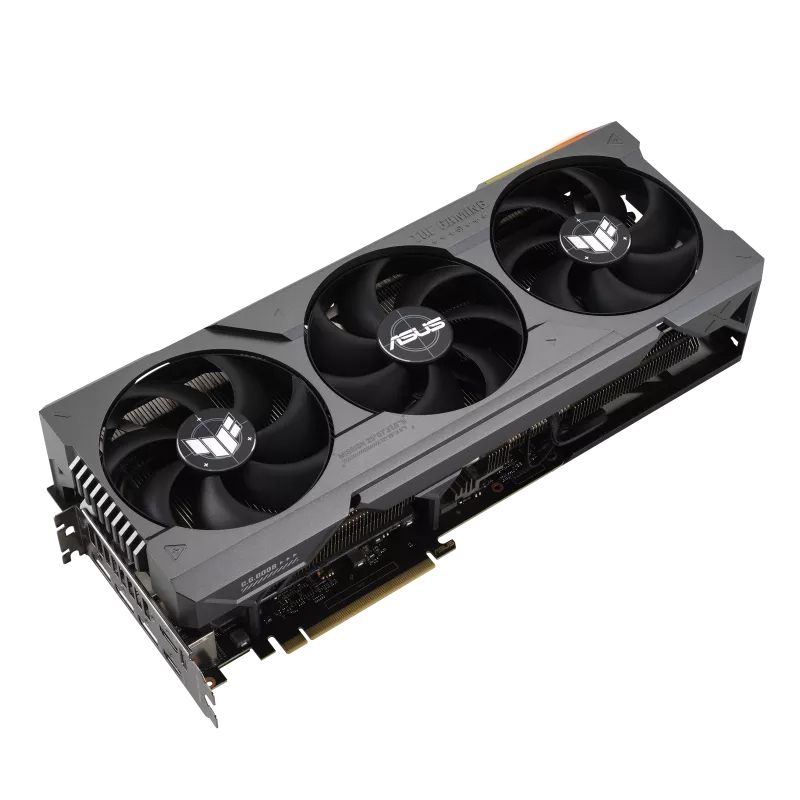

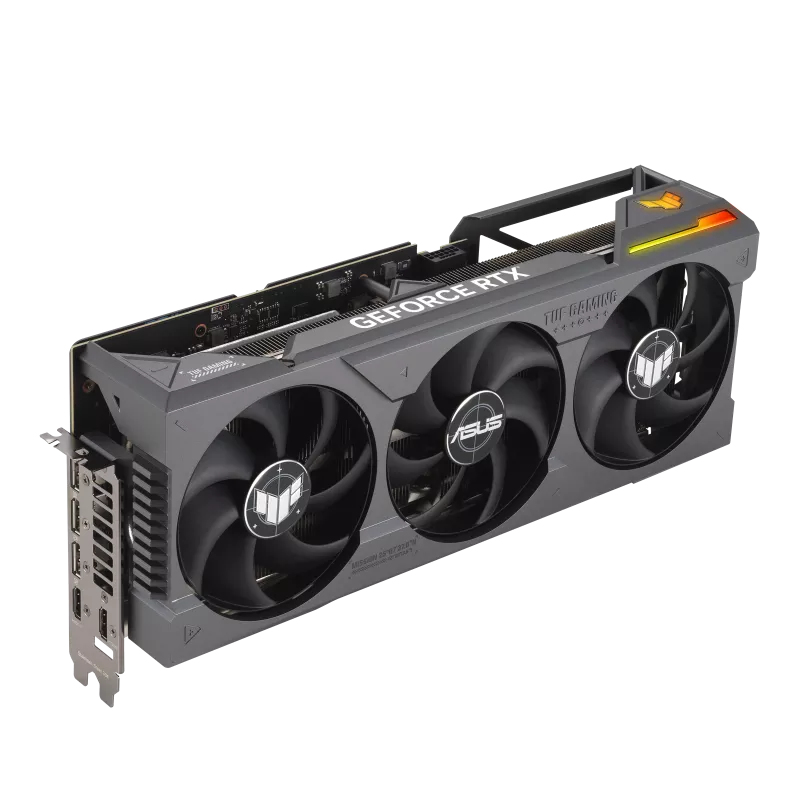

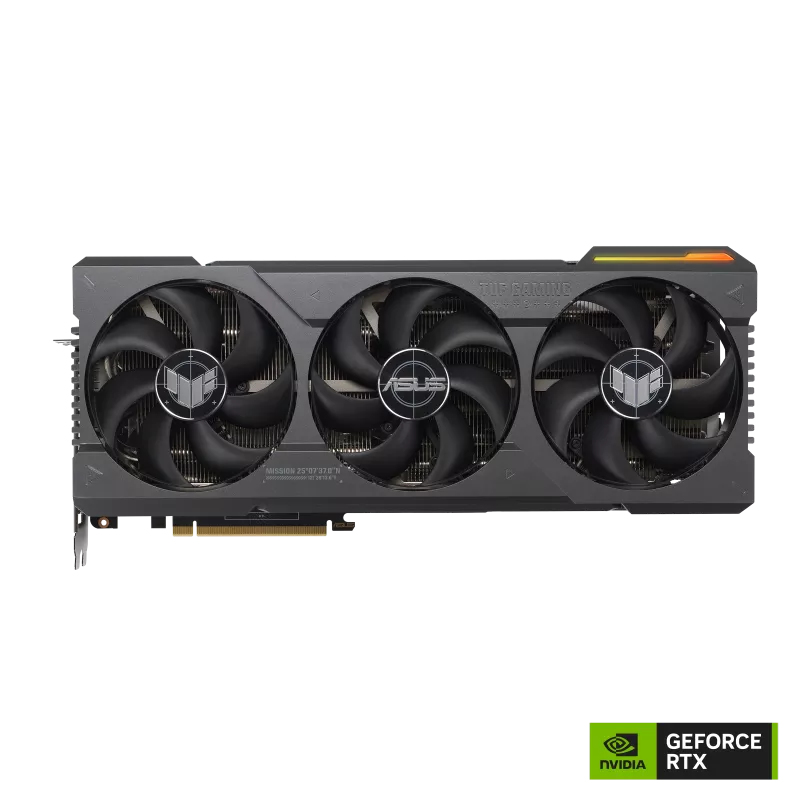

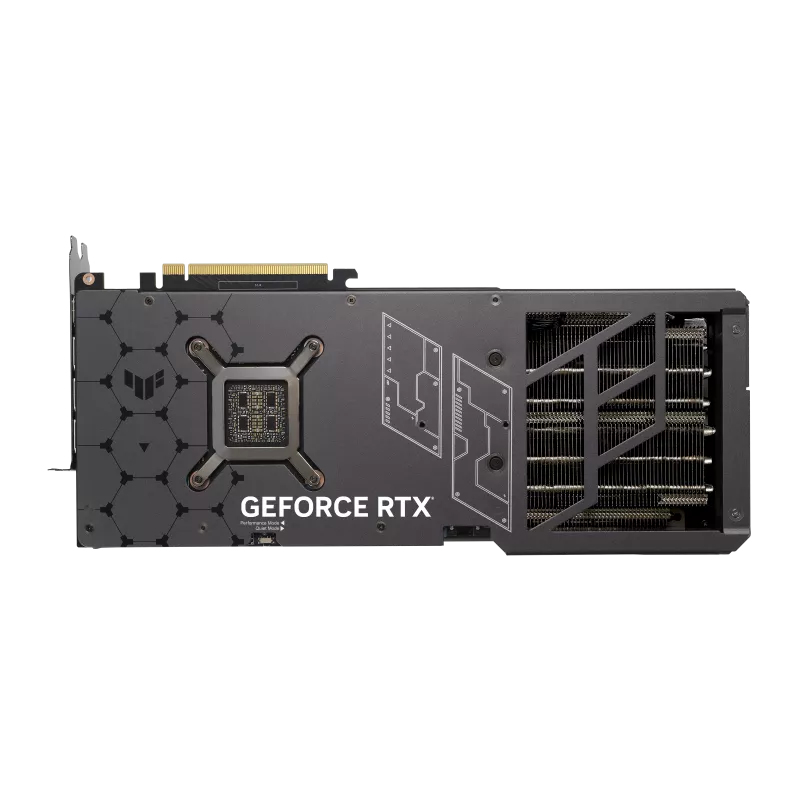

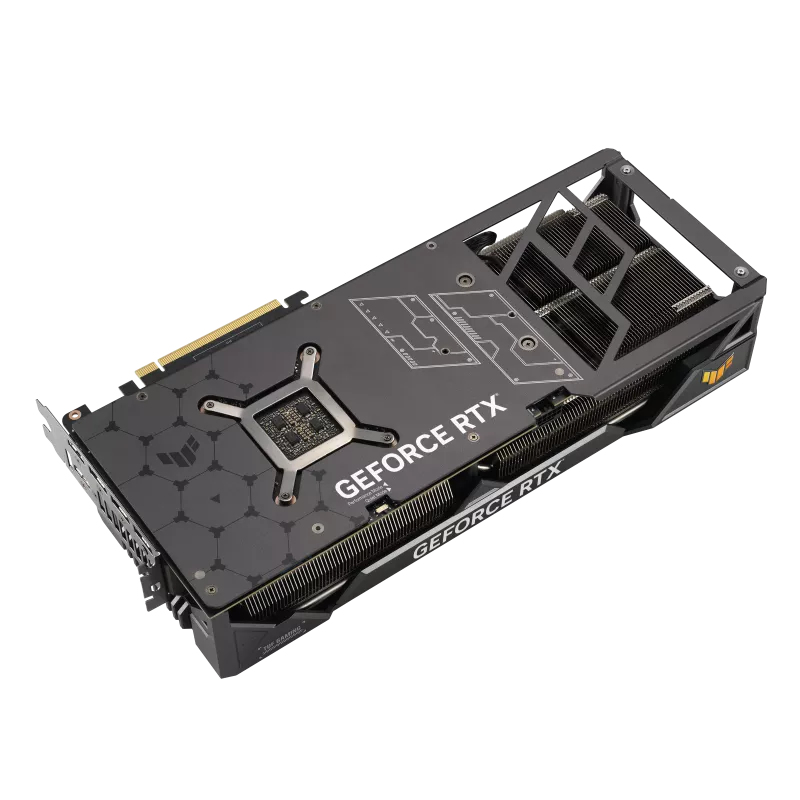

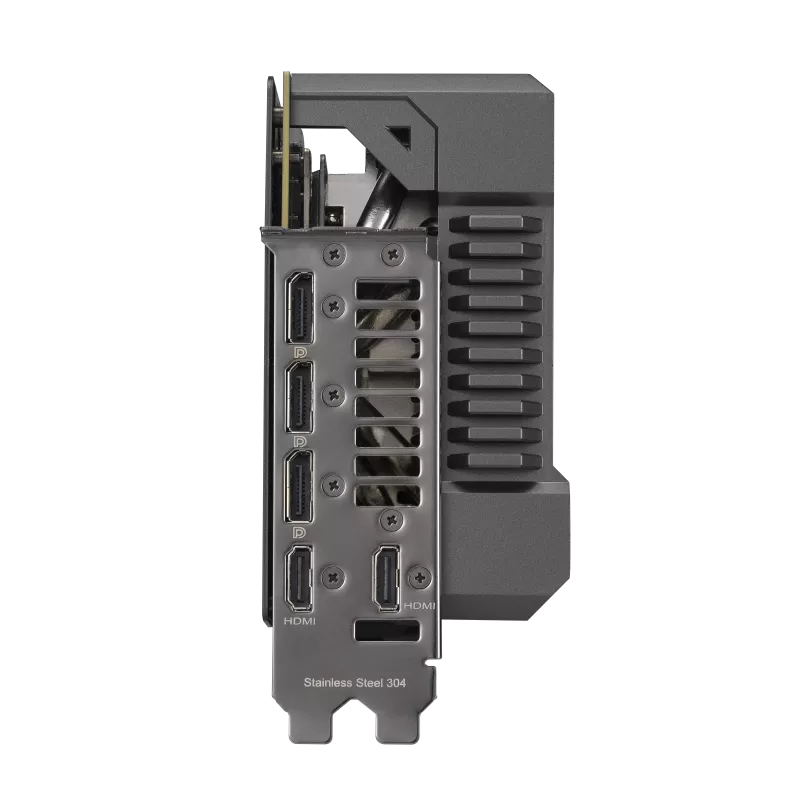

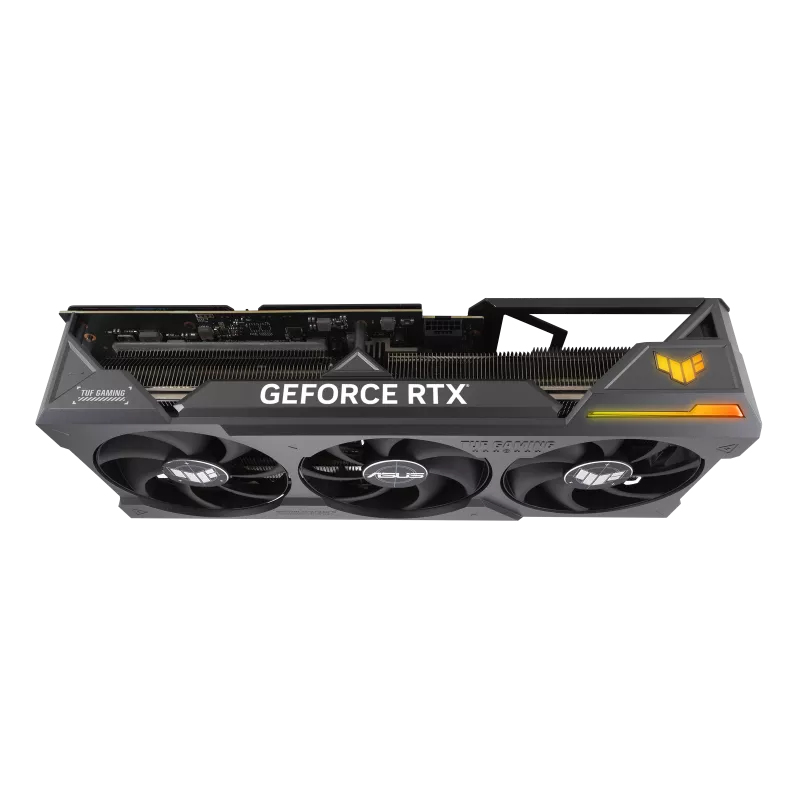

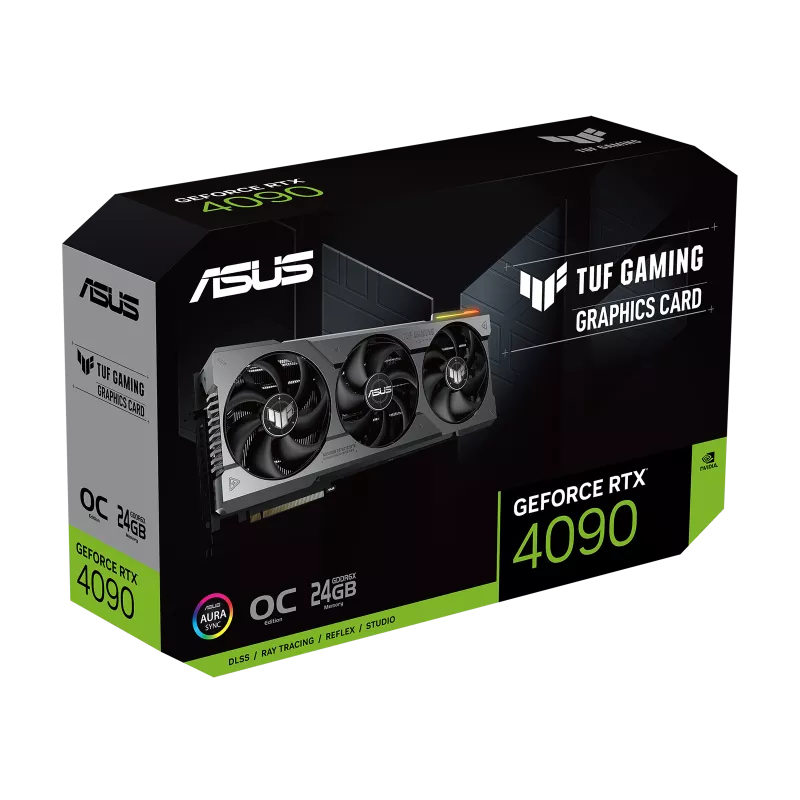

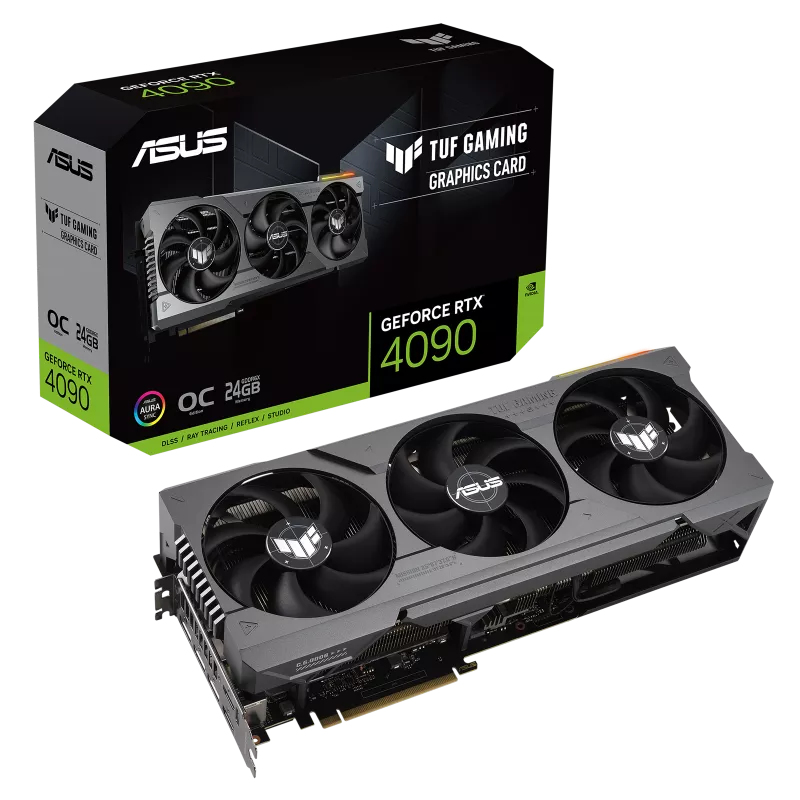

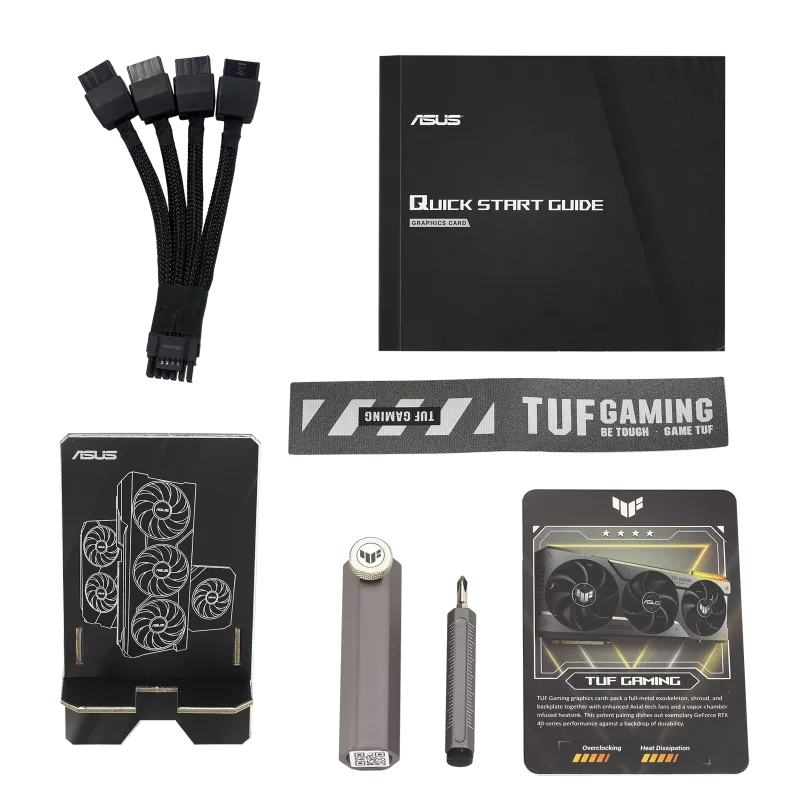

Video Card (VGA Card) | ASUS TUF Gaming RTX 4090 O24G (90YV0IE0-M0NA00) |
System Memory (RAM) | 64GB Kingston FURY Beast 5600MHz DDR5 (KF556C40BBK2-64) |
SSD | 1TB Samsung 980 PRO NVMe M.2 (Read 7000MB/s - Write 5000MB/s) |
Power Supply Unit (PSU) | 1000W be quiet! PURE POWER 12 M (BN345) ATX 3.0 |
Case (Case) | be quiet! Silent Base 802 black window (BGW39) |
CPU Cooler (Cooler) | Noctua NH-D15 chromax.black (NH-D15 CHROMAX.BLACK) |
Operating System (Ready to use installed) | Windows 11 64Bit Professional installed activated digital key (ready to work - without data media) |
Case Fan | 3X 140mm Default Case Fan |
W-LAN Unit internal | onBoard WIFI + Bluetooth |
64GB Kingston FURY Beast 5600MHz DDR5 (KF556C40BBK2-64)
Kingston Technology FURY Beast, 64 GB, 2 x 32 GB, DDR5, 5600 MHz, 288-pin DIMM
Features
Buffered memory type | Unregistered (unbuffered) |
Internal memory | 64 GB |
Memory layout (modules x size) | 2 x 32 GB |
Internal memory type | DDR5 |
Memory clock speed | 5600 MHz |
Component for | PC/Server |
Memory form factor | 288-pin DIMM |
ECC | N |
On-Die ECC | Y |
CAS latency | 40 |
Memory ranking | 2 |
Memory voltage | 1.25 V |
Module configuration | 4096M x 64 |
Row cycle time | 48 ns |
Refresh row cycle time | 295 ns |
Row active time | 32 ns |
Intel Extreme Memory Profile (XMP) | Y |
Intel Extreme Memory Profile (XMP) version | 3.0 |
Programming power voltage (VPP) | 1.8 V |
Cooling type | Heatsink |
Lead plating | Gold |
JEDEC standard | Y |
Operational conditions
Operating temperature (T-T) | 0 - 85 °C |
Storage temperature (T-T) | -55 - 100 °C |
Weight & dimensions
Width | 133.3 mm |
Height | 31.2 mm |
Noctua NH-D15 chromax.black (NH-D15 CHROMAX.BLACK)
The NH-D15 chromax.black is an all-black version of Noctua?s award-winning flagship model NH-D15 premium-quality quiet CPU cooler. Thanks to the same proven dual-tower heatsink design and NF-A15 PWM fans, it stays true to the NH-D15?s successful formula of rivalling the performance of all-in-one water coolers while maintaining superb quietness of operation. At the same time, the chromax.black version with its black fans and black coated heatsink combines these assets with a sleek stealth look. Topped off with the renowned SecuFirm2? multi-socket mounting system, Noctua?s enthusiast-grade NT-H1 thermal compound and a full 6-year manufacturer?s warranty, the NH-D15 chromax.black is a deluxe choice for both overclockers and silent enthusiasts who seek an elite-class heatsink that looks just as great as it cools.
Award-winning NH-D15 cooler
Tens of thousands of enthusiast users all over the world swear by the NH-D15?s quality and performance. Recommended by more than 200 international hardware websites and magazines, it is renowned for being one of the best high-end coolers on the market.
chromax.black design
The NH-D15 chromax.black is black from head to toe: Featuring a black coated heatsink, black fans with black anti-vibration-pads, black fan clips and black mounting parts, it?s right at home in all-black builds and easy to integrate with other colour schemes.
Colour-customisable
Using the optional NA-HC3 and NA-HC4 heatsink covers as well as the NA-SAVP3 anti-vibration pads (available in black, blue, green, red, yellow, white), the NH-D15 chromax.black can be fully customised to fit popular build colour schemes such as black and red or black and white.
6 heatpipe dual tower design
As compared to conventional single tower heatinks, the NH-D15's fine-tuned six heatpipe dual tower design provides more surface area, better heat-distribution and superior airflow efficiency in dual fan mode.
Widened fin stack and expanded heatpipe layout
Compared to the NH-D14, the NH-D15's fin-stack has been widened from 140 to 150mm and its heatpipes are now spaced further apart, which allows for a more uniform heat distribution over a larger surface area and thus contributes to the NH-D15's superior efficiency.
High RAM compatibility in single fan mode
Thanks to its recessed lower fins, the NH-D15 provides 64mm clearance for tall memory heatsinks in single fan mode, making it compatible with most high end RAM modules on the market. In dual fan mode, the NH-D15 should be used with standard height RAM (up to 32mm).
Dual NF-A15 140mm fans
The NH-D15 features two of Noctua's premium class NF-A15 140mm fans. Complying with Noctua's AAO standard and featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 has quickly built up a reputation as one of the best 140mm fans on the market.
PWM support and Low-Noise Adaptors
The NF-A15 premium fans supplied with the NH-D15 support PWM for convenient automatic speed control through the motherboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptors for even quieter operation.
Excellent component cooling
Extending below the fin-stacks, the large NF-A15 fans not only contribute to the NH-D15's superb CPU cooling capabilities but also provide massive airflow over surrounding motherboard components and heatsinks, thus ensuring excellent component cooling performance.
SecuFirm2? multi-socket mounting system
Noctua?s SecuFirm2? mounting systems have become synonymous with quality, safety and easy installation. Supporting Intel LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) and LGA20xx (LGA2066, LGA2011-0, LGA2011-3), as well as AMD AM4, AM3(+), AM2(+), FM2(+) and FM1, the SecuFirm2? mounting included with the NH-U12S is straightforward to install, provides perfect contact pressure and will stand the test of time even under heavy use.
Compatibility with past and future sockets
Thanks to Noctua?s SecuFirm? ecosystem, the NH-D15 can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets, which makes the NH-D15 a safe long-term investment.
NT-H1 thermal compound
Noctua?s much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability. Chosen again and again by overclockers and enthusiast users worldwide, it has established itself as a benchmark for premium-quality thermal compounds.
Soldered interface between heatpipes and fins
With many heatsinks, the fins are press-fitted to the heatpipes. Due to the different thermal expansion coefficients of copper and aluminium, this fit can loosen over years of thermal cycling, which may lead to reduced performance. By contrast, the NH-D15?s fins are soldered to the heatpipes in order to guarantee a superior thermal interface that doesn?t deteriorate even after many years of usage.
Award-winning NH-D15 cooler
Tens of thousands of enthusiast users all over the world swear by the NH-D15?s quality and performance. Recommended by more than 200 international hardware websites and magazines, it is renowned for being one of the best high-end coolers on the market.
chromax.black design
The NH-D15 chromax.black is black from head to toe: Featuring a black coated heatsink, black fans with black anti-vibration-pads, black fan clips and black mounting parts, it?s right at home in all-black builds and easy to integrate with other colour schemes.
Colour-customisable
Using the optional NA-HC3 and NA-HC4 heatsink covers as well as the NA-SAVP3 anti-vibration pads (available in black, blue, green, red, yellow, white), the NH-D15 chromax.black can be fully customised to fit popular build colour schemes such as black and red or black and white.
6 heatpipe dual tower design
As compared to conventional single tower heatinks, the NH-D15's fine-tuned six heatpipe dual tower design provides more surface area, better heat-distribution and superior airflow efficiency in dual fan mode.
Widened fin stack and expanded heatpipe layout
Compared to the NH-D14, the NH-D15's fin-stack has been widened from 140 to 150mm and its heatpipes are now spaced further apart, which allows for a more uniform heat distribution over a larger surface area and thus contributes to the NH-D15's superior efficiency.
High RAM compatibility in single fan mode
Thanks to its recessed lower fins, the NH-D15 provides 64mm clearance for tall memory heatsinks in single fan mode, making it compatible with most high end RAM modules on the market. In dual fan mode, the NH-D15 should be used with standard height RAM (up to 32mm).
Dual NF-A15 140mm fans
The NH-D15 features two of Noctua's premium class NF-A15 140mm fans. Complying with Noctua's AAO standard and featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 has quickly built up a reputation as one of the best 140mm fans on the market.
PWM support and Low-Noise Adaptors
The NF-A15 premium fans supplied with the NH-D15 support PWM for convenient automatic speed control through the motherboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptors for even quieter operation.
Excellent component cooling
Extending below the fin-stacks, the large NF-A15 fans not only contribute to the NH-D15's superb CPU cooling capabilities but also provide massive airflow over surrounding motherboard components and heatsinks, thus ensuring excellent component cooling performance.
SecuFirm2? multi-socket mounting system
Noctua?s SecuFirm2? mounting systems have become synonymous with quality, safety and easy installation. Supporting Intel LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) and LGA20xx (LGA2066, LGA2011-0, LGA2011-3), as well as AMD AM4, AM3(+), AM2(+), FM2(+) and FM1, the SecuFirm2? mounting included with the NH-U12S is straightforward to install, provides perfect contact pressure and will stand the test of time even under heavy use.
Compatibility with past and future sockets
Thanks to Noctua?s SecuFirm? ecosystem, the NH-D15 can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets, which makes the NH-D15 a safe long-term investment.
NT-H1 thermal compound
Noctua?s much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability. Chosen again and again by overclockers and enthusiast users worldwide, it has established itself as a benchmark for premium-quality thermal compounds.
Soldered interface between heatpipes and fins
With many heatsinks, the fins are press-fitted to the heatpipes. Due to the different thermal expansion coefficients of copper and aluminium, this fit can loosen over years of thermal cycling, which may lead to reduced performance. By contrast, the NH-D15?s fins are soldered to the heatpipes in order to guarantee a superior thermal interface that doesn?t deteriorate even after many years of usage.
Performance
Suitable for | Processor |
Type | Cooler |
Fan diameter | 15 cm |
Supported processor sockets | LGA 1150 (Socket H3),LGA 1151 (Socket H4),LGA 1155 (Socket H2),LGA 1156 (Socket H),LGA 2011 (Socket R),LGA 2011-v3 (Socket R),LGA 2066,Socket AM2,Socket AM2+,Socket AM3,Socket AM3+,Socket AM4,Socket FM1,Socket FM2,Socket FM2+ |
Compatible processor series | AMD A, Intel® Celeron®, Intel® Core? i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel® Pentium® |
Rotational speed (min) | 300 RPM |
Rotational speed (max) | 1500 RPM |
Rotational speed with LNA (max) | 1200 RPM |
Noise level (high speed) | 24.6 dB |
Noise level with LNA (max) | 19.2 dB |
Airflow | 140.2 m³/h |
Airflow with LNA (max) | 115.5 m³/h |
Maximum air pressure | 2.08 mmH2O |
Maximum air pressure with LNA | 1.51 mmH2O |
Pulse-width modulation (PWM) support | Y |
Bearing type | Self-Stabilising Oil-pressure Bearing (SSO) |
Design
Product colour | Black |
Base plate material | Copper |
Number of fans | 2 fan(s) |
Fins material | Aluminum |
Fan connector | 4-pin |
Power
Power supply | 1.56 W |
Rated voltage | 12 V |
Weight & dimensions
Width | 150 mm |
Depth | 161 mm |
Height | 165 mm |
Weight | 1.32 kg |
Heatsink weight | 980 g |
Package width | 190 mm |
Package depth | 268 mm |
Package height | 235 mm |
Package weight | 2.22 kg |
Packaging content
Package type | Box |
Cables included | Fan |
Other features
Heatsink dimensions (W x D x H) | 150 x 135 x 160 mm |
Mean time to failure (MTTF) | 150000 h |
Logistics data
Master (outer) case width | 41.5 cm |
Master (outer) case length | 50.9 cm |
Master (outer) case height | 57.3 cm |
Master (outer) case weight | 20.4 kg |
ASUS PRIME Z790-A WIFI (90MB1CS0-M0EAY0)
PRIME Z790-A WIFI ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core? Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-A WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. The ASUS PRIME Z790-A WIFI offers this all in a sleek, futuristic-looking package centered around a spaceship design aesthetic, with a silver-toned nameplate and chipset cover. FLEXIBILITY Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790-A WIFI motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. Intelligent Control ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans. All-Around Energy Efficiency The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows. COOLING PRIME Z790-A WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. M.2 Heatsinks Three M.2 heatsinks cover four M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. VRM Heatsinks and Thermal Pads The extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance. Cooler by Design PRIME Z790-A WIFI features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS. Multiple Temperature Sources Each header can dynamically reference three thermal sensors. Fan Xpert 4 allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks. AIO Pump Header A dedicated PWM/DC header for self-contained water-cooling setups. PERFORMANCE The PRIME Z790-A WIFI motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core? Processors. ASUS Z790 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options. Robust Power Design Stable power is essential to extract every last bit of performance out of Intel processors. The PRIME Z790-A WIFI is geared to cater to the demands of these high-core-count CPUs. ProCool Connectors Proprietary connectors augment the motherboard's link to the PSU with 8+8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors. Outstanding Audio Combined onboard features deliver elevated audio Intelligent design and premium hardware create audio quality unlike anything you?ve ever experienced.
Processor
Processor manufacturer | Intel |
Processor socket | LGA 1700 |
Compatible processor series | Intel® Celeron®, Intel® Core? i3, Intel® Core? i5, Intel® Core? i7, Intel® Core? i9, Intel® Pentium® Gold |
Supported processor sockets | LGA 1700 |
Memory
Supported memory types | DDR5-SDRAM |
Number of memory slots | 4 |
Memory slots type | DIMM |
Memory channels | Dual-channel |
Non-ECC | Y |
Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz |
Supported memory clock speed (max) | 7200 MHz |
Maximum internal memory | 128 GB |
Unbuffered memory | Y |
Storage controllers
Supported storage drive types | HDD & SSD |
Supported storage drive interfaces | M.2, SATA III |
RAID support | Y |
RAID levels | 0, 1, 5, 10 |
Graphics
Parallel processing technology support | Not supported |
Internal I/O
USB 2.0 connectors | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
Number of SATA III connectors | 4 |
Front panel audio connector | Y |
ATX Power connector (24-pin) | Y |
CPU fan connector | Y |
Number of chassis fan connectors | 4 |
Chassis intrusion connector | Y |
EPS power connector (8-pin) | Y |
Thunderbolt headers | 1 |
12V power connector | Y |
TPM connector | Y |
Number of COM connectors | 1 |
RGB LED pin header | Y |
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 1 |
DisplayPorts quantity | 1 |
Line-in | Y |
Headphone outputs | 1 |
Microphone in | Y |
WiFi-AP antenna jack | 1 |
Network
Ethernet LAN | Y |
Ethernet interface type | 2.5 Gigabit Ethernet |
Wi-Fi | Y |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
Bluetooth | Y |
Bluetooth version | 5.3 |
Features
Component for | PC |
Motherboard form factor | ATX |
Motherboard chipset family | Intel |
Motherboard chipset | Intel Z790 |
Audio output channels | 7.1 channels |
Power source type | ATX |
Windows operating systems supported | Windows 10 x64, Windows 11 |
Expansion slots
PCI Express x1 (Gen 3.x) slots | 2 |
PCI Express x4 (Gen 4.x) slots | 1 |
PCI Express x16 (Gen 4.x) slots | 1 |
PCI Express x16 (Gen 5.x) slots | 1 |
Number of M.2 (M) slots | 4 |
BIOS
BIOS type | UEFI AMI |
BIOS memory size | 256 Mbit |
Clear CMOS button | Y |
Packaging data
Package width | 280 mm |
Package depth | 265 mm |
Package height | 71 mm |
Package weight | 1.27 kg |
Weight & dimensions
Width | 305 mm |
Depth | 244 mm |
Packaging content
Cables included | SATA |
Drivers included | Y |
be quiet! Silent Base 802 black window (BGW39)
EXCELLENT VERSATILITY, PERFORMANCE AND SILENCE
The be quiet! Silent Base 802 Window Black is the perfect solution for sophisticated users who strive for whisper-quiet operation and maximum performance alike.
The be quiet! Silent Base 802 Window Black is the perfect solution for sophisticated users who strive for whisper-quiet operation and maximum performance alike.
Design
Form factor | Midi Tower |
Type | PC |
Material | Acrylonitrile butadiene styrene (ABS), Steel |
Product colour | Black |
Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
Number of 3.5' bays | 3 |
Number of 2.5' bays | 7 |
Number of expansion slots | 9 |
Side window | Y |
Tempered glass panel(s) | Y |
Anti-dust filter | Y |
Cable management | Y |
On/off button | Y |
Maximum CPU cooler height | 18.5 cm |
Maximum graphics card length | 44.9 cm |
Maximum PSU length | 28.8 cm |
Certification | CE, RoHS |
Power supply
Power supply included | N |
Power supply location | Bottom |
Supported power supply form factors | ATX,PS2 |
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Audio input | Y |
Audio output | Y |
Cooling
Front fans installed | 2x 140 mm |
Number of front fans supported (max) | 3 |
Front fans diameters supported | 120,140 mm |
Rear fans installed | 1x 140 mm |
Number of rear fans supported (max) | 1 |
Rear fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 3 |
Top fans diameters supported | 120,140 mm |
Liquid cooling capability | Y |
Front radiator fan sizes supported | 120,140,240,280,360,420 mm |
Rear radiator fan sizes supported | 120,140 mm |
Top radiator fan sizes supported | 120,240,360 mm |
Storage
Supported HDD sizes | 2.5,3.5' |
Weight & dimensions
Width | 281 mm |
Depth | 539 mm |
Height | 553 mm |
Weight | 13.2 kg |
Packaging data
Package width | 323 mm |
Package depth | 651 mm |
Package height | 615 mm |
Package weight | 14.9 kg |
Other features
Stand included | Y |
Screws included | Y |
3 x 140mm Default Case Fan
Windows 11 64Bit Professional installed activated digital key (ready to work - without data media)
1TB Samsung 980 PRO NVMe M.2 (Read 7000MB/s - Write 5000MB/s)
Next-level SSD performance
Unleash the power of the Samsung PCIe 4.0 NVMe SSD 980 PRO for your next-level computing. Leveraging the PCIe 4.0 interface, the 980 PRO delivers double the data transfer rate of PCIe 3.0 while being backward-compatible for PCIe 3.0 for added versatility.
Maximum speed
Powered by Samsung custom Elpis Controller for PCIe 4.0 SSD, the 980 PRO is optimised for speed. It delivers read speeds up to 7,000 MB/s, making it 2 times faster than PCIe 3.0 SSDs and 12.7 times faster than SATA SSDs. The 980 PRO achieves maximum speeds on PCIe 4.0 and may vary in other environments.
A winning combination
Designed with hardcore gamers and tech-savvy users in mind, the 980 PRO offers high-performance bandwidth and throughput for heavy-duty applications in gaming, graphics, data analytics, and more. It's fast at loading games so you can play more and wait less.
Efficient M.2 SSD
The 980 PRO comes in a compact M.2 2280 form factor, which can be easily plugged into desktops and laptops for maximum board design flexibility. The drive is suitable for building high-performance computing systems due to its optimised power efficiency.
Reliable thermal control
High-performance SSDs usually require high-performance thermal control. To ensure stable performance, the 980 PRO uses nickel coating to help manage the controller's heat level and a heat spreader label to deliver effective thermal control of the NAND chip.
Smart thermal solution
Embedded with Samsung's cutting-edge thermal control algorithm, the 980 PRO manages heat on its own to deliver durable and reliable performance. To minimise performance fluctuations in the long haul, Samsung's Dynamic Thermal Guard technology maintains the 980 PRO's temperature at optimal levels.
Samsung Magician software
Unlock the full power of the 980 PRO with Samsung Magician's intuitive yet advanced optimisation tools. Monitor drive health, optimise performance, protect valuable data, and receive important updates with Samsung Magician to ensure you're always getting the best performance out of your SSD.
World's No. 1 Flash Memory
Experience superior performance and reliability that you can only get from the world's number one brand for flash memory since 2003. All firmware and components, including Samsung's world-renowned DRAM and NAND, are produced in-house, allowing end-to-end integration for quality you can trust.
Unleash the power of the Samsung PCIe 4.0 NVMe SSD 980 PRO for your next-level computing. Leveraging the PCIe 4.0 interface, the 980 PRO delivers double the data transfer rate of PCIe 3.0 while being backward-compatible for PCIe 3.0 for added versatility.
Maximum speed
Powered by Samsung custom Elpis Controller for PCIe 4.0 SSD, the 980 PRO is optimised for speed. It delivers read speeds up to 7,000 MB/s, making it 2 times faster than PCIe 3.0 SSDs and 12.7 times faster than SATA SSDs. The 980 PRO achieves maximum speeds on PCIe 4.0 and may vary in other environments.
A winning combination
Designed with hardcore gamers and tech-savvy users in mind, the 980 PRO offers high-performance bandwidth and throughput for heavy-duty applications in gaming, graphics, data analytics, and more. It's fast at loading games so you can play more and wait less.
Efficient M.2 SSD
The 980 PRO comes in a compact M.2 2280 form factor, which can be easily plugged into desktops and laptops for maximum board design flexibility. The drive is suitable for building high-performance computing systems due to its optimised power efficiency.
Reliable thermal control
High-performance SSDs usually require high-performance thermal control. To ensure stable performance, the 980 PRO uses nickel coating to help manage the controller's heat level and a heat spreader label to deliver effective thermal control of the NAND chip.
Smart thermal solution
Embedded with Samsung's cutting-edge thermal control algorithm, the 980 PRO manages heat on its own to deliver durable and reliable performance. To minimise performance fluctuations in the long haul, Samsung's Dynamic Thermal Guard technology maintains the 980 PRO's temperature at optimal levels.
Samsung Magician software
Unlock the full power of the 980 PRO with Samsung Magician's intuitive yet advanced optimisation tools. Monitor drive health, optimise performance, protect valuable data, and receive important updates with Samsung Magician to ensure you're always getting the best performance out of your SSD.
World's No. 1 Flash Memory
Experience superior performance and reliability that you can only get from the world's number one brand for flash memory since 2003. All firmware and components, including Samsung's world-renowned DRAM and NAND, are produced in-house, allowing end-to-end integration for quality you can trust.
Features
SSD form factor | M.2 |
SSD capacity | 1000 GB |
Interface | PCI Express 4.0 |
Memory type | V-NAND MLC |
NVMe | Y |
NVMe version | 1.3c |
Component for | PC |
Hardware encryption | Y |
Security algorithms | 256-bit WEP |
Read speed | 7000 MB/s |
Write speed | 5000 MB/s |
Random read (4KB) | 1000000 IOPS |
Random write (4KB) | 1000000 IOPS |
S.M.A.R.T. support | Y |
TRIM support | Y |
Mean time between failures (MTBF) | 1500000 h |
Power
Operating voltage | 3.3 V |
Power consumption (max) | 8.9 W |
Power consumption (average) | 6.2 W |
Operational conditions
Operating temperature (T-T) | 0 - 70 °C |
Operating shock | 1500 G |
Weight & dimensions
Width | 80.2 mm |
Depth | 2.38 mm |
Height | 22.1 mm |
Weight | 9 g |
onBoard Sound
onBoard Sound incl. 5.1 or 7.1 look at Ports Layout Plan1000W be quiet! PURE POWER 12 M (BN345) ATX 3.0
onBoard WIFI + Bluetooth
onBoard LAN
ASUS TUF Gaming RTX 4090 O24G (90YV0IE0-M0NA00)
ASUS TUF Gaming GeForce RTX® 4090 OC Edition 24GB GDDR6X optimized inside and out for lower temps and durability. ARMED FOR FLOW The NVIDIA Ada Lovelace architecture elevated by buffed cooling and power delivery, and backed with an arsenal of rugged reinforcements to cover your six. Lock, load, and dominate with the TUF Gaming GeForce RTX® 4090.
Processor
Graphics processor family | NVIDIA |
Graphics processor | GeForce RTX 4090 |
Maximum resolution | 7680 x 4320 pixels |
CUDA | Y |
CUDA cores | 16384 |
Processor frequency (OC mode) | 2595 MHz |
Processor boost clock speed (Gaming mode) | 2565 MHz |
Maximum displays per videocard | 4 |
Parallel processing technology support | Not supported |
Memory
Discrete graphics card memory | 24 GB |
Graphics card memory type | GDDR6X |
Memory bus | 384 bit |
Data transfer rate | 21 Gbit/s |
Ports & interfaces
Interface type | PCI Express 4.0 |
HDMI ports quantity | 2 |
DisplayPorts quantity | 3 |
HDMI version | 2.1a |
DisplayPort version | 1.4a |
Performance
TV tuner integrated | N |
DirectX version | 1?2 Ultimate |
OpenGL version | 4.6 |
HDCP | Y |
Dual Link DVI | N |
NVIDIA G-SYNC | Y |
Design
Cooling type | Active |
Number of fans | 3 fan(s) |
Number of slots | 3.65 |
Illumination | Y |
Illumination colour | Blue, Green, Red |
Product colour | Grey |
Power
Minimum system power supply | 850 W |
Supplementary power connectors | 1x 16-pin |
Weight & dimensions
Weight | 2.34 kg |
Width | 348.2 mm |
Depth | 72.6 mm |
Height | 160 mm |
Packaging data
Manual | Y |
Package width | 425.9 mm |
Package depth | 266 mm |
Package height | 99 mm |
Package weight | 3.36 kg |
Package type | Box |
Intel Core i9-13900K, 8C+16c/32T, 3.00-5.80GHz (BX8071513900K)
Intel Core i9-13900K, Intel® Core™ i9, LGA 1700, Intel, i9-13900K, 64-bit, 13th gen Intel® Core™ i9
Processor
Processor manufacturer | Intel |
Processor family | Intel® Core? i9 |
Processor generation | 13th gen Intel® Core? i9 |
Processor model | i9-13900K |
Processor cores | 24 |
Processor socket | LGA 1700 |
Box | Y |
Processor threads | 32 |
Processor operating modes | 64-bit |
Performance cores | 8 |
Efficient cores | 16 |
Processor boost frequency | 5.8 GHz |
Performance-core boost frequency | 5.4 GHz |
Performance-core base frequency | 3 GHz |
Efficient-core boost frequency | 4.3 GHz |
Efficient-core base frequency | 2.2 GHz |
Processor cache | 36 MB |
Processor cache type | Smart Cache |
Maximum turbo power | 253 W |
Processor base power | 125 W |
Stepping | B0 |
Bus type | DMI4 |
Maximum number of DMI lanes | 8 |
Processor codename | Raptor Lake |
Memory
Maximum internal memory supported by processor | 128 GB |
Memory types supported by processor | DDR4-SDRAM, DDR5-SDRAM |
Memory channels | Dual-channel |
Memory bandwidth (max) | 89.6 GB/s |
ECC | Y |
Graphics
Discrete graphics card | N |
On-board graphics card | Y |
On-board graphics card model | Intel UHD Graphics 770 |
On-board graphics card outputs supported | Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1 |
On-board graphics card dynamic frequency (max) | 1650 MHz |
On-board graphics card base frequency | 300 MHz |
Number of displays supported (on-board graphics) | 4 |
On-board graphics card DirectX version | 12.0 |
On-board graphics card OpenGL version | 4.5 |
On-board graphics card maximum resolution (HDMI) | 4096 x 2160 pixels |
On-board graphics card maximum resolution (eDP - Integrated Flat Panel) | 5120 x 3200 pixels |
On-board graphics card maximum resolution (DisplayPort) | 7680 x 4320 pixels |
On-board graphics card refresh rate at maximum resolution (HDMI) | 60 Hz |
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) | 120 Hz |
On-board graphics card refresh rate at maximum resolution (DisplayPort) | 60 Hz |
On-board graphics card ID | 0xA780 |
Discrete graphics card model | Not available |
Number of execution units | 32 |
Multi-Format Codec Engines | 2 |
Features
Thermal Monitoring Technologies | Y |
Idle States | Y |
Execute Disable Bit | Y |
Market segment | Desktop |
Use conditions | PC/Client/Tablet, Workstation |
Maximum number of PCI Express lanes | 20 |
PCI Express slots version | 4.0, 5.0 |
PCI Express configurations | 1x16+1x4, 2x8+1x4 |
Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
Direct Media Interface (DMI) Revision | 4.0 |
Embedded options available | N |
Scalability | 1S |
CPU configuration (max) | 1 |
Harmonized System (HS) code | 8542310001 |
Export Control Classification Number (ECCN) | 5A992C |
Commodity Classification Automated Tracking System (CCATS) | 740.17B1 |
Processor special features
Enhanced Intel SpeedStep Technology | Y |
Intel Trusted Execution Technology | Y |
Intel® Speed Shift Technology | Y |
Intel® Hyper Threading Technology (Intel® HT Technology) | Y |
Intel® AES New Instructions (Intel® AES-NI) | Y |
Intel® Clear Video HD Technology (Intel® CVT HD) | Y |
Intel® Turbo Boost Technology | 2.0 |
Intel® Quick Sync Video Technology | Y |
Intel® Thermal Velocity Boost | Y |
Intel® Turbo Boost Max Technology 3.0 frequency | 5.7 GHz |
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 | Y |
Intel® Thermal Velocity Boost Frequency | 5.8 GHz |
Intel® Control-flow Enforcement Technology (CET) | Y |
Intel® Thread Director | Y |
Intel® Volume Management Device (VMD) | Y |
Mode-based Execute Control (MBE) | Y |
Intel® Deep Learning Boost (Intel® DL Boost) | Y |
Intel® Virtualization Technology with Redirect Protection (VT-rp) | Y |
Intel® Boot Guard | Y |
Intel® Stable IT Platform Program (SIPP) | Y |
Intel® Standard Manageability (ISM) | Y |
Intel VT-x with Extended Page Tables (EPT) | Y |
Intel Stable Image Platform Program (SIPP) | Y |
Intel® Secure Key | Y |
Intel® OS Guard | Y |
Intel 64 | Y |
Intel Virtualization Technology for Directed I/O (VT-d) | Y |
Intel Virtualization Technology (VT-x) | Y |
Intel Turbo Boost Max Technology 3.0 | Y |
Operational conditions
Tjunction | 100 °C |
Packaging data
Package type | Retail box |
Technical details
OpenCL version | 3.0 |
Target market | Gaming, Content Creation |
Status | Launched |
Launch date | Q4'22 |
Other features
L2 cache | 32768 KB |
Graphics output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
Nicht warten - einfach finanzieren!
Bezahlen Sie schnell und unkompliziert in kleinen Monatsraten. Einfach Artikel auswählen, zur Kasse gehen
und mit der Zahlungsart "Finanzierung" die Ware bezahlen.
Weitere Details
Mögliche Laufzeiten:
Laufzeit in Monaten | Monatlich Rate | Effektiver Jahreszins | Gebundener jährl. Sollzinssatz | Gesambetrag |
6 | 6×28,95 EUR | 9,9 % | 9,48 % | 173,70 EUR |
10 | 12×17,64 EUR | 9,9 % | 9,48 % | 176,43 EUR |
12 | 12×14,82 EUR | 9,9 % | 9,48 % | 177,80 EUR |
18 | 18×10,11 EUR | 9,9 % | 9,48 % | 181,96 EUR |
Diese Angaben stellen zugleich das repräsentative Beispiel im Sinne des § 6a PangV dar. Vermittlung erfolgt ausschließlich für die Commerz Finanz GmbH, Schwanthalerstr. 31, 80336 München.
Mainboard connectors PC connectors on the back
(monitor/graphics card connectors are disabled if a VGA/GPU graphics card is installed additionally)
(monitor/graphics card connectors are disabled if a VGA/GPU graphics card is installed additionally)

LAN
1x


HDMI
1x


Display Port
1x

USB-A 3.0 Mainboard
4x

USB-A 3.1
2x

USB-C 3.1
2x

Audio Connectors
5.1

Bluetooth
1x

W-LAN
1x
Graphics card / monitor connections

HDMI
2x

Display Port
3x
Front connections front side / top of the case

Audio In/Out
1x

USB-A 3.0
2x

USB-C 3.1
1x
Expansion cards - PCI / PCIe

W-LAN
1x
These connection options have been generated for you. In individual cases, deviations are possible.

1000 GB NVMe SSD M.2 High Speed
The NVMe interface offers the fastest data transfer currently available for already fast M.2 SSDs. This 1000 GB drive uses the fast NVMe technology. Waiting times are now a thing of the past!
mehr anzeigen
weniger anzeigen

Wlan / WiFi & Bluetooth
This device has WiFi / WLAN for wireless internet reception and Bluetooth functionality for wireless connection with peripherals. Be ready for any situation!
mehr anzeigen
weniger anzeigen

Windows 11
The latest operating system from Microsoft with the latest designs, drivers and support for the most modern hardware.
This machine has Windows 11 installed with all drivers.
mehr anzeigen
weniger anzeigen
