Flight Simulator 2020 PC Intel Core i9-13900KF RTX 4080 16GB 64GB 5600MHz DDR5 2TB NVMe M.2 SSD 1000W be quiet! Win 11 Pro onBoard WIFI + Bluetooth
Article number:
4260561743204
In stock
Bulletpoints
- [ Item number EAN: 4260561743204 ] --- Intel CPU i9-13900KF 24 Cores 5.8GHz LGA1700 (BX8071513900KF) - ASUS ROG STRIX Z690-F GAMING WIFI (90MB18M0-M0EAY0) - 64GB Kingston FURY Beast 5600MHz DDR5 (KF556C40BBK2-64)
- Nvidia GeForce RTX 4080 16GB HDMI / DisplayPort - 1000W Be Quiet! PURE POWER 12 M (BN345) - be quiet! Silent Base 802 black window (BGW39) - onBoard WIFI + Bluetooth
- 2TB Samsung 980 PRO NVMe M.2 (Read 7000MB/s - Write 5100MB/s)
- Windows 11 64Bit Professional installiert aktiviert DPK (Ready to Work - ohne Datenträger)
- Assembled, tested and checked - 2 years warranty
Intel Core i9-13900KF
ROG STRIX Z690-F GAMING WIFI
RTX 4080 16GB
64GB 5600MHz DDR5
2TB Samsung 980 PRO
1000W be quiet!
Silent Base 802 (BGW39)
Windows 11 64Bit Prof.
onBoard WIFI + Bluetooth
System performance
Office
Multimedia
Gaming
Workstation/CAD
System performance
Office
Multimedia
Gaming
Workstation/CAD
Product information "Flight Simulator 2020 PC Intel Core i9-13900KF RTX 4080 16GB 64GB 5600MHz DDR5 2TB NVMe M.2 SSD 1000W be quiet! Win 11 Pro onBoard WIFI + Bluetooth"
CPU (Processor) | Intel Core i9-13900KF, 8C+16c/32T, 3.00-5.80GHz (BX8071513900KF) |
Mainboard | ASUS ROG STRIX Z690-F GAMING WIFI (90MB18M0-M0EAY0) |
Video Card (VGA Card) | Nvidia GeForce RTX 4080 16GB HDMI / DisplayPort |
System Memory (RAM) | 64GB Kingston FURY Beast 5600MHz DDR5 (KF556C40BBK2-64) |
SSD | 2TB Samsung 980 PRO NVMe M.2 (Read 7000MB/s - Write 5100MB/s) |
Power Supply Unit (PSU) | 1000W be quiet! PURE POWER 12 M (BN345) ATX 3.0 |
Case (Case) | be quiet! Silent Base 802 black window (BGW39) |
CPU Cooler (Cooler) | Corsair iCUE H150i RGB ELITE (CW-9060060-WW) |
Operating System (Ready to use installed) | Windows 11 64Bit Professional installed activated digital key (ready to work - without data media) |
Case Fan | 3X 140mm Default Case Fan |
W-LAN Unit internal | onBoard WIFI + Bluetooth |

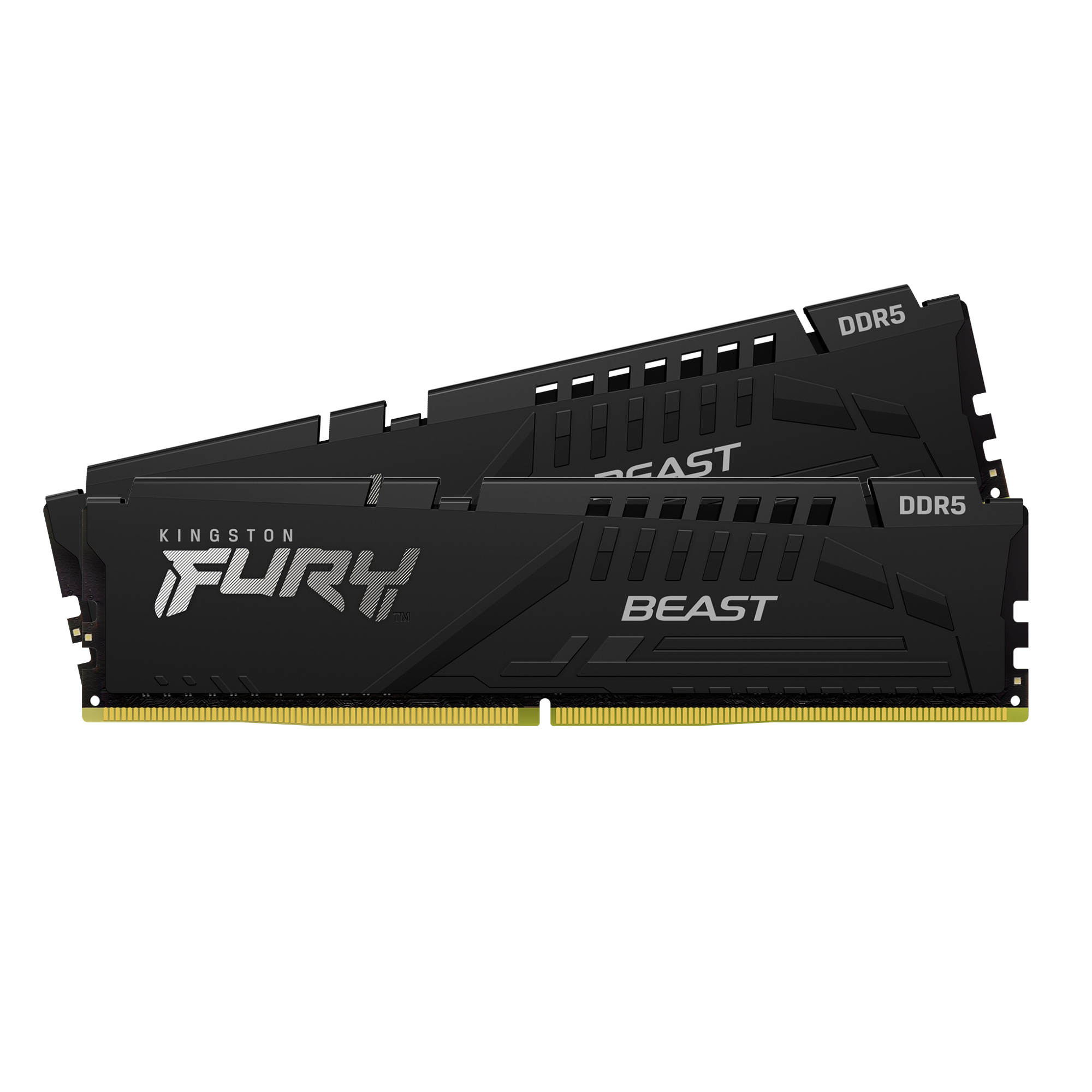

64GB Kingston FURY Beast 5600MHz DDR5 (KF556C40BBK2-64)
Kingston Technology FURY Beast, 64 GB, 2 x 32 GB, DDR5, 5600 MHz, 288-pin DIMM
Features
Buffered memory type | Unregistered (unbuffered) |
Internal memory | 64 GB |
Memory layout (modules x size) | 2 x 32 GB |
Internal memory type | DDR5 |
Memory clock speed | 5600 MHz |
Component for | PC/Server |
Memory form factor | 288-pin DIMM |
ECC | N |
On-Die ECC | Y |
CAS latency | 40 |
Memory ranking | 2 |
Memory voltage | 1.25 V |
Module configuration | 4096M x 64 |
Row cycle time | 48 ns |
Refresh row cycle time | 295 ns |
Row active time | 32 ns |
Intel Extreme Memory Profile (XMP) | Y |
Intel Extreme Memory Profile (XMP) version | 3.0 |
Programming power voltage (VPP) | 1.8 V |
Cooling type | Heatsink |
Lead plating | Gold |
JEDEC standard | Y |
Operational conditions
Operating temperature (T-T) | 0 - 85 °C |
Storage temperature (T-T) | -55 - 100 °C |
Weight & dimensions
Width | 133.3 mm |
Height | 31.2 mm |
Intel Core i9-13900KF, 8C+16c/32T, 3.00-5.80GHz (BX8071513900KF)
Intel Core i9-13900KF, Intel® Core™ i9, LGA 1700, Intel, i9-13900KF, 64-bit, 13th gen Intel® Core™ i9
Processor
Processor manufacturer | Intel |
Processor family | Intel® Core? i9 |
Processor generation | 13th gen Intel® Core? i9 |
Processor model | i9-13900KF |
Processor cores | 24 |
Processor socket | LGA 1700 |
Box | Y |
Processor threads | 32 |
Processor operating modes | 64-bit |
Performance cores | 8 |
Efficient cores | 16 |
Processor boost frequency | 5.8 GHz |
Performance-core boost frequency | 5.4 GHz |
Performance-core base frequency | 3 GHz |
Efficient-core boost frequency | 4.3 GHz |
Efficient-core base frequency | 2.2 GHz |
Processor cache | 36 MB |
Processor cache type | Smart Cache |
Maximum turbo power | 253 W |
Processor base power | 125 W |
Stepping | B0 |
Maximum number of DMI lanes | 8 |
Processor codename | Raptor Lake |
Memory
Maximum internal memory supported by processor | 128 GB |
Memory types supported by processor | DDR4-SDRAM, DDR5-SDRAM |
Memory channels | Dual-channel |
Memory bandwidth (max) | 89.6 GB/s |
Graphics
On-board graphics card | N |
Discrete graphics card | N |
On-board graphics card model | Not available |
Discrete graphics card model | Not available |
Features
Thermal Monitoring Technologies | Y |
Idle States | Y |
Execute Disable Bit | Y |
Market segment | Desktop |
Use conditions | PC/Client/Tablet |
Maximum number of PCI Express lanes | 20 |
PCI Express slots version | 4.0, 5.0 |
PCI Express configurations | 1x16+1x4, 2x8+1x4 |
Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
Direct Media Interface (DMI) Revision | 4.0 |
Embedded options available | N |
Scalability | 1S |
CPU configuration (max) | 1 |
Harmonized System (HS) code | 8542310001 |
Export Control Classification Number (ECCN) | 5A992C |
Commodity Classification Automated Tracking System (CCATS) | 740.17B1 |
Processor special features
Intel® Speed Shift Technology | Y |
Intel® Hyper Threading Technology (Intel® HT Technology) | Y |
Enhanced Intel SpeedStep Technology | Y |
Intel® Turbo Boost Technology | 2.0 |
Intel® AES New Instructions (Intel® AES-NI) | Y |
Intel® Thermal Velocity Boost | Y |
Intel® Turbo Boost Max Technology 3.0 frequency | 5.7 GHz |
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 | Y |
Intel® Thermal Velocity Boost Frequency | 5.8 GHz |
Intel® Control-flow Enforcement Technology (CET) | Y |
Intel® Thread Director | Y |
Intel® Deep Learning Boost (Intel® DL Boost) | Y |
Intel® Boot Guard | Y |
Intel® Volume Management Device (VMD) | Y |
Intel® Standard Manageability (ISM) | Y |
Intel Turbo Boost Max Technology 3.0 | Y |
Mode-based Execute Control (MBE) | Y |
Intel VT-x with Extended Page Tables (EPT) | Y |
Intel® Secure Key | Y |
Intel® OS Guard | Y |
Intel 64 | Y |
Intel Virtualization Technology (VT-x) | Y |
Intel Virtualization Technology for Directed I/O (VT-d) | Y |
Operational conditions
Tjunction | 100 °C |
Technical details
Status | Launched |
Launch date | Q4'22 |
Other features
L2 cache | 32768 KB |
ASUS ROG STRIX Z690-F GAMING WIFI (90MB18M0-M0EAY0)
ASUS ROG-STRIX-Z690-F-GAMING-WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Core? i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium G, DDR5-SDRAM, 128 GB, DIMM
Processor
Processor manufacturer | Intel |
Processor socket | LGA 1700 |
Compatible processor series | Intel® Celeron®, Intel® Core? i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium G |
Memory
Supported memory types | DDR5-SDRAM |
Number of memory slots | 4 |
Memory slots type | DIMM |
Memory channels | Dual-channel |
Non-ECC | Y |
Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
Maximum internal memory | 128 GB |
Unbuffered memory | Y |
Storage controllers
Supported storage drive types | HDD & SSD |
Supported storage drive interfaces | M.2,SATA |
RAID support | Y |
RAID levels | 0,1,5,10 |
Graphics
Parallel processing technology support | Not supported |
Internal I/O
USB 2.0 connectors | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
Number of SATA III connectors | 6 |
Front panel audio connector | Y |
ATX Power connector (24-pin) | Y |
Power fan connector | Y |
CPU fan connector | Y |
Number of chassis fan connectors | 5 |
EPS power connector (8-pin) | Y |
TPM connector | Y |
12V power connector | Y |
RGB LED pin header | Y |
Rear panel I/O ports
USB 2.0 ports quantity | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 1 |
HDMI version | 2.1 |
Headphone outputs | 1 |
Microphone in | Y |
S/PDIF out port | Y |
Network
Ethernet LAN | Y |
Ethernet interface type | 2.5 Gigabit Ethernet |
Wi-Fi | Y |
Top Wi-Fi standard | Wi-Fi 6E (802.11az) |
Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax) |
Bluetooth | Y |
Bluetooth version | 5.2 |
Features
Component for | PC |
Motherboard form factor | ATX |
Motherboard chipset family | Intel |
Motherboard chipset | Intel Z690 |
Audio chip | Realtek ALC4080 |
Audio output channels | 7.1 channels |
Windows operating systems supported | Windows 10,Windows 11 |
Expansion slots
PCI Express x1 (Gen 3.x) slots | 1 |
PCI Express x16 (Gen 3.x) slots | 1 |
Number of M.2 (M) slots | 4 |
BIOS
BIOS type | UEFI AMI |
BIOS memory size | 256 Mbit |
Clear CMOS button | Y |
Weight & dimensions
Width | 244 mm |
Height | 305 mm |
Packaging content
Cables included | SATA |
Drivers included | Y |
Other features
Packaging content | 4 x SATA 6Gb/s cables 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas 1 x M.2 Q-Latch package 1 x M.2 Q-Latch package for M.2 backplate 2 x M.2 Rubber Packages 1 x ROG key chain 1 x cable tie 1 x ROG STRIX stickers 1 x ROG STRIX thank you card 1 x Support DVD 1 x User manual |
be quiet! Silent Base 802 black window (BGW39)
EXCELLENT VERSATILITY, PERFORMANCE AND SILENCE
The be quiet! Silent Base 802 Window Black is the perfect solution for sophisticated users who strive for whisper-quiet operation and maximum performance alike.
The be quiet! Silent Base 802 Window Black is the perfect solution for sophisticated users who strive for whisper-quiet operation and maximum performance alike.
Design
Form factor | Midi Tower |
Type | PC |
Material | Acrylonitrile butadiene styrene (ABS), Steel |
Product colour | Black |
Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
Number of 3.5' bays | 3 |
Number of 2.5' bays | 7 |
Number of expansion slots | 9 |
Side window | Y |
Tempered glass panel(s) | Y |
Anti-dust filter | Y |
Cable management | Y |
On/off button | Y |
Maximum CPU cooler height | 18.5 cm |
Maximum graphics card length | 44.9 cm |
Maximum PSU length | 28.8 cm |
Certification | CE, RoHS |
Power supply
Power supply included | N |
Power supply location | Bottom |
Supported power supply form factors | ATX,PS2 |
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Audio input | Y |
Audio output | Y |
Cooling
Front fans installed | 2x 140 mm |
Number of front fans supported (max) | 3 |
Front fans diameters supported | 120,140 mm |
Rear fans installed | 1x 140 mm |
Number of rear fans supported (max) | 1 |
Rear fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 3 |
Top fans diameters supported | 120,140 mm |
Liquid cooling capability | Y |
Front radiator fan sizes supported | 120,140,240,280,360,420 mm |
Rear radiator fan sizes supported | 120,140 mm |
Top radiator fan sizes supported | 120,240,360 mm |
Storage
Supported HDD sizes | 2.5,3.5' |
Weight & dimensions
Width | 281 mm |
Depth | 539 mm |
Height | 553 mm |
Weight | 13.2 kg |
Packaging data
Package width | 323 mm |
Package depth | 651 mm |
Package height | 615 mm |
Package weight | 14.9 kg |
Other features
Stand included | Y |
Screws included | Y |
3 x 140mm Default Case Fan
Windows 11 64Bit Professional installed activated digital key (ready to work - without data media)

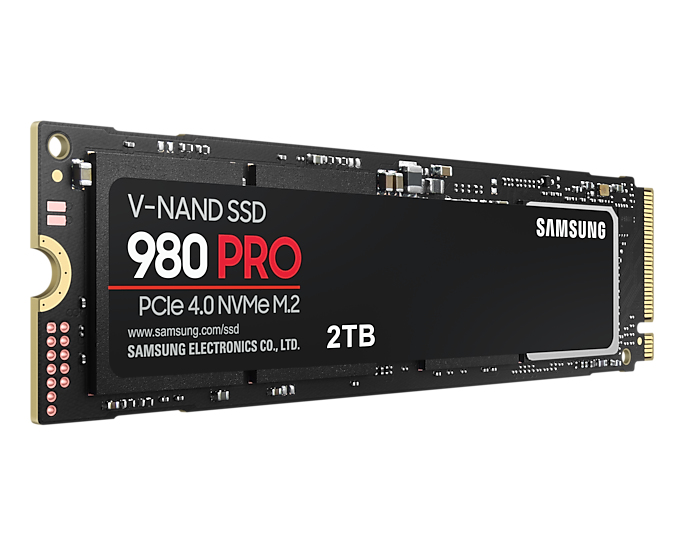

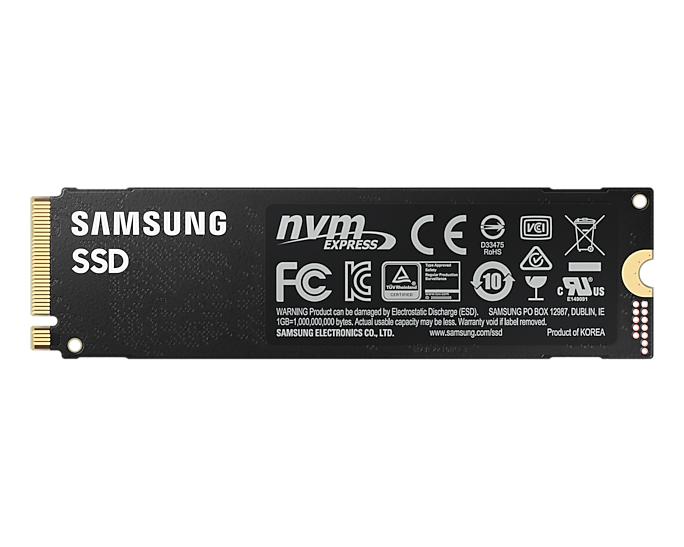

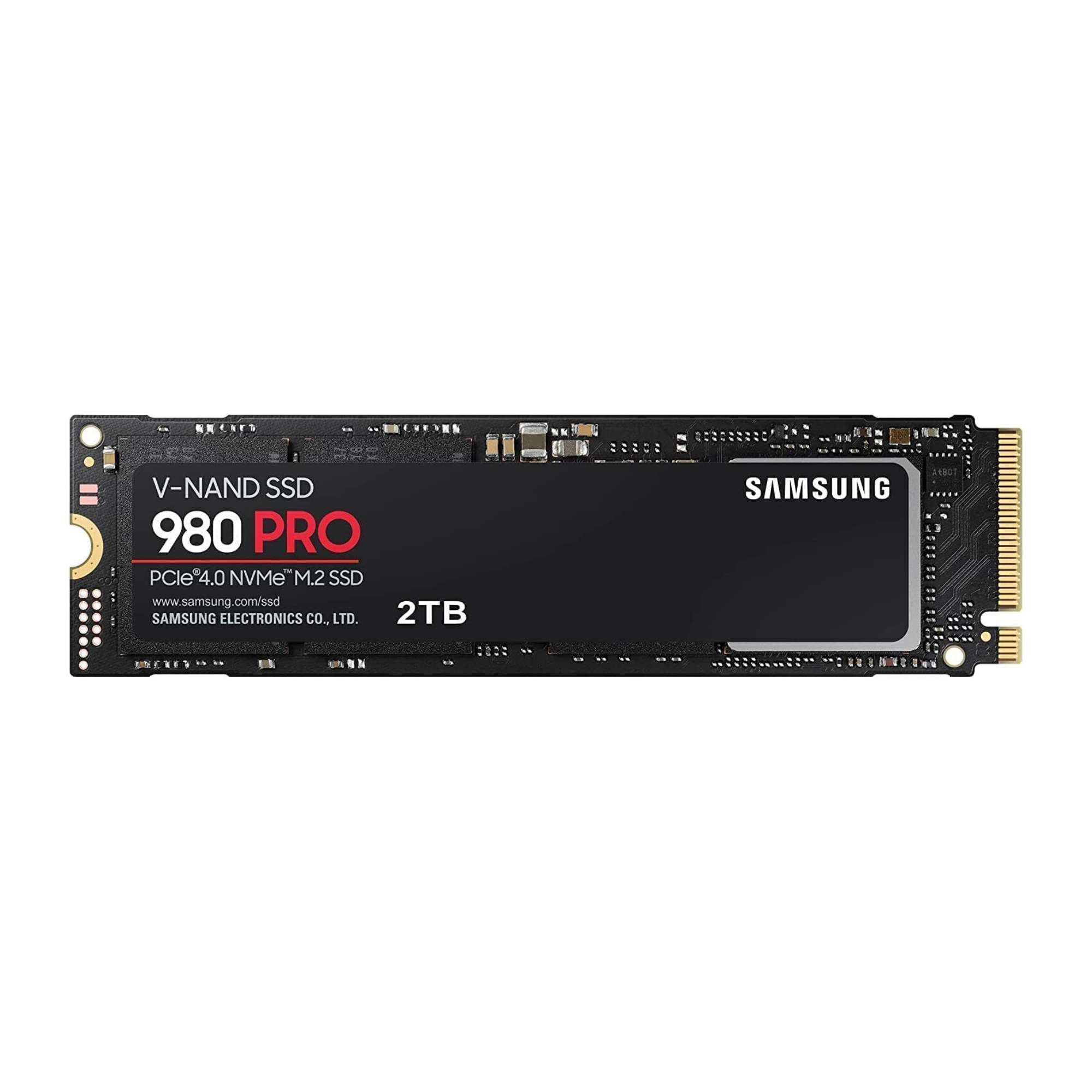

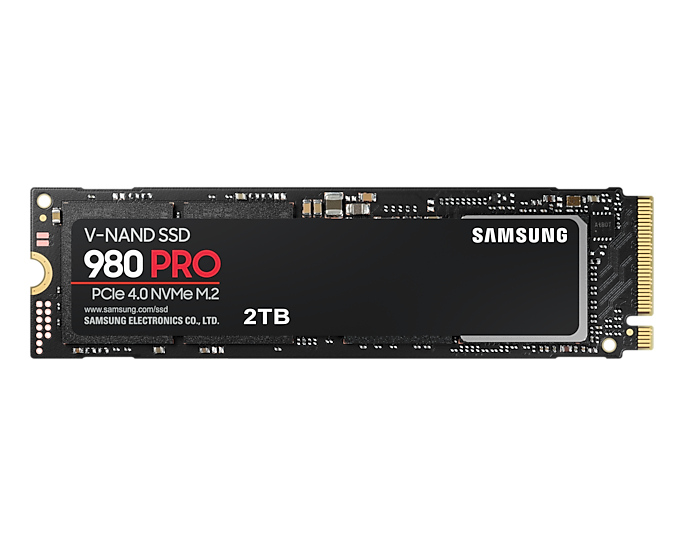

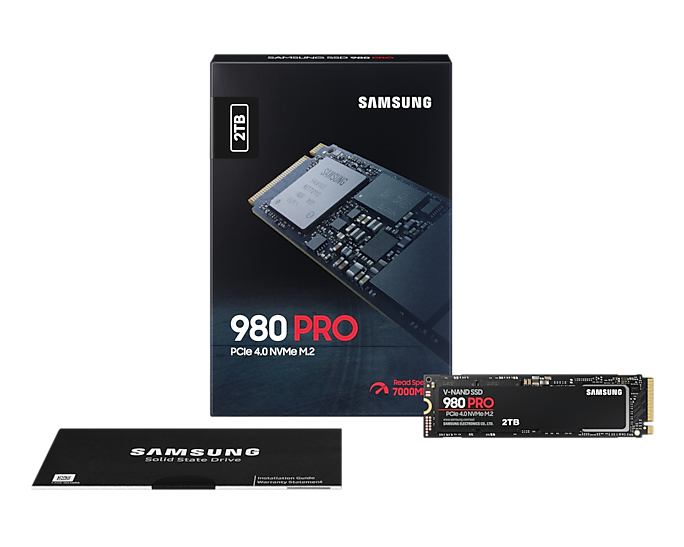

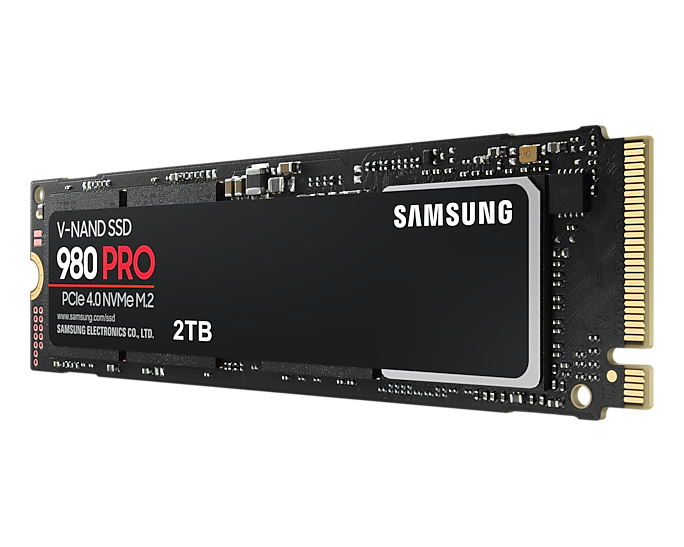

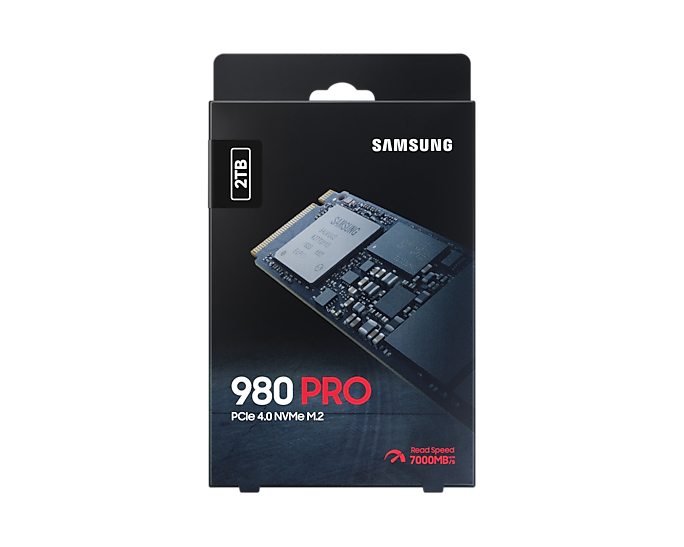

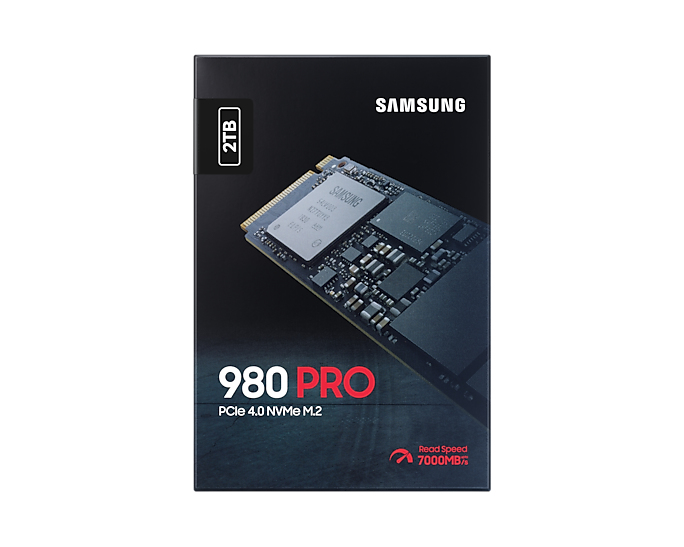

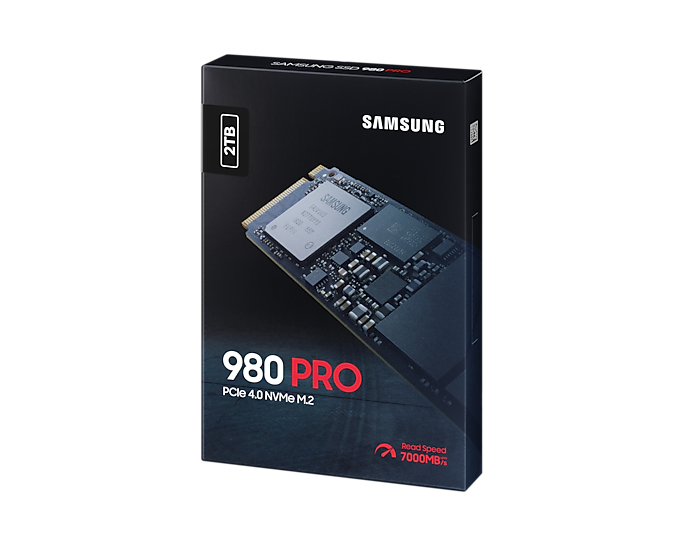

2TB Samsung 980 PRO NVMe M.2 (Read 7000MB/s - Write 5100MB/s)
Next-level SSD performance Unleash the power of the Samsung PCIe 4.0 NVMe SSD 980 PRO for your next-level computing. Leveraging the PCIe 4.0 interface, the 980 PRO delivers double the data transfer rate of PCIe 3.0 while being backward compatible for PCIe 3.0 for added versatility. Maximum speed Powered by Samsung custom Elpis Controller for PCIe 4.0 SSD, the 980 PRO is optimized for speed. It delivers read speeds up to 7,000 MB/s, making it 2 times faster than PCIe 3.0 SSDs and 12.7 times faster than SATA SSDs. The 980 PRO achieves max speeds on PCIe 4.0 and may vary in other environments. A winning combination Designed with hardcore gamers and tech-savvy users in mind, the 980 PRO offers high-performance bandwidth and throughput for heavy-duty applications in gaming, graphics, data analytics, and more. It's fast at loading games so you can play more and wait less. Efficient M.2 SSD The 980 PRO comes in a compact M.2 2280 form factor, which can be easily plugged into desktops and laptops for maximum board design flexibility. The drive is suitable for building high-performance computing systems due to its optimized power efficiency. Reliable thermal control High-performance SSDs usually require high-performance thermal control. To ensure stable performance, the 980 PRO uses nickel coating to help manage the controller's heat level and a heat spreader label to deliver effective thermal control of the NAND chip. Smart thermal solution Embedded with Samsung's cutting-edge thermal control algorithm, the 980 PRO manages heat on its own to deliver durable and reliable performance. To minimize performance fluctuations in the long haul, Samsung's Dynamic Thermal Guard technology maintains the 980 PRO's temperature at optimal levels. Samsung Magician software Unlock the full power of the 980 PRO with Samsung Magician's intuitive yet advanced optimization tools. Monitor drive health, optimize performance, protect valuable data, and receive important updates with Magician to ensure you're always getting the best performance out of your SSD. World's No. 1 Flash Memory Experience superior performance and reliability that you can only get from the world's number one brand for flash memory since 2003. All firmware and components, including Samsung's world-renowned DRAM and NAND, are produced in-house, allowing end-to-end integration for quality you can trust. * Source: 2003-2019 IHS Markit data: NAND suppliers' revenue market share.
Features
SSD form factor | M.2 |
SSD capacity | 2000 GB |
Interface | PCI Express 4.0 |
Memory type | V-NAND MLC |
NVMe | Y |
NVMe version | 1.3c |
Component for | PC/notebook |
Hardware encryption | Y |
Security algorithms | 256-bit AES |
Read speed | 7000 MB/s |
Write speed | 5100 MB/s |
Random read (4KB) | 1000000 IOPS |
Random write (4KB) | 1000000 IOPS |
PCI Express interface data lanes | x4 |
S.M.A.R.T. support | Y |
TRIM support | Y |
Mean time between failures (MTBF) | 1500000 h |
Power
Operating voltage | 3.3 V |
Power consumption (max) | 7.2 W |
Power consumption (average) | 6.1 W |
Power consumption (standby) | 0.035 W |
Operational conditions
Operating temperature (T-T) | 0 - 70 °C |
Maximum operating temperature | 70 °C |
Operating shock | 1500 G |
Weight & dimensions
Width | 80.2 mm |
Depth | 2.38 mm |
Height | 22.1 mm |
Weight | 9 g |
Packaging data
Package type | Box |
onBoard Sound
onBoard Sound incl. 5.1 or 7.1 look at Ports Layout PlanNvidia GeForce RTX 4080 16GB HDMI / DisplayPort
1000W be quiet! PURE POWER 12 M (BN345) ATX 3.0
Corsair iCUE H150i RGB ELITE (CW-9060060-WW)
Corsair iCUE H150i RGB ELITE, All-in-one liquid cooler, 12 cm, 1850 RPM, 19 dB, 35.8 dB, 65.57 cfm
Performance
Suitable location | Processor |
Type | All-in-one liquid cooler |
Fan diameter | 12 cm |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2066, Socket AM4, Socket AM5, Socket TR4, Socket sTRX4 |
Rotational speed (max) | 1850 RPM |
Noise level (low speed) | 19 dB |
Noise level (high speed) | 35.8 dB |
Minimum airflow (imperial) | 16.5 cfm |
Maximum airflow | 65.57 cfm |
Minimum air pressure | 0.15 mmH2O |
Maximum air pressure | 2.68 mmH2O |
Pulse-width modulation (PWM) support | Y |
Quantity per pack | 1 pc(s) |
Design
Product colour | Black |
Radiator material | Aluminum |
Base plate material | Copper |
Number of fans | 3 fan(s) |
Illumination LED | Y |
Number of LEDs | 16 |
Illumination colour | Multi |
Weight & dimensions
Radiator width | 39.7 cm |
Radiator depth | 12 cm |
Radiator height | 2.7 cm |
Tube length | 45 cm |
Weight | 1.1 kg |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Packaging content
Mounting kit | Y |
Screws included | Y |
onBoard WIFI + Bluetooth
onBoard LAN
Nicht warten - einfach finanzieren!
Bezahlen Sie schnell und unkompliziert in kleinen Monatsraten. Einfach Artikel auswählen, zur Kasse gehen
und mit der Zahlungsart "Finanzierung" die Ware bezahlen.
Weitere Details
Mögliche Laufzeiten:
Laufzeit in Monaten | Monatlich Rate | Effektiver Jahreszins | Gebundener jährl. Sollzinssatz | Gesambetrag |
6 | 6×28,95 EUR | 9,9 % | 9,48 % | 173,70 EUR |
10 | 12×17,64 EUR | 9,9 % | 9,48 % | 176,43 EUR |
12 | 12×14,82 EUR | 9,9 % | 9,48 % | 177,80 EUR |
18 | 18×10,11 EUR | 9,9 % | 9,48 % | 181,96 EUR |
Diese Angaben stellen zugleich das repräsentative Beispiel im Sinne des § 6a PangV dar. Vermittlung erfolgt ausschließlich für die Commerz Finanz GmbH, Schwanthalerstr. 31, 80336 München.
Mainboard connectors PC connectors on the back
(monitor/graphics card connectors are disabled if a VGA/GPU graphics card is installed additionally)
(monitor/graphics card connectors are disabled if a VGA/GPU graphics card is installed additionally)

LAN
1x


HDMI
1x


Display Port
1x

USB 2.0
2x

USB-A 3.0 Mainboard
4x

USB-A 3.1
2x

USB-C 3.0
1x

USB-C 3.1
1x

Audio Connectors Toslink
7.1x

Bluetooth
1x

W-LAN
1x
Graphics card / monitor connections

HDMI
1x

Display Port
3x
Front connections front side / top of the case

Audio In/Out
1x

USB-A 3.0
2x

USB-C 3.1
1x
Expansion cards - PCI / PCIe

W-LAN
1x
These connection options have been generated for you. In individual cases, deviations are possible.

NVIDIA Geforce RTX 4080
The NVIDIA Geforce RTX 4080 is one of the most powerful graphics cards on the market.
It features 16GB of GDDR6X memory, 9,728 CUDA cores, 48 RT compute units, 192 Tensor compute units, and supports HDMI 2.1, PCIe 4.0, and DisplayPort 1.4a.
In summary, the NVIDIA Geforce RTX 4080 offers fast ray tracing and AI-accelerated performance with DLSS 3, high energy efficiency with Ada Lovelace architecture, and broad support for various interfaces and features.
mehr anzeigen
weniger anzeigen

Wlan / WiFi & Bluetooth
This device has WiFi / WLAN for wireless internet reception and Bluetooth functionality for wireless connection with peripherals. Be ready for any situation!
mehr anzeigen
weniger anzeigen

Windows 11
The latest operating system from Microsoft with the latest designs, drivers and support for the most modern hardware.
This machine has Windows 11 installed with all drivers.
mehr anzeigen
weniger anzeigen
