Office Work V1 | Intel Core i7 7700 | AMD Radeon RX550 4GB | 16GB RAM | 1TB M.2 SSD | DVD writer | Card reader | Windows 11 | WiFi | LibreOffice

Article number: 4260561747424

In stock

Bulletpoints

EAN 4260561747424 - Our Office Work V1 PC is equipped with a Core i7 7700 4 x 3.60 GHz processor and 16GB RAM branded memory. Experience the combined power of a fast CPU and fast RAM!
The PC is equipped with a fast 1000GB M.2 SSD. It has 2 x USB 2.0 and 4 x USB 3.0 ports.
This office PC system is equipped with an AMD Radeon RX550 4GB DP / DVI / HDMI. A 75in1 card reader reads all your SD and Micro SD cards and is complemented by the Super Multi DL writer. The system is housed in our modern office case.
For your best user experience, our Ankermann PC is equipped with Windows 11 to get started right away, without bloatware and software trial versions. We have installed a WiFi card for WLAN reception. Windows and all drivers are installed. Including LibreOffice with Writer / Calc / Impress / Draw / Base / Math.
Ankermann's service offers you many years of experience with manufacturing, distribution and quality assurance of computers in Germany and 24 months warranty on our hardware. 6 months return service in case of warranty and a fast and friendly customer support are standard.

RX 550

16GB RAM

1TB NVMe SSD

Elite U9

Silent

Windows 11 64Bit Prof.

WLAN/WIFI

Office

€499.00

€902.00

including 19 % VAT, plus Shipping costs

In stock Lead time to ship: 5-8 Business Days

System performance

Office

Multimedia

Gaming

Workstation/CAD

System performance

Office

Multimedia

Gaming

Workstation/CAD

CPU (Processor)	Intel Core i7-7700 4x 3,6 GHz (CM8067702868314)
Mainboard	Fujitsu ESPRIMO P557 D3500-A11 GS 1

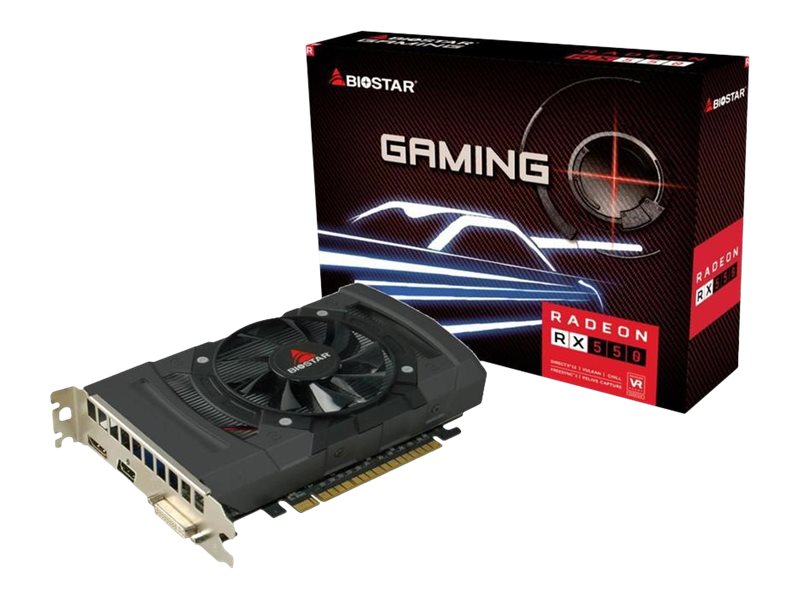

Video Card (VGA Card)	Biostar Radeon RX550 4GB GDDR5 (VA5515RF41)
System Memory (RAM)	16GB Crucial / TEAM / Samsung RAM DDR4 Memory
SSD	1000GB M.2 NVME High Performance PCIe SSD
Disc Drive (Drive)	Brenner DVD Super Multi DL Writer Schwarz
Power Supply Unit (PSU)	PSU built with Case internal Silent

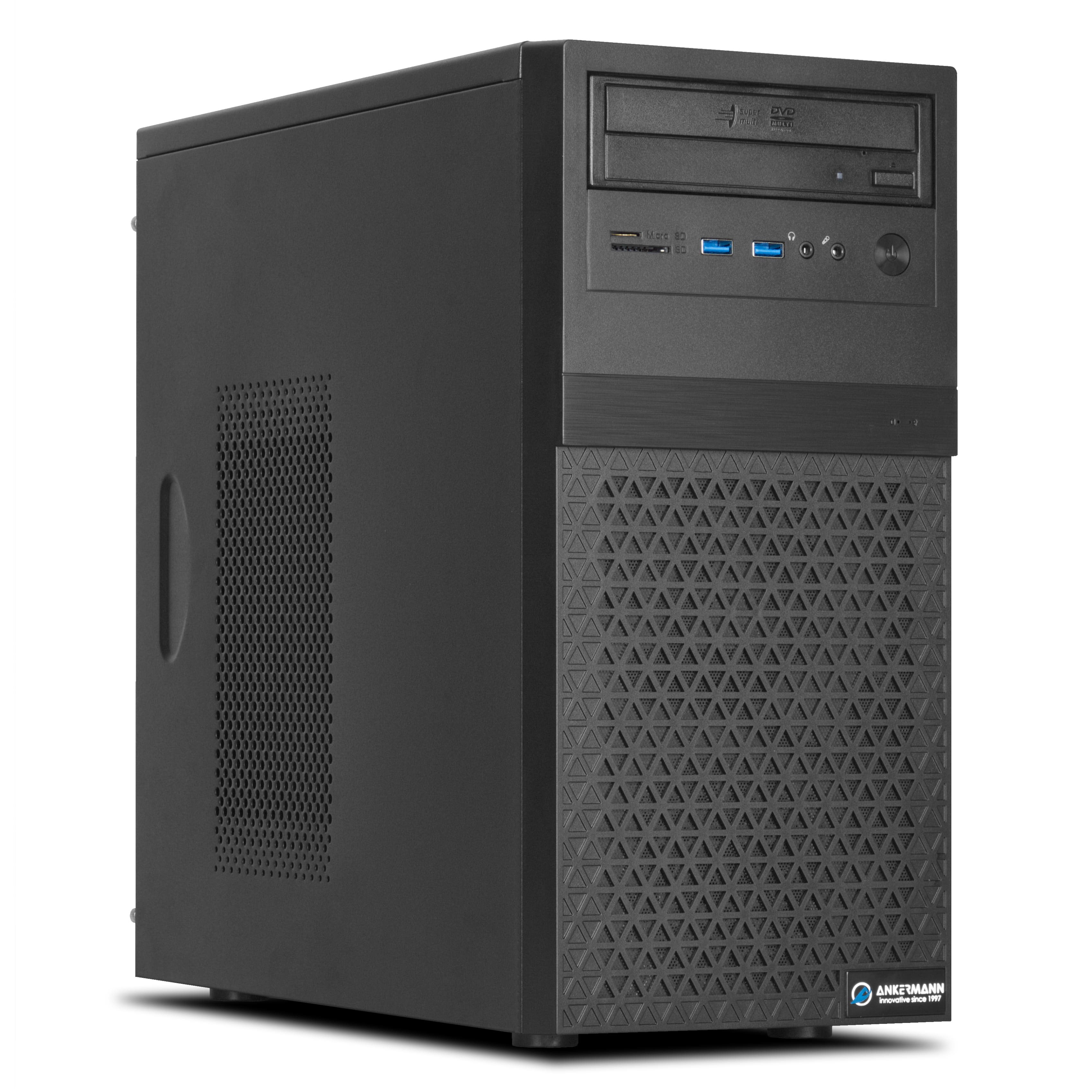

Case (Case)	A-Dis (ELITE U9) 2x USB 3.0, SD Cardreader in Front
CPU Cooler (Cooler)	Performance Marken CPU Kühler Quality Silent
Operating System (Ready to use installed)	Windows 11 64Bit Professional installed activated digital key (ready to work - without data media)
Cardreader intern	Internal card reader (microSD + SD) in case
W-LAN Unit internal	W-LAN Karte 300 Mbit PCI-E intern
Office	LIBRE Open Office (pre-installed - ready to use)

16GB Crucial / TEAM / Samsung RAM DDR4 Memory

LIBRE Open Office (pre-installed - ready to use)

LibreOffice is a powerful office suite. It offers a clear interface and powerful tools.

LibreOffice bundles several applications: Word processor, spreadsheet, presentation program, drawing program, database, formula editor. This makes it the most attractive free office suite on the market.

W-LAN Karte 300 Mbit PCI-E intern

A-Dis (ELITE U9) 2x USB 3.0, SD Cardreader in Front

Internal card reader (microSD + SD) in case

Biostar Radeon RX550 4GB GDDR5 (VA5515RF41)

Windows 11 64Bit Professional installed activated digital key (ready to work - without data media)

Performance Marken CPU Kühler Quality Silent

1000GB M.2 NVME High Performance PCIe SSD

onBoard Sound

onBoard Sound incl. 5.1 or 7.1 look at Ports Layout Plan

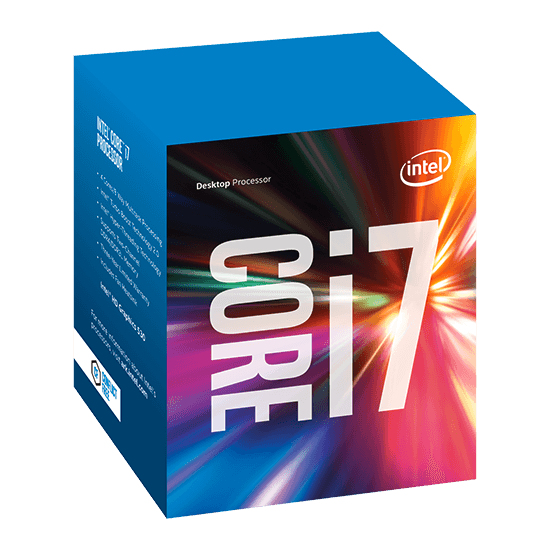

Intel Core i7-7700 4x 3,6 GHz (CM8067702868314)

The Last Word in PC Performance
More power, more battery-life, and more high-quality entertainment – with the Intel® Core™ i7 processor, you get more of what makes a PC great.

Equipped with Intel® Turbo Boost Technology 2.0 , your PC will have the unprecedented power and responsiveness to help your productivity soar. Smooth streaming and HD entertainment enable immersive, full screen 4K and 360 experiences for incredibly vivid gaming and remarkable viewing. Plus, you will wield the power to create, edit, and share 4K content – all with the lightning speed data transfers of Thunderbolt™ 3. It’s PC performance and versatility like never before.

The Speed You Need
Equipped with rapid responsiveness, the 7th generation Intel® Core™ processor has the power and speed to keep up with your demands. Open files and programs quickly, plus seamlessly switch between applications and web pages without delay.

Immersive Entertainment
Experience ultra high-definition content with the clarity and sharpness of 4K resolution. Featuring 4x more pixels than full HD screens, you’ll get crisper, clearer images for an immersive viewing like never before.

Hassle Free
Today’s PCs are more hassle-free than ever – log in quickly and easily with facial recognition technology, get 0.5 second wake, and never feel weighed down with new razor-thin devices.

Processor

Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	7th gen Intel® Core™ i7
Processor model	i7-7700
Processor base frequency	3.6 GHz
Processor cores	4
Processor socket	LGA 1151 (Socket H4)
Processor lithography	14 nm
Box	No
Cooler included	No
Component for	PC
Processor threads	8
System bus rate	8 GT/s
Processor operating modes	64-bit
Processor boost frequency	4.2 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Thermal Design Power (TDP)	65 W
Stepping	B0
Bus type	DMI3
Processor codename	Kaby Lake
Processor code	SR338
Processor ARK ID	97128
Generation	7th Generation

Memory

Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR4-SDRAM, DDR3L-SDRAM
Memory clock speeds supported by processor	1333,1600,2133,2400 MHz
Memory channels	Dual-channel
Memory voltage supported by processor	1.35 V
ECC	No

Graphics

On-board graphics card	Yes
On-board graphics card model	Intel® HD Graphics 630
Maximum on-board graphics card memory	64 GB
On-board graphics card outputs supported	DisplayPort, Embedded DisplayPort (eDP), HDMI
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
Number of displays supported (on-board graphics)	3
On-board graphics card 4K support	Yes
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card maximum resolution (DisplayPort)	4096 x 2304 pixels
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)	4096 x 2304 pixels
On-board graphics card maximum resolution (HDMI)	4096 x 2304 pixels
On-board graphics card refresh rate at maximum resolution (DisplayPort)	60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)	60 Hz
On-board graphics card refresh rate at maximum resolution (HDMI)	24 Hz
On-board graphics card ID	0x5912

Features

Execute Disable Bit	Yes
Idle States	Yes
Thermal Monitoring Technologies	Yes
Market segment	Desktop
Maximum number of PCI Express lanes	16
PCI Express slots version	3.0
PCI Express configurations	1x16, 2x8, 1x8+2x4
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Scalability	1S
CPU configuration (max)	1
Embedded options available	Yes
Thermal solution specification	PCG 2015C
PCI Express CEM revision	3.0
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G077159

Processor special features

Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Turbo Boost Technology	2.0
Intel® Quick Sync Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel Trusted Execution Technology	Yes
Intel® Memory Protection Extensions (Intel® MPX)	Yes
Intel® Turbo Boost Technology 2.0 frequency	4.2 GHz
Intel® Transactional Synchronization Extensions	Yes
Intel® Boot Guard	Yes
Intel® Optane™ Memory Ready	Yes
Conflict-Free processor	Yes
Intel TSX-NI version	1.00
Intel Identity Protection Technology version	1.00
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel Secure Key Technology version	1.00
Intel TSX-NI	Yes
Intel 64	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Clear Video Technology	Yes
Intel® OS Guard	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel® Secure Key	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel Enhanced Halt State	Yes
Intel® vPro™ Platform Eligibility	Yes

Operational conditions

Tjunction

100 °C

Technical details

Processor cache	8192 KB
Supported memory types	DDR4-SDRAM, DDR3L-SDRAM
Maximum graphics card memory	64 GB
Product type	Processor
Maximum memory	64 GB
Bus speed	8 GT/s
Product family	7th Generation Intel Core i7 Processors
Last change	63903513
Processor brand name	7th Gen Intel Core i7 processors
Maximum resolution & refresh rate (HDMI)	4096x2304@24Hz
Status	Launched
Maximum resolution & refresh rate (Integrated Flat Panel)	4096x2304@60Hz
Maximum resolution & refresh rate (DisplayPort)	4096x2304@60Hz
Launch date	Q1'17
Bus type units	GT/s
Bus bandwidth	8
Processor ID	0x5912

Logistics data

Harmonized System (HS) code

85423119

Packaging data

Package type

Retail box

Weight & dimensions

Processor package size

37.5 x 37.5 mm

Other features

Maximum internal memory	64 GB
Maximum internal memory	65536 MB
Video decoding	Yes

PSU built with Case internal Silent

PSU / Netzteil im Case verbaut / inside Case

Brenner DVD Super Multi DL Writer Schwarz

onBoard LAN

Fujitsu ESPRIMO P557 D3500-A11 GS 1

Nicht warten - einfach finanzieren!

Bezahlen Sie schnell und unkompliziert in kleinen Monatsraten. Einfach Artikel auswählen, zur Kasse gehen und mit der Zahlungsart "Finanzierung" die Ware bezahlen.
Weitere Details

Mögliche Laufzeiten:

Laufzeit in Monaten	Monatlich Rate	Effektiver Jahreszins	Gebundener jährl. Sollzinssatz	Gesambetrag
6	6×28,95 EUR	9,9 %	9,48 %	173,70 EUR
10	12×17,64 EUR	9,9 %	9,48 %	176,43 EUR
12	12×14,82 EUR	9,9 %	9,48 %	177,80 EUR
18	18×10,11 EUR	9,9 %	9,48 %	181,96 EUR

Diese Angaben stellen zugleich das repräsentative Beispiel im Sinne des § 6a PangV dar. Vermittlung erfolgt ausschließlich für die Commerz Finanz GmbH, Schwanthalerstr. 31, 80336 München.

Mainboard connectors PC connectors on the back
(monitor/graphics card connectors are disabled if a VGA/GPU graphics card is installed additionally)

PS/2

LAN

DVI-D

Display Port

USB 2.0

USB-A 3.0 Mainboard

Graphics card / monitor connections

DVI-D

HDMI

Display Port

Front connections front side / top of the case

Audio In/Out

USB-A 3.0

Cardreader *

Expansion cards - PCI / PCIe

W-LAN

These connection options have been generated for you. In individual cases, deviations are possible.

PDF download

01_Office_PC_ohne_dGfx_Datenblatt_zum_Energieverbrauch

Intel Core i7

Intel has continuously refined and improved the Core i7 processors over the years. They offer fast and efficient instruction processing and advanced features that make them a good choice for gamers, professionals and enthusiasts alike.
